Boerkey Hercules 35 Roller Skates Kit
35 tons Heavy Load Roller Skates Transport Kit
| Capacity (tn) | 35 ton |
| Capacity (kN) | 350 kN |
| Roller Diameter | 24 mm |
| Twin roller Dia. | 30 mm |
| Height | 110 mm |
| Sizes [L x W] | 200 x 130 mm |
| Turntable diam. | 250 mm |
| Kit weight | 68 kg |
| Transport | Short distance |
| Made in | Germany |
| Manufacturer | Boerkey GmbH |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
35 Ton Heay Load Transport Kit : Model Hercules
With the Hercules you do noit have to waste time by assembling the unit and the low level contributes to safer working conditions
The Hercules makes it easier and safer to move heavy loads. 24 and 30mm diameter rollers in the chain are available.

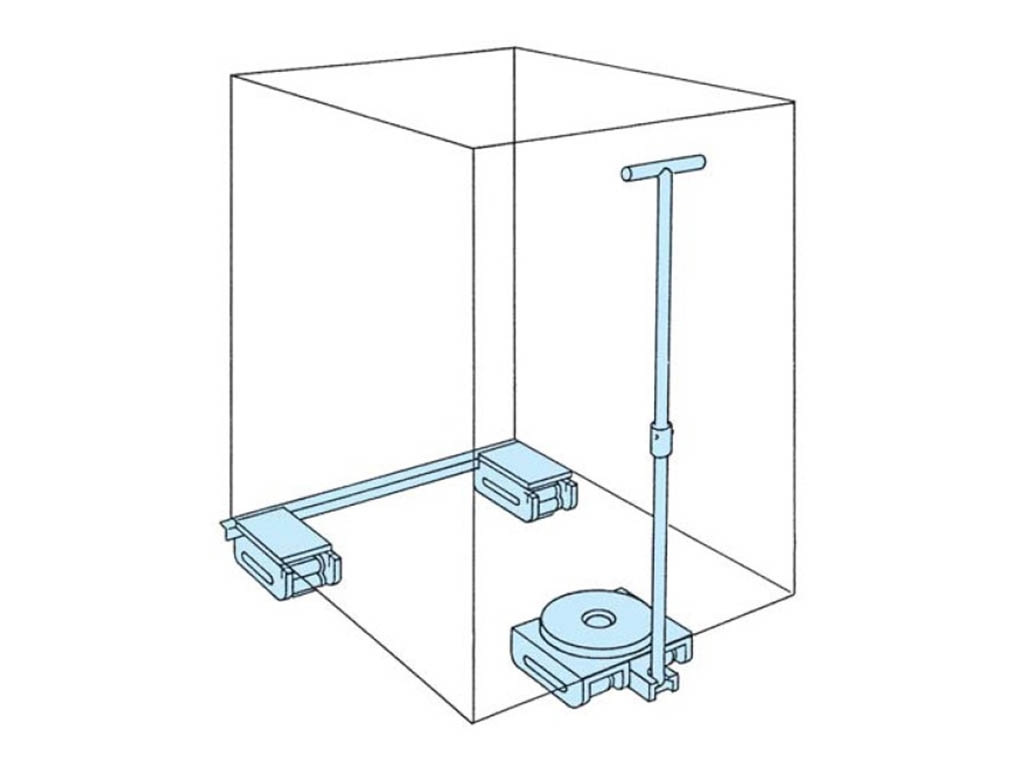

This turntable is larger than the one in the transport Kit N . For larger loads we recommend the use of a second twin Skater Roller with one turntable in the front and two normal Roller Skates as a stabiliser at the back
- For short transport routes
- Transport medium loads, e.g. in ovens, technical equipment, for concrete formwork, in storage technology
- Can be welded to the load
- Can be used with the smallest installation dimesions
Product technical specificationsTechnical Specifications
35 Ton Roller Skates Heavy Load Transport Kit
| Kod | Capacity | Length | Witdh | Height | Roller Diam. | Twin Roller Diam. | Turntable Diam. | Weight | |
| # | ton | kN | mm | mm | mm | ø mm | ø mm | ø mm | Kg |
| HERCULES35 | 35 | 350 | 210 | 130 | 110 | 24 | 30 | 250 | 68 |

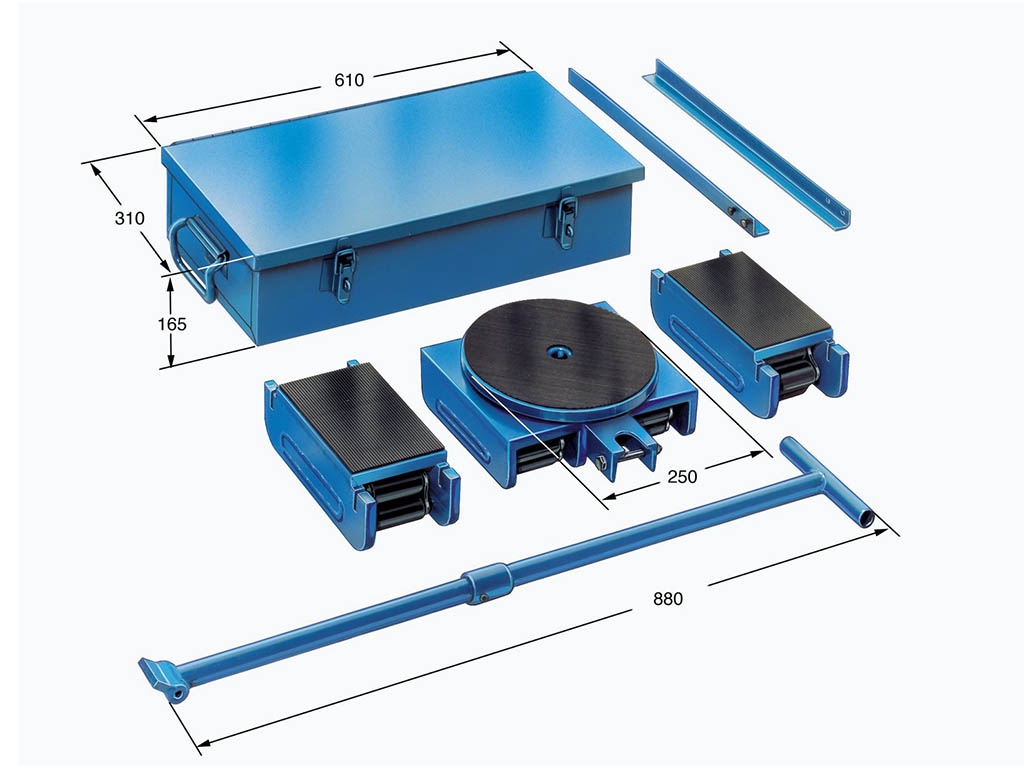

The transport kit contains following items:
- 1 x Twin Skate Roller with fitted turntable
- 2 x Roller Skates with fittes top plates
- 1 x handle
- 1 x link-up bar
- 1 x metal box
