Hazet 4903/2 A Spring Compressor
Universal Spring Vice [1500kg]
| Model | 4903/2 A |
| Pressing Capacity | 1500 kg |
| Maximum Span | 309 mm |
| Maximum Length | 860 mm |
| Set Includes | 4900-2 A, 4903-1 |
| Suitable Pneumatic Tool | 9012 EL-SPC, 9012 MT |
| Suitable Impact Socket | 900 S-27, 900 S Lg-27 |
| Opt. Working Height | 130 cm |
| Working Position | Horizontal and Vertical (rotates 90°) |
| Weight | 23,5 kg |
| Brand / Origin | Hazet / Germany |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Pressing capacity 1500 kg (15 kN)
- Maximum span 309 mm
- Maximum length 860 mm
- Suitable for all vehicle coil springs
- Horizontal-vertical working position
- Optimum working height 130 cm
- No overloading of shock absorbers
- Simple, lockable strut mount
- Allows record keeping by scaling
- Hazet brand, German origin, GS certified
Product technical specificationsTechnical Specifications
Hazet 4903 Universal Shock Absorbers
| Model | Unit | 4903/2 A | 4903/4 |
| Pressing Capacity | kg | 1500 | 1500 |
| Maximum Span | mm | 309 | 309 |
| Maximum Length | mm | 860 | 860 |
| Set Includes | ** | 4900-2 A, 4903-1 | 4900-2 A, 4903-1, 4903-2, 4903-3 |
| Suitable Pneumatic Tool | Hazet | 9012 EL-SPC, 9012 MT | |
| Suitable Impact Socket | Hazet | 900 S-27, 900 S Lg-27 | |
| Opt. Working Height | cm | 130 | |
| Working Position | ** | Horizontal and Vertical (rotates 90°) | |
| Weight | kg | 23,5 | 66 |
| Safety Certificate - GS | ** | Available | |
| Brand | ** | Hazet | |
| Origin | ** | Germany | |
Basic support 4903-1 including safety spring vice basic unit 4900-2 A
Product information
- Increased safety – thanks to load-free installation
- The perfect starter kit for the installation and removal of MacPherson struts, given that the spring vice basic unit 4900-2 A does not exist yet
- 2-piece set, contents:
- 4900-2 A safety spring vice basic unit
- 4903-1 basic support
- Can be used for almost any spring strut / shock absorber
- Load-free disassembly / assembly with completely relieved shock absorber
- Net weight: 23.47 kg
Innovative socket and installation concept
- Swivels in horizontal or vertical working position,Hazet recommends ergonomic working height: adjust vertically, operate horizontally
- Damage to shock absorbers and head plates impossible(no overload risk)
- Simple, lockable strut mount
High safety
- Consistently reliable mounting of head plates
- Thread damage to piston rod impossible
- Permanent fixation of spring throughout operation
Secured investment – by using existing components of SYSTEM 4900
- Existing basic units 4900-2A and all tensioning jaws of System 4900 may be used
- Use of future applications is assured
Allows record keeping by scaling
- If recurring, significant time savings by scaling
- Firm fixation eliminates readjustment at the same spring strut (left / right)

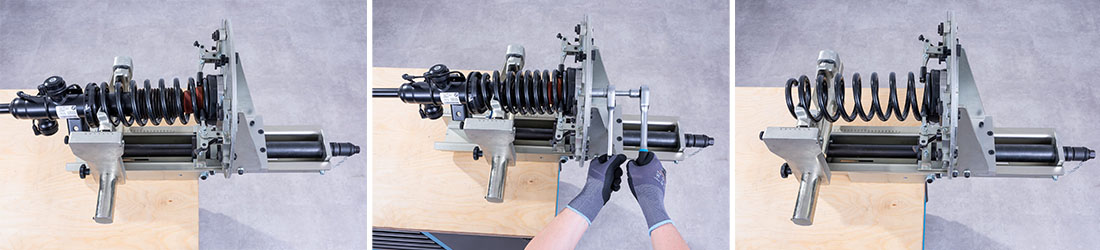

4 steps to success:
1. Fix spring strut on clamping disc via gripper and brakes
2. Grip spring with universal tensioning jaw
3. Operate tensioning device with reversible ratchet, cordless screwdriver or air ratchet
4. Disassemble shock absorber without load and install new one(afterwards in reverse order)
Spare Parts
| 4900-2 A Safety Spring Vice | 4903-1 Including Safety Adapter | 4903-2 Universal Clamping Disc | 4903-3 Universal Tensioning Jaw |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
4903/4 Stationary Universal Spring Vice
Product information
- Increased safety – thanks to load-free installation
- The perfect complete package
- 4 pieces, contents:
- 4900-2 A safety spring vice basic unit
- 4903-1 basic support
- 4903-2 universal clamping disc, adjustable
- 4903-3 universal tensioning jaw, adjustable, safety adapter included
- Can be used for almost any spring strut / shock absorber
- Load-free disassembly / assembly with completely relieved shock absorber
- Net weight: 66 kg
Innovative socket and installation concept
- Swivels in horizontal or vertical working position,Hazet recommends ergonomic working height: adjust vertically, operate horizontally
- Damage to shock absorbers and head plates impossible(no overload risk)
- Simple, lockable strut mount
High safety
- Consistently reliable mounting of head plates
- Thread damage to piston rod impossible
- Permanent fixation of spring throughout operation
Secured investment – by using existing components of SYSTEM 4900
- Existing basic units 4900-2A and all tensioning jaws of System 4900 may be used
- Use of future applications is assured
Allows record keeping by scaling
- If recurring, significant time savings by scaling
- Firm fixation eliminates readjustment at the same spring strut (left / right)
4 steps to success:
1. Fix spring strut on clamping disc via gripper and brakes
2. Grip spring with universal tensioning jaw
3. Operate tensioning device with reversible ratchet, cordless screwdriver or air ratchet
4. Disassemble shock absorber without load and install new one(afterwards in reverse order)
.jpg)
Hazet 4903 Universal Spring Vice Operating Instructions - PDF
