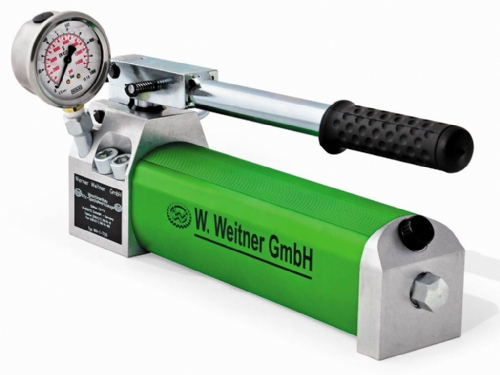

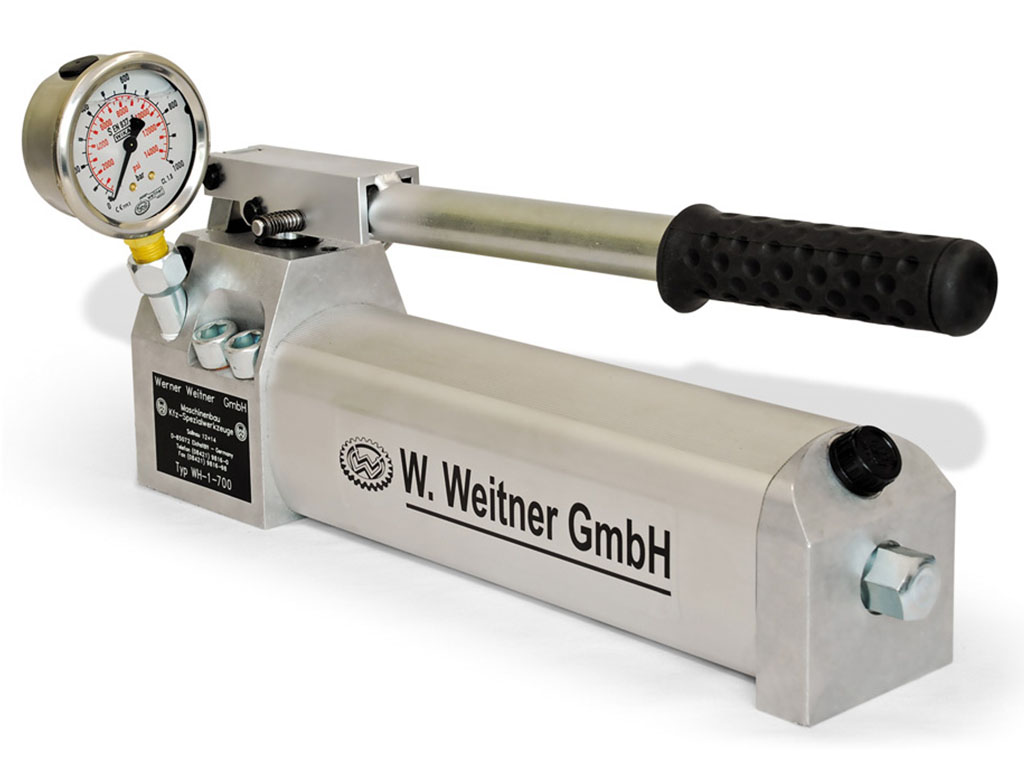

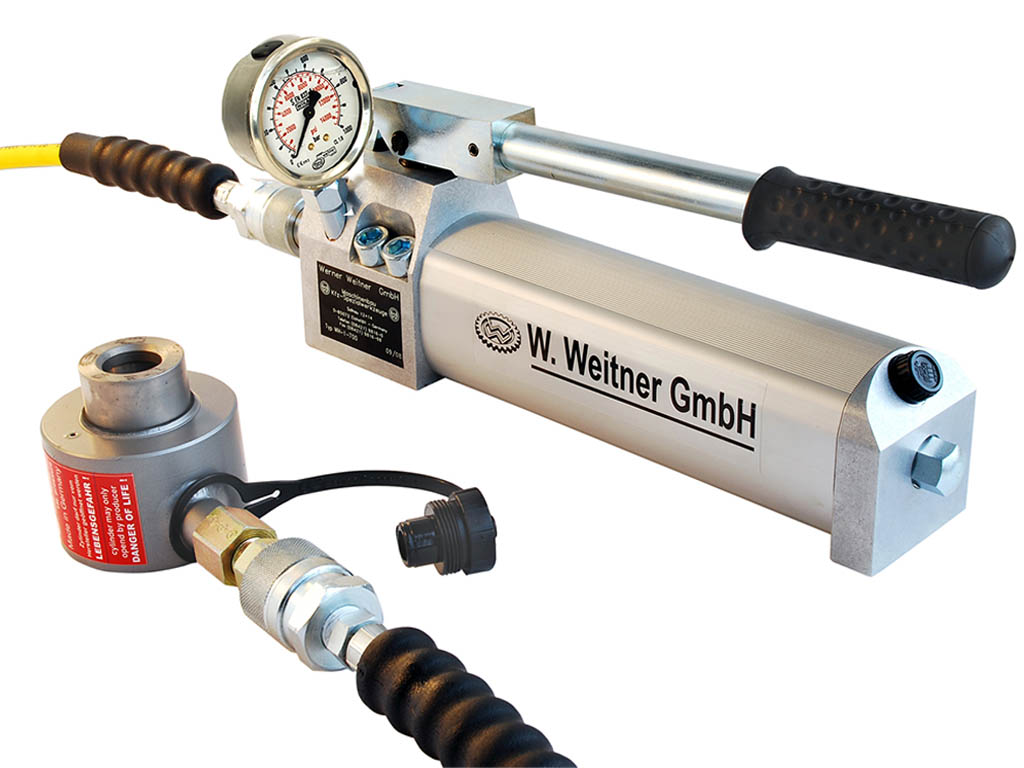

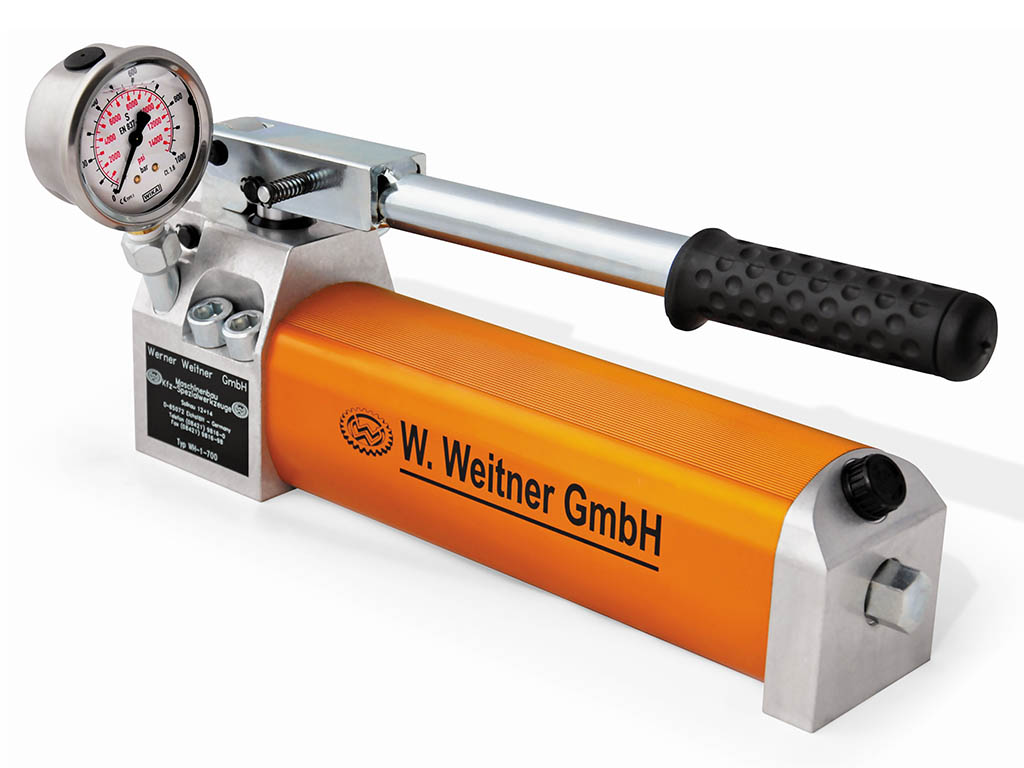

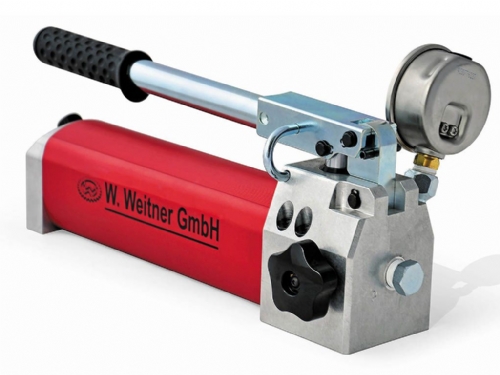

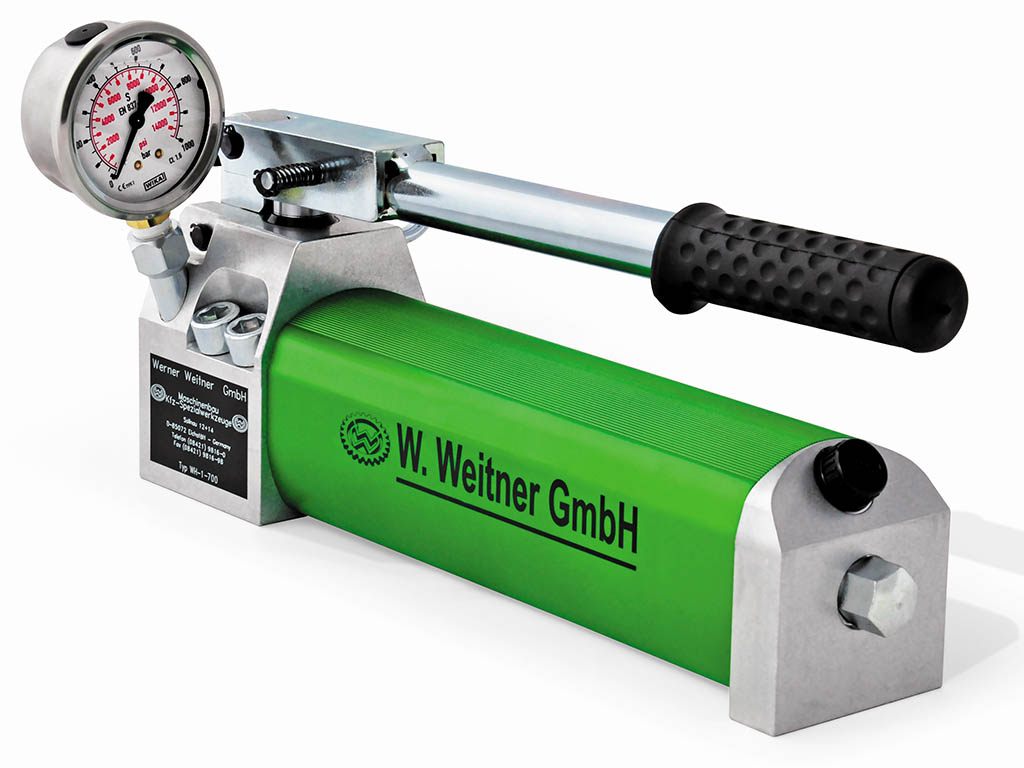

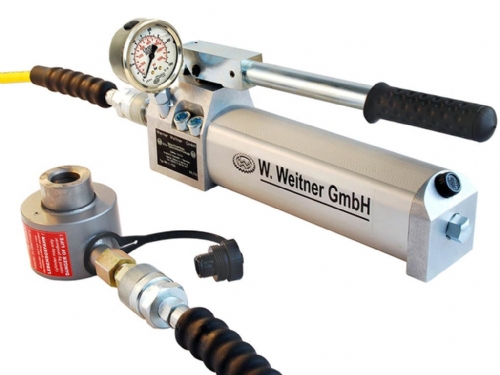

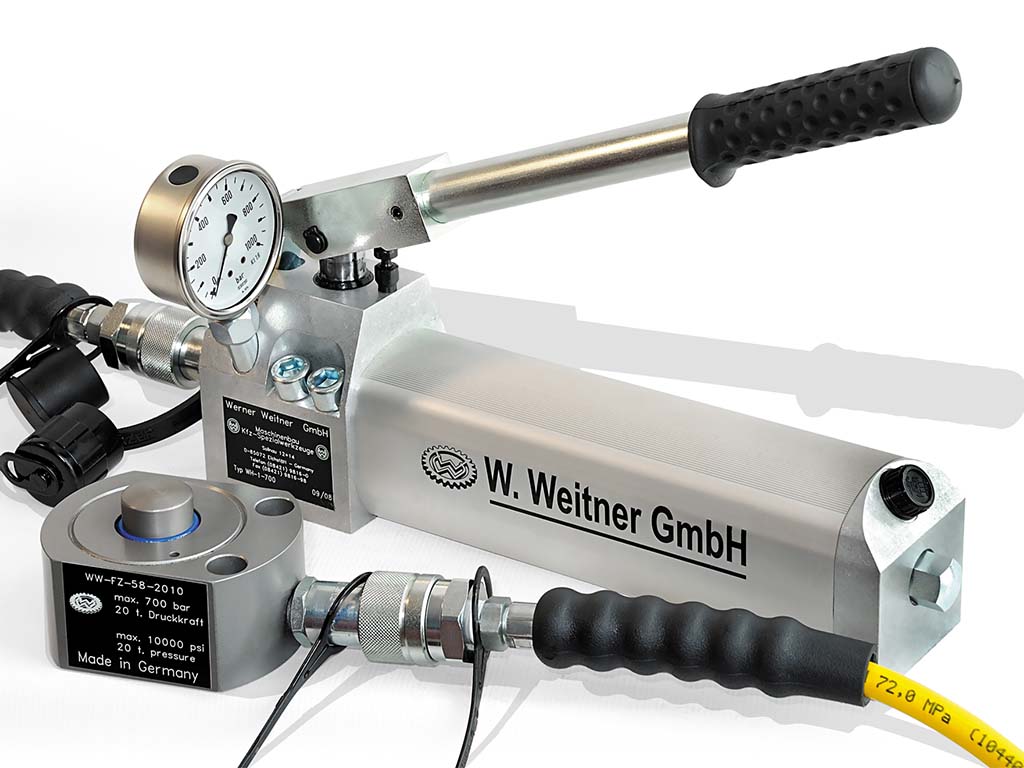

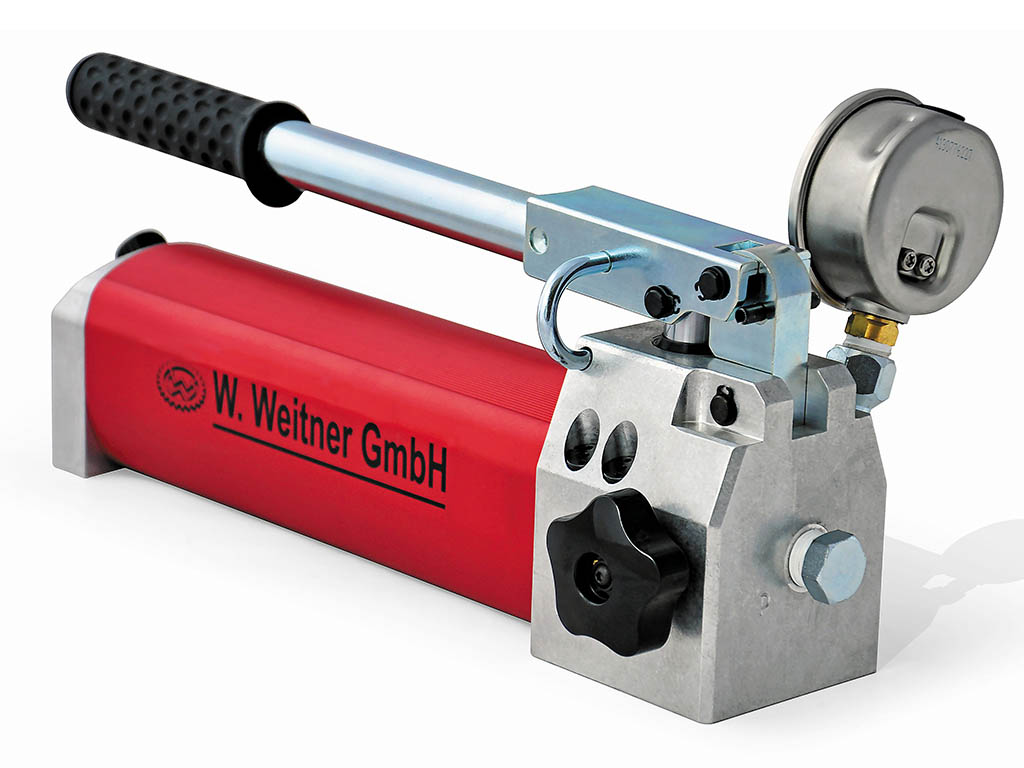

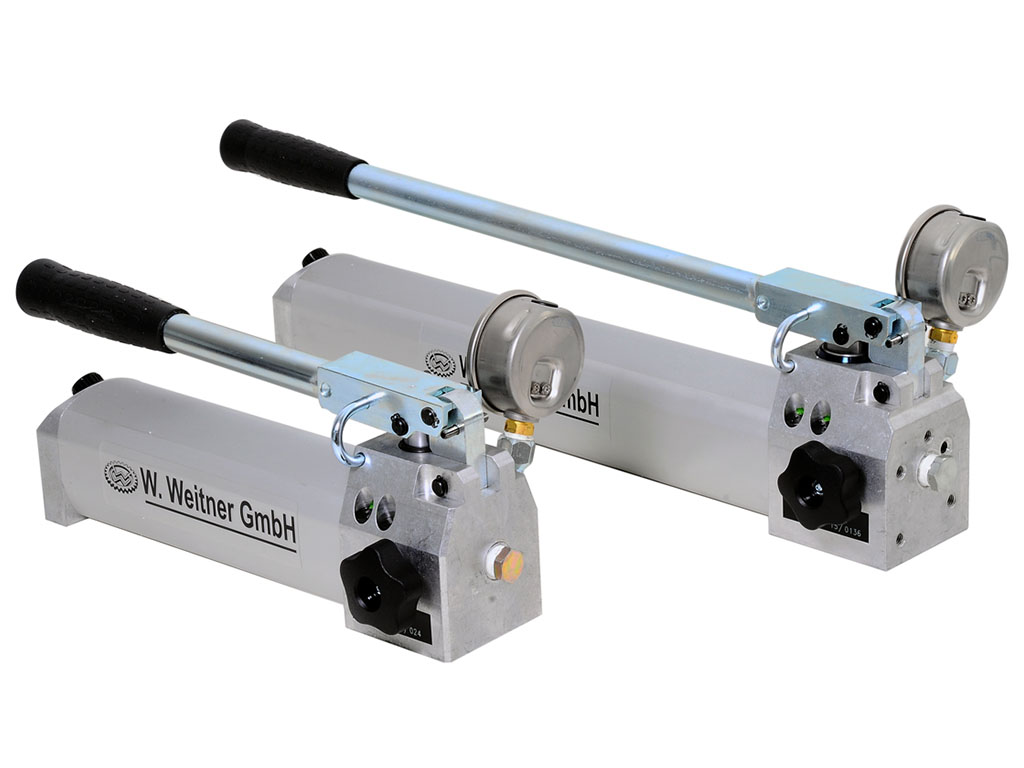

Weitner WH-4 Aluminum Hydraulic Hand Pump
700 Bar Double Speed Hand Pump - Oil Capacity 3.8 lt.
| Model Code | WH-4 |
| Working Pressure | 700 Bar |
| Usable Oil | 3.800 cm³ |
| Pump Type | Double Speed |
| Pressure Rating | 20 / 700 Bar |
| Oil Displa. Per Stroke | 17 / 1.7 cm³ |
| Handle Effort at 700 Bar | 47 kg |
| Pressure Output | 3/8” NPT Female |
| Pressure Gauge | ø63mm - 1000 Bar |
| Tool Weight incl. Oil | 10,5 kg |
| Tool Sizes | 588x186x171 mm |
| Brand / Origin | Weitner / Almanya |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Working pressure 700 bar
- Single acting, double speed
- Pressure rating 20 / 700 bar
- Lowest handle effort nedeed

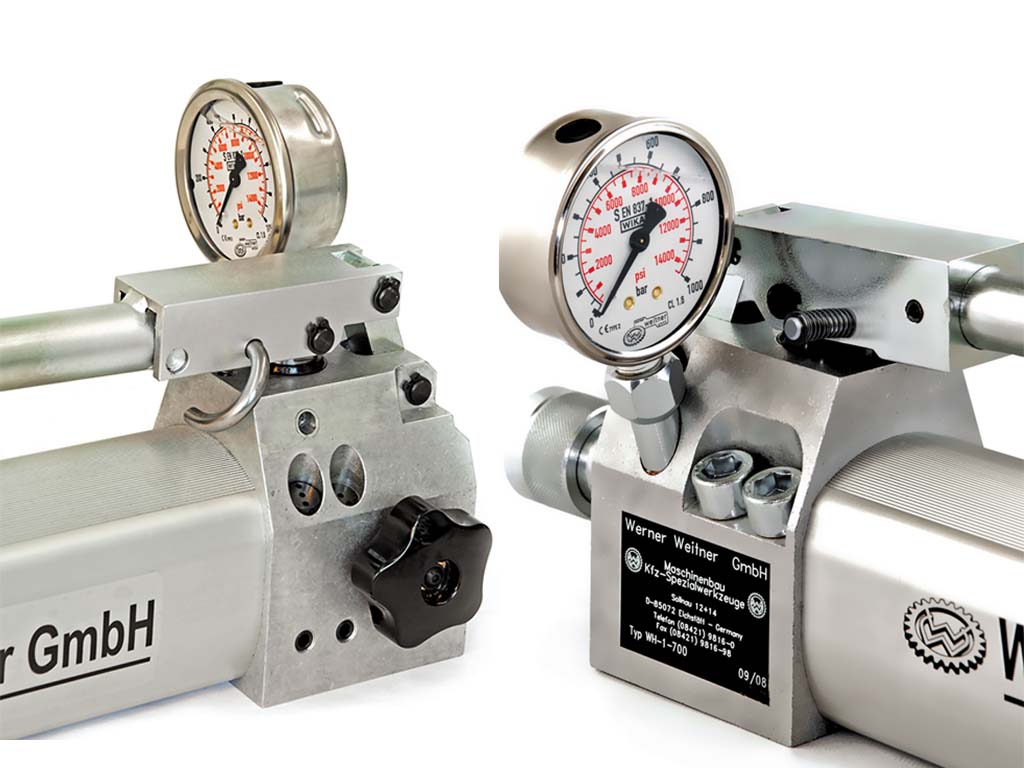

- Supplied with pressure gauge
- Equipped with pressure relief valve
- Does not exceed 700 bar pressure
- Pump head and tank made of Aluminum
- Light weight, portable and ergonomic
- Oil output port 3/8” NPT female thread
- Delivered with oil and ready for use
- Manufactured in Germany by Weitner
Product technical specificationsTechnical Specifications

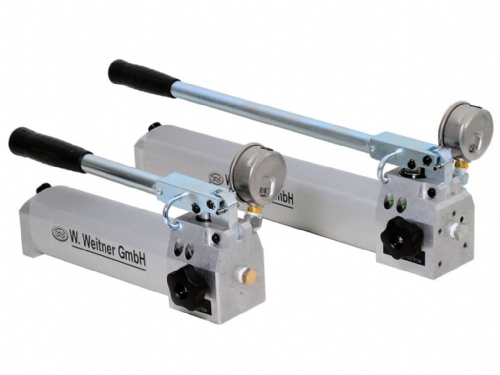

Werner Weitner WH Series Hydraulic Hand Pumps - 700 Bars
|
Technichal Data
|
|
WH-1
|
WH-2
|
WH-3
|
WH-4
|
|
Reservoir capacity
|
cm³
|
700
|
1300
|
2500
|
4800
|
|
Usable oil
|
cm³
|
500
|
900
|
1800
|
3800
|
|
Oil Displacement per stroke
|
cm³
|
7,2 / 0,9
|
17 / 1,7
|
17 / 1,7
|
17 / 1,7
|
|
Maximum Handle Effort at 700 bar
|
Kg
|
35
|
47
|
47
|
47
|
|
Piston Diameter
|
mm
|
20 / 07
|
32 / 10
|
32 / 10
|
32 / 10
|
|
Piston stroke
|
mm
|
23
|
23
|
23
|
23
|
|
Pressure Rating
|
Bar
|
20 / 700
|
20 / 700
|
20 / 700
|
20 / 700
|
|
Oil Port Thread
|
NPT
|
3/8”
|
3/8”
|
3/8”
|
3/8”
|
|
Total Weight incl. Oil
|
Kg
|
4,3
|
5,3
|
7,5
|
10,5
|
|
Sizes (LxWxH)
|
mm
|
353x150x171
|
564x150x171
|
588x186x171
|
588x186x171
|
Dimensions (in mm)
| Code |
A |
B |
C |
D |
E |
|
WH-1 |
353 |
150 |
171 |
335 |
290 |
|
WH-2 |
564 |
150 |
171 |
460 |
460 |
|
WH-3 - WH-30 |
588 |
186 |
171 |
460 |
538 |
|
WH-4 - WH-40 |
588 |
186 |
171 |
460 |
538 |
