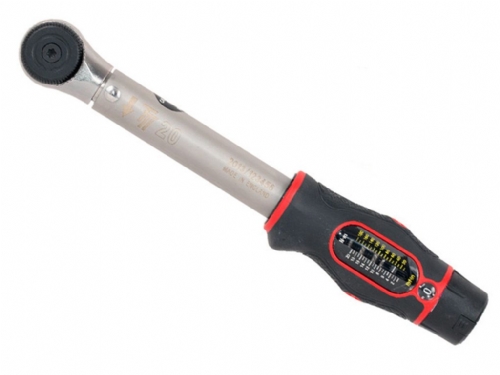

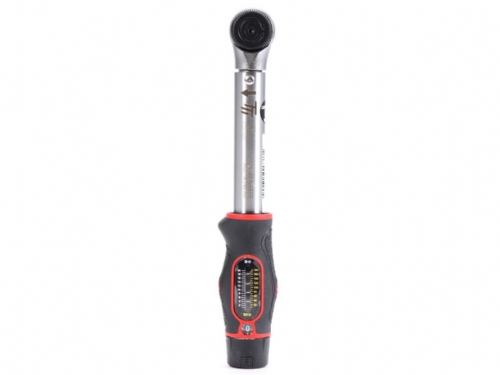

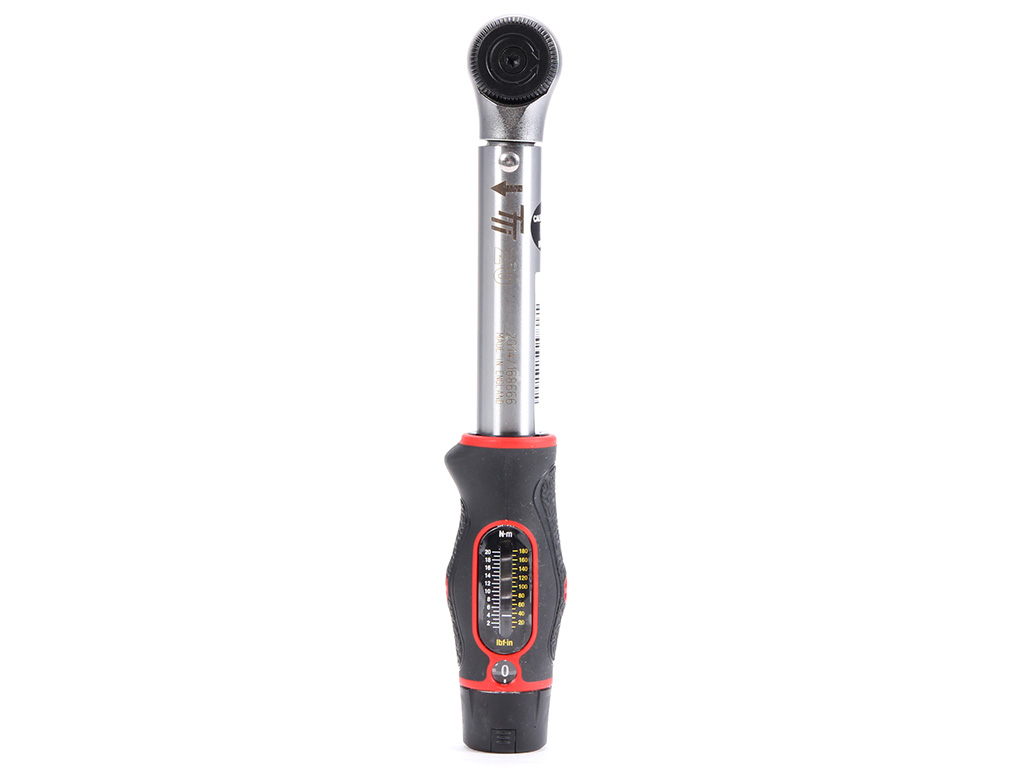

Norbar 13830 Torque Wrench
4 - 20 N.m Adjustable Torque Wrench, Accuracy ±%3, Drive 1/4“
| Part No | 13830 |
| Model | TTi20 |
| Accuracy | ±%3 |
| Torque Range | 4 - 20 N.m |
| Torque Range | 35 - 180 Lbf.in |
| Drive | 1/4" Square |
| Scale | N.m - Lbf.in |
| Operation Dir. | Clockwise & c.clockwise |
| Calibration | Supplied with the tool |
| Acr. calibration | Optional |
| Brand - Origin | Norbar - England |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Torque accuracy ±3%
- Torque ranges 4 – 50 N.m
- Torque ranges 8 - 35 Lbf.ft
- Torque ranges 35-180 Lbf.in
- Meets the requirements of ISO 6789-1:2017

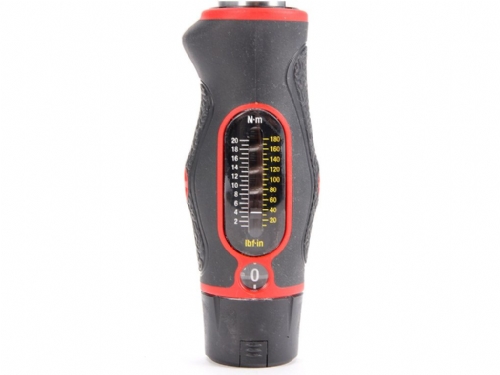

- Micrometer Scale for error free setting

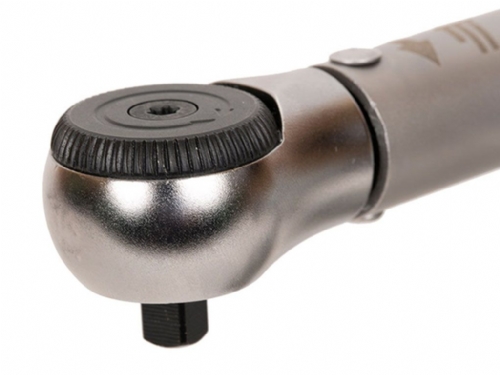

- 1/4” 3/8” 1/2” SD reversible ratchet
- Supplied with a Declaration of Conformance
- Delivered with Norbar house calibration certificate
- Origin UK, manufactured by Norbar, CE certified
Product technical specificationsTechnical Specifications
Norbar TT Series Automotive Type Torque Wrenches
The Norbar TTi Torque Wrenches are accurate, easy to set and are comfortable in use. They are finished in an attractive and durable satin chrome plate.
Adjustable Ratchet Dual Scale
| Norbar | Model | Torque Ranges | Square Drive | Tolerance | Teeth | Opening Angle | Length | Weight | ||
| N.m | lbf.in | lbf.ft | inch | % | # | ° | mm | kg | ||
| 13830 | TTi20 | 4-20 | 35-180 | * | 1/4" | ±3% | 72 | 5° | 232 | 0.5 |
| 13831 | TTi20 | 4-20 | 35-180 | * | 3/8" | ±3% | 72 | 5° | 232 | 0.5 |
| 13841 | TTi50 | 10-50 | * | 8-35 | 3/8" | ±3% | 72 | 5° | 328 | 0.7 |
| 13842 | TTi50 | 10-50 | * | 8-35 | 1/2" | ±3% | 72 | 5° | 328 | 0.7 |
Adjustable Ratchet N.m Scale
| Norbar | Model | Torque Ranges | Square Drive | Tolerance | Teeth | Opening Angle | Length | Weight | ||
| N.m | lbf.in | lbf.ft | inch | % | # | ° | mm | kg | ||
| 13832 | TTi20 | 4-20 | * | * | 1/4" | ±3% | 72 | 5° | 232 | 0.5 |
| 13833 | TTi20 | 4-20 | * | * | 3/8" | ±3% | 72 | 5° | 232 | 0.5 |
| 13843 | TTi50 | 10-50 | * | * | 3/8" | ±3% | 72 | 5° | 328 | 0.7 |
| 13844 | TTi50 | 10-50 | * | * | 1/2" | ±3% | 72 | 5° | 328 | 0.7 |
Adjustable Ratchet lbf.ft Scale
| Norbar | Model | Torque Ranges | Square Drive | Tolerance | Length | Teeth | Opening Angle | Weight | ||
| N.m | lbf.in | lbf.ft | inch | % | mm | # | ° | kg | ||
| 13834 | TTi15 | * | 35-180 | * | 1/4" | ±3% | 72 | 5° | 232 | 0.5 |
| 13835 | TTi15 | * | 35-180 | * | 3/8" | ±3% | 72 | 5° | 232 | 0.5 |
| 13845 | TTi35 | * | * | 8-35 | 3/8" | ±3% | 72 | 5° | 328 | 0.7 |
| 13846 | TTi35 | * | * | 8-35 | 1/2" | ±3% | 72 | 5° | 328 | 0.7 |
Fixed Head Adjustable
| Norbar | Model | Torque Ranges | Square Drive | Tolerance | Length | Weight | ||
| N.m | lbf.in | lbf.ft | inch | % | mm | kg | ||
| 13836 | TTi20 | 4-20 | 35-180 | * | 3/8" | ±3% | 225 | 0.5 |
| 13837 | TTi20 | 4-20 | * | * | 3/8" | ±3% | 225 | 0.5 |
| 13838 | TTi15 | * | 35-180 | * | 3/8" | ±3% | 225 | 0.5 |

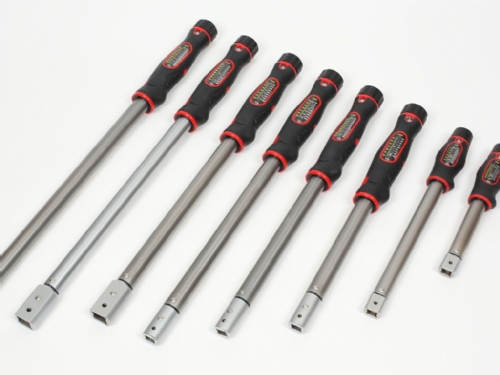

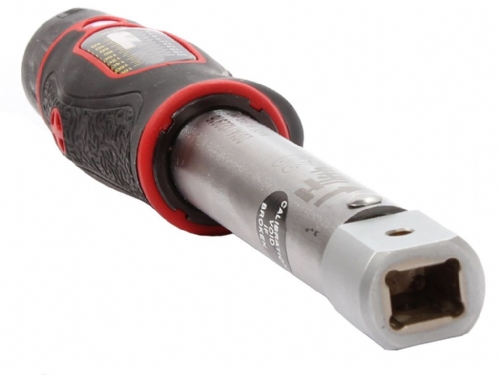

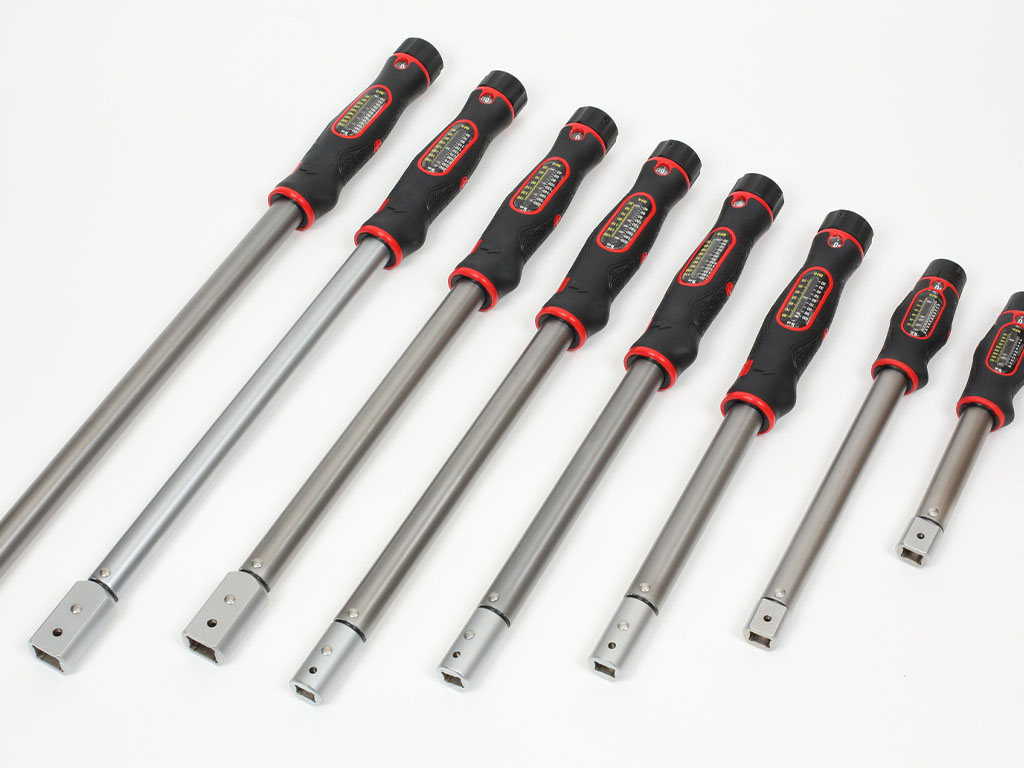

Female Torque Handle Adjustable
| Norbar | Model | Torque Ranges | Square Drive | Tolerance | Length | Weight | ||
| N.m | lbf.in | lbf.ft | inch | % | mm | kg | ||
| 13839 | TTi20 | 4-20 | 35-180 | 9x12 | ±3% | 214 | 0.4 | |
| 13847 | TTi50 | 10-50 | * | 8-35 | 9x12 | ±3% | 310 | 0.6 |
| 13840 | TTi20 | 4-20 | * | * | 9x12 | ±3% | 214 | 0.4 |
| 13848 | TTi50 | 10-50 | * | * | 9x12 | ±3% | 214 | 0.6 |
Norbar TTi Series Torque Wrenches - PDF
