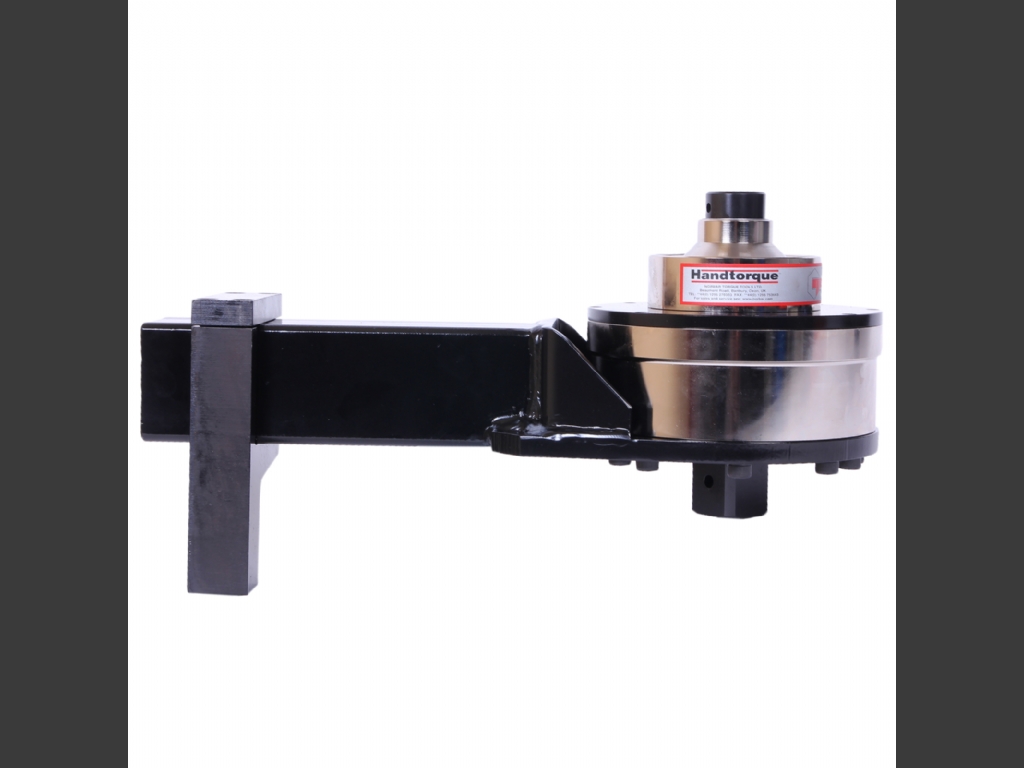

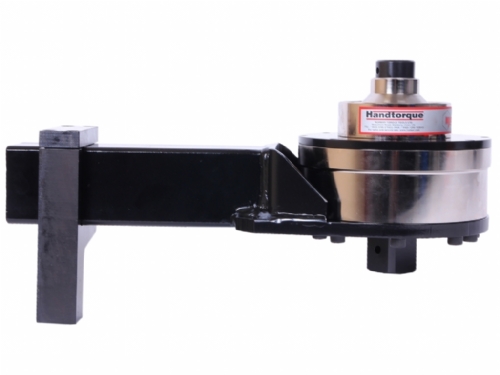

Norbar 16049 Torque Multiplier

20000 N.m Torque Multiplier, Ratio 125:1, Input 1/2“, Output Square Drive 2.1/2“

Product Code 16049
Capacity (max) 20000 N.m
Capacity (min) 2000 N.m
Ratio 125:1
Accuracy ±4%
Input square 1/2"
Output square  2.1/2"
Tool weight 32.1 kg
AWUR Yes
Accredited calibration Available on option
Manufactured In England
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

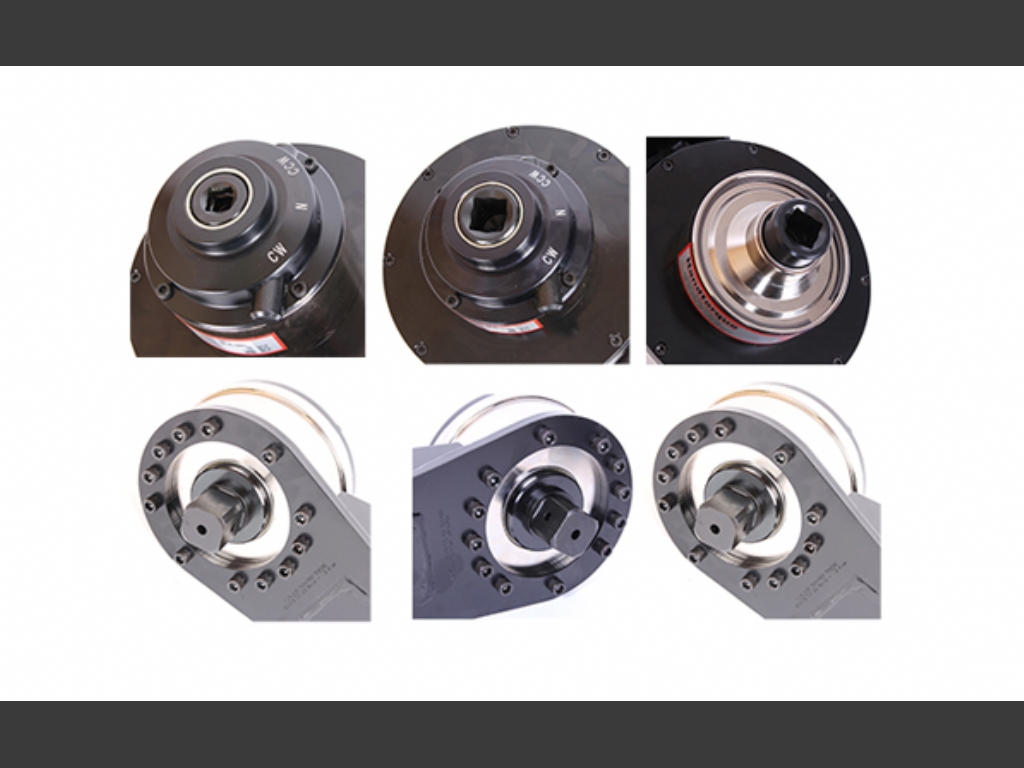

General product informationFeatures

  • Accuracy  guaranteed better than ±4%,
  • 7 different models between 950 – 47500 Nm
  • 25:1 - 125:1 torque multiplication range
  • Single and multi-stage planet gear system
  • Suitable for clockwise and counter clockwise
  • Small, compact and aesthetics desing
  • High ratios allow the use of a small torque wrench
  • Robust construction, dont need maintenance
  • Anti Wind-Up Ratchet (AWUR) fitted to allow safer
  • Heavy duty is ideal for inclusion in the tool kit
  • UKAS accredited calibration may be ordered

Kit Components

  • 1x Torque multiplier
  • 1x Sliding type reaction foot
  • 1x Replacement Square Drive
  • 1x Instruction Manual
  • 1x Plastic carry case

Product technical specificationsTechnical Specifications

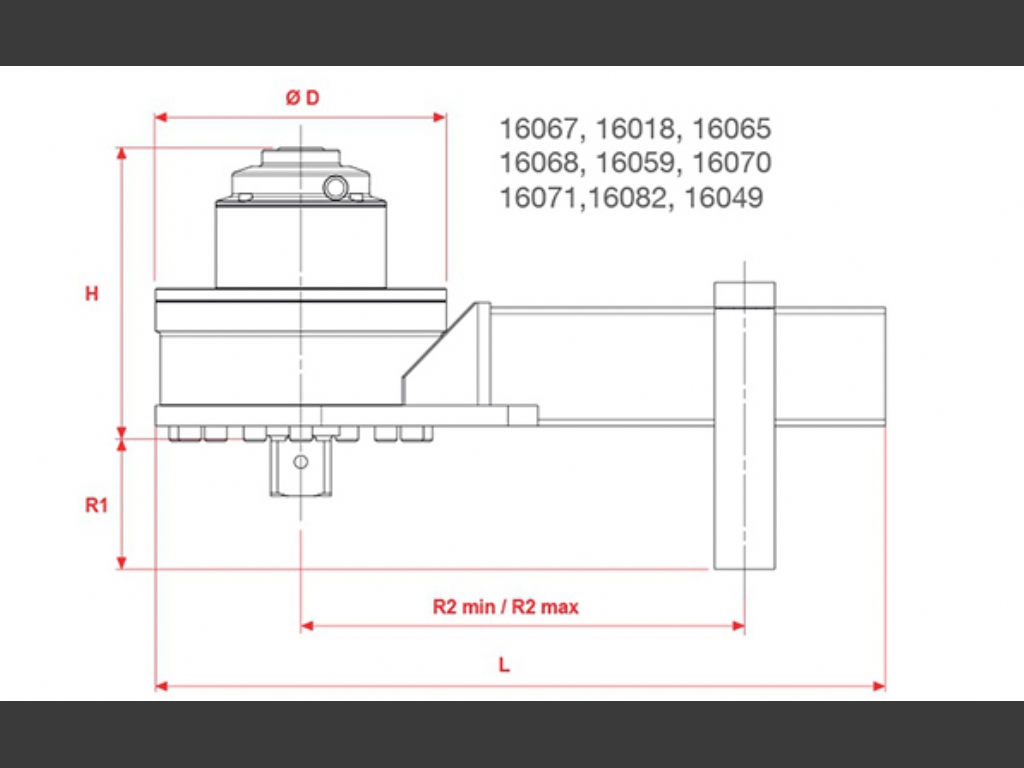

Part Torque Range Ratio Locked Input Square Output Square Weight Sizes (mm)
No. N.m Lbf.ft # # Inch Inch Kg H L R2 min. R2 max
⇒16059 950-9500 700-7000 25:1 - 3/4” 1.1/2” 16.3 166 448 175 351
⇒16070 950-9500 700-7000 25:1 AWUR 3/4” 1.1/2” 17.4 162 448 175 351
⇒16071 950-9500 700-7000 125:1 AWUR 1/2” 1.1/2” 18.9 182 448 175 351
⇒16082 2000-20000 1470-14700 25:1 - 3/4” 2.1/2” 31.7 208 609 320 500
16049 2000-20000 1470-14700 125:1 AWUR 1/2” 2.1/2” 32.1 235 609 320 500
⇒18085 3400-34000 2500-25000 87.5:1 AWUR 3/4” 2.1/2” 41.5 281 325 - -
⇒16053 4750-47500 3500-35000 125:1 AWUR 3/4” 2.1/2” 95.2 322 341 - -

AWUR : Anti Wind Up Ratchet (Return Lock System).

±4%
2.1/2"
Norbar
125:1
Low Height
