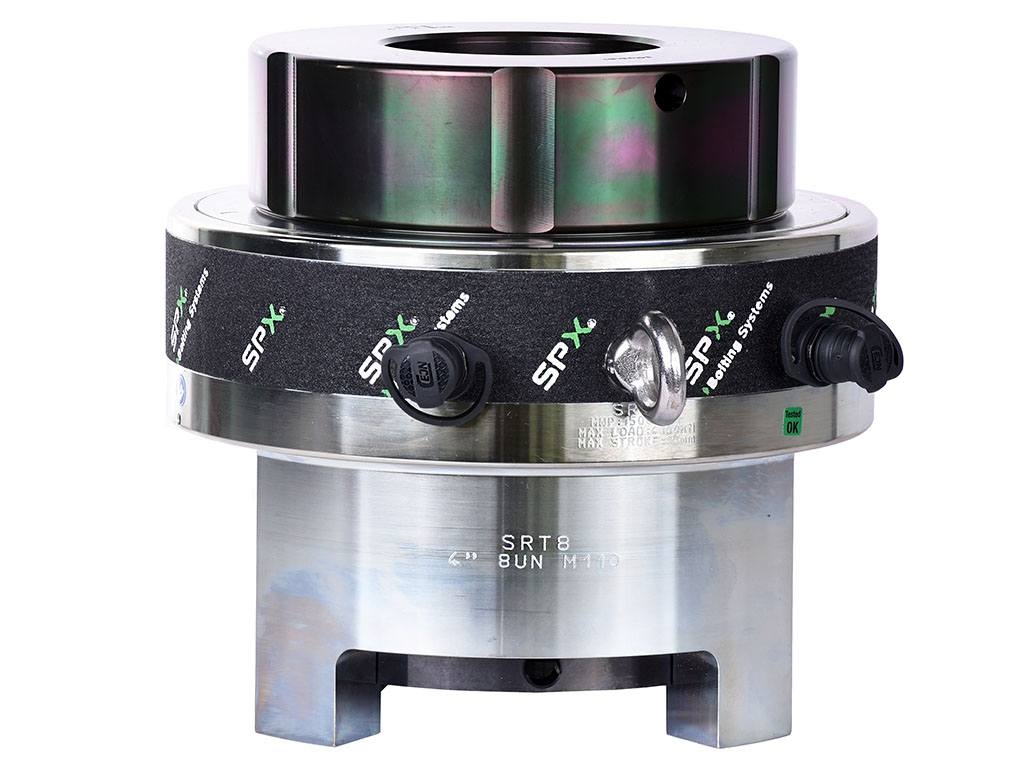

SPX Flow SRT8 SRTAS080001
Hydraulic Bolt Tensioner
4.100 k.N [M105-M115] 4“ - 4.1/2“ Spring Return
| SPX Code | SRTAS080001 |
| Work. Pressure | 1500 Bar |
| Load Cell | Spring return |
| Capacity (tn) | 410 Ton |
| Capacity (k.N) | 4100 k.N |
| Bolt Metric | M105 - M115 |
| Bolt Inches | 4" - 4.1/2" inch |
| Tool Stroke | 10 mm |
| Hydraulic Area | 273,40 cm² |
| Out. Diam. | 282 mm |
| Tool Weight | 45 kg |
| Brand -Origin | SPX Flow - USA |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Load capacity range 160 ~ 4.100 k.N
- Load capacity range 35.971 ~ 921.762 Lbf
- Bolt coverage metric from M20 ~ M115
- Bolt coverage imperial from 3/4” ~ 4.1/2”
- Spring return 1500 bar hydraulic system
- Piston stroke 10 mm with stroke indication
- Piston/cylinder misalignment compensation
- Twin couplings for multiple tool connection
- Unique quick release bridge adaptation
- Over stroke eliminator to prevent over stroking
- Desingned to fit BS1560/ANSI B16.5/API flanges
.jpg)
Product technical specificationsTechnical Specifications

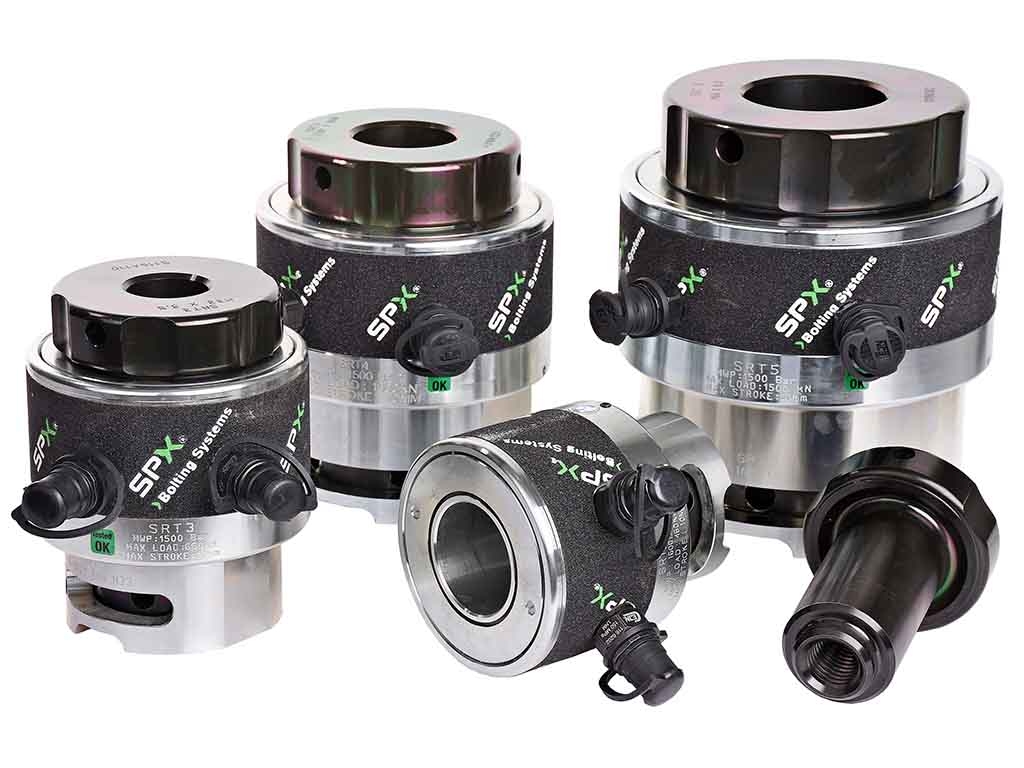

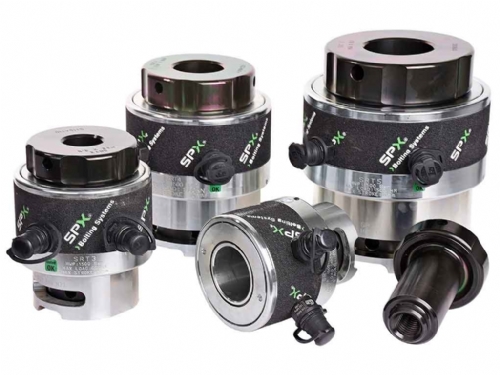

SPX Flow SRT Series Spring Return Bolt Tensioners
The Spring Return design dramatically increases productivity and safety on the job site when compared to older technology manual return tensioners.
Max tool pressure: 1,500 bar (21,750 psi)
Bolt protrusion above nut: 1 x bolt diameter
Compatibility: Compatible with MRT Tensioner range
Over Stroke: Piston over-stroke eliminator to prevent over stroking and blowing a seal
Fully enclosed load cell design eliminates entry of debris into piston retraction mechanism
| Model | Capacity | Bolt size | Nut A/F | Thread Pitch | Hydraulic area | Out. Dia. | B | C | D | E | F | G | Weight | |
| No | k.N | metric | Adaptor No. | mm | # | cm² | mm (A) | mm | mm | mm | mm | mm | mm | kg |
| SRT8 SRTAS080001 |
4100 | M105 | SRTAS080010 | 150 | 6.0 | 273,40 | 282 | 199 | 210 | 378 | 114 | 114 | 195 | 45 |
| M110 | SRTAS080012 | 155 | 6.0 | 273,40 | 282 | 199 | 210 | 383 | 114 | 114 | 197 | 45 | ||
| M115 | SRTAS080014 | 165 | 6.0 | 273,40 | 282 | 205 | 224 | 394 | 120 | 114 | 208 | 45 | ||
| Imperial Sizes - Inch Hydraulic Bolt Tensioner | ||||||||||||||
| Inches | Adaptor No. | Nut A/F | Thread Pitch | in² | in (A) | in | in | in | in | in | in | lb | ||
| 4'' | SRTAS080004 | 6.1/8" | 0.125 | 42.377 | 9.9 | 7.8 | 8.3 | 14.7 | 4.5 | 4.5 | 7.7 | 99.2 | ||
| 4.1/4'' | SRTAS080006 | 6.1/2" | 0.125 | 42.377 | 9.9 | 8.1 | 8.8 | 15.2 | 4.7 | 4.5 | 8.2 | 99.2 | ||
| 4.1/2'' | SRTAS080008 | 6.7/8" | 0.125 | 42.377 | 9.9 | 8.3 | 9.1 | 15.7 | 5 | 4.6 | 8.6 | 99.2 | ||
Applications including;
- All Oil & Gas Flanges
- Heat Exchangers
- Pressure vessels
- Exchange covers & nozzles
- Boiler feed pump
- Manufacturing machinery
- Cranes
- Clamps
SRT Series Hydraulic Bolt Tensioners PDF
SRT8 Bolt Tensioner Dimensions Drawing PDF
SRT 4-8 Load Cell Spare Parts List PDF
