SPX Flow P59L-1500G Hydraulic Handpump
1500 Bar Single Acting Double Speed Hydraulic Hand Pump
| Product Code | P59L-1500G |
| Working Pressure | 1500 bar |
| Tank Capacity | 1100 cm³ |
| Usable Oil | 729 cm³ |
| Flow (Low P. / High P.) | 0.88 / 11.1 cm³ |
| Flow Displacement | 20 / 1500 bar |
| Handle Effort at 1500 Bar | 32.7 kg |
| Oil port thread | 3/4"-16 UNF |
| Weight with Oil | 6.5 kg |
| Sizes (LxWxH) | 719x139x182 mm |
| Brand / Origin | SPX / USA |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Working pressure 0-1500 bar
- Single acting, double speed operation
- Designed for bolt tensioner applications
- Pressure oil output port 3/4” 16 UNF
- Gauge port 9/16-18 UNF (60° Cone)
- Handle effort at 1500 bar 32 kg (72 lbs)
- P59L-1500 delivered without pressure gauge
- P59L-1500G comes skid plate digital gauge
- Equipped with over pressure safety valve
- Durable aluminum reservoir and pump
- Extremely lightweight and easy to transport

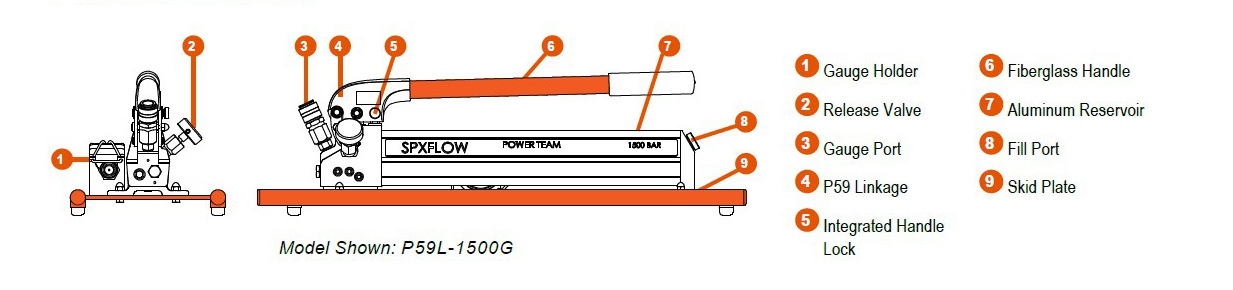

.jpg)
Product technical specificationsTechnical Specifications
SPX Flow P59L-1500G Hydraulic Hand Pump1500 Bar
Pressure Range - 0 to 21,750 PSI (0 to 1500 Bar)
Two-speed design reduces handle effort by 40%
Fiberglass handle provides rigidity, and reduces operator fatigue with grip.
Convenient fill port enables pumps to be filled in a horizontal or vertical position.
Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
Large valve knob gives added control for slowly metering loads down.
P59L-1500G model comes with a skid plate for stabilization and a digital pressure gauge
Extremely lightweight, easy to transport with the aluminum body design.
| Product Code | Units | P59L-1500 | P59L-1500 |
| Working Pressure | bar | 1500 | |
| Tank Capacity | cm³ | 1100 | |
| Usable Oil | cm³ | 729 | |
| Flow at low pressure | cm³ | 0.88 | |
| Flow at high pressure | cm³ | 11.1 | |
| Flow Displacement | bar | 20 / 1500 | |
| Handle Effort at 1500 Bar | kg | 32.7 | |
| Oil port thread | * | 3/4"-16 UNF | |
| Gauge port thread | * | 9/16" UNF 60° | |
| Weight with Oil | kg | 4.7 | 6.5 |
| Sizes (LxWxH) | mm | 556x139x182 | 719x139x182 |
