Simply Hercules 1.3 Shock Absorber Dismantler
Hercules Pneumatic Spring Compressor [1200kg]
| Model | Simply Hercules 1.3 |
| Pressing capacity (10 Bar) | 1200 kg |
| Pressing capacity (5 Bar) | 600 kg |
| Suitable spring diameter | 250 mm |
| Suitable spring length | 400 mm |
| Maximum stroke | 250 mm |
| Tool length | 1200 mm |
| Tool width | 400 mm |
| Tool depth | 500 mm |
| Weight | 65 kg |
| Origin | Italian |
| Confirmation | Ford, Fiat ve Renault |
| Warranty | 12 Month |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures

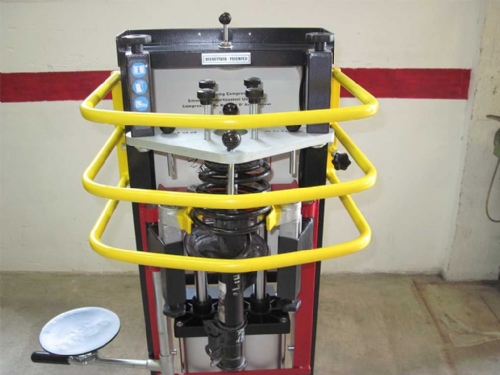

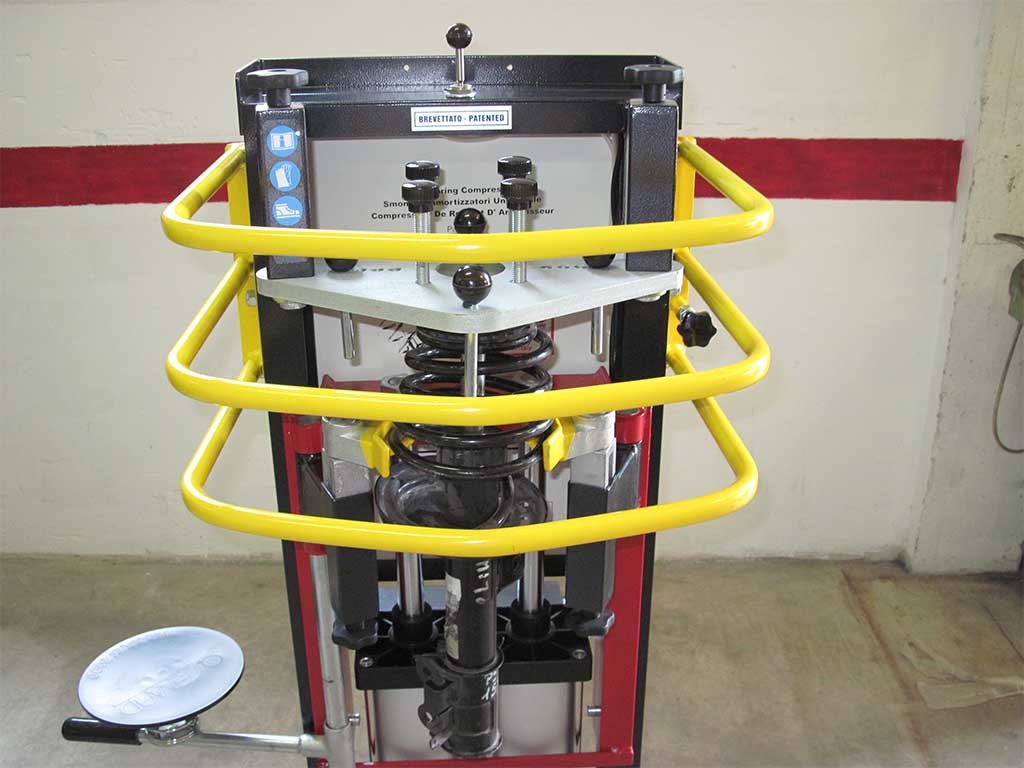

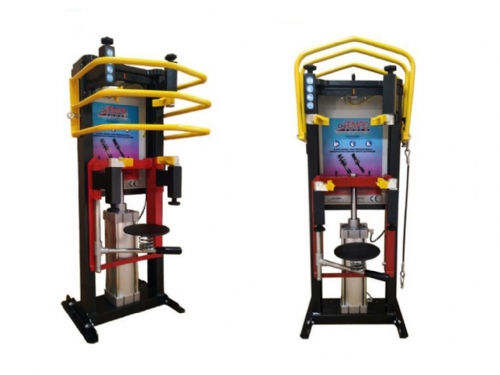

Simply Hercules Pneumatic Shock Absorber Dismantler
There are two different models for The Semad Simply Hercules Pneumatic Strut Spring Compressor. Hercules 1.3 has a pressing power is 1200 Kg, Hercules 2.4 is 2400 kg at 10 bar air pressure. The air pressure decreases, the pressing and tensioning capacity decreases. Spring diameter is 250mm. With this feature, it can also be used in the coil springs of commercial vehicles such as Fiat Ducato and Renault Trafic.
| Model | Unit | Simply Hercules 1.3 | Simply Hercules 2.4 |
| Pressing capacity (10 Bar) | kg | 1200 | 2400 |
| Pressing capacity (5 Bar) | kg | 600 | 1200 |
| Suitable spring diameter | mm | 250 | 250 |
| Suitable spring length | mm | 400 | 400 |
| Maximum stroke | mm | 250 | 250 |
| Tool length | mm | 1200 | 1200 |
| Tool width | mm | 400 | 400 |
| Tool depth | mm | 500 | 500 |
| Weight | kg | 65 | 70 |
| Origin | ** | Italian | Italian |
| Confirmation | ** | Ford, Fiat ve Renault | Ford, Fiat ve Renault |
| Warranty | ** | 12 Month | 12 Month |
The Simply Hercules Pneumatic Spring Compressor is an enhanced version of the Hercules 2000S.
- Pressing capacity has been increased. Capacity has been increased to 2400 Kg.
- With the increase in capacity, the safety barrier was strengthened and triple profile support was provided.
- A rope added to the device, which prevents the coil spring from jumping out of slot.
- Spring holder jaws are made independent from each other, providing a stronger and more balanced grip.
- Piston length has been increased, making it compatible with longer coil springs.
- Joystick control feature has been added instead of hydropneumatic foot pedal.
- For short springs, the block plate is optionally available.
Semad Simply Hercules Pneumatic Shock Absorber Dismantler General Features
Universal: Simply Hercules is compatible with the coil springs of automobiles (Ford, Fiat, Renault, Audi, Chrysler, Iveco, BMW, Porsche etc.), light commercial, SUV, pick-up, minibus, panelvan and armored vehicles in the automotive industry. Hercules' gripping claws grip any coil spring up to 250mm in diameter. It has a pressing capacity of up to 2400 Kg.
Safety: Simply Hercules air spring puller distributes the high pressing force it produces to 4 holding hooks. The hooks securely compress all kinds of springs within their capacity. The protective barrier is equipped with a sensor. The system will not work until the barrier is closed. In order to prevent the coil spring from being thrown out of its slot due to faulty assembly, extra rope application has been started.
Practical: The Simply Hercules air damper puller is extremely practical. The insertion and removal of the coil spring into the press takes place in a very short time. It saves time in service activities. It improves service quality.
Fast: Simply Hercules shock absorber repairs and maintenance can be carried out very quickly. The puller air piston works with minimum 5 bar, maximum 10 bar air. As the air pressure increases, the pressing capacity increases. The air driven system reacts very quickly. It performs the emptying and compaction process in seconds.
Reliable: The materials used in the manufacture of the Simply Hercules air spring puller have been subjected to special tests. The device has successfully passed the security tests. It is an equipment that can be trusted in shock absorber repair services.
.jpg)
Semad Simply Hercules 1.3 Spring Compressor Product Document - PDF
Semad Simply Hercules Spring Compressor Instructions - PDF
(IT)Semad Simply Hercules 1.3 Spring Compressor Datasheet - PDF
