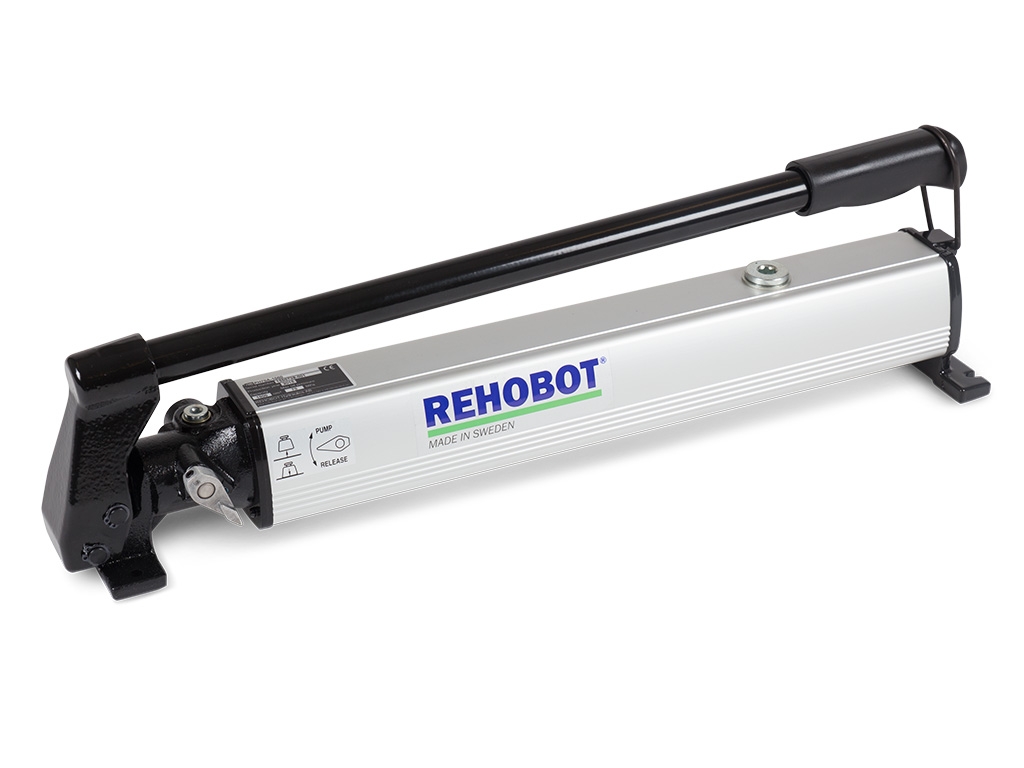

Rehobot PH80A-1000 Hydraulic Hand Pump
800 Bar Hydraulic Hand Pump - Oil Capacity 1 lt.
| Model Code | 49103 |
| Working Pressure | 800 Bar |
| Usable Oil | 1000 cm³ |
| Pump Type | Single Speed |
| Oil Displa. Per Stroke | 2.9 cm³ |
| Handle Effort at 700 Bar | 51 kg |
| Pressure Output | 1/4” NPT Female |
| Pressure Gauge | ø63mm - 1000 Bar |
| Tool Weight incl. Oil | 5.2 kg |
| Tool Sizes | 590x170x110 mm |
| Brand / Origin | Rehobot / Sweden |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Single speed, single acting
- Available in 700 bar, 800 bar
- Flow rate per stroke 2.9 cm³
- Limited pump efort required
- Simple and functional design
- Oil outgoing port thread G1/4”
- Pressure gauge optionally available
- Light weight, ergonomic, user friendly
- Built-in safety valve provides reliability
Product technical specificationsTechnical Specifications
Rehobot PH Series 700 Bar Hydraulic Hand Pumps
PH series hydraulic hand pumps are being offered in 2 different pressure category: 700 bar – 800 bar
- PH70A-600 700 Bar Hydraulic Hand Pump - (600cm³)
- PH70A-1000 700 Bar Hydraulic Hand Pump - (1000cm³)
- PH80A-600 800 Bar Hydraulic Hand Pump - (600cm³)
- PH80A-1000 800 Bar Hydraulic Hand Pump - (1000cm³)
|
Technical Info |
Unit |
PH70A-600 |
PH70A-1000 |
PH80A-600 |
PH80A-1000 |
|
Product Code |
** |
49100 |
49101 |
49102 |
49103 |
|
Working Pressure (Max) |
bar |
700 |
700 |
800 |
800 |
|
Working Pressure (Max) |
mpa |
70 |
70 |
80 |
80 |
|
Working Pressure (Max) |
psi |
10.152 |
10.152 |
11.603 |
11.603 |
| Usable Oil |
cm³ |
600 |
1000 |
600 |
1000 |
| Flow Rate per Stroke |
cm³ |
2.9 |
2.9 |
2.9 |
2.9 |
|
Handle Effort at Max Pressure |
kg |
45 |
45 |
51 |
51 |
| Oil Port Thread |
G |
1/4" |
1/4" |
1/4" |
1/4" |
| Weight (Oil Included) |
kg |
4.5 |
5.2 |
4.5 |
5.2 |
|
Sizes (A x B x C x D) |
mm |
590x170x90x68 |
590x170x110x80 |
590x170x90x68 |
590x170x110x80 |
Single stage pumps in the PH series have a simple but functional design. Few moving parts and a built-in safety valve provide reliable performance. They are real workhorses that will give years of service. All pumps can be equipped with a pressure gauge so the user can monitor the discharge pressure.
Hand pumps in the PH series are available with 70 or 80 MPa working pressure and with the choice of 600 or 1000 cm3 effective oil capacity.
Gauge optionally available
To ensure complete operator safety at all times we recommend the fitting of a pressure gauge (AMT801) with gauge adaptor (AVM204) to this series of hand pumps.
Oil Outgoing Port
The hydraulic connection interface on all PH pumps is a G1/4" threaded port.
Safety features
The pump is equipped with a safety valve that limits the output pressure. The safety valve is set at the factory to the maximum working pressure.
Safety Advise
When accessories are selected for a hydraulic system, the working pressure rating for these shall be equal to or higher than the pump unit's maximum working pressure. For hoses we recommend a 3-4 fold safety margin between the hydraulic system's maximum operating pressure and the burst pressure of the hose. It is also important to ensure that the pump's effective oil volume exceeds the total volume of oil in the hydraulic system, preferably with a safety margin of about 20%.
