Rehobot DHS50-720 Hydraulic Spreader
25 Ton Spreader - Squeezer - Puller
| Product Code | DHS50-720 |
| Describtion | Hydraulic Spreader |
| Part No | 45260 |
| Spreading Force | 52.2 tons |
| Squeezing Force | 4.5 tons |
| Pulling Force | 7.1 tons |
| Max. Opening | 370 mm |
| Hydraulic System | Double Acting |
| Power Source | External Pump |
| Tool Lenght | 842 mm |
| Tool Weight | 21 kg |
| Origin / Brand | Sweden by Rehobot |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Rehobot model code: DHS50-720
- Maximum spreading force 25 tn / 254 k.N
- Maximum squeezing force 7 tn / 78 k.N
- Maximum pulling force 6 ton / 63 k.N
- Maximum pulling distance 567 mm
- Maximum blade opening 720 mm / 123
- Pumpbody can rotate 360°
- Object comes to the center of blades
- Pump can work in all possitions
- Made in Sweden by Rehobot
- Light weight. 14,5 kg only
Product technical specificationsTechnical Specifications

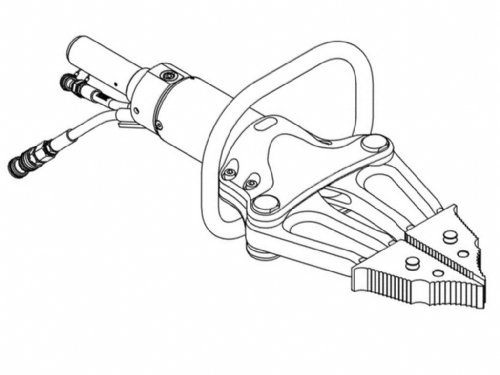

Rehobot DHS Double Acting Hydraulic Spreader
The hydraulic spreader DHS50-720 with its maximum spreading capacity of 26.5 ton is a really powerful tool.
The tool weighs 21 kg and has both opening, spreading, squeezing and pulling performances which are outstanding. Accordingly - the hydraulic spreader DHS50-720 is a tool designed for the future. The spreading tips are of course exchangeable, which makes the tools even more flexible for different situations.
- Compact design.
- Large opening.
- Quick-lock for accessories.
- Safety features
Rescue tools from REHOBOT are provided with a twist-grip control with dead man's handle. This means that the tool will stop immediately and remain in its position when the handle is released.
Furthermore, all rescue tools are equipped with a built-in safety valve which protects the tools from overload. Besides that, the valve prevents the return hose being connected wrongly.

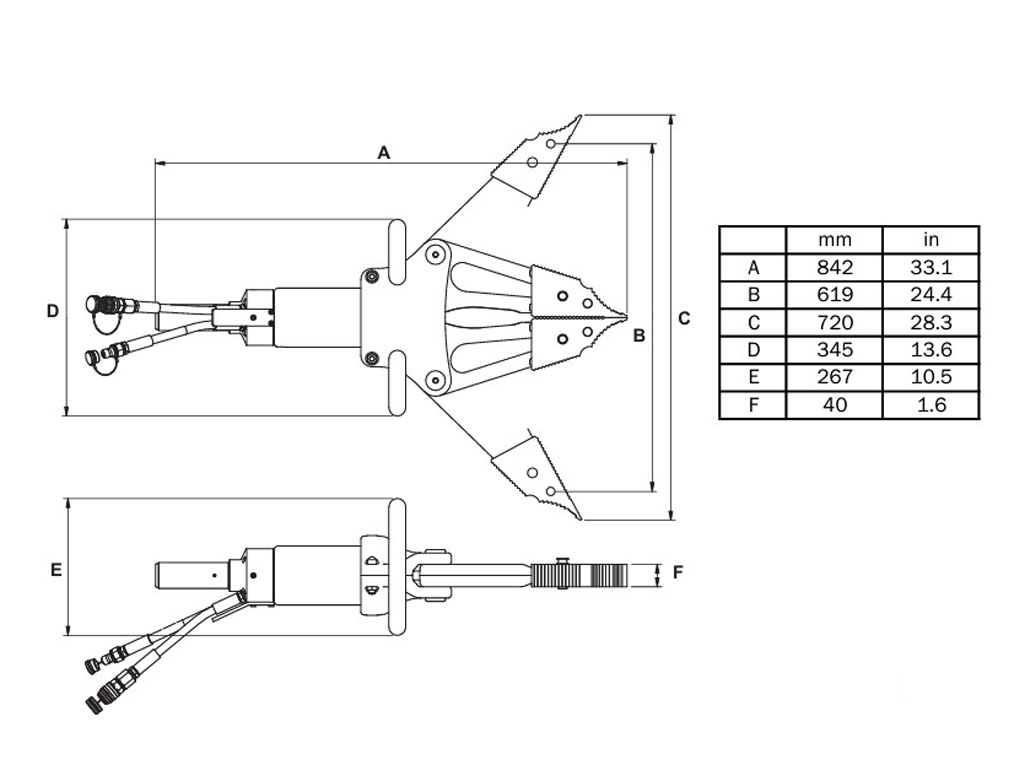

-Cizim-(1).jpg)
| Product Code | Part No | Max. Spreading Force | Max. Squeezing Force | Max. Pulling Force | Max. Openning | Weight | |||
| # | # | ton | kN | ton | kN | ton | kN | mm | kg |
| DHS50-720 | 45260 | 25,9 | 254 | 7,9 | 78 | 6,8 | 67 | 720 / 123° |
21 |
