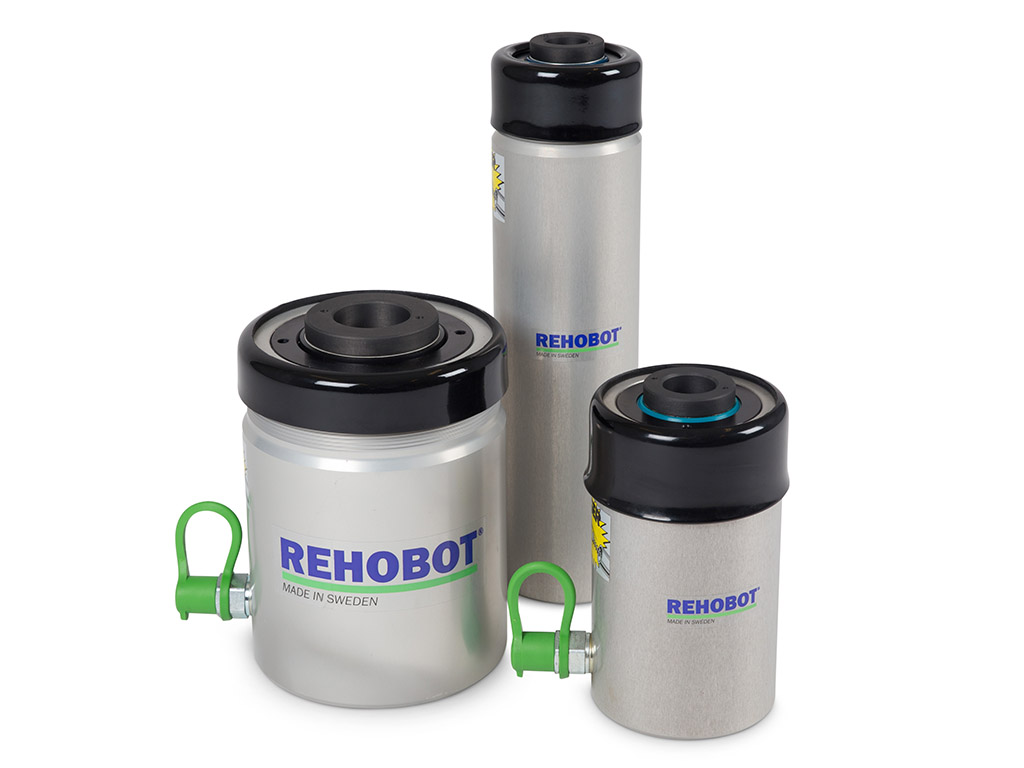

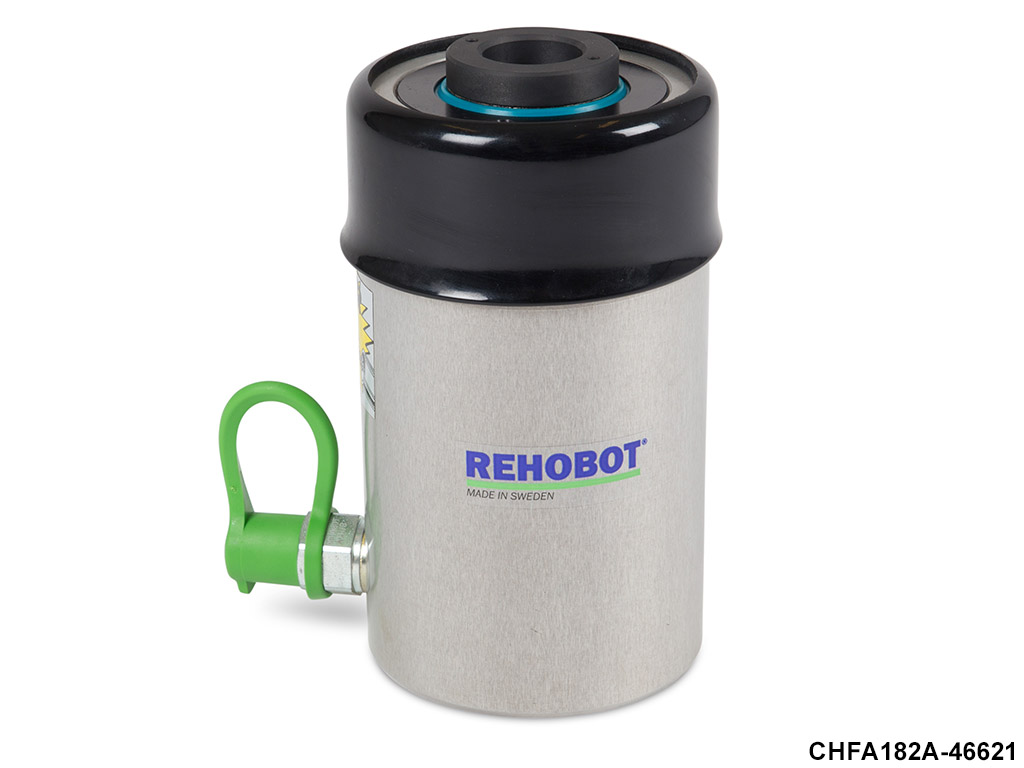

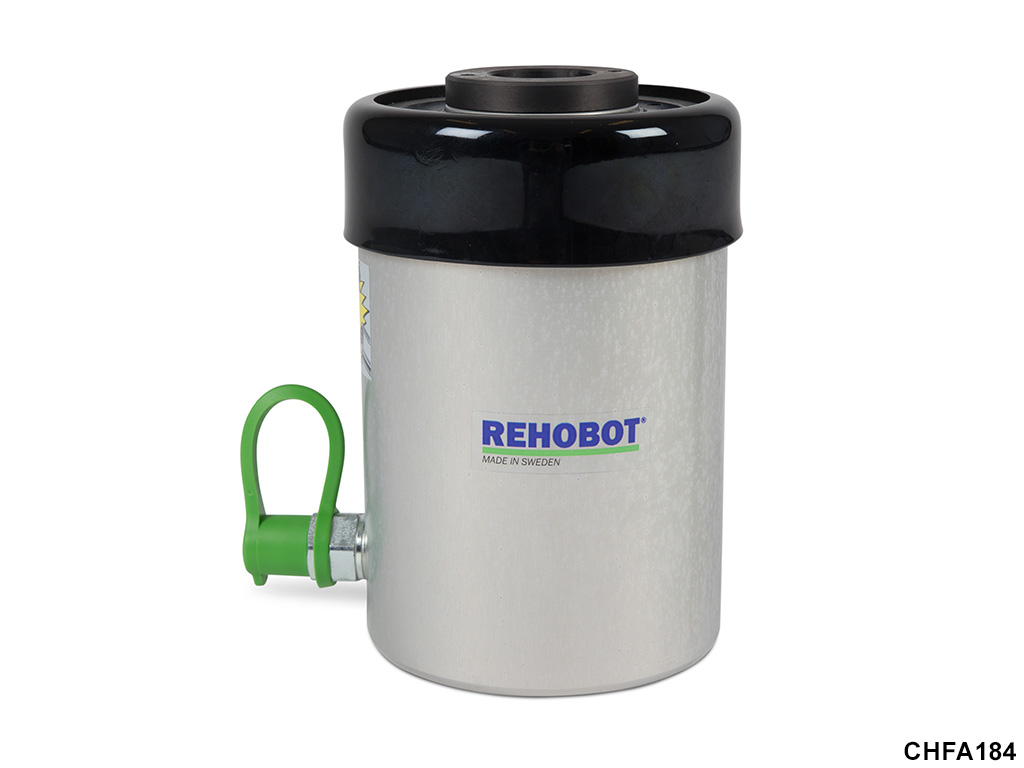

Rehobot CHFA184A Hollow Piston Cylinder 18 tons
CHFA184A Single Acting Spring Return, 102 mm Stroke, Aluminium
| Rehobot Code | CHFA184A |
| Capacity | 18 ton |
| Stroke | 102 mm |
| Hole Diameter | Ø26 mm |
| Closed Height | 246 mm |
| Out Diameter | Ø94 mm |
| Effective Area | 25 cm² |
| Oil Volume | 250 cm³ |
| Working Pres. | 700 Bar |
| Cylinder Type | S/A Spring return |
| Weight | 4 kg |
| Origin/Brand | Sweden / Rehobot |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Capacity from 13 to 103 tons
- Cylinder stroke 51 – 153 mm
- Working pressure 700 bar
- Single acting, spring return
- Aluminium hollow cylinder
- Weighing 50% less than steel cylinders
- Used for push and pull operations
- Compatible with all hydraulic pumps
- ISO9001- CE quality certified
- Origin Sweden, manufacturer Rehobot
Product technical specificationsTechnical Specifications
Single Acting Hollow Cylinders Aluminium CHFA

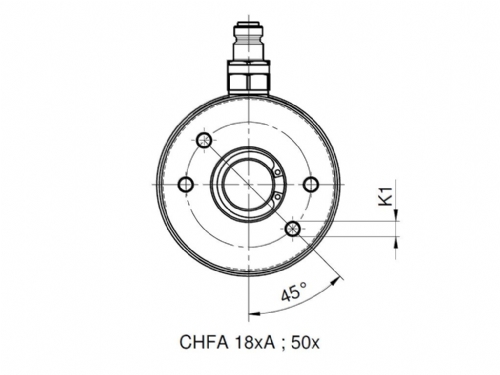

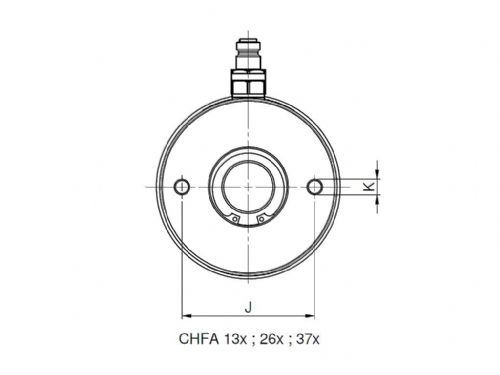

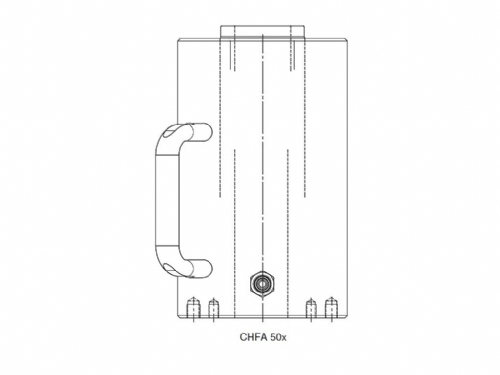

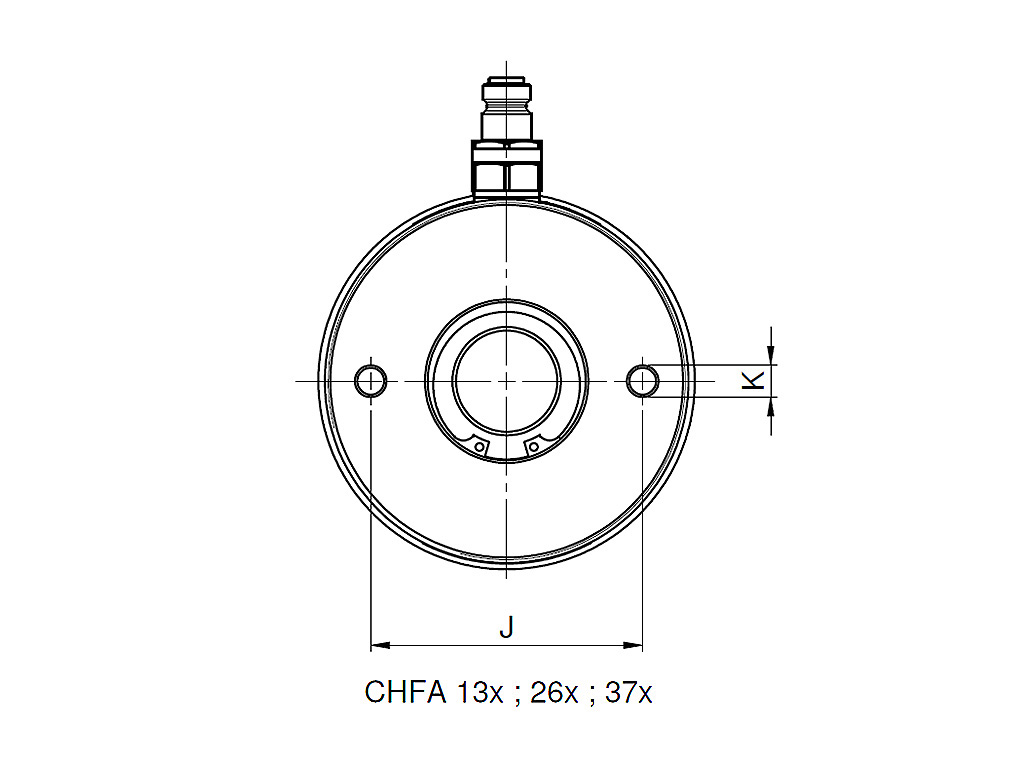

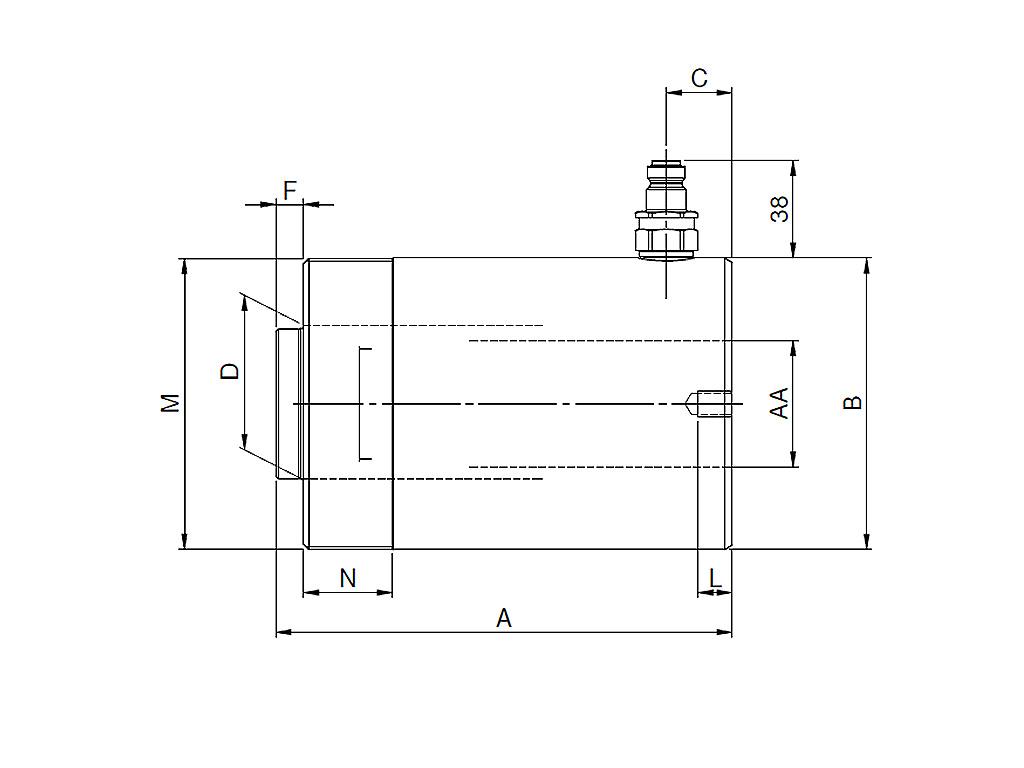

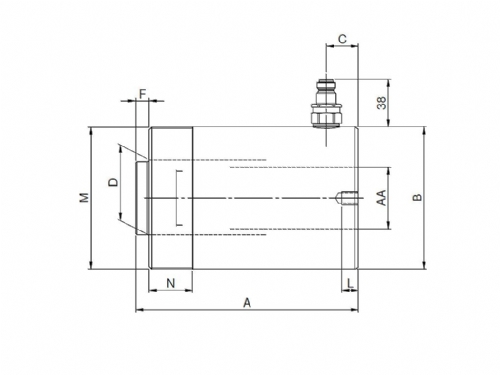

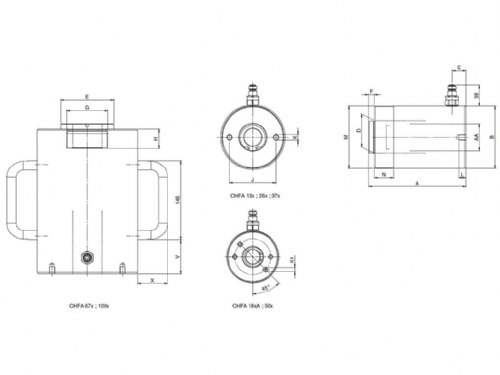

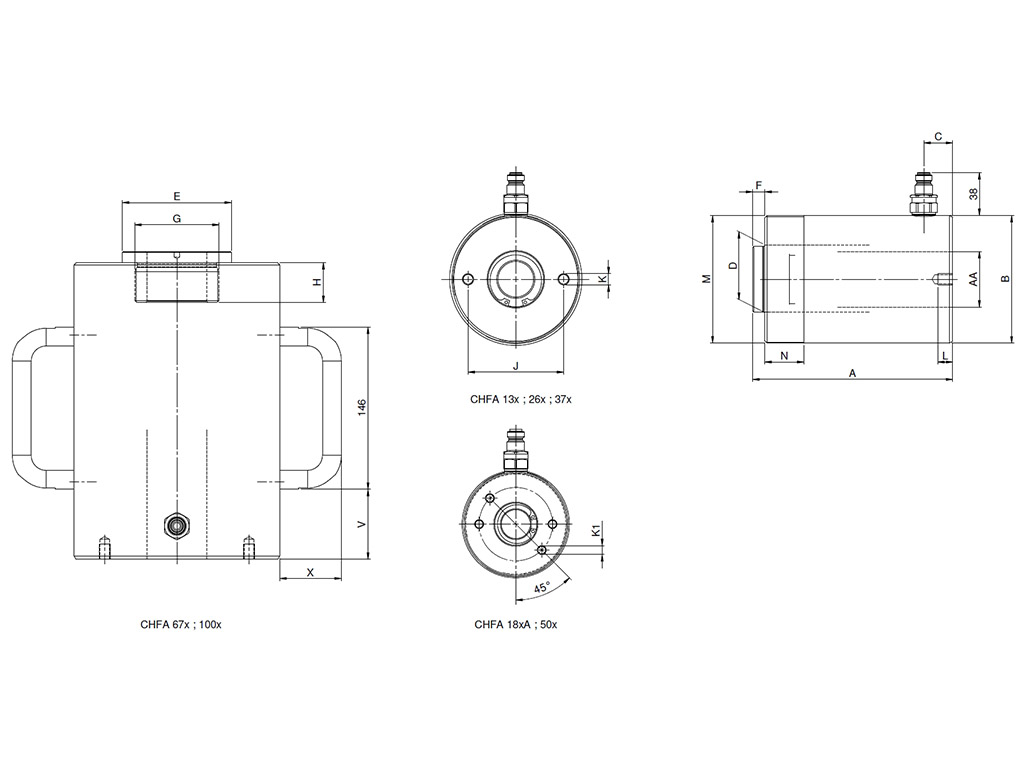

| Model | Code | Working Pres. | Capacity | Stroke | Hole Dia. | Height | Out Dia. | Effective Area | Oil Volume | Weight |
| # | # | Bar | kN (Tons) | mm | Ø mm | mm | Ø mm | cm² | cm³ | kg |

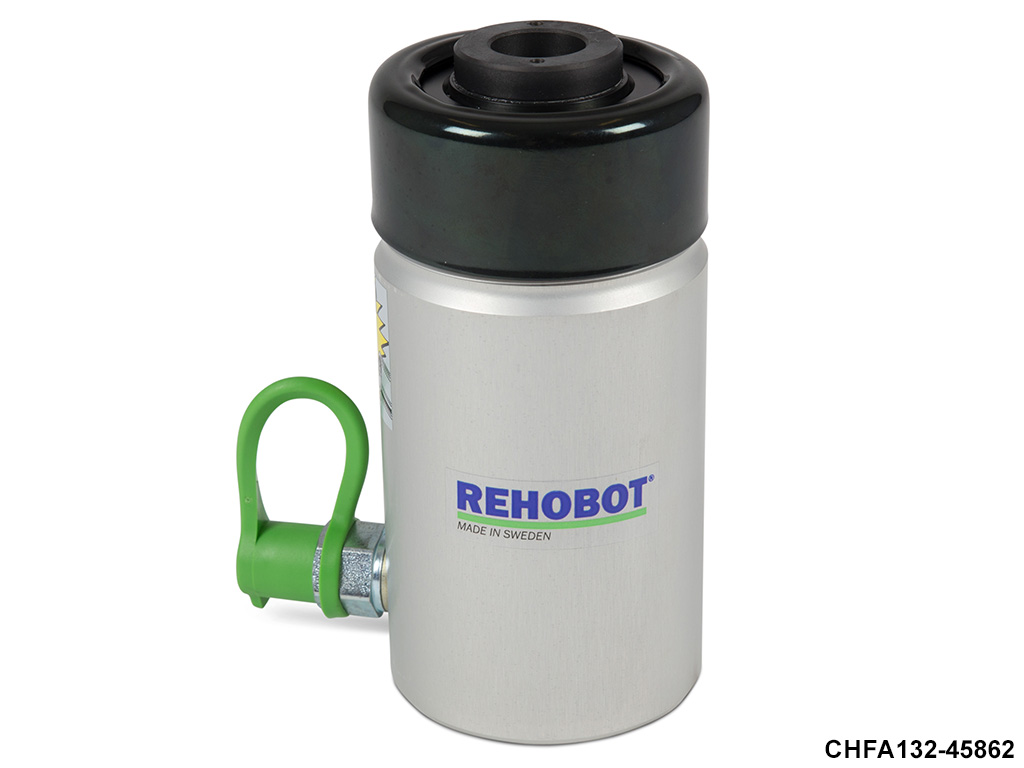

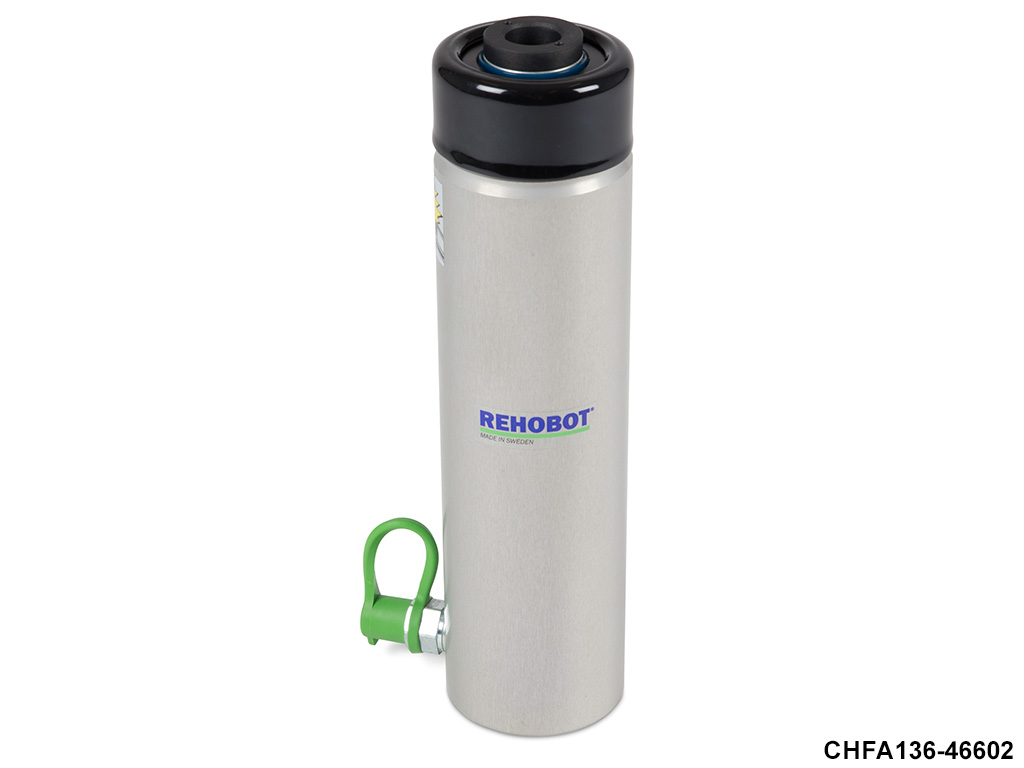

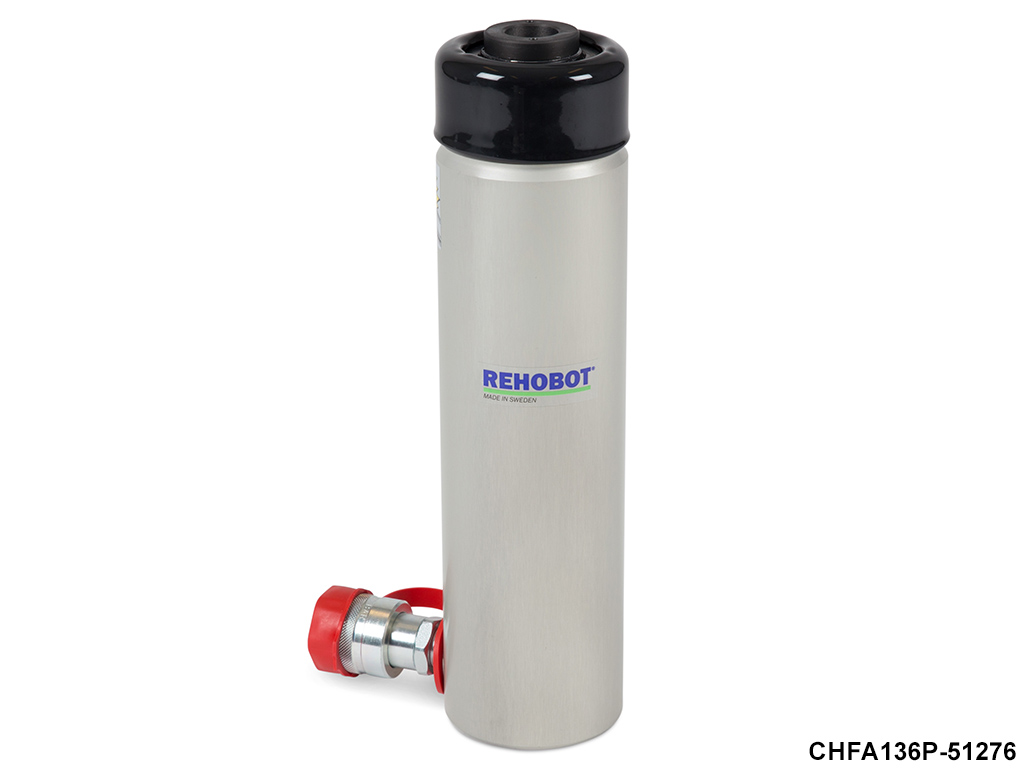

| CHFA132 | 45862 | 700 | 123 (13) | 52 | 22 | 165 | 80 | 18 | 90 | 2.3 |
| CHFA136 | 46602 | 700 | 123 (13) | 153 | 22 | 310 | 80 | 18 | 270 | 4.0 |
| CHFA182A | 46621 | 700 | 176 (18) | 51 | 26 | 171 | 94 | 25 | 125 | 3.0 |
| CHFA184A | 46622 | 700 | 176 (18) | 102 | 26 | 246 | 94 | 25 | 250 | 4.0 |

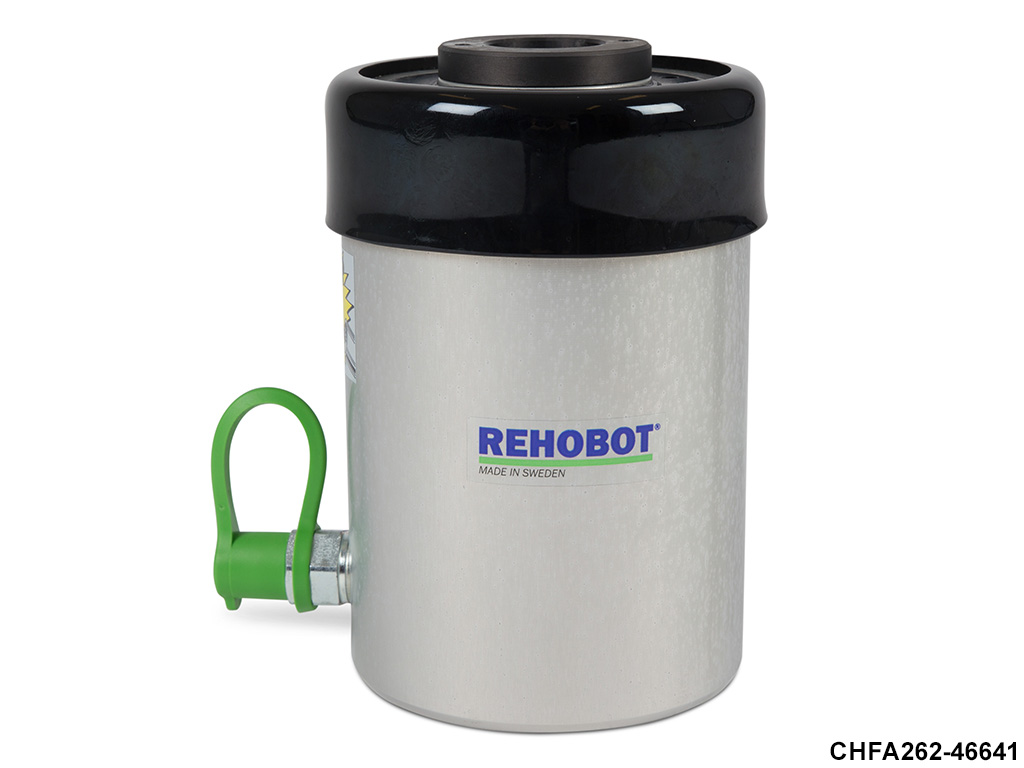

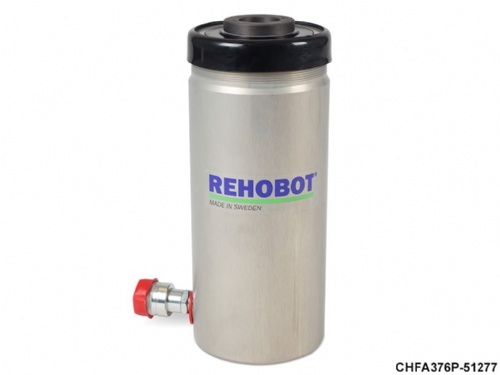

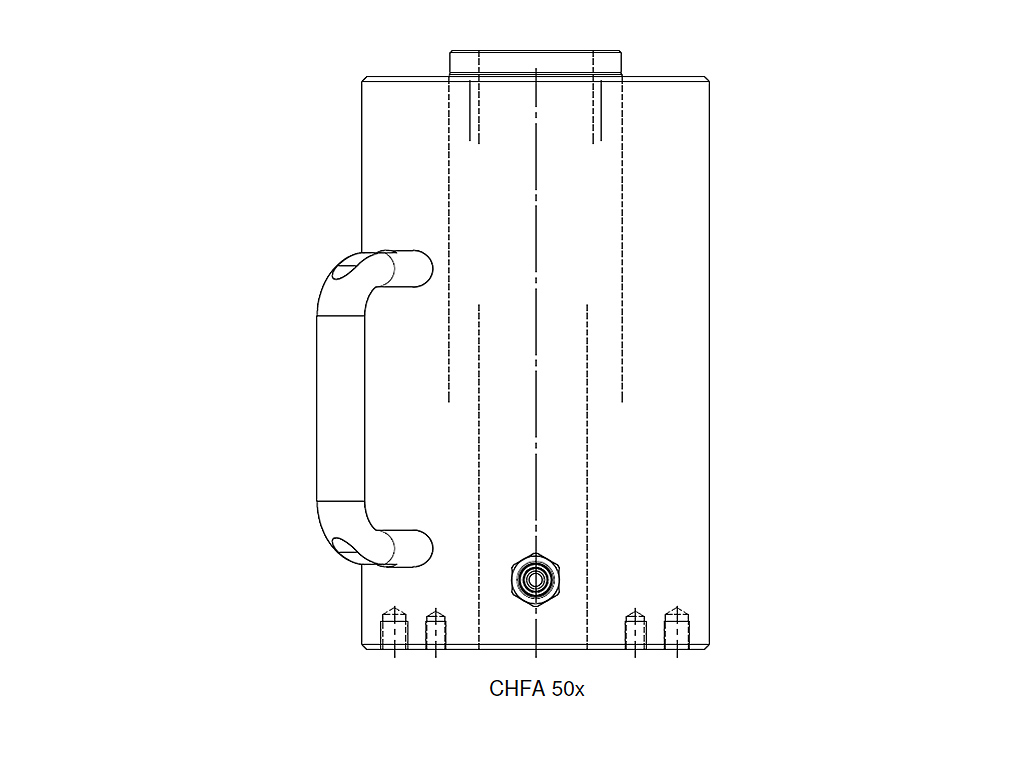

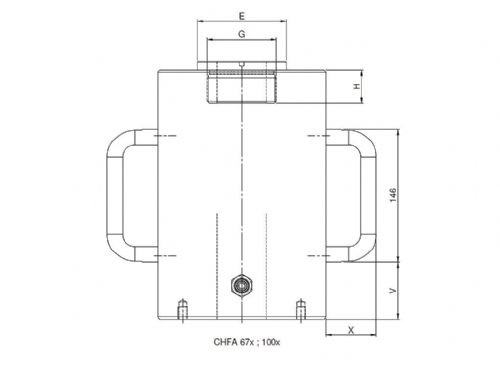

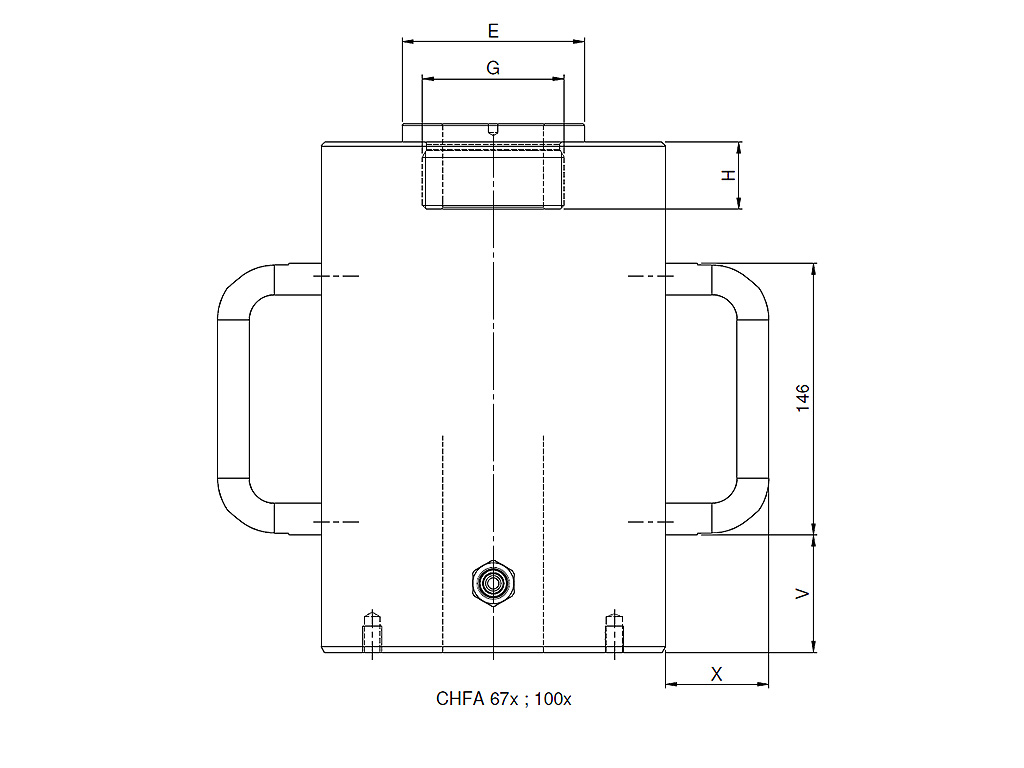

| CHFA262 | 46641 | 700 | 255 (26) | 51 | 32 | 180 | 115 | 37 | 185 | 4.9 |
| CHFA266 | 46642 | 700 | 255 (26) | 153 | 32 | 323 | 115 | 37 | 555 | 8.7 |
| CHFA372 | 46661 | 700 | 358 (36) | 51 | 39 | 189 | 136 | 51 | 255 | 6.9 |
| CHFA376 | 46662 | 700 | 358 (36) | 153 | 39 | 327 | 136 | 51 | 765 | 12.0 |
| CHFA504 | 47733 | 700 | 508 (52) | 104 | 51 | 276 | 160 | 74 | 740 | 14.7 |
| CHFA673 | 46681 | 700 | 659 (67) | 77 | 54 | 250 | 185 | 95 | 710 | 18.0 |
| CHFA674 | 50830 | 700 | 659 (67) | 102 | 54 | 277 | 185 | 95 | 950 | 19.5 |
| CHFA676 | 46682 | 700 | 659 (67) | 153 | 54 | 350 | 185 | 95 | 1425 | 25.0 |
| CHFA1003 | 46701 | 700 | 1010 (103) | 77 | 66 | 284 | 227 | 147 | 1100 | 29.0 |
| CHFA1006 | 46702 | 700 | 1010 (103) | 153 | 66 | 391 | 227 | 147 | 2205 | 40.0 |
| A: G1/4'' - Male Coupling | ||||||||||
| P: 3/8''NPT - Female Coupling | ||||||||||
.jpg)

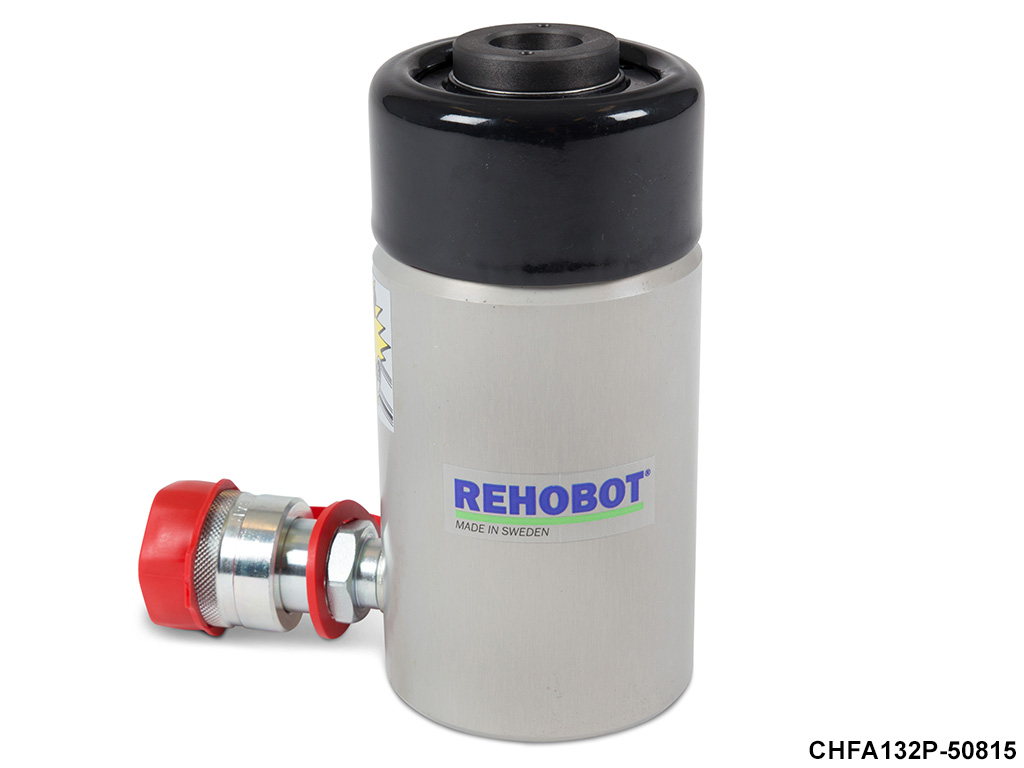

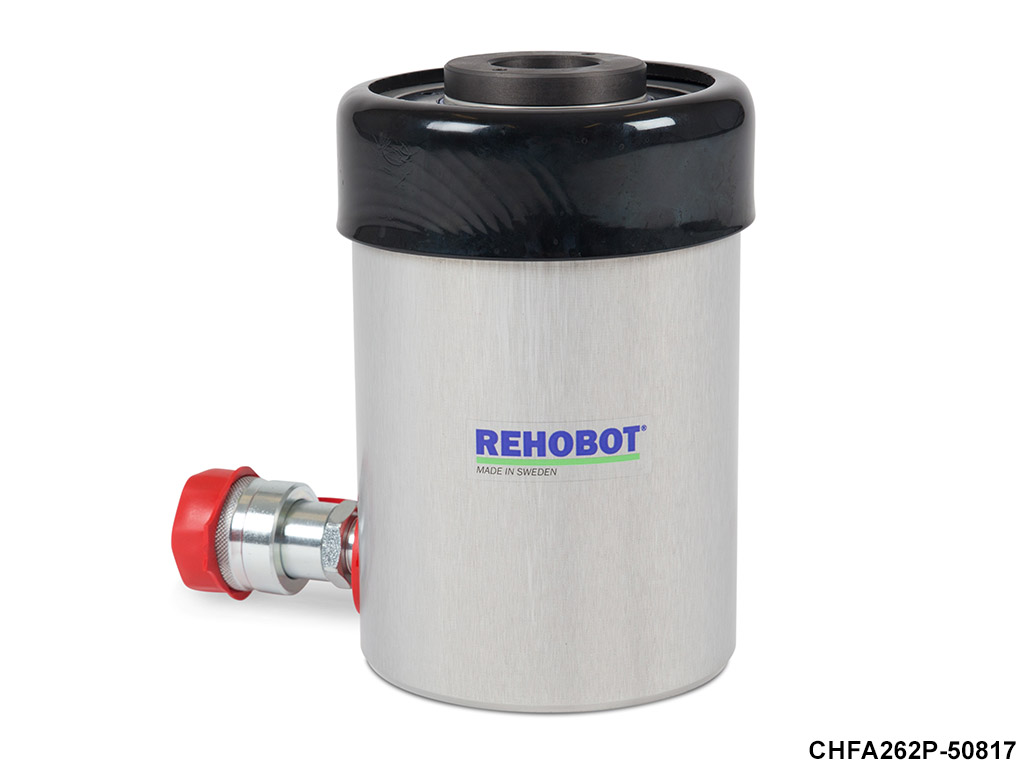

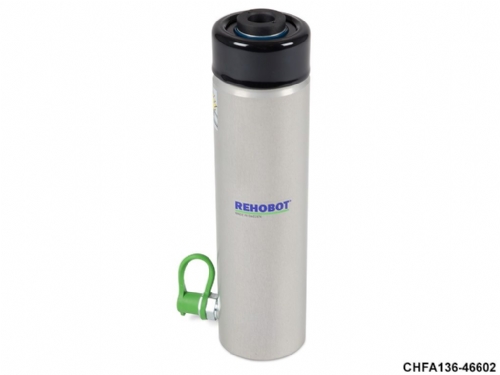

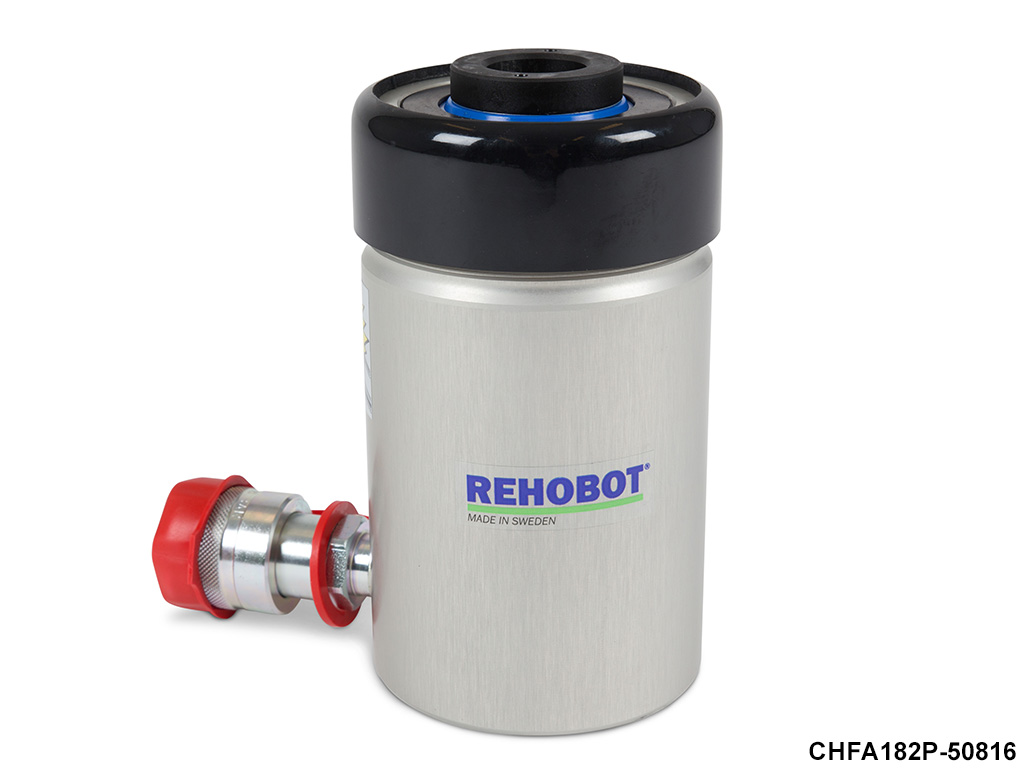

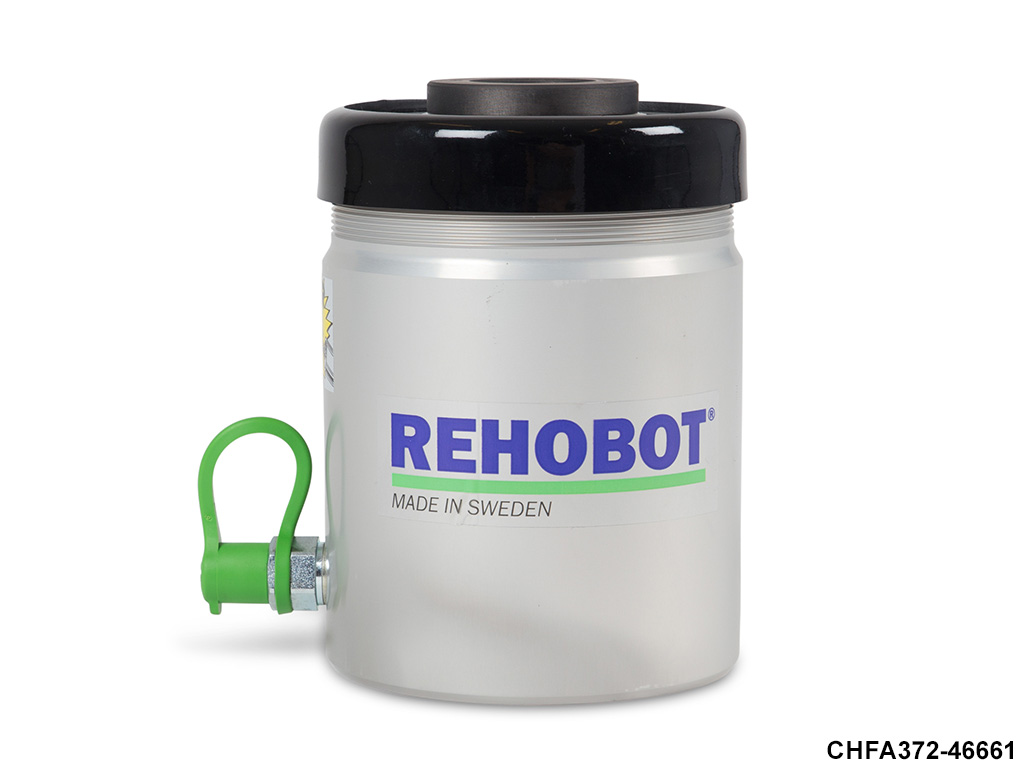

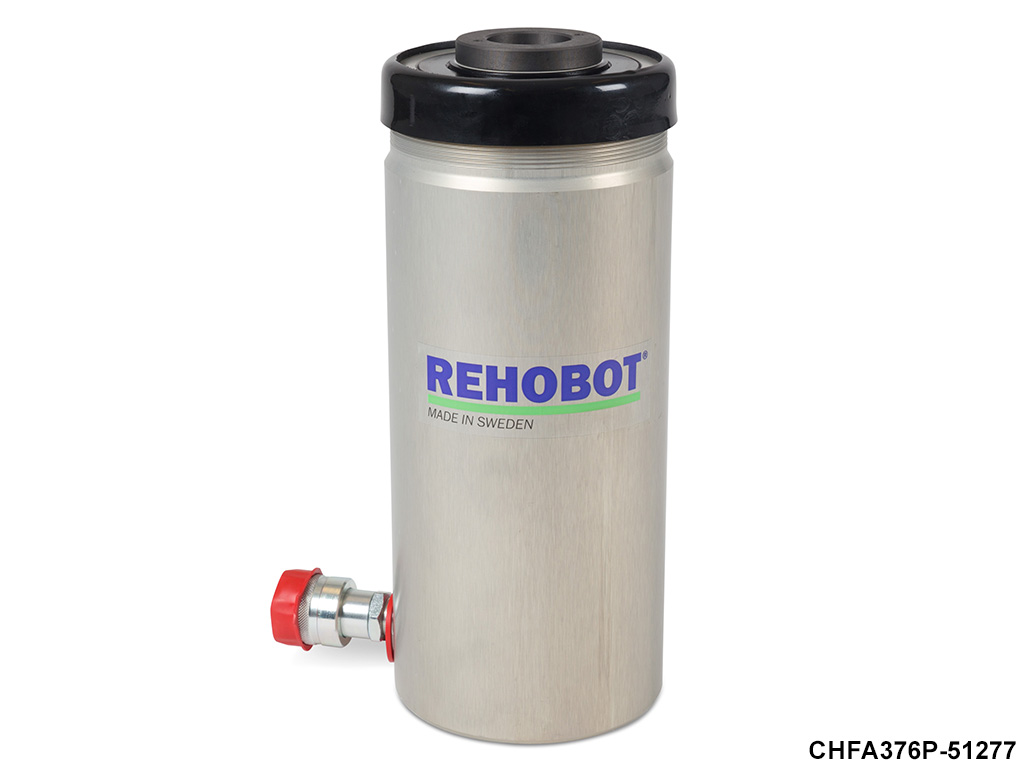

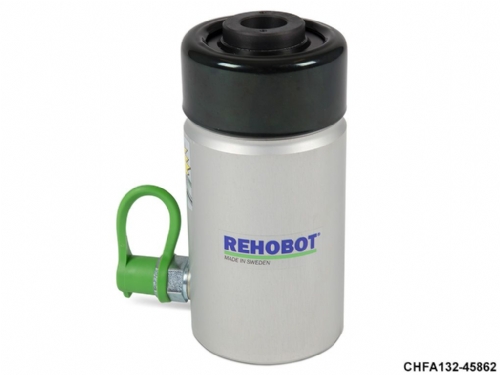

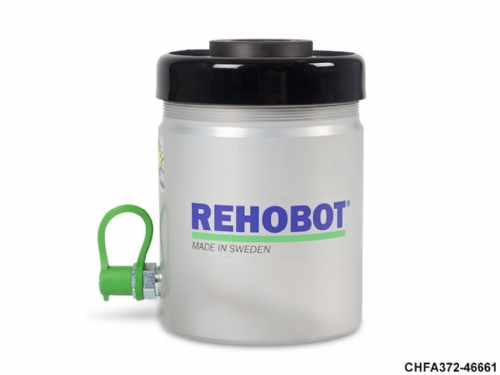

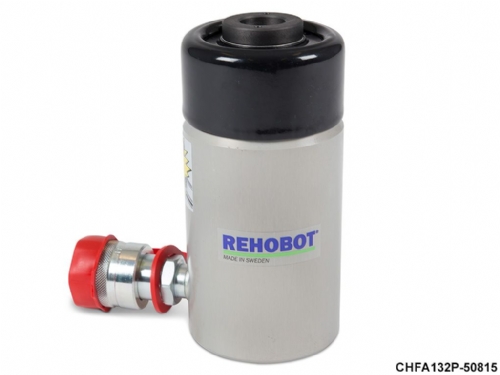

CHFA-series push cylinders are all made of high-tensile aluminum providing an excellent service life in low cycle applications. They have an outstanding power to weight ratio. Weighing approximately 50% less than steel cylinders. The center hole design allows the cylinder to be used for both push and pulling operations.
•13-103 ton capacity and 51-153 mm stroke length.
•By inserting a rod through the cylinder, the compression force can also be used for pulling operations.
CHFA = Single acting aluminium hollow bore cylinders with spring return

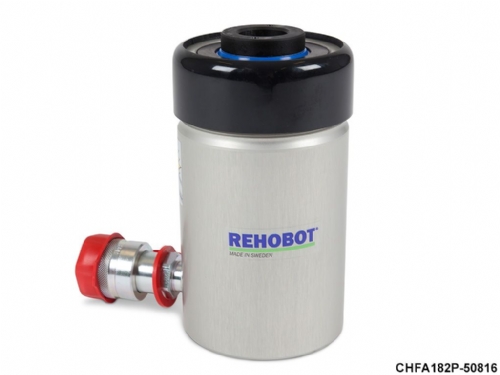

Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24). Please contact us for further information.
Note! The REHOBOT range of aluminium cylinders are designed to be used in intermittent and in low-cycle applications such as normal maintenance and lifting operations. These aluminium cylinders are designed to provide a lifetime of at least 5,000 cycles and therefore should NOT be used in high-cycle operations like production lines etc. Use of these push cylinders beyond their rated life can lead to sudden failure without warning and could cause property damage, injury, or death.
Rehobot CHFA Single Acting Hollow Cylinders Aluminium Product Brochure – PDF
Rehobot CHFA Hollow Cylinders Operating Instruction - PDF
