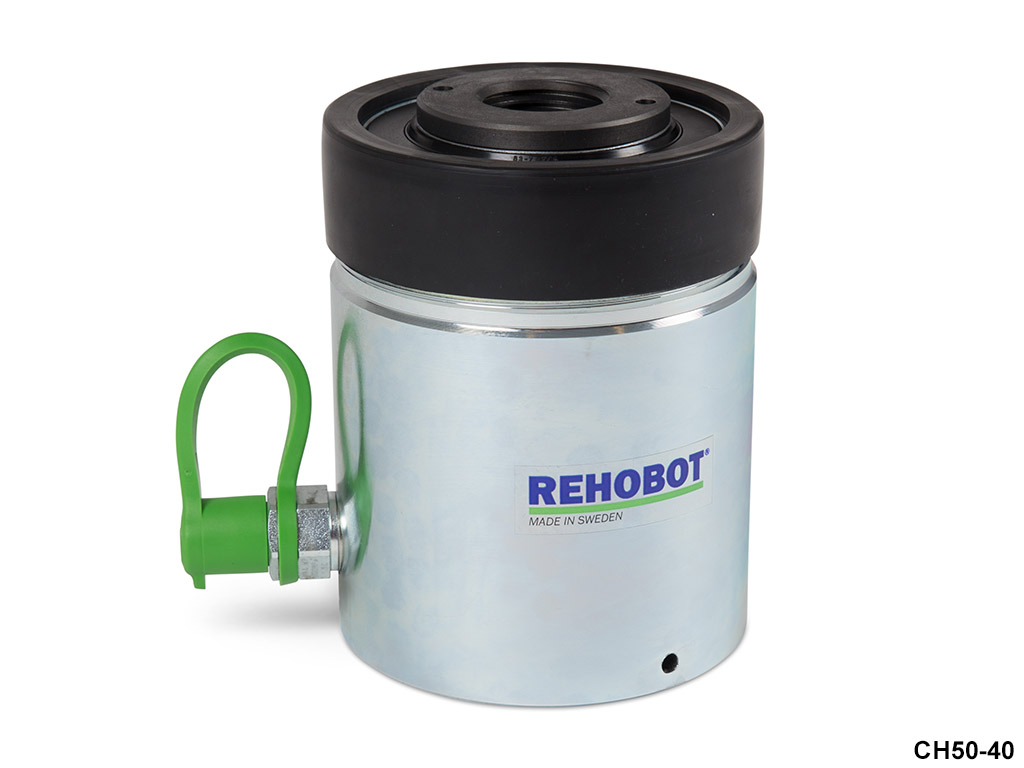

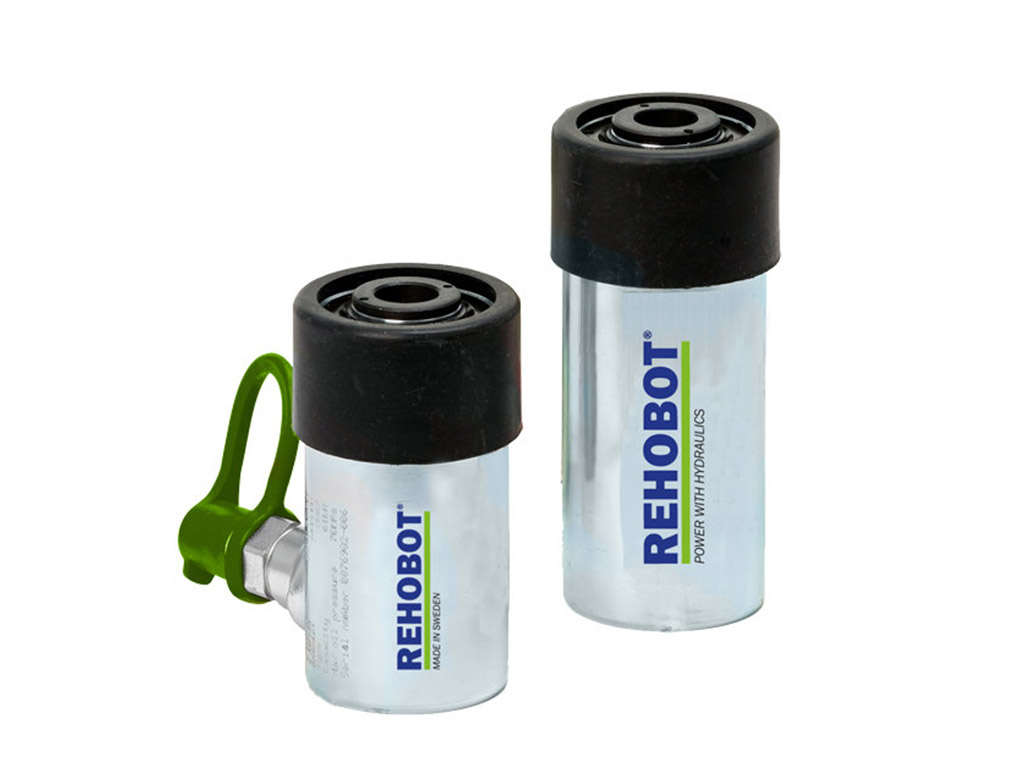

Rehobot CH50-40 Hollow Piston Cylinder , 51 tons
CH50-40 Single Acting Load Return, 40 Stroke, Steel
| Rehobot Code | CH50-40 |
| Capacity | 51 tons |
| Stroke | 40 mm |
| Hole Diameter | Ø37 mm |
| Closed Height | 124 mm |
| Out Diameter | Ø124 mm |
| Effective Area | 63.5 cm² |
| Oil Volume | 254 cm³ |
| Working Pres. | 800 Bar |
| Cylinder Type | S/A Load Return |
| Weight | 9.2 kg |
| Origin/Brand | Sweden/Rehobot |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Kaldırma kapasite aralığı 6 – 51 ton
- Kaldırma kurs aralığı 50 – 75 mm
- Çalışma basıncı 700 – 800 bar
- Tek etkili, çelik, ortası delik silindir
- CH: yük geri dönüşlü model
- CHF: yay geri dönüşlü model
- İtme çekme işlemleri için uygun
- Her marka hidrolik pompaya uyumlu
- Isıl işlemle sertleştirilmiş delikli kafa
- ISO9001- CE kalite belgeli imalat
- Menşei İsveç, Üretici REHOBOT
- Teknik destek Surkon tarafından sağlanır
Product technical specificationsTechnical Specifications

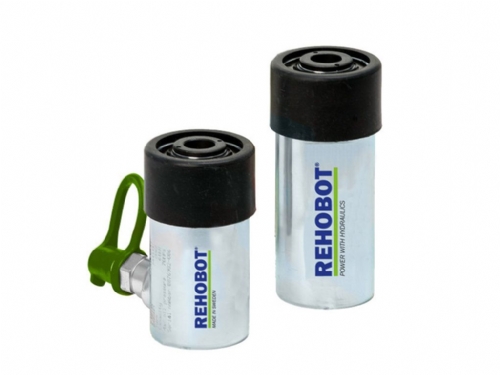

Rehobot Single Acting Hollow Cylinders Steel - CH/CHF
| Model | Code | Working Pres. | Capacity | Stroke | Hole Dia. | Height | Out Dia. | Effective Area | Oil Volume | Weight |
| # | # | Bar | kN (Tons) | mm | Ø mm | mm | Ø mm | cm² | cm³ | kg |

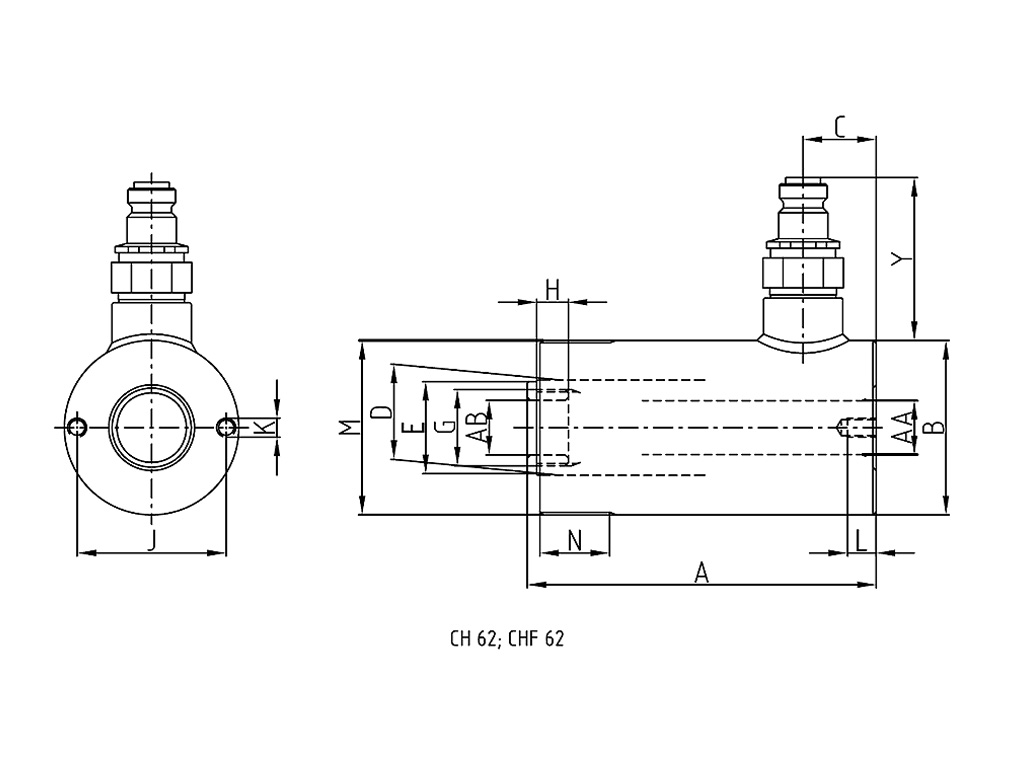

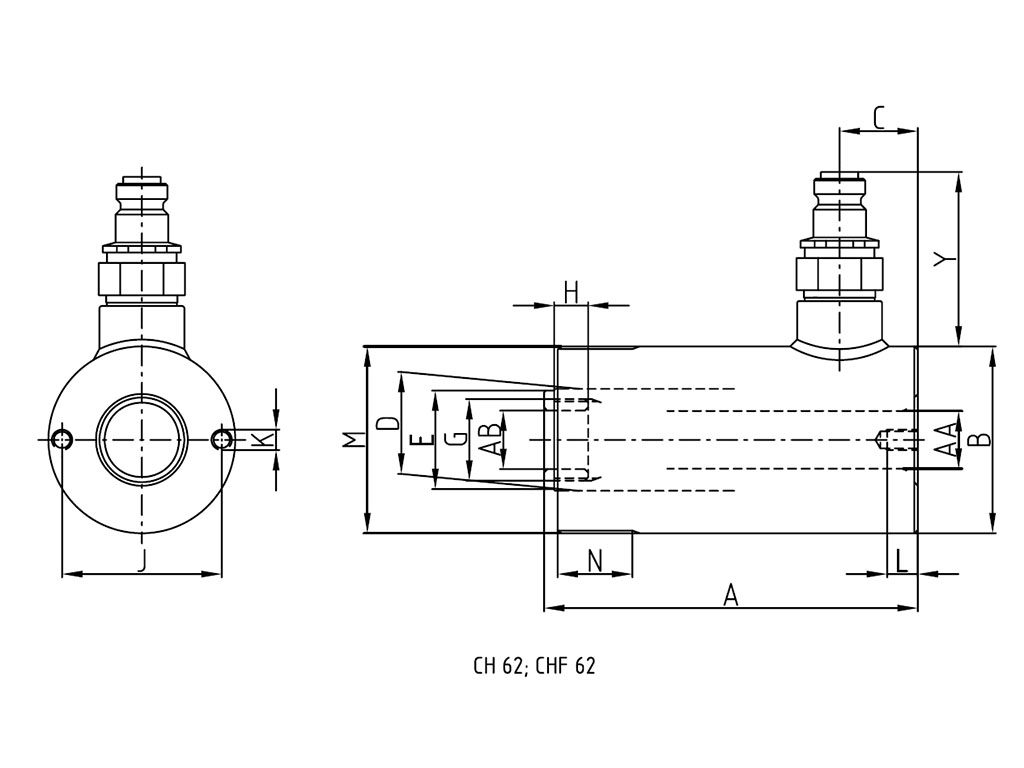

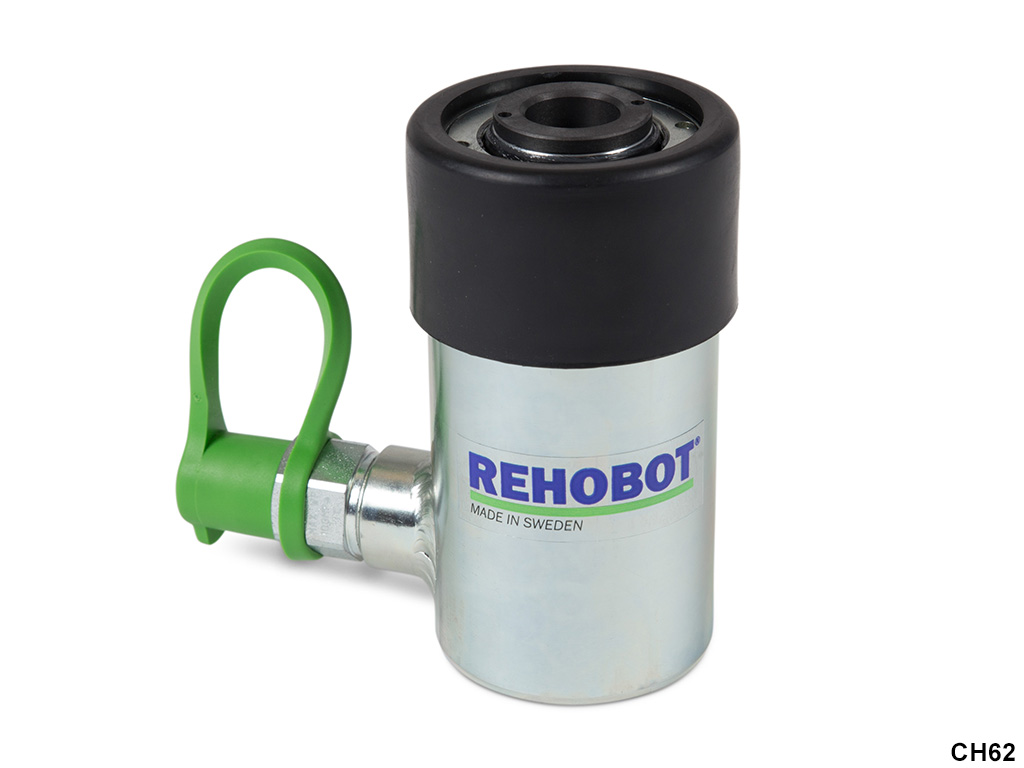

| CH62 | 42503 | 700 | 61 (6) | 51 | 17 | 110 | 55 | 8.5 | 40 | 1.6 |

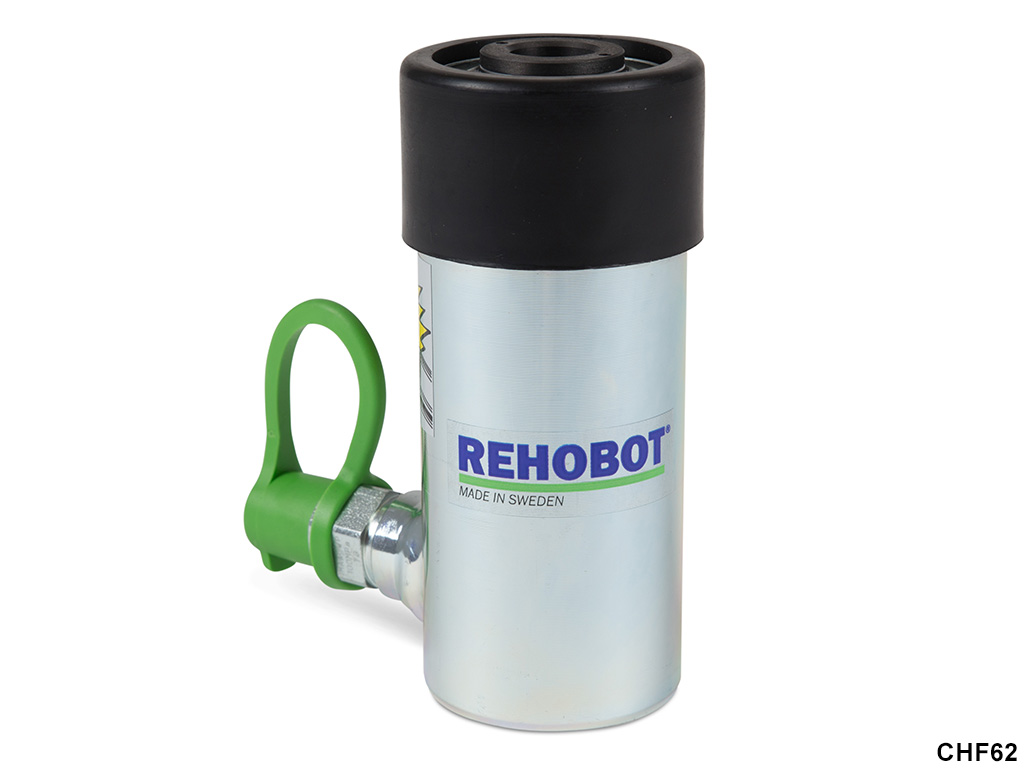

| CHF62 | 45244 | 700 | 61 (6) | 51 | 17 | 136 | 55 | 8.5 | 40 | 2.0 |

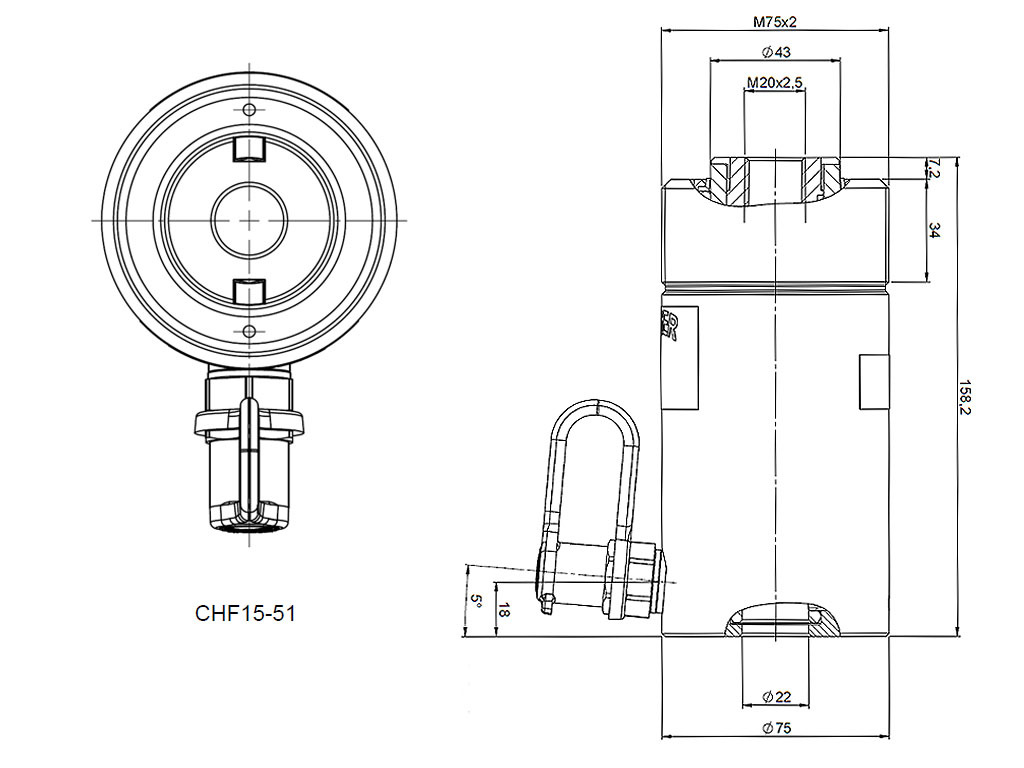

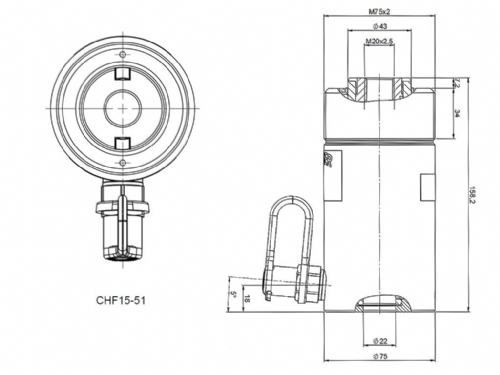

| CHF15-51 | 50670 | 700 | 148 (15) | 50 | 22 | 158 | 75 | 21 | 105 | 4.0 |

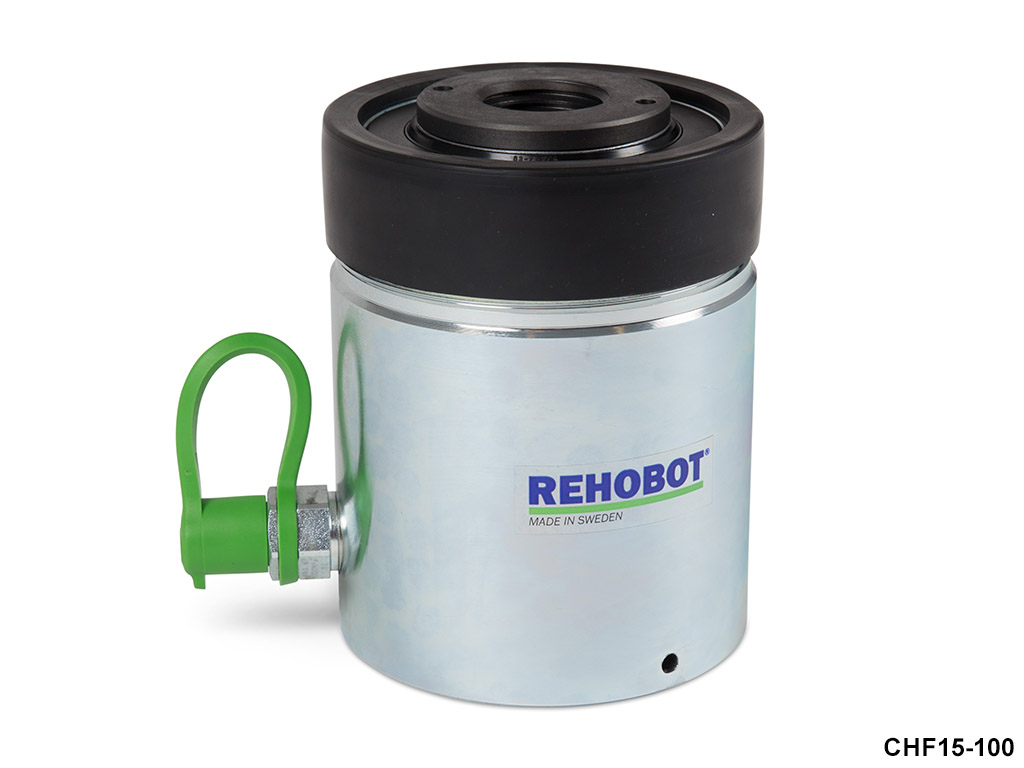

| CHF15-100 | 38230000 | 800 | 162 (15) | 100 | 26 | 254 | 82 | 18.5 | 185 | 8.0 |

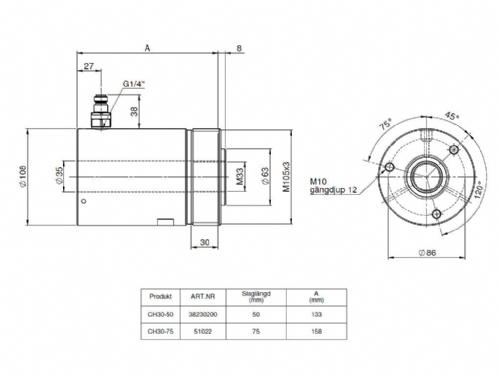

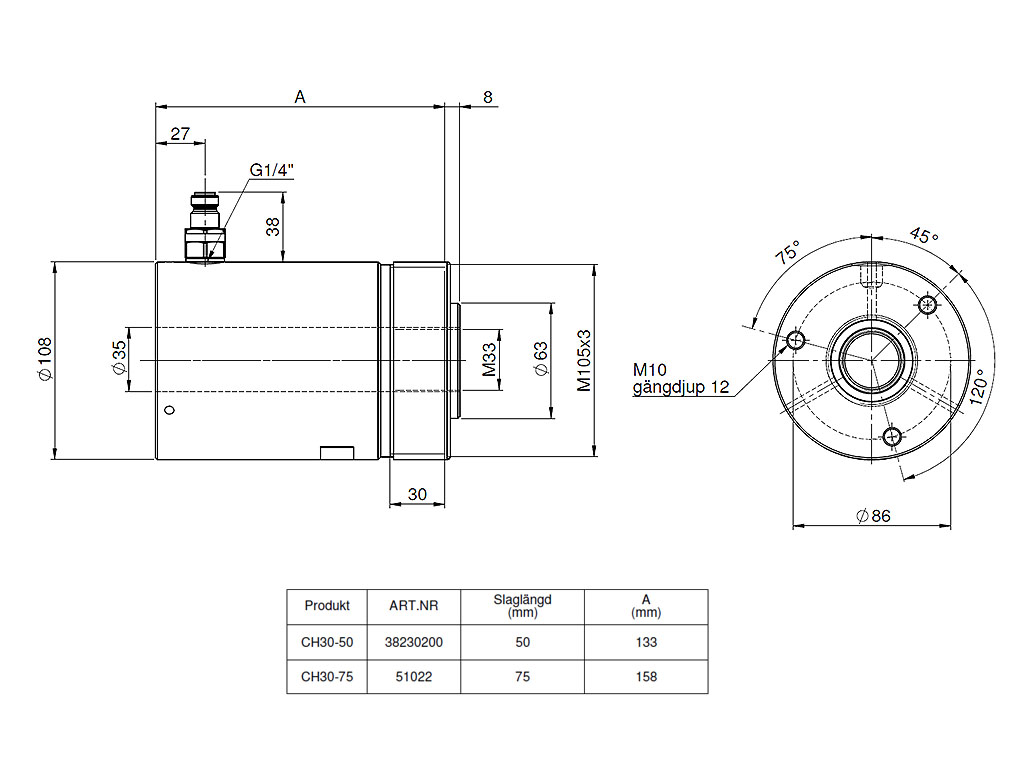

| CH30-50 | 38230200 | 800 | 327 (33) | 50 | 35 | 141 | 108 | 41 | 200 | 7.2 |
| CH30-75 | 51022 | 800 | 327 (33) | 75 | 35 | 158 | 108 | 41 | 287 | 8.5 |

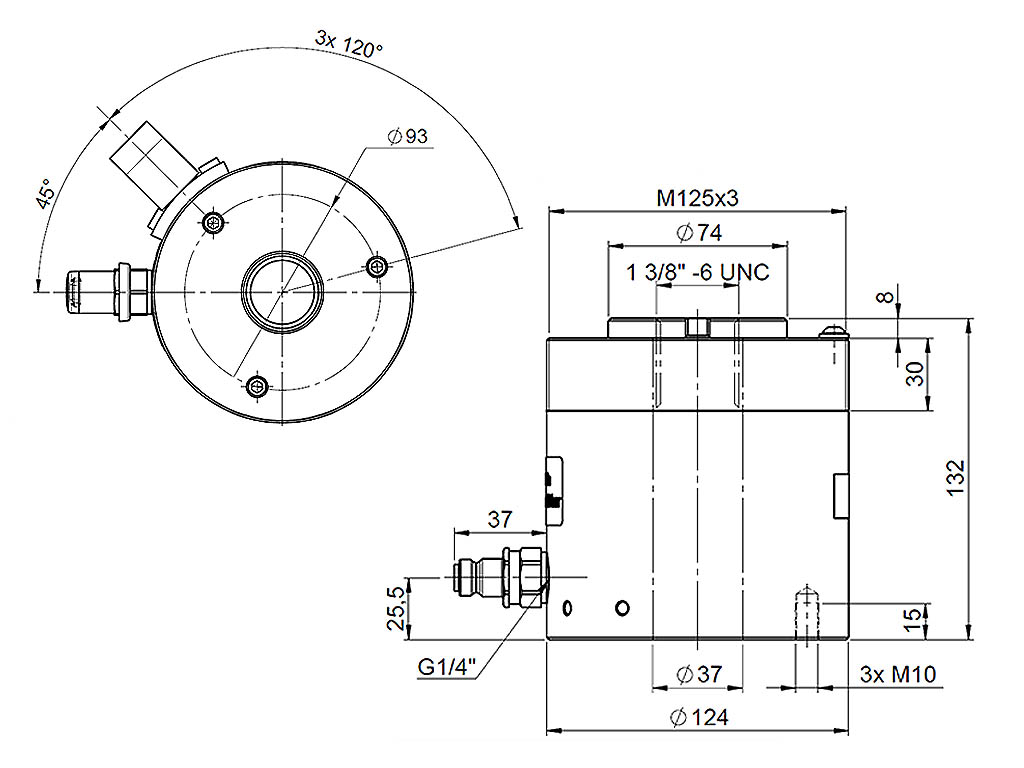

| CH50-40 | 38281500 | 800 | 500 (51) | 40 | 37 | 124 | 124 | 63.5 | 254 | 9.2 |
.jpg)
CH/CHF hollow cylinders can be used for both push and pull operations due to the through-hole. For example, by inserting a rod through the cylinder, the push force can also be used for pulling operations, e.g. when extracting bushings from machine elements.
•6-51 ton capacity and 50-75 mm stroke length.
•Very compact exterior dimensions, making them suitable for integration into applications.
CH = Single acting steel hollow bore cylinders with load return
CHF = Single acting steel hollow bore cylinders with spring return
Rehobot Single Acting Hollow Cylinder Product Brochure - PDF
Rehobot Single Acting Hollow Cylinder Operating Instruction - PDF
Rehobot Single Acting Hollow Cylinder Part List - PDF

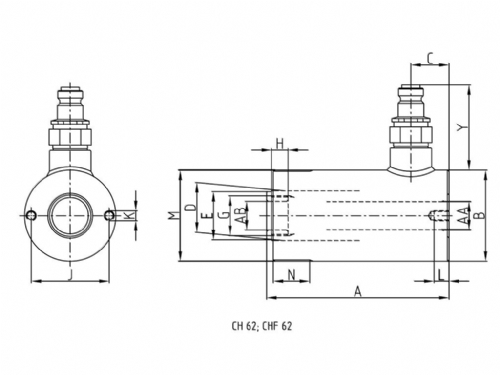

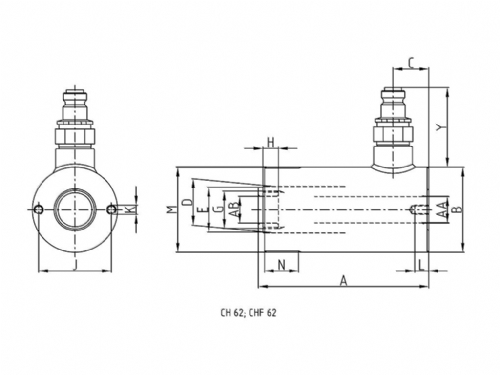

Rehobot Single Acting Hollow Cylinder Technical Drawing - PDF
