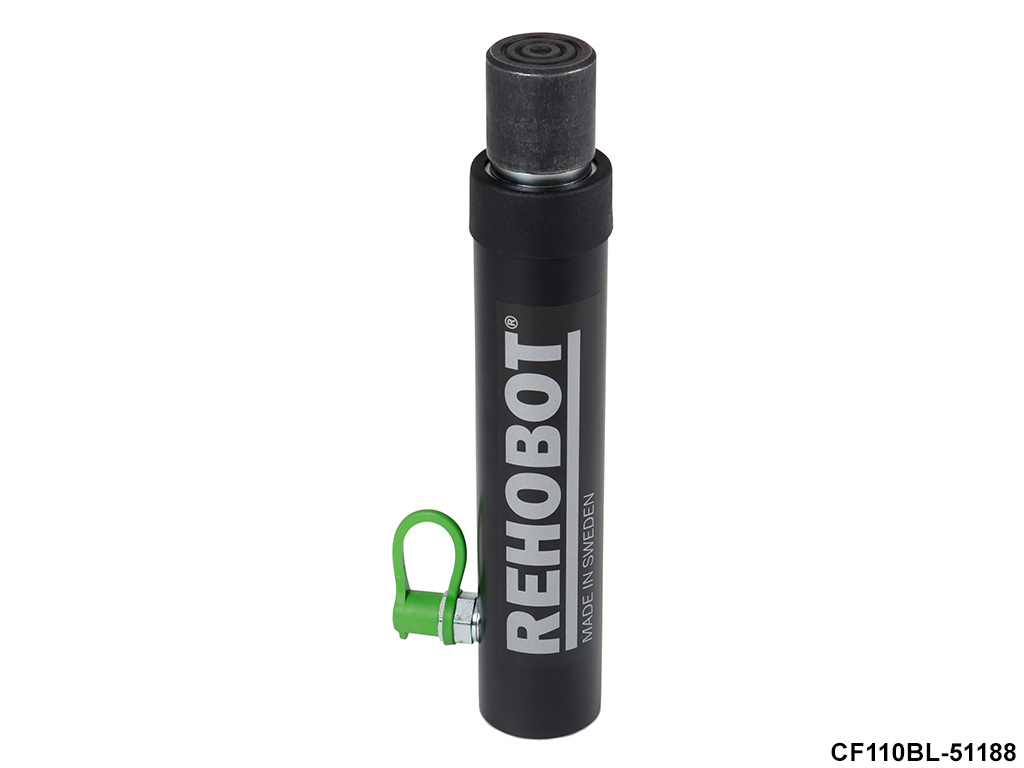

Rehobot CF110BL Hydraulic Jack 11 ton
CF110BL Single Acting Spring Return, 150 mm Stroke
| Rehobot Code | CF110BL |
| Capacity | 11 ton |
| Stroke | 150 mm |
| Closed Height | 321 mm |
| Out Diameter | Ø56.5 mm |
| Effective Area | 15.9 cm² |
| Oil Volume | 239 cm³ |
| Working Pres. | 700 Bar |
| Cylinder Type | S/A Spring return |
| Weight | 4.7 kg |
| Origin/Brand | Sweden/Rehobot |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Capacity from 5 to 24 tons
- Cylinder stroke 127-300 mm
- Working pressure 700 bar
- Single acting, spring return system
- CF BL: Spring return cylinders
- Designed for multi purpose use
- Made by high strenght alloy steel
- High strenght alloy steel
- Origin Sweden, manufacturer Rehobot/NIKE
Product technical specificationsTechnical Specifications
Rehobot (Previously NIKE) Blackline CF BL Single Acting Hydraulic Cylinder
| Model | Ürün Kodu | Working Pres. | Capacity | Stroke | Height | Out Dia. | Effective Area | Oil Volume | Weight |
| Bar | Ton | mm | mm | Ø mm | cm² | cm³ | kg | ||

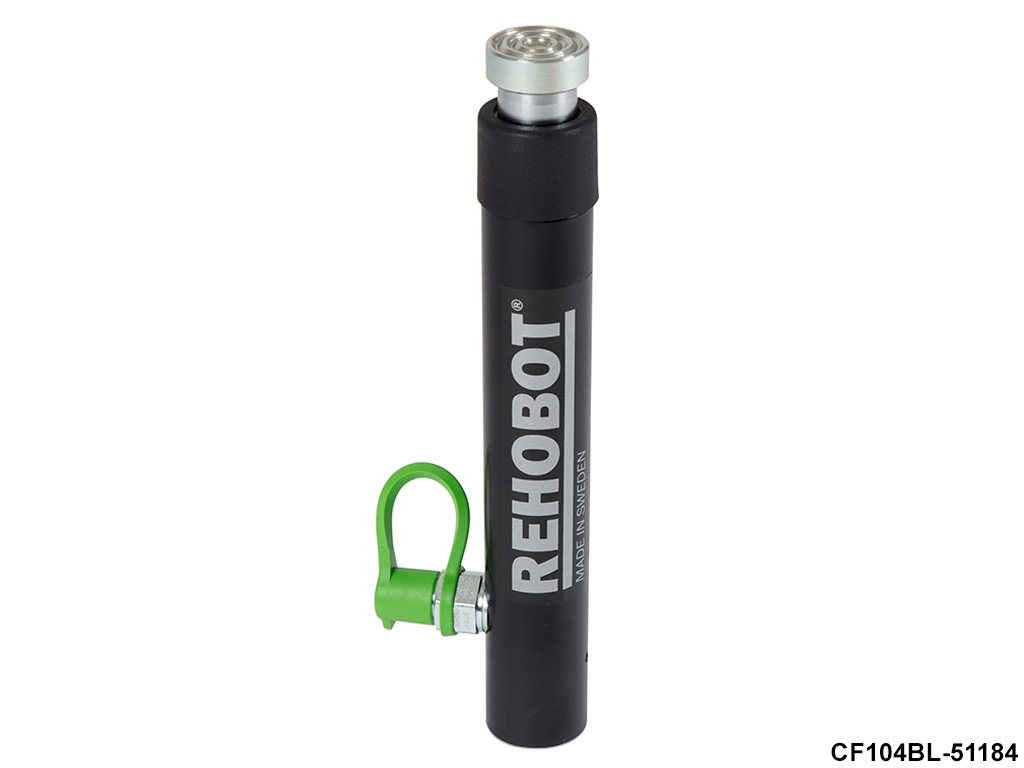

| CF104BL | 51184 | 700 | 5 | 127 | 267 | 37,5 | 7,1 | 90 | 1,7 |

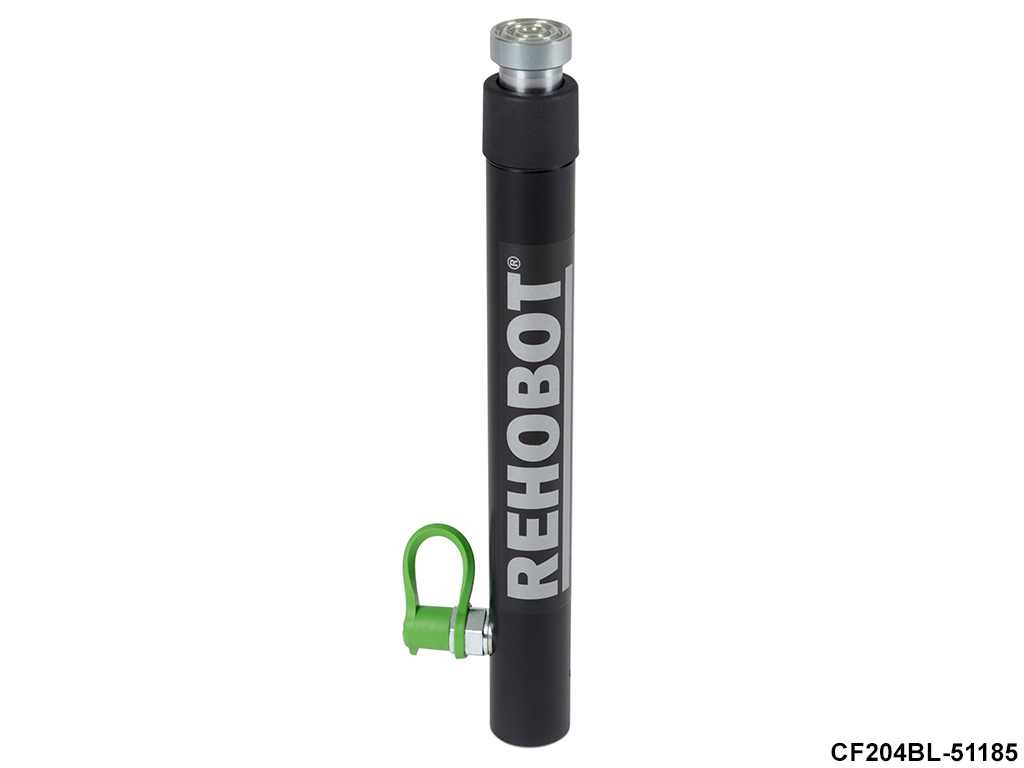

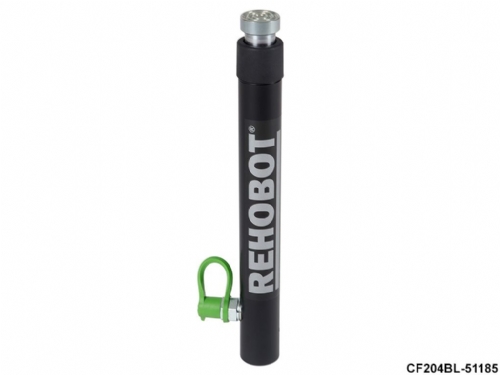

| CF204BL | 51185 | 700 | 5 | 200 | 340 | 37,5 | 7,1 | 142 | 2,4 |
| CF110BL | 51188 | 700 | 11 | 150 | 321 | 56,5 | 15,7 | 239 | 4,7 |

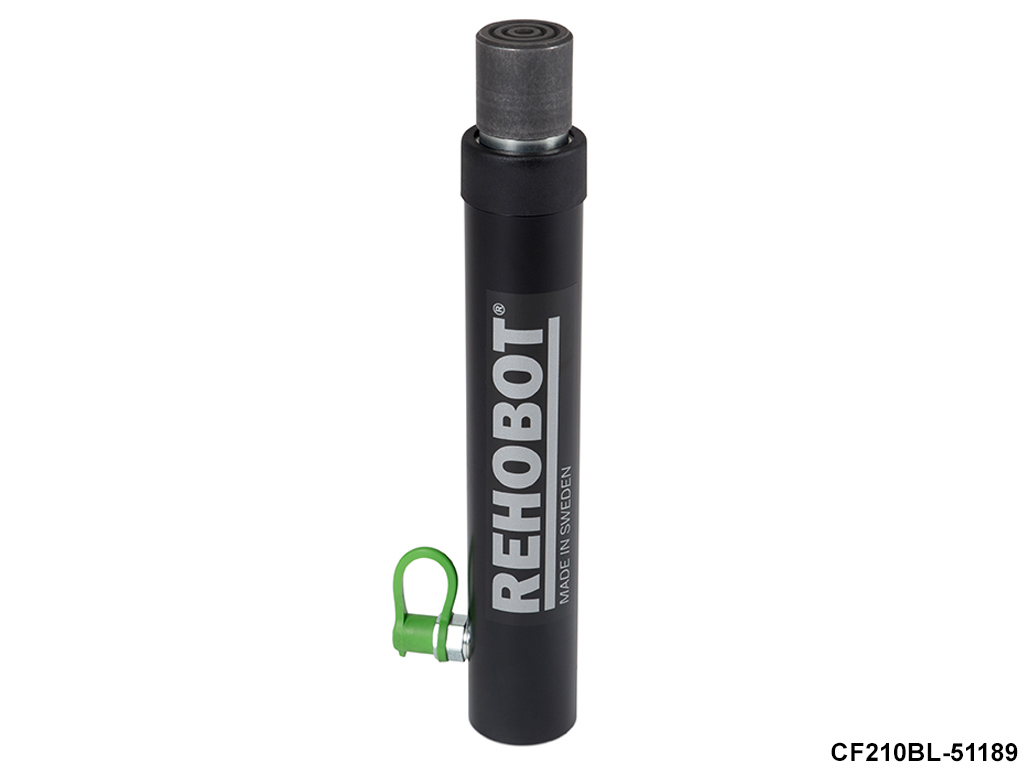

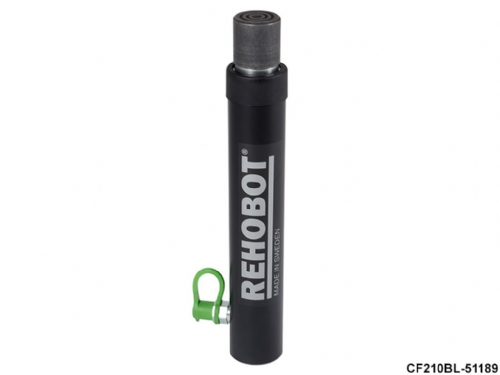

| CF210BL | 51189 | 700 | 11 | 200 | 372 | 56,5 | 15,7 | 318 | 5,5 |

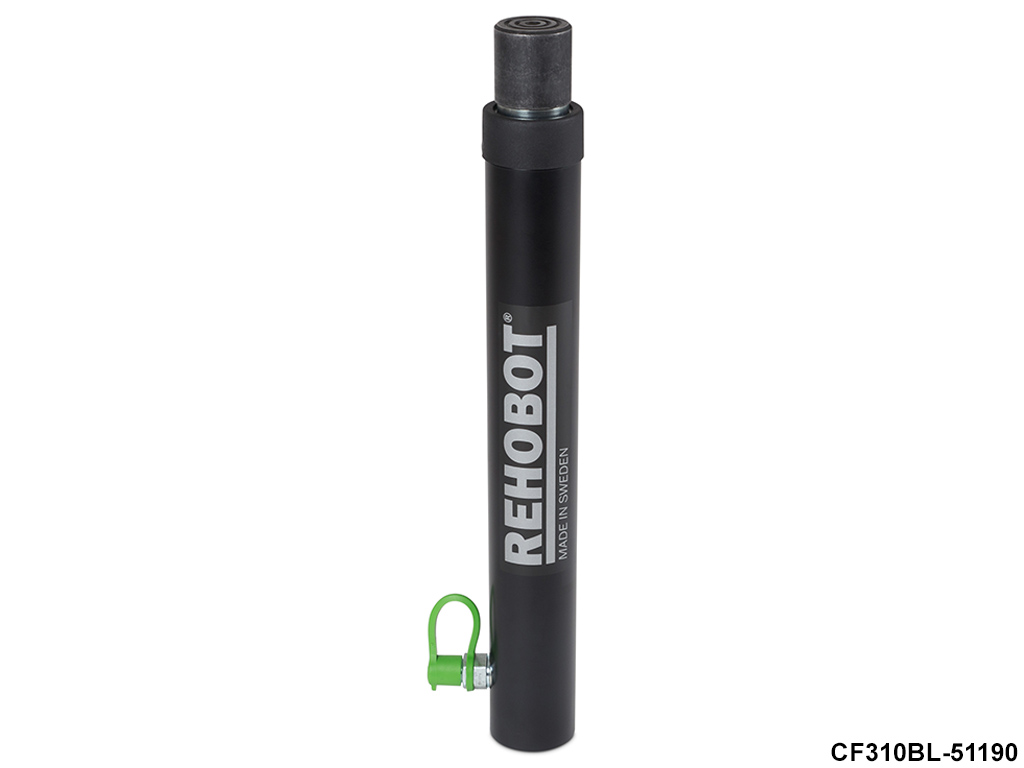

| CF310BL | 51190 | 700 | 11 | 300 | 474 | 56,5 | 15,7 | 477 | 7,0 |

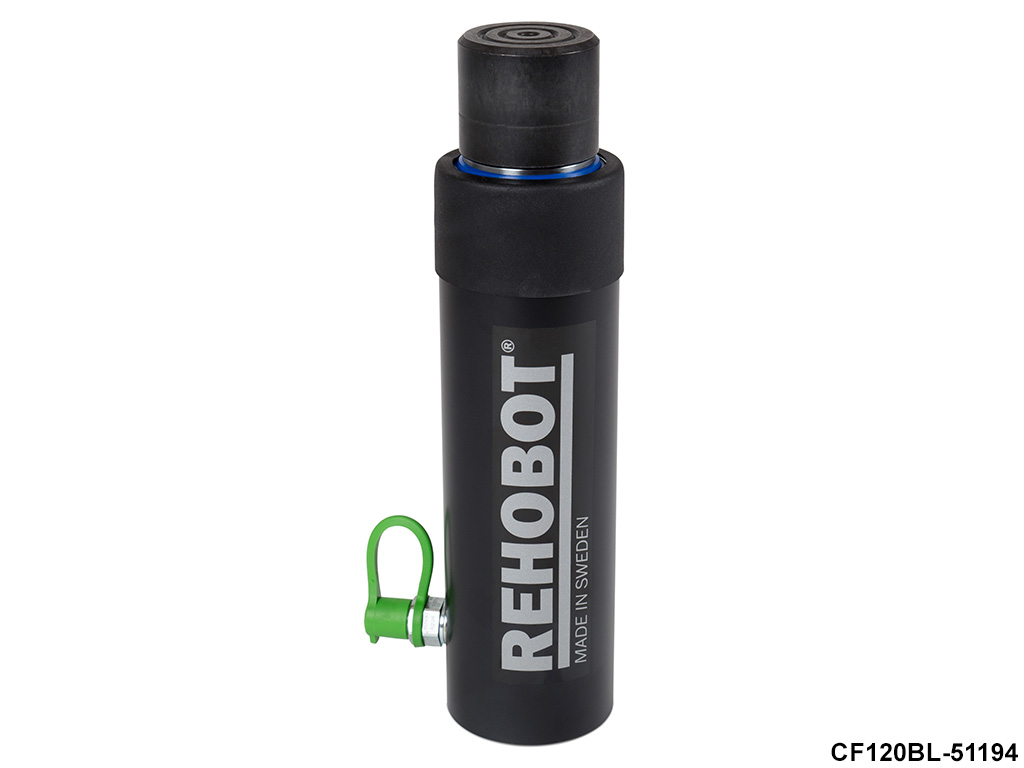

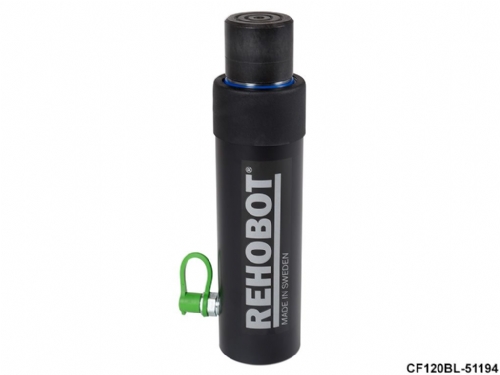

| CF120BL | 51194 | 700 | 24 | 127 | 337 | 84 | 34,3 | 422 | 10,2 |

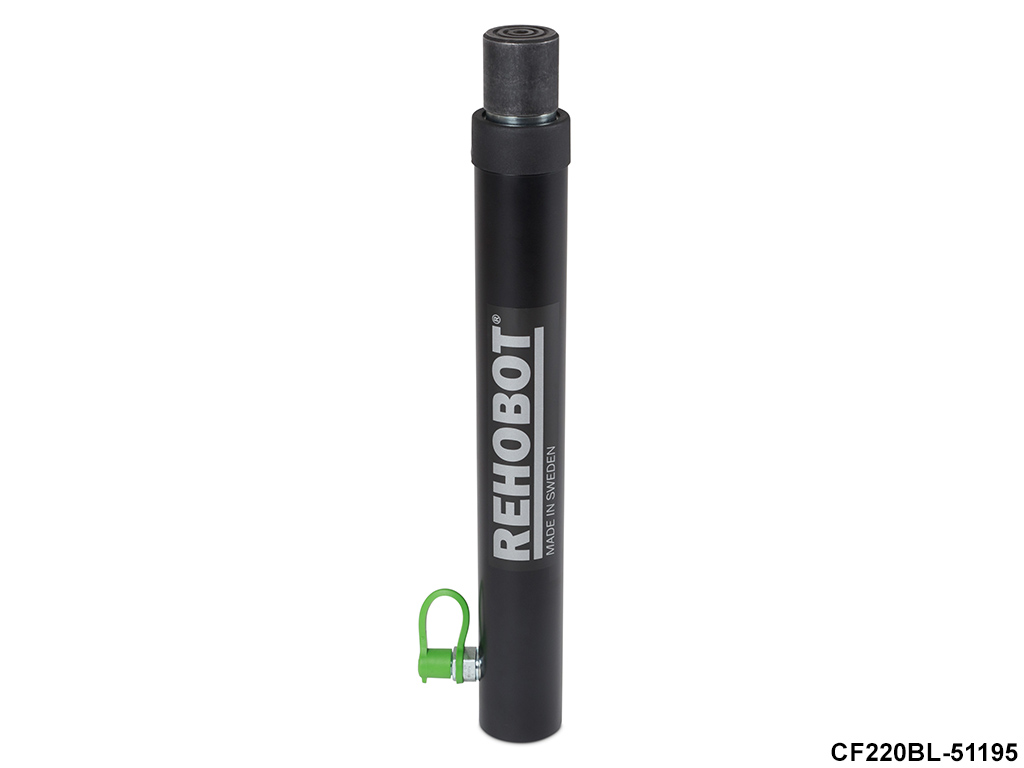

| CF220BL | 51195 | 700 | 24 | 200 | 410 | 84 | 34,3 | 664 | 12,4 |

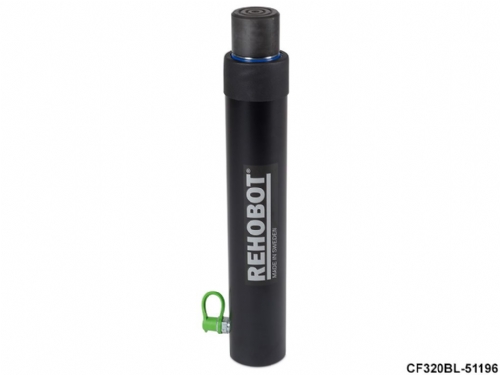

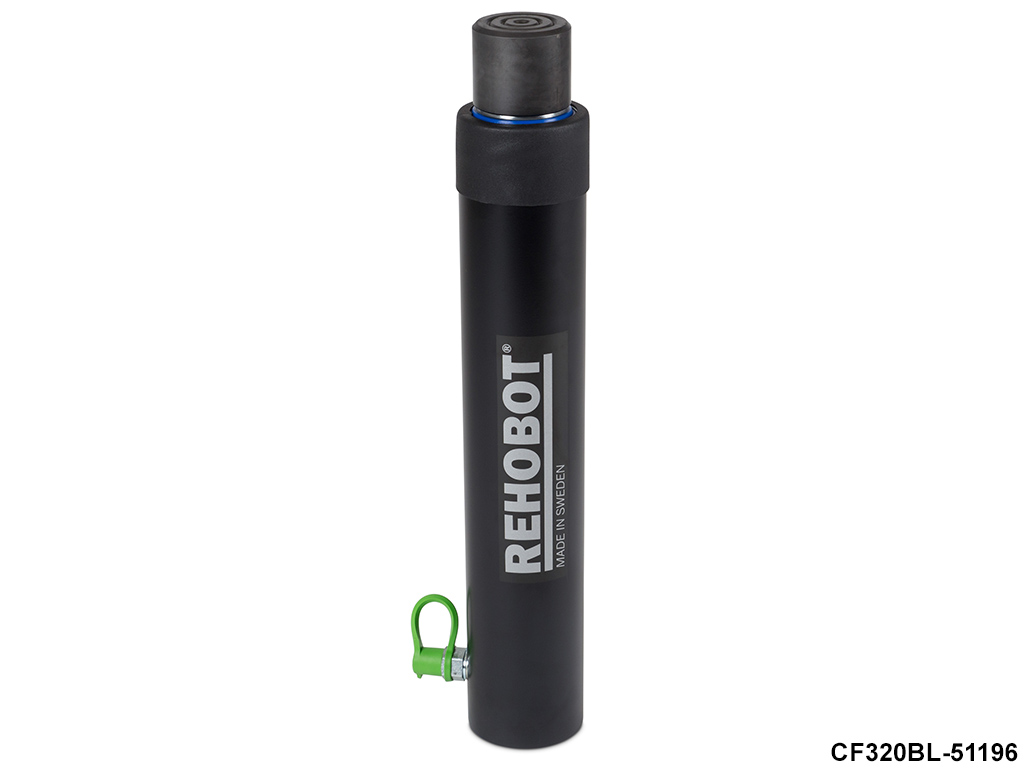

| CF320BL | 51196 | 700 | 24 | 300 | 510 | 84 | 34,3 | 996 | 16,0 |
.jpg)

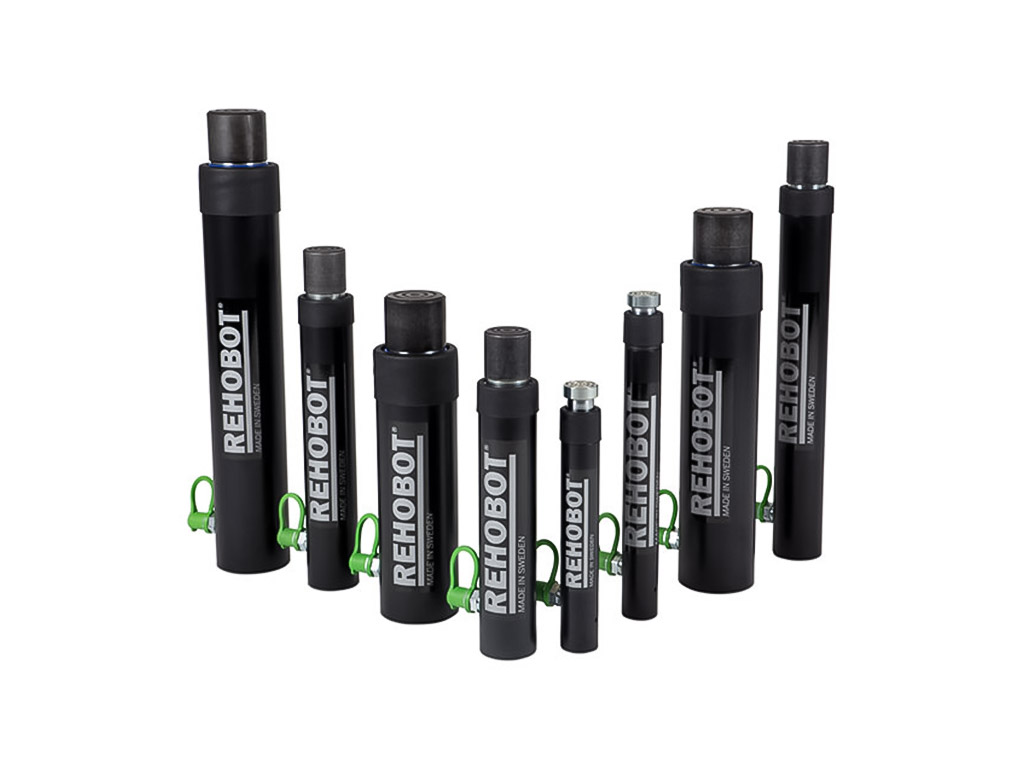

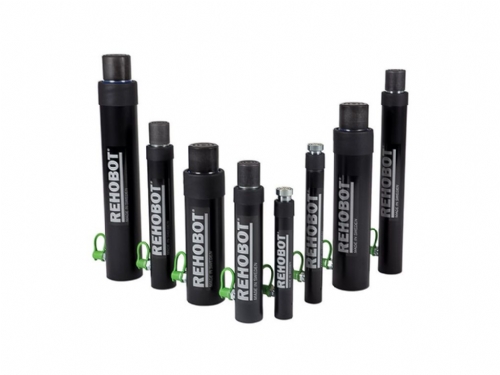

Our Blackline push cylinders are adapted for harsh environments with high risk of corrosion and condensation. They are built upon our successful CF-series and can be used for a variety of purposes.
These robust cylinders are your best choice for harsh environments due to the latest technology. Black is the new green: with more eco-friendly manufacturing process the Blackline cylinders do not only resist the tough environment, they also preserve it without compromising superior quality.
Features
- Increased corrision resistance
- Increased durability
- Low maintenance
- All-round
- Wide varity of accessories
- High strength alloy steel
- 5 to 24 ton capacity
- 127-300 mm stroke length
- Spring return
- Temperature range: -20°C to +50°C

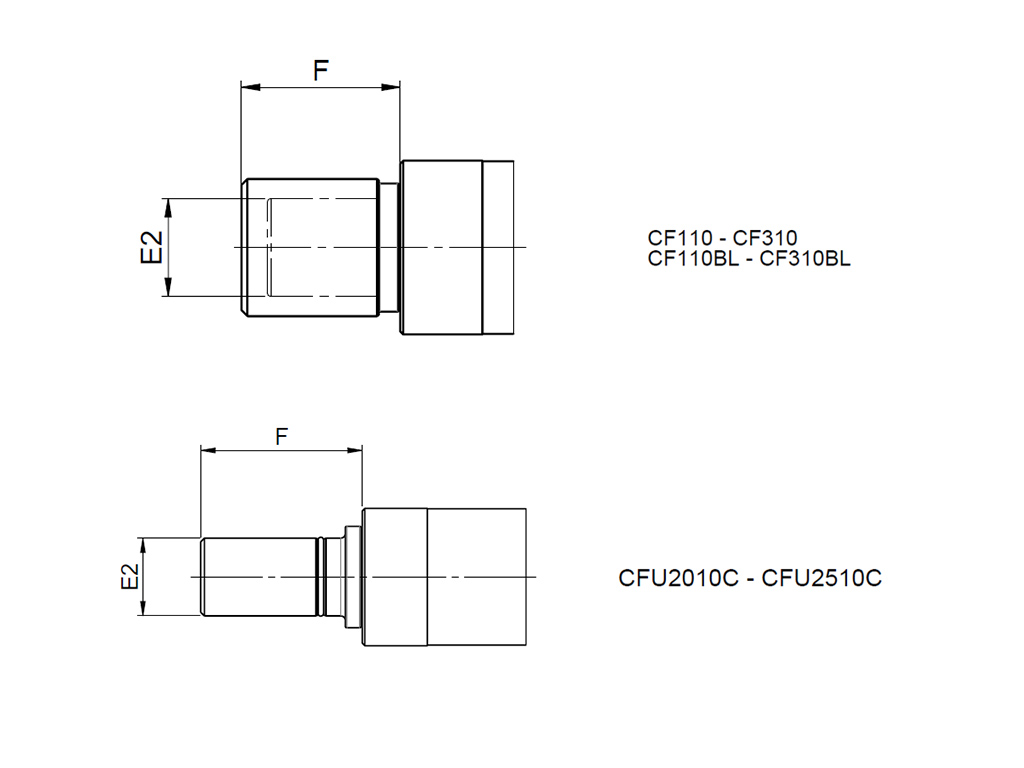

Blackline push cylinders are equipped with a quick coupling, and can easily be connected to your regular hydraulic pump. They are prepared for accessories to be connected at the piston top or at the bottom of the cylinder.
Using Area
- Scraping and demolition
- Mining industry
- Marine and off-shore
- Oil and gas
- Car maintenance workshops
- Industrial applications
CF BL = Single acting push cylinders with spring return and increased protection against corrosion
Couplings
All REHOBOT cylinders can be provided with either a push-to-connect (male coupling half, AQU8) or a screw-to-connect (female coupling half, AQI24).
