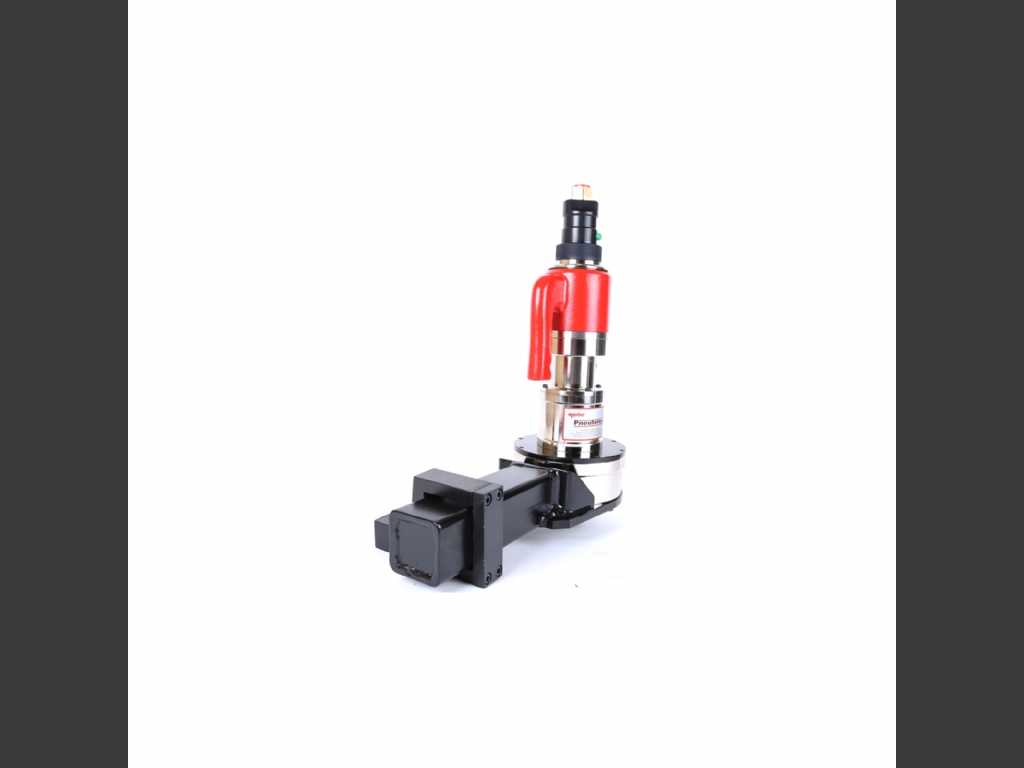

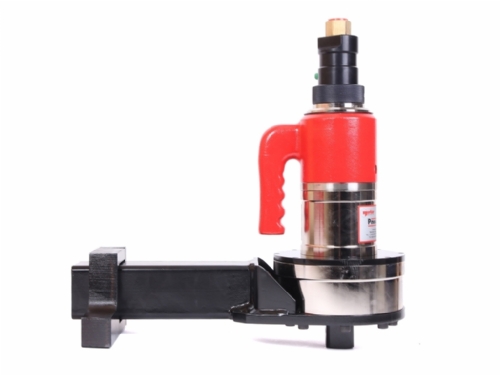

Norbar 16072.MTS Pneumatic Torque Multiplier
9500 N.m Pneumatic Torque Multiplier, 9 d/d rpm, Drive 1.1/2“
| Product Code | 16072.MTS |
| Capacity (max) | 9500 N.m |
| Capacity (min) | 2710 N.m |
| Drive | 1.1/2" |
| Accuracy | ±5% |
| Idle Speed | 9 d/d rpm |
| Tool weight | 27.9 kg |

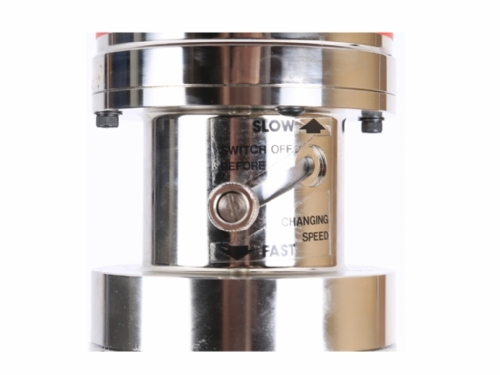

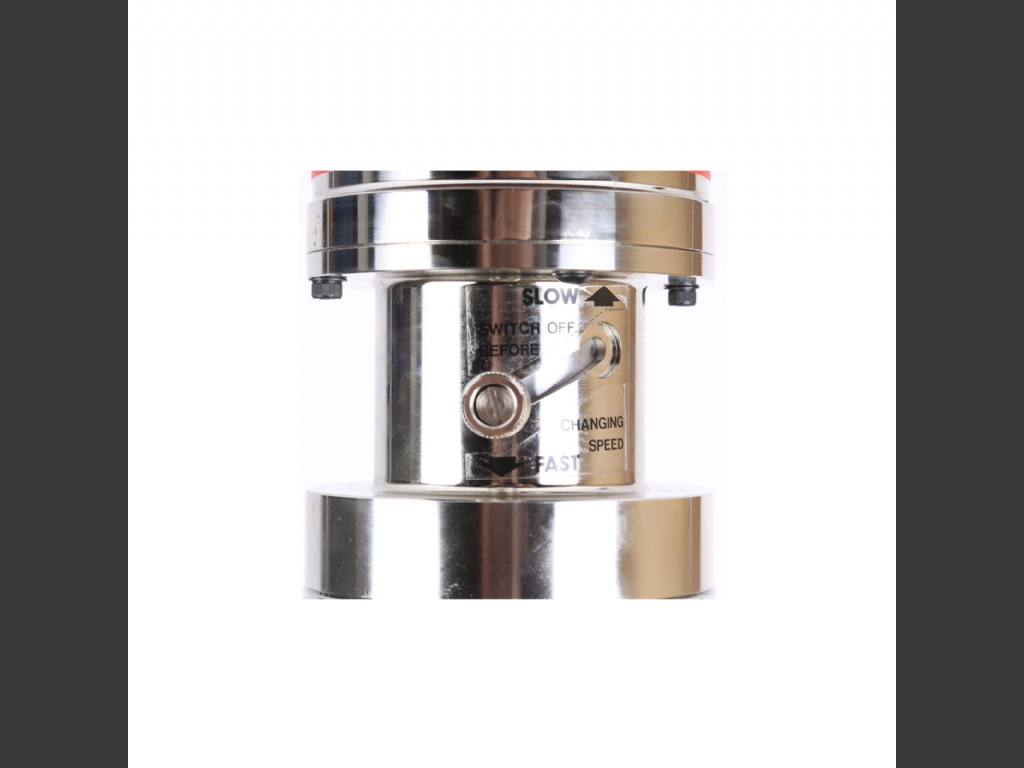

| Gearbox type | Manuel two speed |
| Accredited calibration | Available on option |
| Manufactured | In United Kingdom |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Accuracy better than ±%5
- 8 models 1.762 / 20.000 N.m
- Suitable forward and reverse operation
- Idle output speed range 1.2 – 12.5 rpm
- Two speed and single speed models
- Non-impacting or pulsing operation
- Suitable for torque transducers & angle encoders

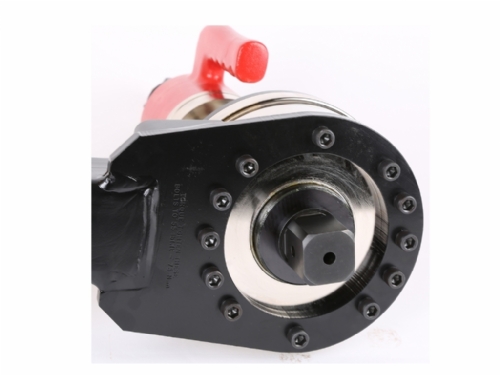

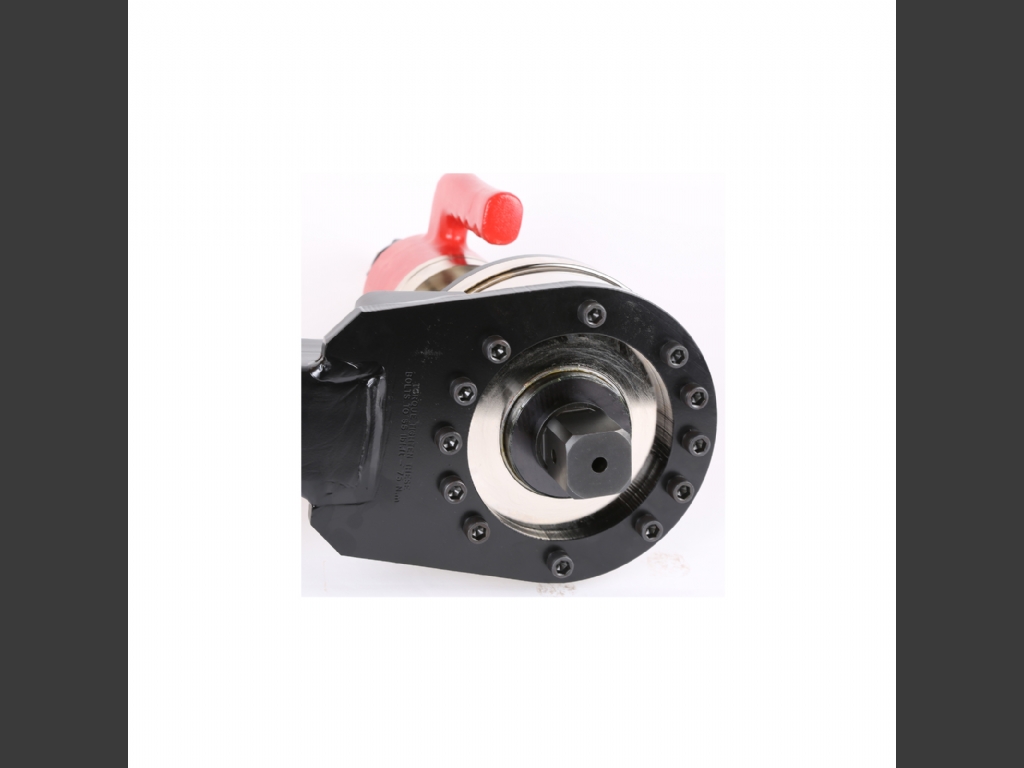

- Supplied with sliding or special reaction arm
- Robust construction, longlife, maintenance free
- Suitable heay bolting application and valf testing
- Supplied with a house calibration certificate (CW)
Kit Components
- 1x Torque multiplier
- 1x Reaction Arm
- 1x Quick Coupling
- 1x Instruction Manual and CD
- 1x Calibration Certificate
Product technical specificationsTechnical Specifications
Single Speed Pneumatic Torque Multiplier
| Part | Torque Range | Drive | Idle Speed | Weight | Sizes (mm) | ||||
| No. | N.m | Lbf.ft | inch | d/d rpm | Kg | H | L | R2 min. | R2 max |
| 16066 | 1.762 - 6.000 | 1.300 - 4.500 | 1.1/2” | 2.5 | 19.7 | 423 | 423 | 150 | 331 |
| 16072 | 2.710 - 9.500 | 2.000 - 7.000 | 1.1/2” | 1.8 | 24.4 | 418 | 448 | 175 | 351 |
| 16046 | 4.400 - 20.000 | 3.250 - 14.700 | 2.1/2” | 1.2 | 38.6 | 425 | 609 | 320 | 500 |
Automatic Two Speed Pneumatic Torque Multiplier
| Part | Torque Range | Drive | Idle Speed | Weight | Sizes (mm) | ||||
| No. | N.m | Lbf.ft | inch | d/d rpm | Kg | H | L | R2 min. | R2 max |
| 16066.AUT | 2.200 - 6.000 | 1.622 - 4.500 | 1.1/2” | 12.5 | 23.2 | 492 | 423 | 150 | 331 |
| 16072.AUT | 3.100 - 9.500 | 2.286 - 7.000 | 1.1/2” | 9 | 27.9 | 487 | 448 | 175 | 351 |
Manuel Two Speed Pneumatic Torque Multiplier
| Part | Torque Range | Drive | Idle Speed | Weight | Sizes (mm) | ||||
| No. | N.m | Lbf.ft | inch | d/d rpm | Kg | H | L | R2 min. | R2 max |
| 16066.MTS | 1.762 - 6.000 | 1.300 - 4.500 | 1.1/2” | 12.5 | 23.2 | 509 | 423 | 150 | 331 |
| 16072.MTS | 2.710 - 9.500 | 2.000 - 7.000 | 1.1/2” | 9 | 27.9 | 504 | 448 | 175 | 351 |
| 16046.MTS | 4.400 - 20.000 | 3.250 - 14.700 | 2.1/2” | 6 | 42.1 | 581 | 609 | 320 | 500 |
