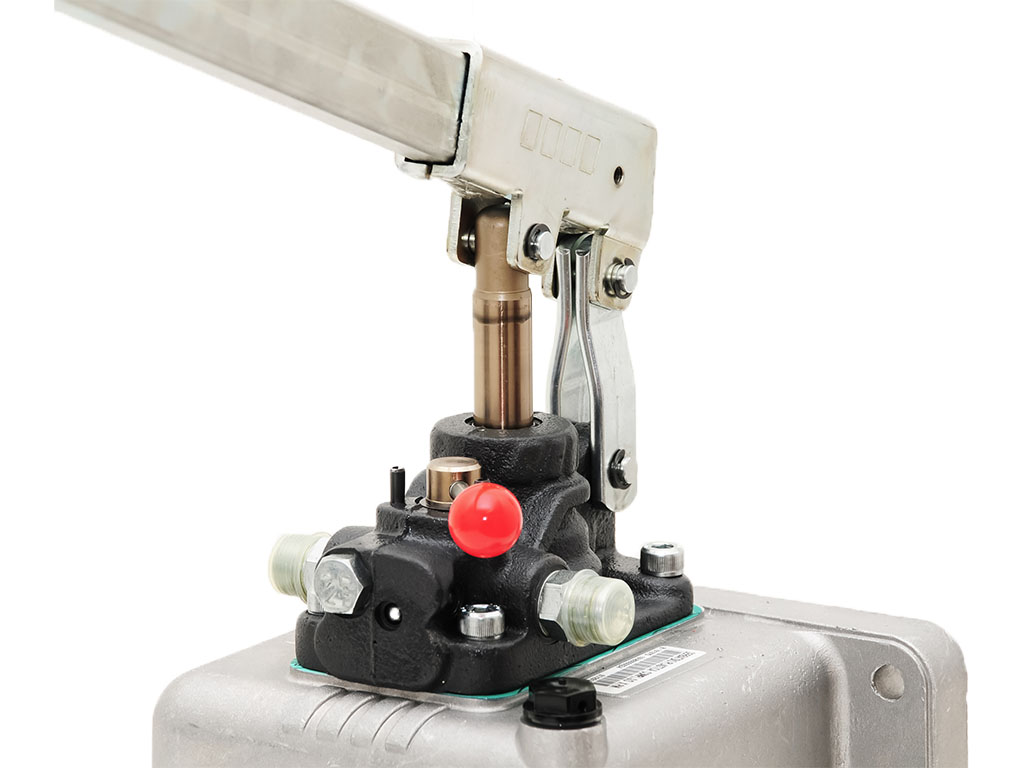

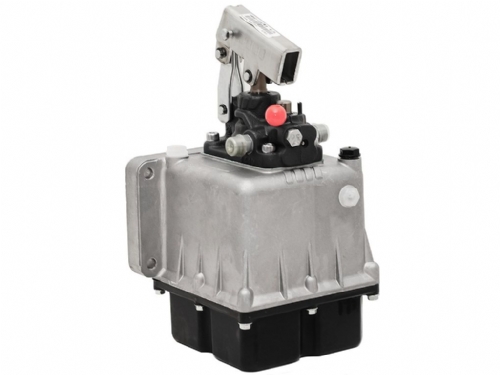

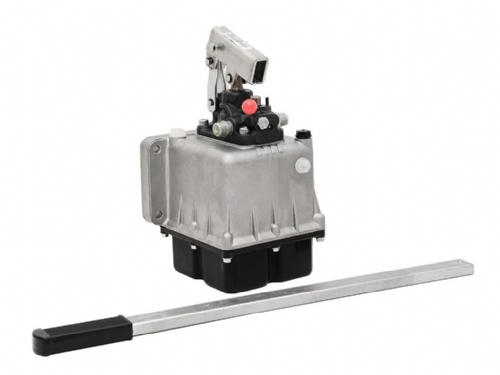

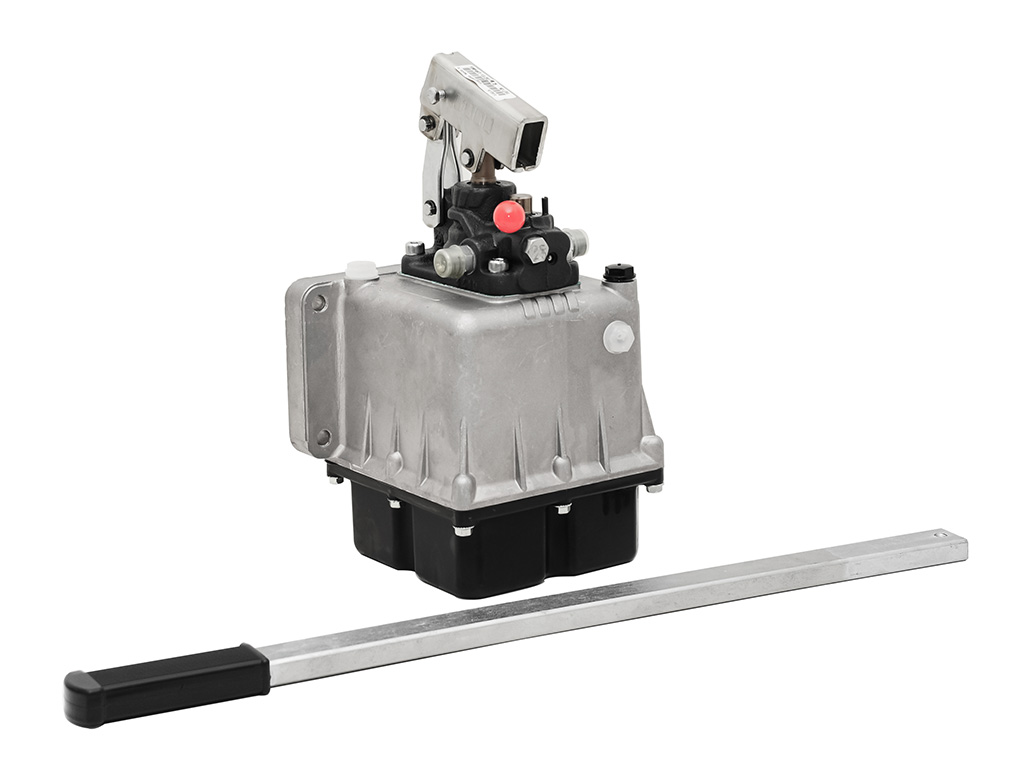

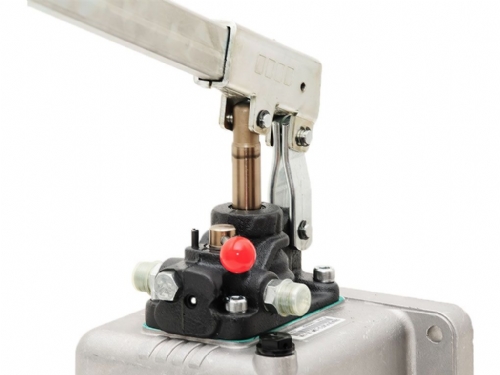

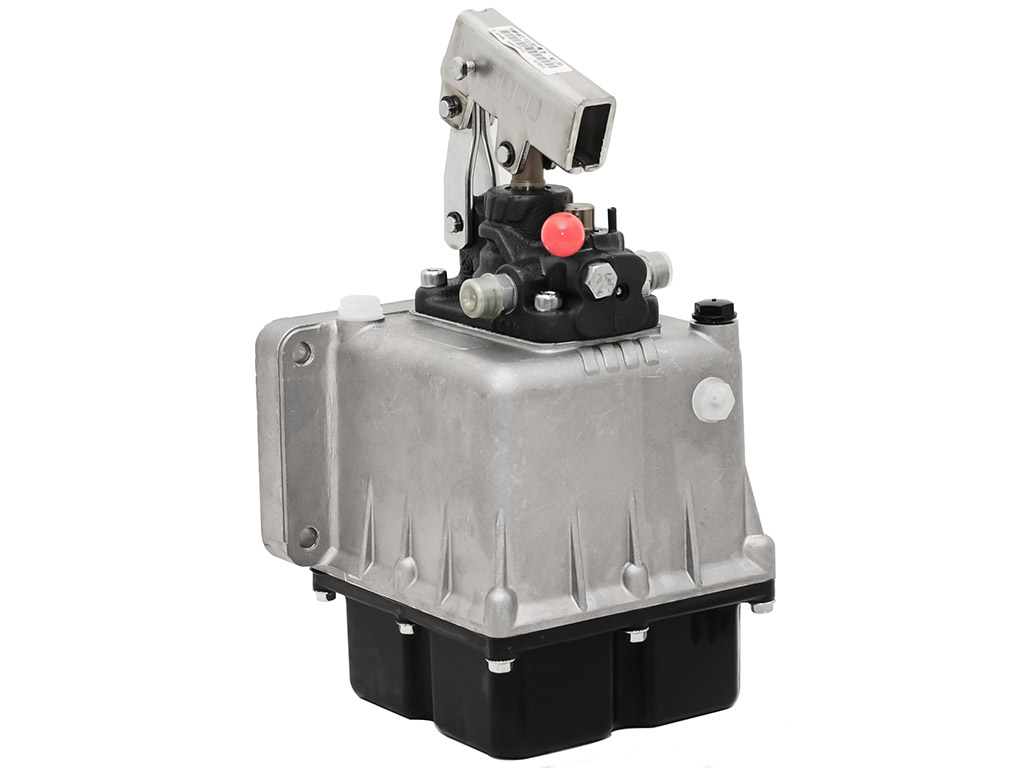

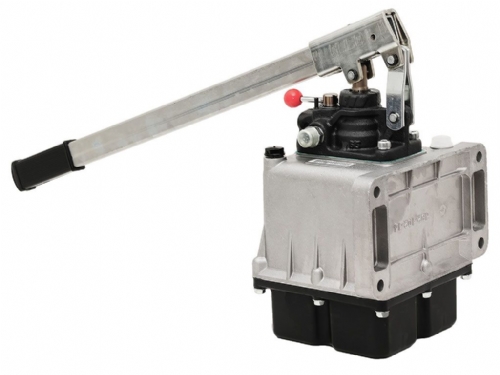

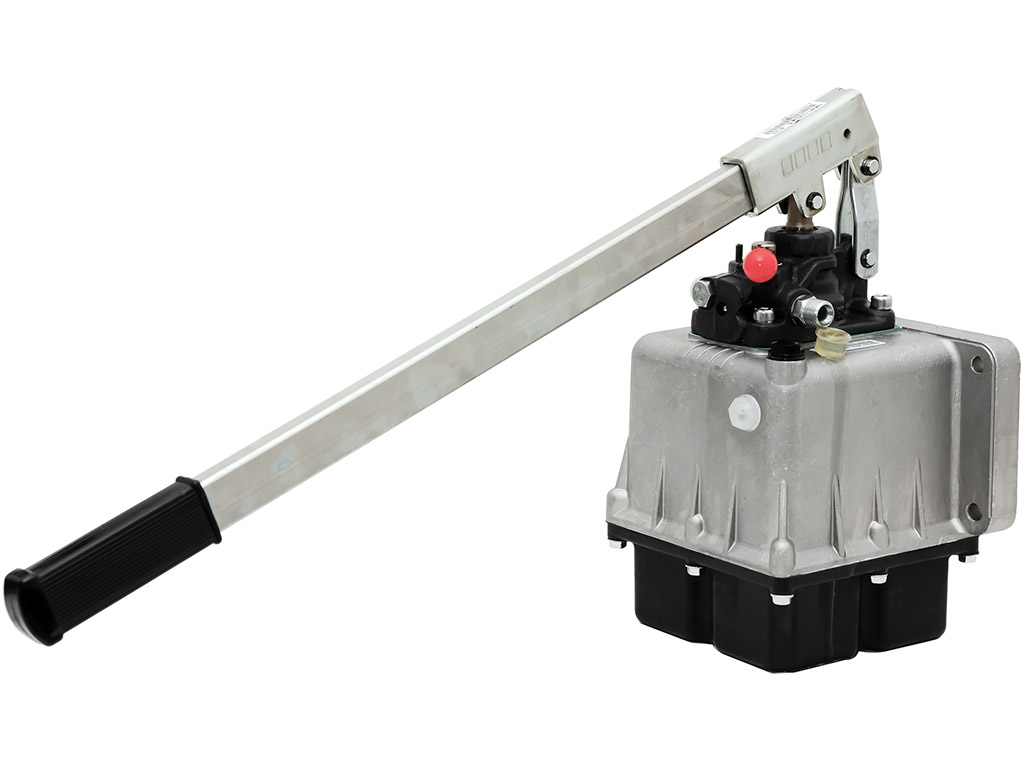

OMFB FULCRO PMI 12 Hydraulic Hand Pump
350 Bar Double Acting Hydraulic Hand Pump - (1 - 10 lt.) Oil Tank Options
| Model Code | FLC12-DA |
| Working Pressure | 350 bar |
| Oil Capacity | 1 - 10 lt. |
| Pump Type | Double Acting |
| Oil Displ. Per Stroke | 12 cm³ |
| Push / Pull Displ. | 5.9 / 6.1 cm³ |
| Oil Inlet Port | 2 x 3/8" NPT dişi |
| Suitable Oil Type | Shell Tellus 32 - Mobil DTE24 |
| Pressure Gauge | Optional |
| Weight W.out Tank | 2.8 kg |
| Brand / Origin | OMFB / Italy |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Working pressure 350 bar max
- PMS single, PMI double acting model
- Three different flow rate of each model
- Enable high flow 12 cm³, 25 cm³ ve 45 cm³
- Oil displacement in push and pull action
- Equipped with over pressure safety valve
- Cast oil tank options up to 10 liter capacity
- Designed for heavy industrial use
- Pressure gauge and coupling on option
- Made in Italy by OMFB with CE marking
Product technical specificationsTechnical Specifications
OMFB FULCRO PMI Series High Flow Hand Pumps for Industrial Use
Double acting hand pumps suitable to operate single acting applications. They can be fitted also onto tank and are equipped with tapered lowering valve.These hand pumps can have 3 different sizes to perform various applications and to achieve smoother loads on the lever.They are available with nodular cast-iron body zinc plating+sealed and nickel-plated spool.
- FLC-PMS 12 Hydraulic Hand Pump 350 Bar 12 cm³ Displacement
- FLC-PMS 25 Hydraulic Hand Pump 300 Bar 25 cm³ Displacement
- FLC-PMS 45 Hydraulic Hand Pump 270 Bar 45 cm³ Displacement
- FULCRO PMS OMFB Single acting hydraulic hand pump
- FULCRO PMI OMFB Double acting hydraulic hand pump
Double Acting Hydraulic Hand Pump
| Technical Description | Unit | Model Code | ||
| Model Code | Double Acting | FLC12-DA | FLC25-DA | FLC45-DA |
| Working Pressure | bar | 350 | 300 | 270 |
| Oil Displacement per Stroke | cm³ | 12 | 25 | 45 |
| Push / Pull Displacement | cm³ | 5.9 / 6.1 | 11.6 / 13.4 | 21.3 / 23.7 |
| Oil Port | NPT | 2 x 3/8" NPT female | ||
| Suitable Oil Type | # | Shell Tellus 32 - Mobil DTE24 | ||
| Coupling Connection | NPT | Optional | ||
| Pressure Gauge | G1/4" | Optional | ||
| Weight Without Tank | kg | 2.8 | 2.9 | 3.2 |
| Oil Tank Options | lt | 1 - 2 - 3 - 5 - 7 - 10 lt. | ||
