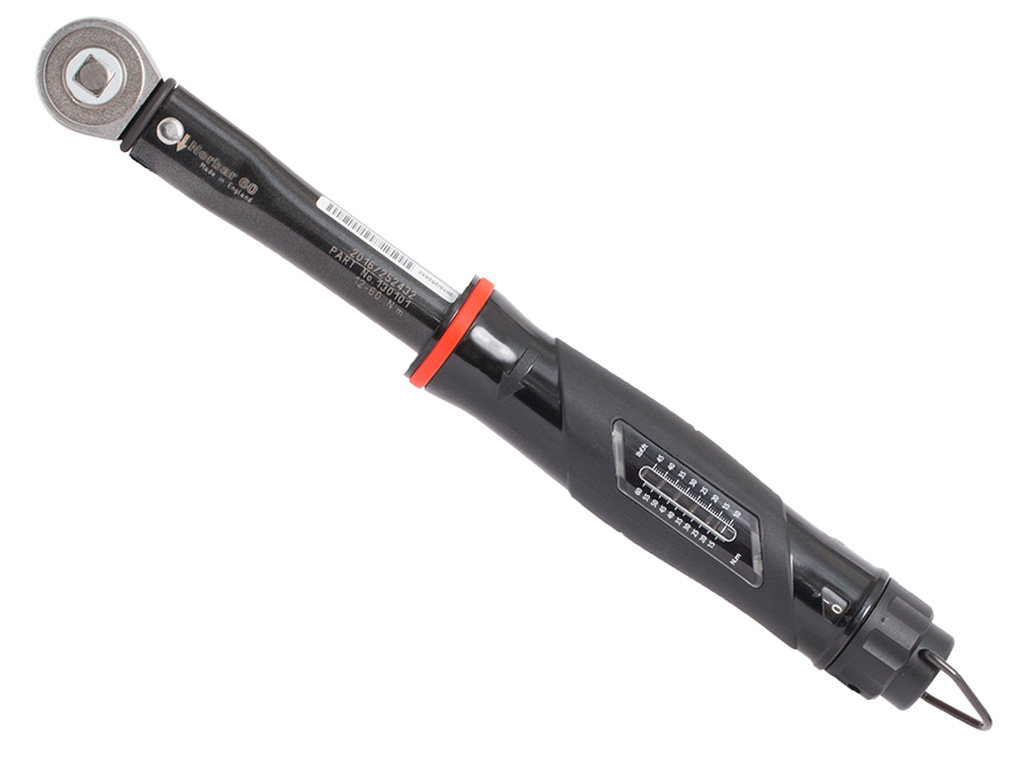

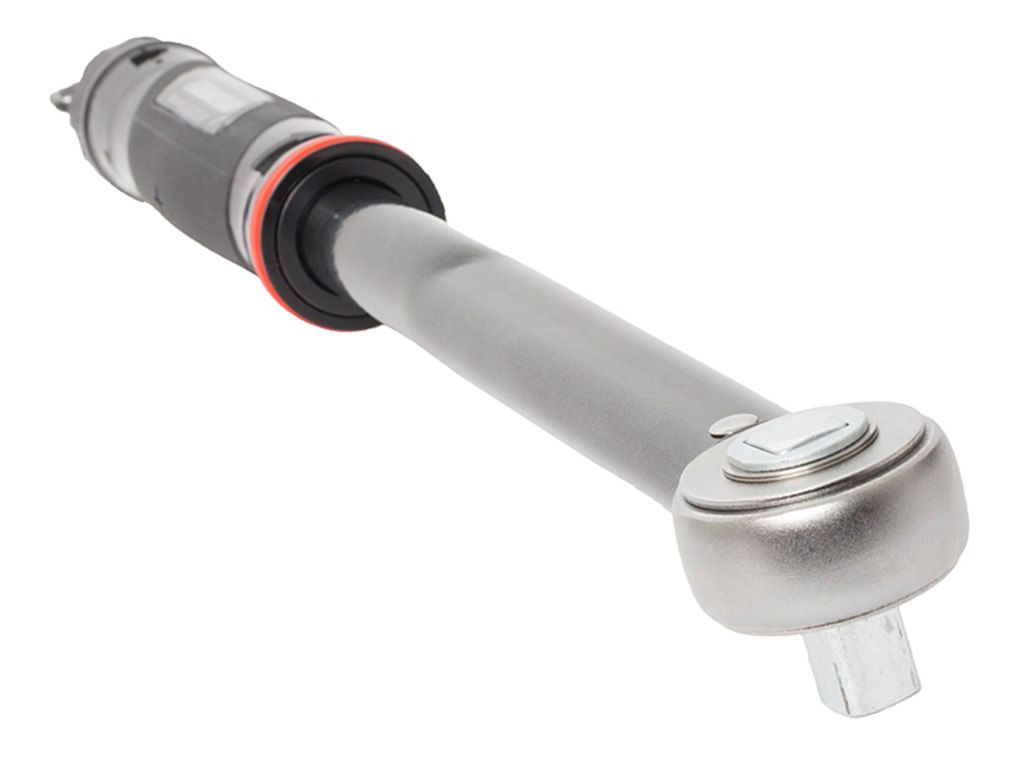

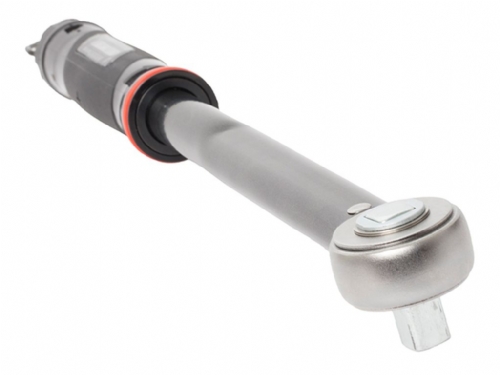

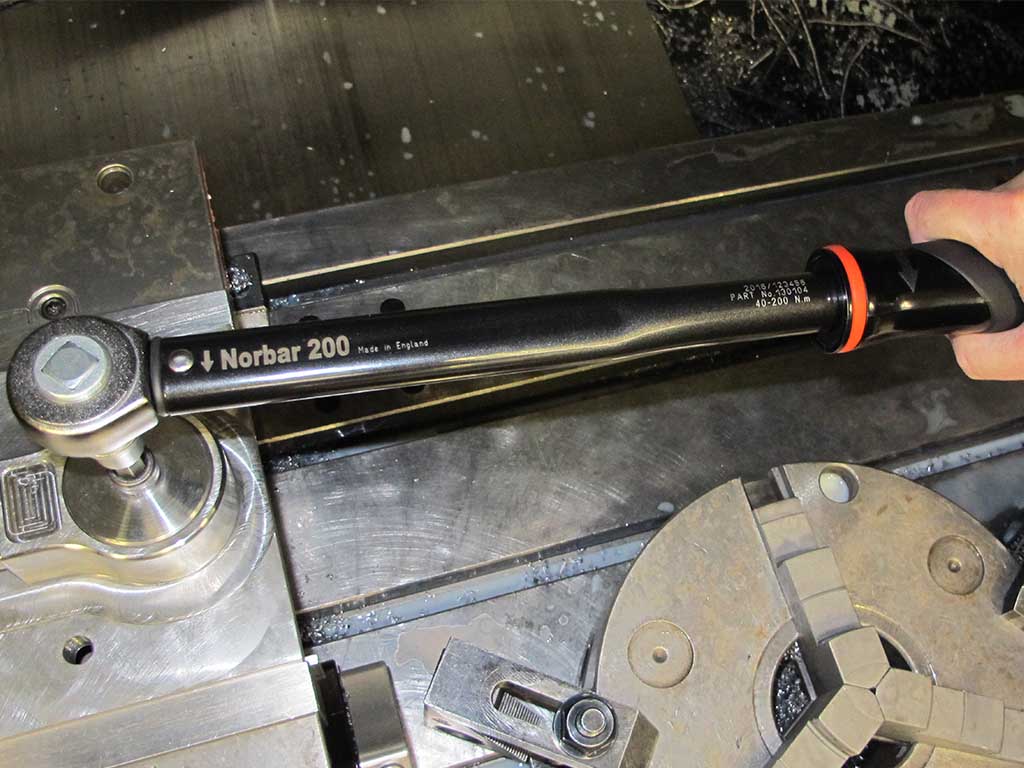

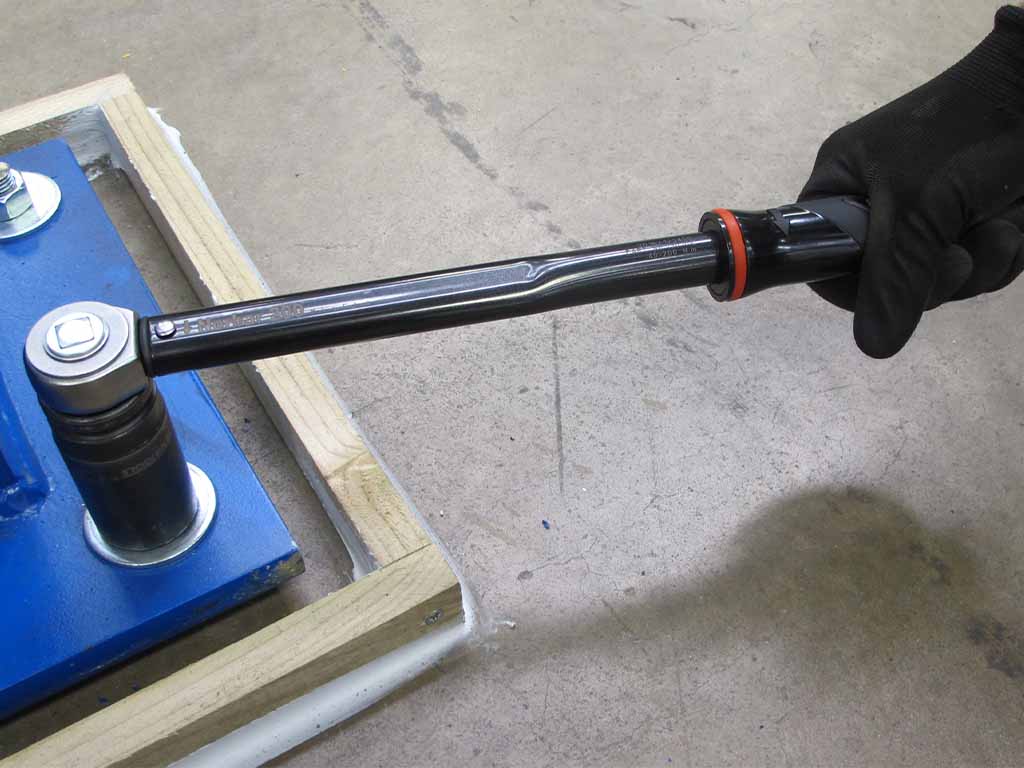

Norbar 130114 Torque Wrench

40 - 200 Nm Adjustable Torque Wrench, Accuracy ±%3, Drive 1/2“

Part No 130114
Model Model 200
Accuracy ±%3
Torque Range 40 - 200 Nm
Drive 1/2"
Scale Nm
Operation Dir. Clockwise & c.clockwise

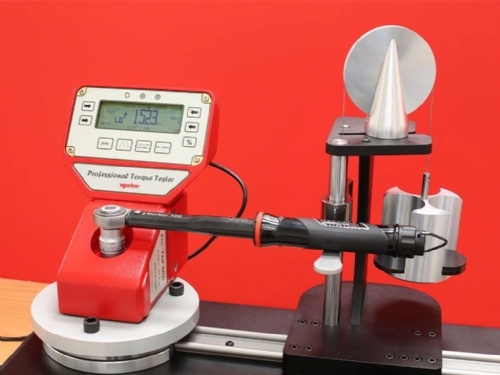

Calib. Cert. Supplied with the tool
Acr. calibration Optional
Brand - Origin Norbar - England



Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Torque accuracy ±3%
  • Torque ranges 12 – 340 N.m
  • Torque ranges 10 – 250 Lbf.ft
  • Meets the requirements of ISO 6789-1:2017

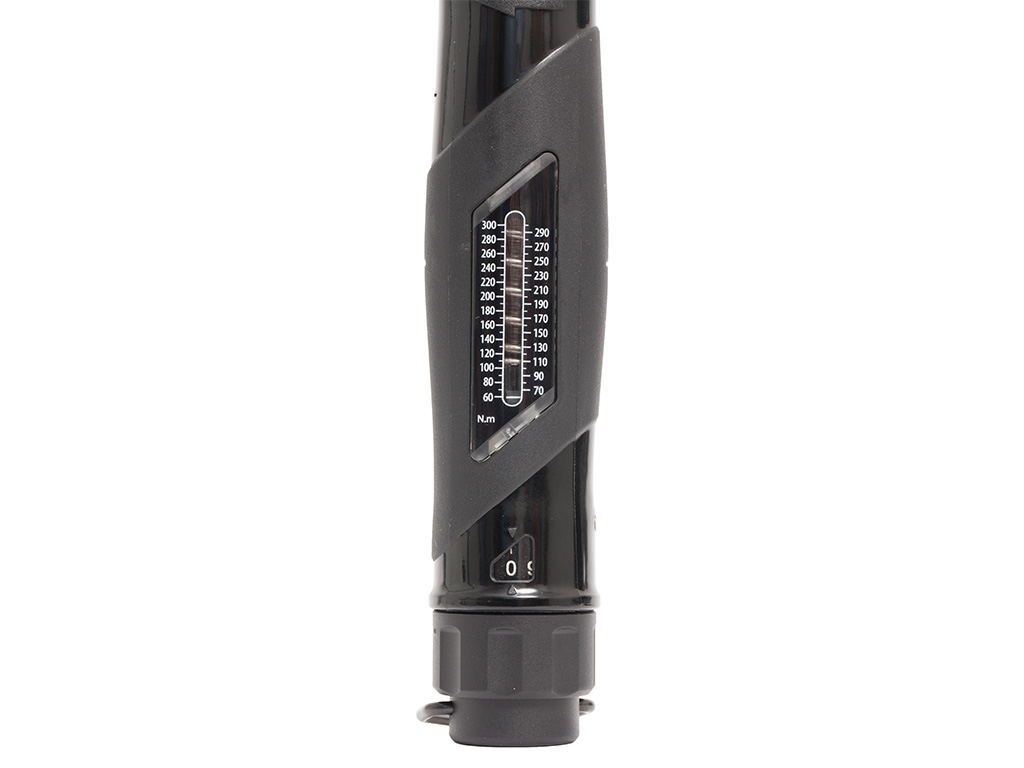

  • Micrometer Scale for error free setting
  • Torque control both direction
  • 3/8” 1/2” SD reversible ratchet
  • Supplied with a Declaration of Conformance
  • Delivered with  Norbar  house calibration certificate
  • Origin UK, manufactured by Norbar, CE certified

Product technical specificationsTechnical Specifications

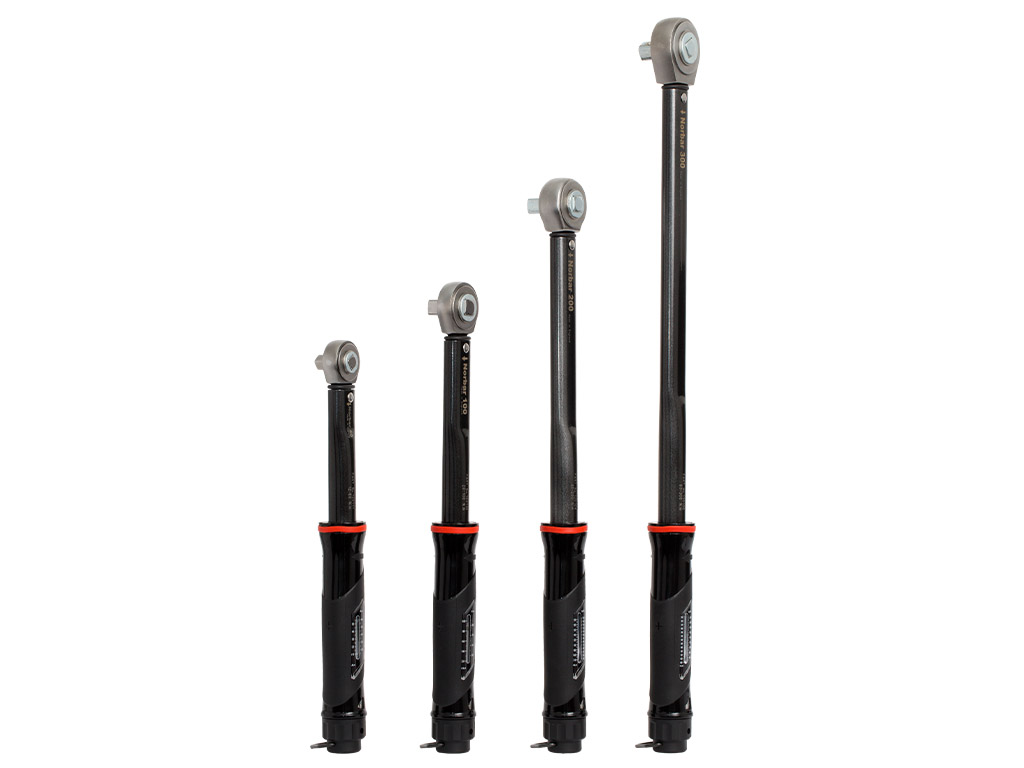

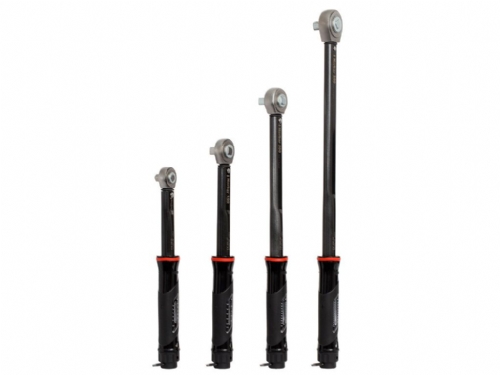

Norbar Nortorque Series Torque Wrenches

The NorTorque® utilises Norbar's proven mechanism and internal components and incorporates them into a purposeful and attractive torque wrench.

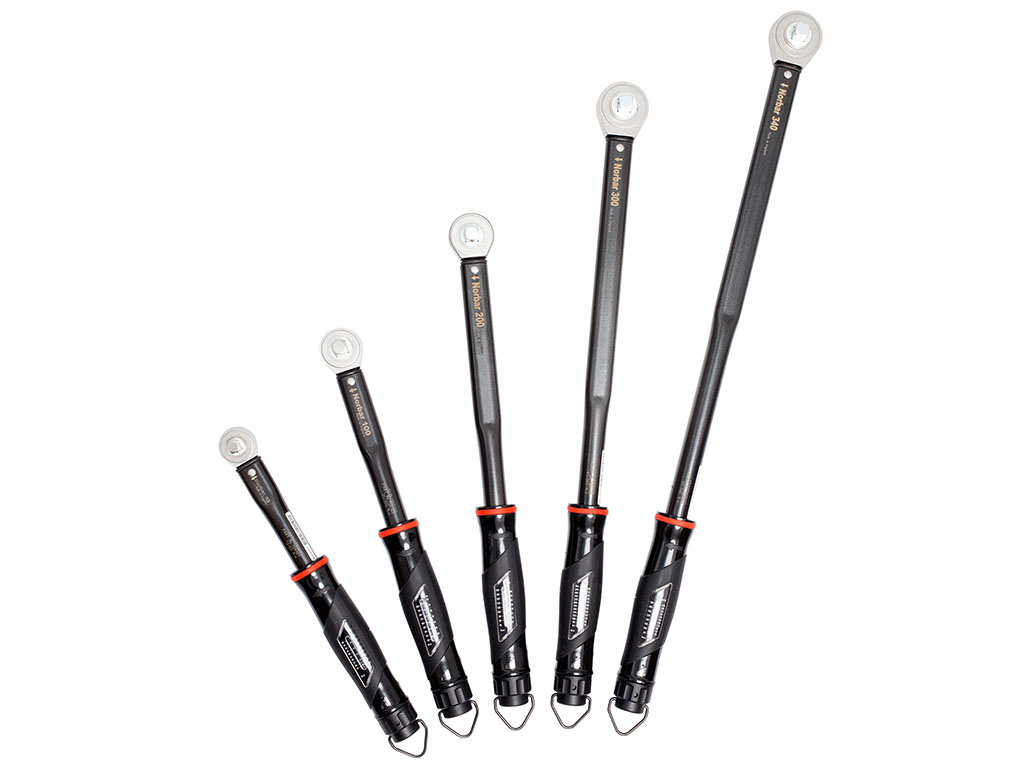

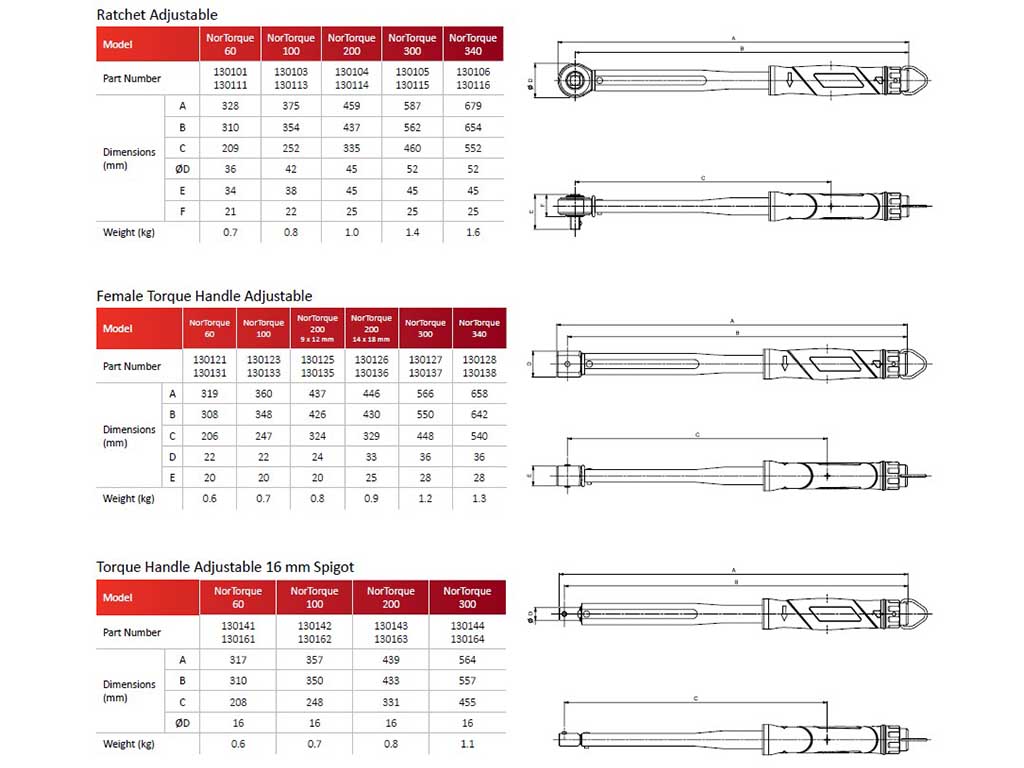

Adjustable Ratchet Torque Wrenches - Dual Scale

Part No Model  Torque Ranges Drive Ratchet Diam. Ratchet Teeth Length Weight
N.m lbf.ft inch Ø mm # mm kg
130101* Model 60 12 - 60  10 - 45 3/8” 36 72 328 0.7
130103** Model 100 20 - 100 15 - 75 1/2” 42 72 375 0.8
130104 Model 200 40 - 200 30 - 150 1/2” 45 72 459 1.0
130105 Model 300 60 - 300 45 - 220 1/2” 52 60 587 1.4
130106 Model 340 60 - 340 50 - 250 1/2” 52 60 679 1.6
  • * Extra 1/2” square drive included in the delivery.
  • ** Extra 3/8” square drive included in the delivery.

Adjustable Ratchet Torque Wrenches - Nm

Part No Model  Torque Ranges Drive Ratchet Diam. Ratchet Teeth Length Weight
N.m lbf.ft inch Ø mm # mm kg
130111* Model 60 12 - 60  * 3/8” 36 72 328 0.7
130113** Model 100 20 - 100 * 1/2” 42 72 375 0.8
130114 Model 200 40 - 200 * 1/2” 45 72 459 1.0
130115 Model 300 60 - 300 * 1/2” 52 60 587 1.4
130116 Model 340 60 - 340 * 1/2” 52 60 679 1.6
  • * Extra 1/2” square drive included in the delivery.
  • ** Extra 3/8” square drive included in the delivery.

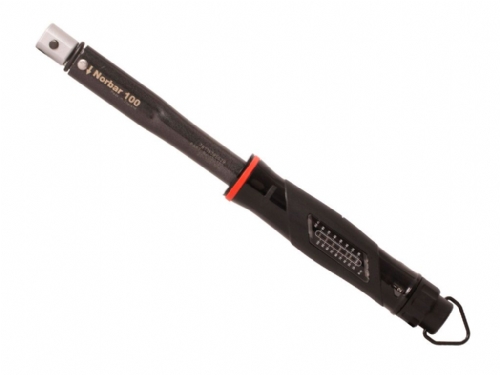

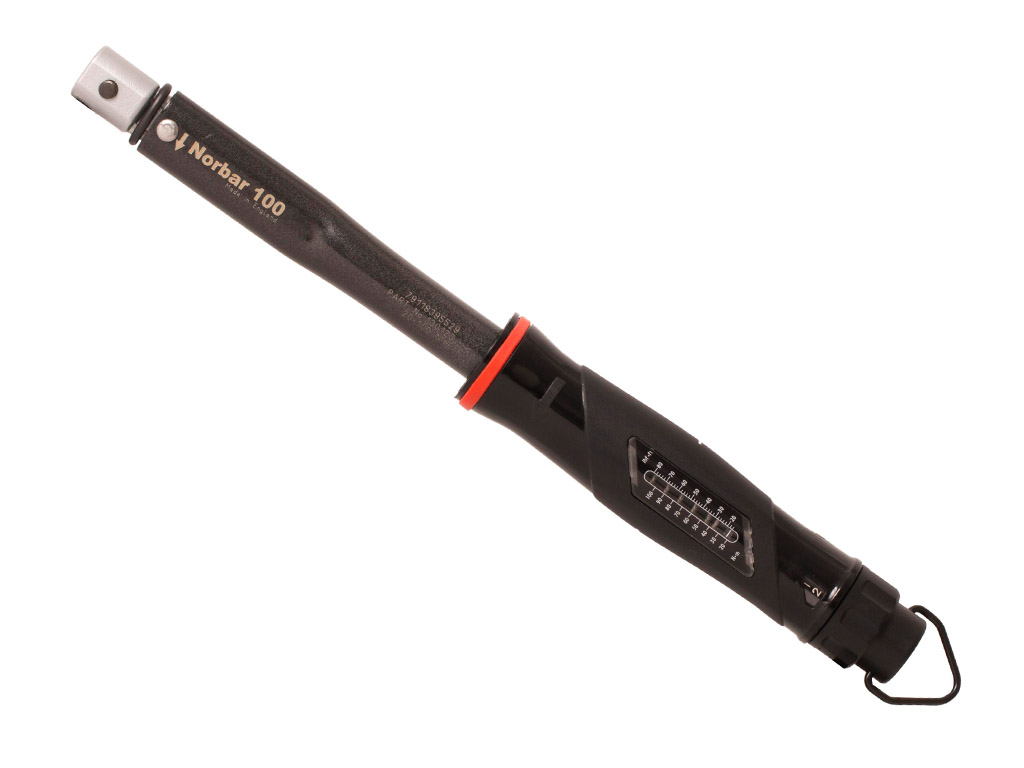

Adjustable Female Torque Handles - Dual Scale

Part No Model Torque Ranges Accuracy Drive Length Weight
N.m lbf.ft % mm mm Kg
130121 Model 60 12 - 60  10 - 45 ±3%  9*12 319 0.6
130123 Model 100 20 - 100 15 - 75 ±3%  9*12 360 0.7
130125 Model 200 40 - 200 30 - 150 ±3%  9*12 437 0.8
130126 Model 200 40 - 200 30 - 150 ±3%  14*18 446 0.9
130127 Model 300 60 - 300 45 - 220 ±3%  14*18 566 1.2
130128 Model 340 60 - 340 45 - 250 ±3%  14*18 658 1.3

Adjustable Female Torque Handles - Nm

Part No Model Torque Ranges Accuracy Drive Length Weight
N.m lbf.ft % mm mm Kg
130131 Model 60 12 - 60  - ±3%  9*12 319 0.6
130133 Model 100 20 - 100 - ±3%  9*12 360 0.7
130135 Model 200 40 - 200 - ±3%  9*12 437 0.8
130136 Model 200 40 - 200 - ±3%  14*18 446 0.9
130137 Model 300 60 - 340 - ±3%  14*18 566 1.2
130138 Model 340 60 - 340 - ±3%  14*18 658 1.3

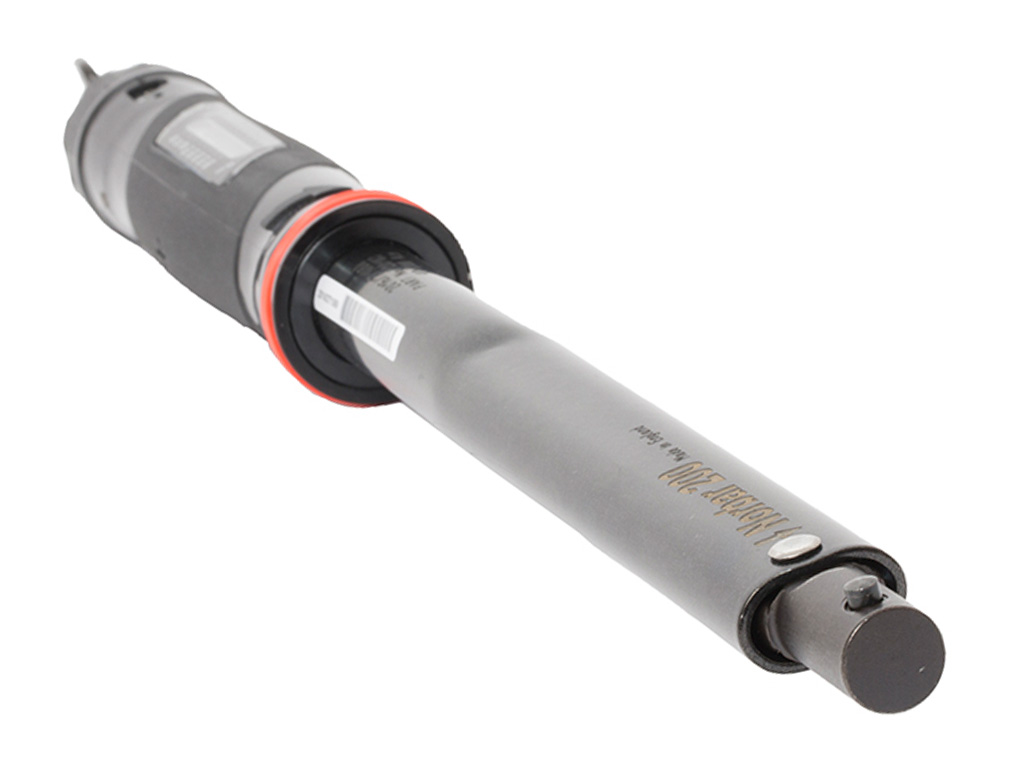

Adjustable Spigot Torque Wrenches - Dual Scale

Part No Model Torque Ranges Accuracy Drive Length Weight
N.m lbf.ft % mm mm Kg
130141 Model 60 12 - 60  10 - 45 ±%3  16 spigot 317 0.6
130142 Model 100 20 - 100 15 - 75 ±%3  16 spigot 357 0.7
130143 Model 200 40 - 200 30 - 150 ±%3  16 spigot 439 0.8
130144 Model 300 60 - 300 45 - 220 ±%3  16 spigot 564 1.1

Adjustable Spigot Torque Wrenches - Nm

Part No Model Torque Ranges Accuracy Drive Length Weight
N.m lbf.ft % mm mm Kg
130161 130161 12 - 60  - ±%3  16 317 0.6
130162 130162 20 - 100 - ±%3  16 357 0.7
130163 130163 40 - 200 - ±%3  16 439 0.8
130164 130164 60 - 300 - ±%3  16 564 1.1

Norbar Nortorque Series Torque Wrenches - PDF

Norbar 130114 Torque Wrench Spare Parts List - PDF

±3%
1/2"
Norbar
Reversible Ratchet
Adjustable
