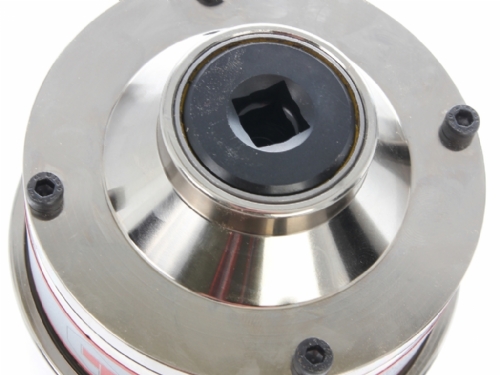

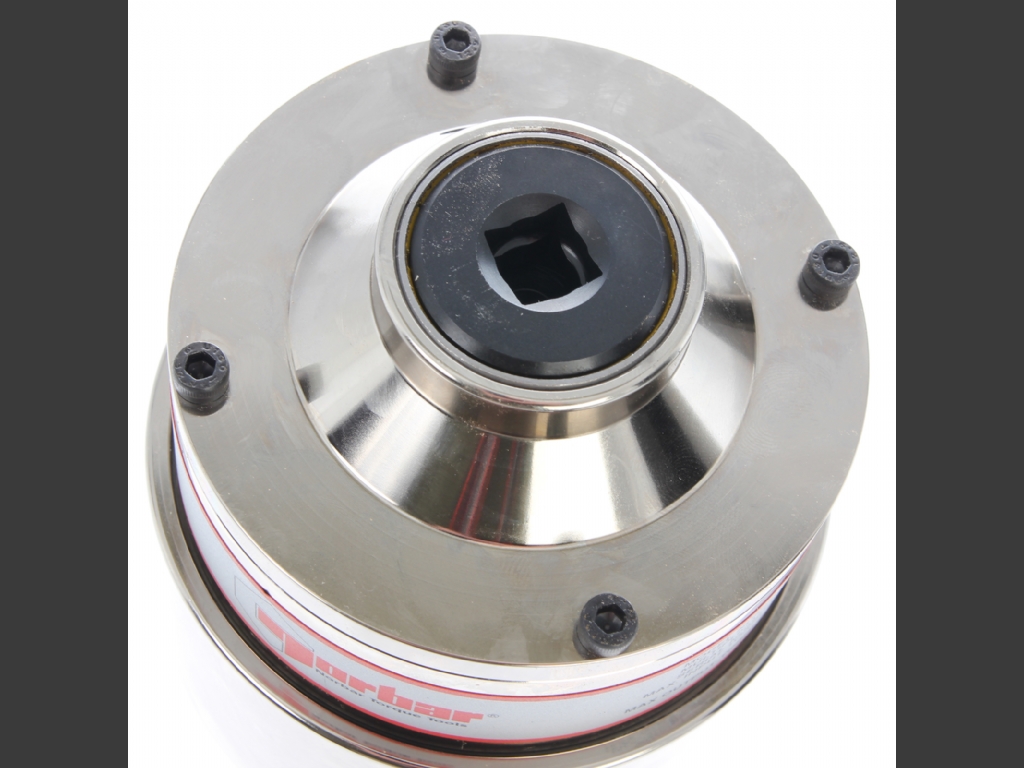

Norbar 18009 Torque Multiplier
6000 N.m Torque Multiplier, Ratio 25:1, Input 1/2“, Output Square Drive 1.1/2“
| Product Code | 18009 |
| Capacity (max) | 6000 N.m |
| Capacity (min) | 600 N.m |
| Ratio | 25:1 |
| Accuracy | ±4% |
| Input square | 1/2" |
| Output square | 1.1/2" |
| Tool weight | 9.5 kg |
| AWUR | N/A |
| Accredited calibration | Available on option |
| Manufactured | In England |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Accuracy guaranteed better than ±4%,
- 5:1 / 15:1 / 25:1 / 125:1 torque multiplication
- 6 different models between 300-6000 N.m
- Suitable for clockwise and counter clockwise
- Small, compact and aesthetics desing
- Reduced diameter enables better accsess
- Robust construction, dont need maintenance
- Anti Wind-Up Ratchet (AWUR) fitted to allow safer
- Heavy duty is ideal for inclusion in the tool kit
- UKAS accredited calibration may be ordered
Kit Components
- 1x Torque multiplier
- 1x Crank type reaction foot
- 1x Instruction Manual
- 1x Plastic carry case

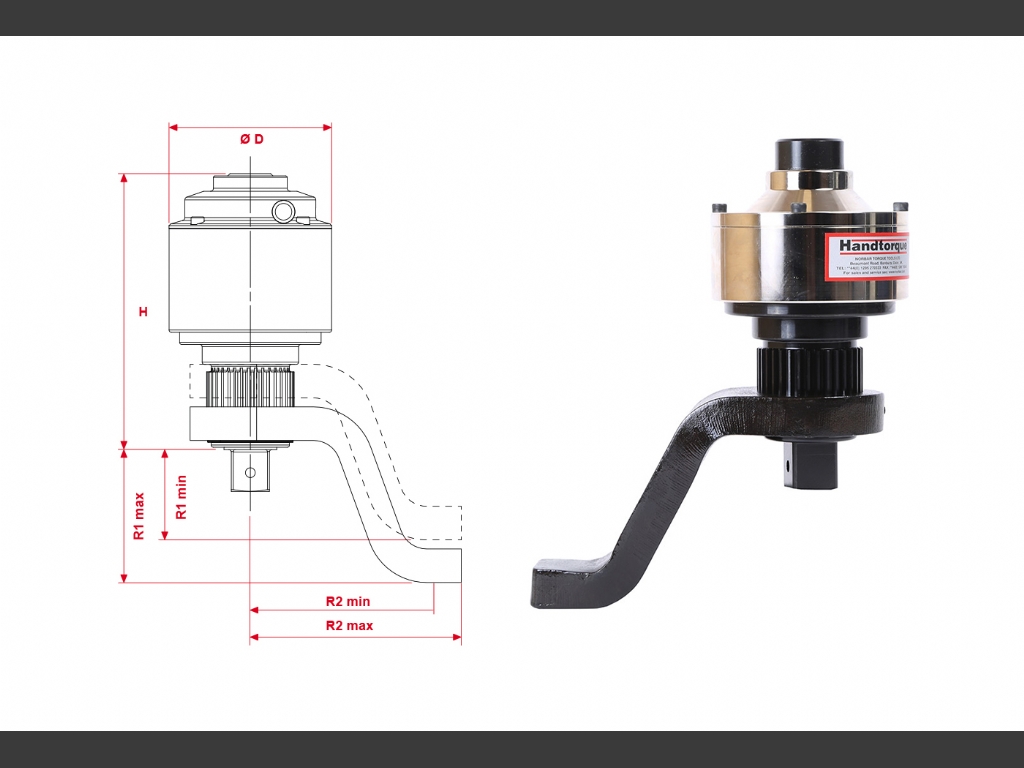

Product technical specificationsTechnical Specifications
| Part | Torque Range | Ratio | AWUR | Input Square | Output Square | Weight | Sizes (mm) | |||||
| No. | N.m | Lbf.ft | # | # | Inch | Inch | Kg | H | R1 min. | R1 max. | R2 min. | R2 max |
| ⇒18003 | 300-3000 | 220-2200 | 5:1 | N/A | 3/4" | 1’’ | 5.0 | 164 | 60 | 88 | 117 | 140 |
| ⇒18004 | 300-3000 | 220-2200 | 15:1 | YES | 1/2’’ | 1’’ | 7.0 | 183 | 60 | 88 | 117 | 140 |
| ⇒18006 | 300-3000 | 220-2200 | 25:1 | YES | 1/2’’ | 1’’ | 7.0 | 183 | 60 | 88 | 117 | 140 |
| 18009 | 600-6000 | 440-4400 | 25:1 | N/A | 1/2’’ | 1.1/2" | 9.5 | 212 | 94 | 119 | 146 | 174 |
| ⇒18008 | 600-6000 | 440-4400 | 25:1 | YES | 1/2’’ | 1.1/2" | 10.6 | 218 | 94 | 119 | 146 | 174 |
| ⇒18013 | 600-6000 | 440-4400 | 125:1 | N/A | 1/2’’ | 1.1/2" | 11.0 | 240 | 94 | 119 | 146 | 174 |
