  • 700 Bar Electric Hydraulic Torque Wrench Pump Torc Tech LP3-4
  • 700 Bar Electric Hydraulic Torque Wrench Pump Torc Tech LP3-4
  • 700 Bar Electric Hydraulic Torque Wrench Pump Torc Tech LP3-4

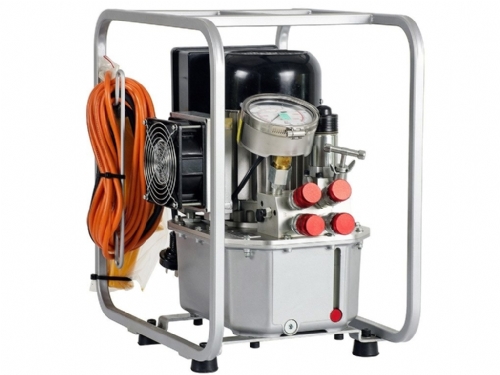

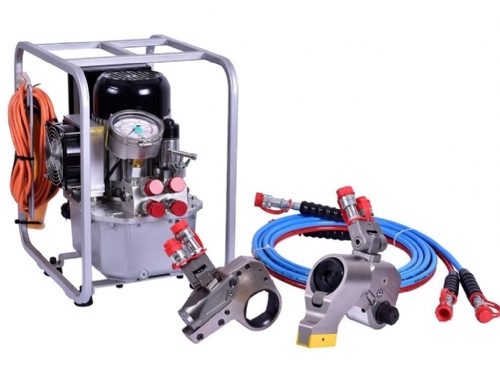

LP3-4 Hydraulic Torque Wrench Pump

Electric Hydraulic Torque Pump, 700 Bar

Part No LP3-4
Working Pressure Max. 700 Bar
Motor Power 1.1 kW
Voltage 200 V / 50 Hz
Oil output port 8 x 1/4" NPT
Flow rate 7.0  -  1.6  - 0.8 L/min
Oil Capacity 5.5 L
Cooling System Available
Weight 27 kg
Dimensions 461 x 304 x 426 mm
Brand Torc Tech
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Operating pressure 700 bar / 10.000 psi
  • Typical flow at low pressure 7.0 Lt/min
  • Typical flow at middle pressure 1.6 lt/min
  • Typical flow at high pressure 0.8 Lt/min
  • Thre stage, high flow torque wrench pump
  • Cooling system in all models standart
  • Electric engine 1.1 kW, 1.47 horse power
  • Voltage 220/230V, 50/60Hz, 13 Amps
  • Removeable ø100mm high accuracy gauge
  • Easy adjustable pressure regulator valve
  • Manifolds for 1 or 4 tools selectable
  • Brand Torc-Tech, manufactured in China

Product technical specificationsTechnical Specifications

LP3 High Performance Torque Wrench Pump

Torc-Tech LP3 torque wrench hydraulic pump powered with three stage hydraulic unit. This enables typical flow up to 7 liter per minutes.

Two models available:

  • LP3-2 with 4 port manifold for 2 tools
  • LP3-4 with 8 port manifold for 4 tools

Oil cooler provided as standart to enable continious operations

Torc-Tech  Electric Torque Pumps Units LP3-2 LP3-4
Working Pressure bar 700 700
Typical Flow Ltr/min 7.0  -  1.6  - 0.8 7.0  -  1.6  - 0.8
 Voltage # 200V / 50 Hz 200V / 50 Hz
Engine Power kW 1.1 1.1
Effective Oil Capacity Ltr 5.5 5.5
Manifold for # 2 Tools  4 Tools
Oil Output Port Thread Npt 4 x 1/4" NPT  8 x 1/4" NPT
Gauge Diameter (ø) mm 100 100
Gauge Scale  bar 0…700 - 0….1.000 0…700 - 0….1.000
 Pressure Resolution bar 10 10
Pressure Units on Scale # Bar / Psi / Mpa Bar / Psi / Mpa
Cooling Fan # Available Available
 Protection Frame # Available Available
Tool Weight incl. Oil. kg 25 27

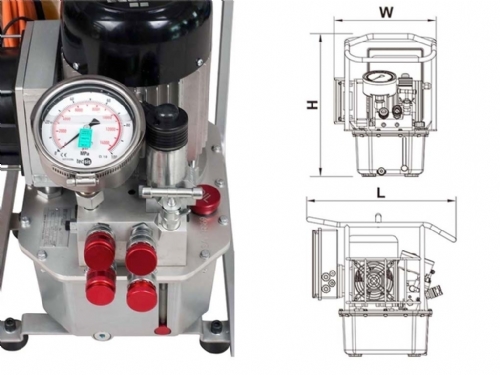

Dimensions (LxWxH) mm 445 x 304 x 426 461 x 304 x 426
