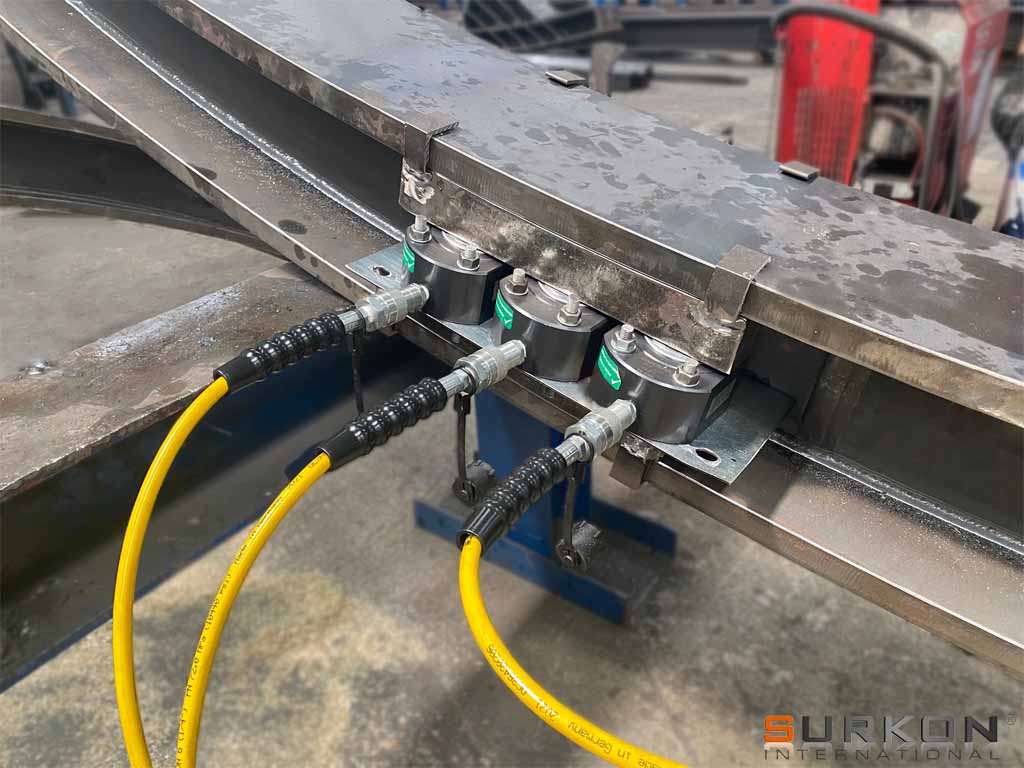

  • Larzep SX Hydraulic Cylinder Application
  • Low Height Cylinder Larzep SX

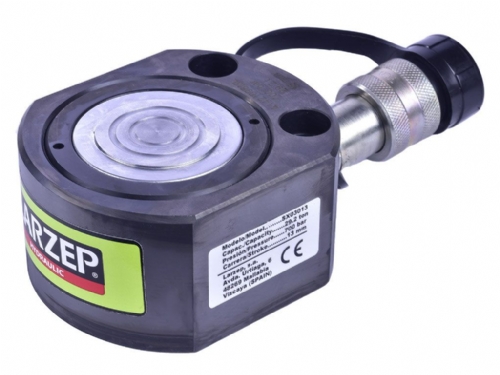

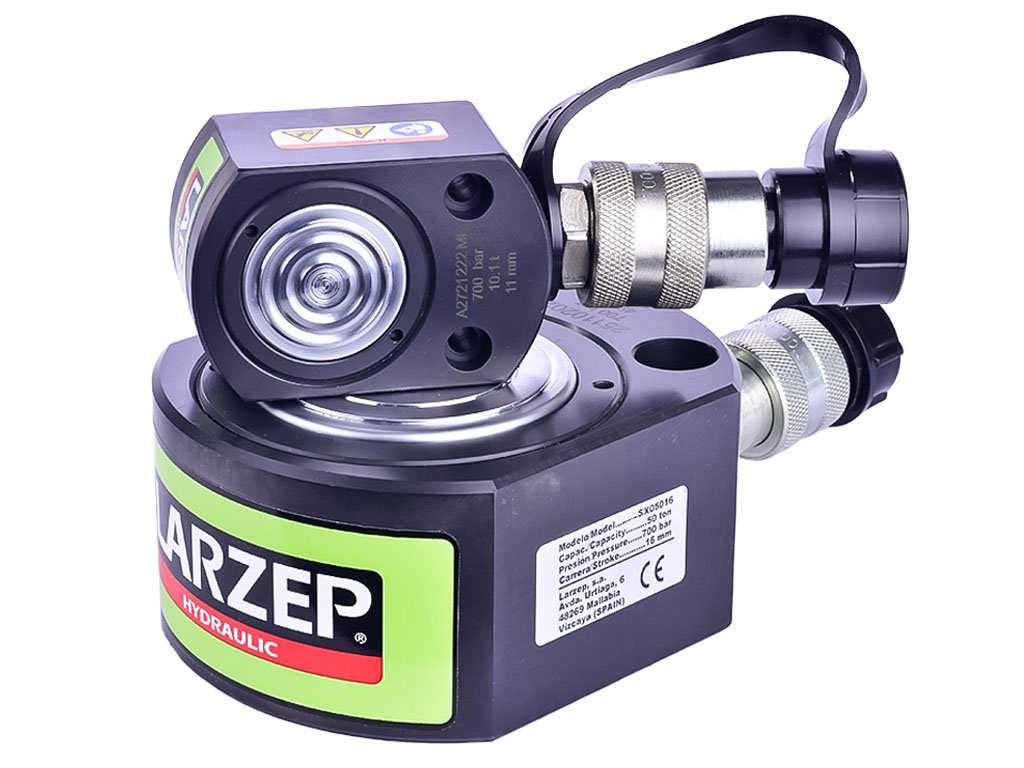

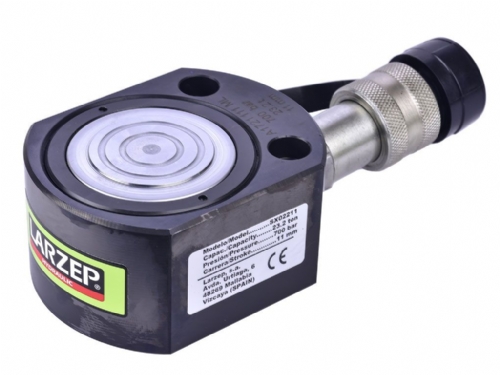

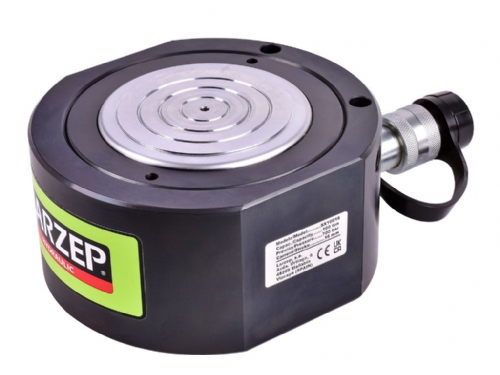

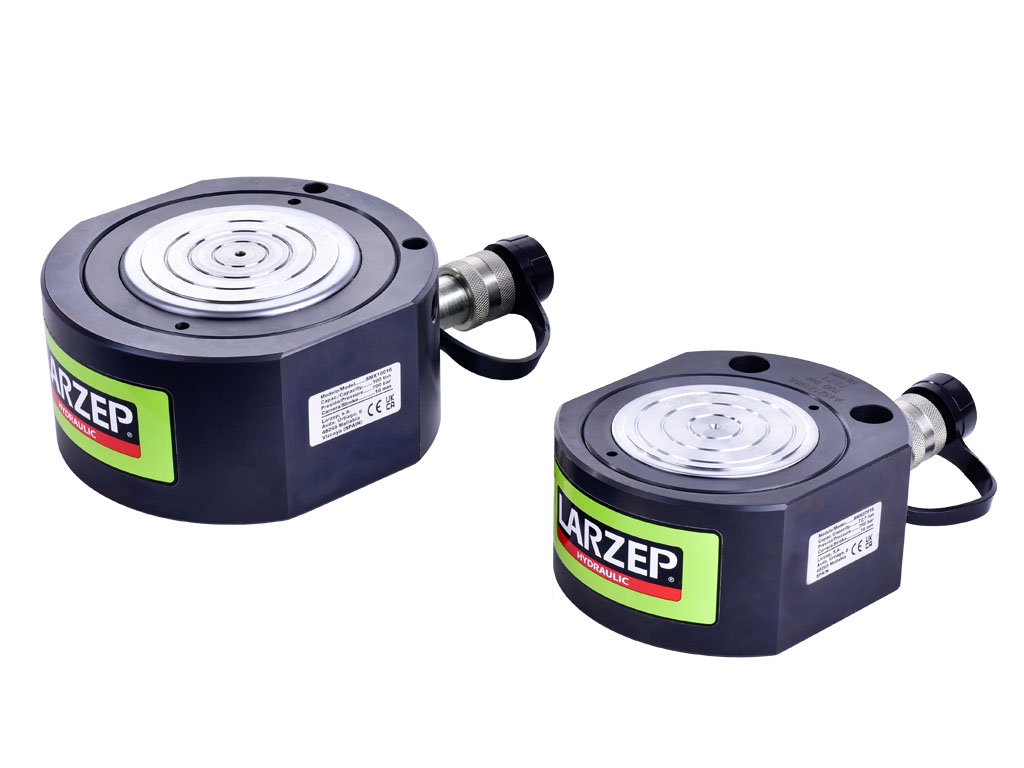

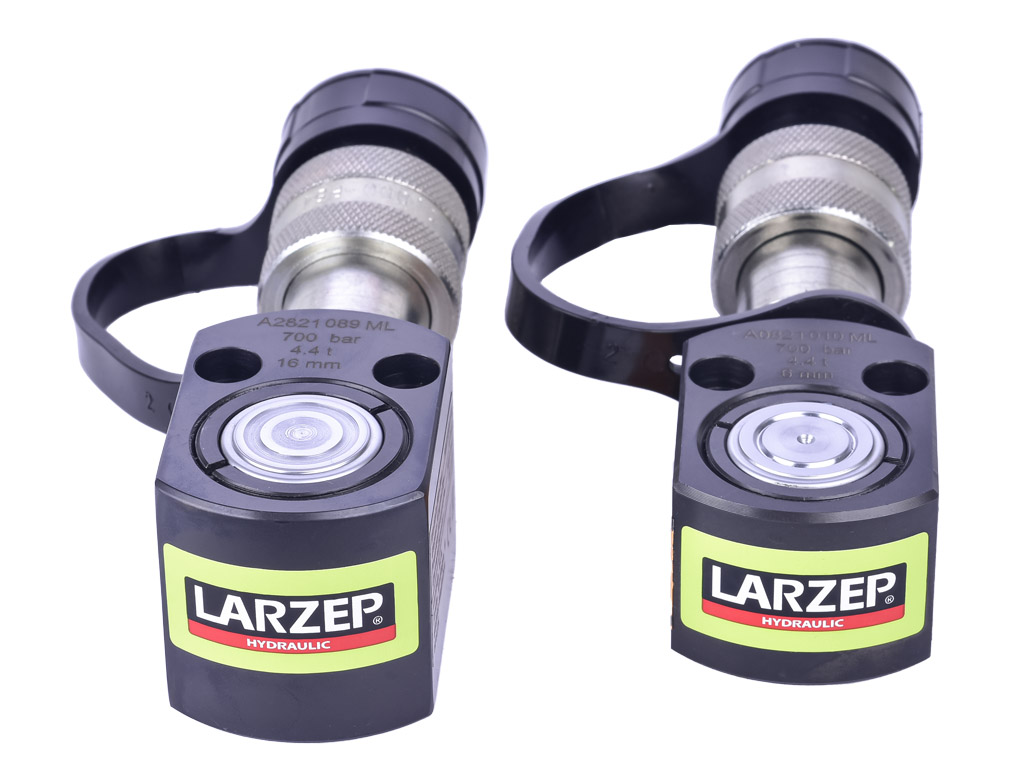

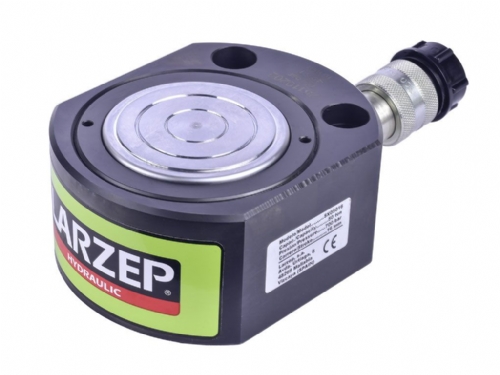

Larzep SX10016
Low Profile Cylinder

100 Ton, 16 mm Stroke
Single Acting, Load Return

Larzep Code SX10016
Capacity 100 ton
Stroke 16 mm
Closed Height 87 mm
Out Diameter Ø158 mm
Effective Area 139 cm²
Oil Volume 223 cm³
Working Pres. 700 Bar
Cylinder Type S/A Load return
Weight 15 kg
Origin/Brand Spain / Larzep
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Capacity from 4 to 150 Ton
  • Stroke up to 16 mm
  • SX: Single acting load return
  • SMX: Single acting spring return
  • Used for machinery positioning, heavy lifting, pushing
  • With two parallel faces for horizontal operation
  • Mounting bolt holes for easy fixing
  • Models up to 30 Ton are black nitrated
  • SX models from 50 to 150 Ton have optional tilting saddle



Product technical specificationsTechnical Specifications

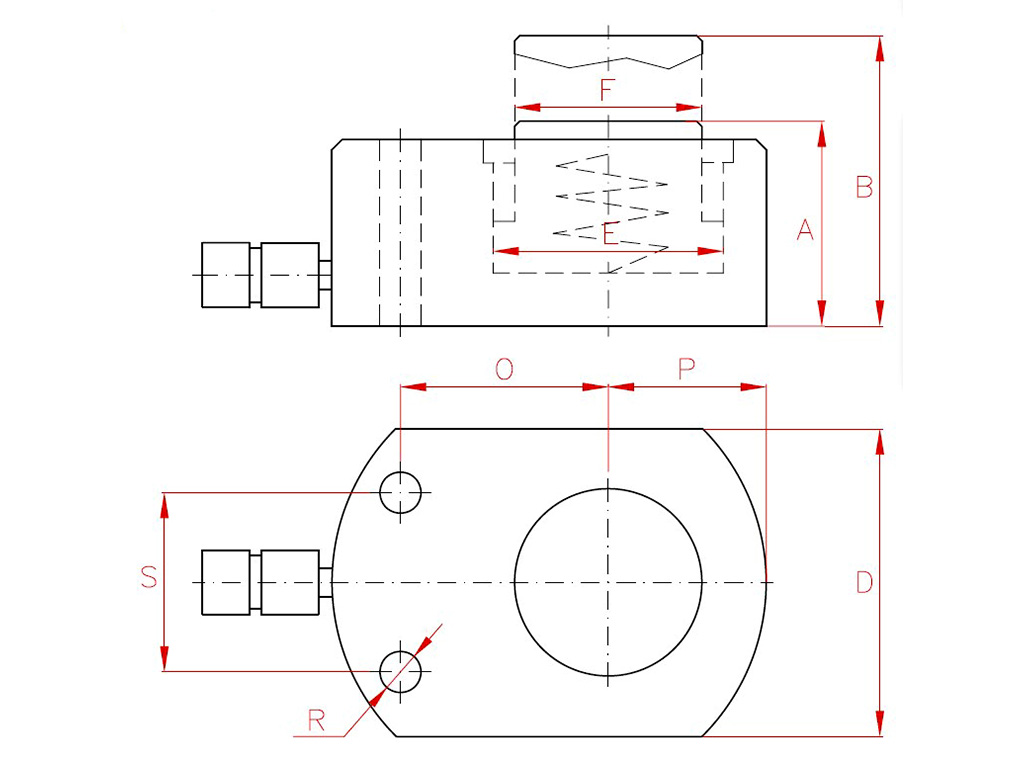

Larzep SX Single Acting Low Height Cylinder

Model No Capacity Stroke Closed Height (A)  Out Diameter(D) Effective Area  Oil Volume Weight
Spring Return Load Return  ton kN mm mm mm cm² cm³ kg

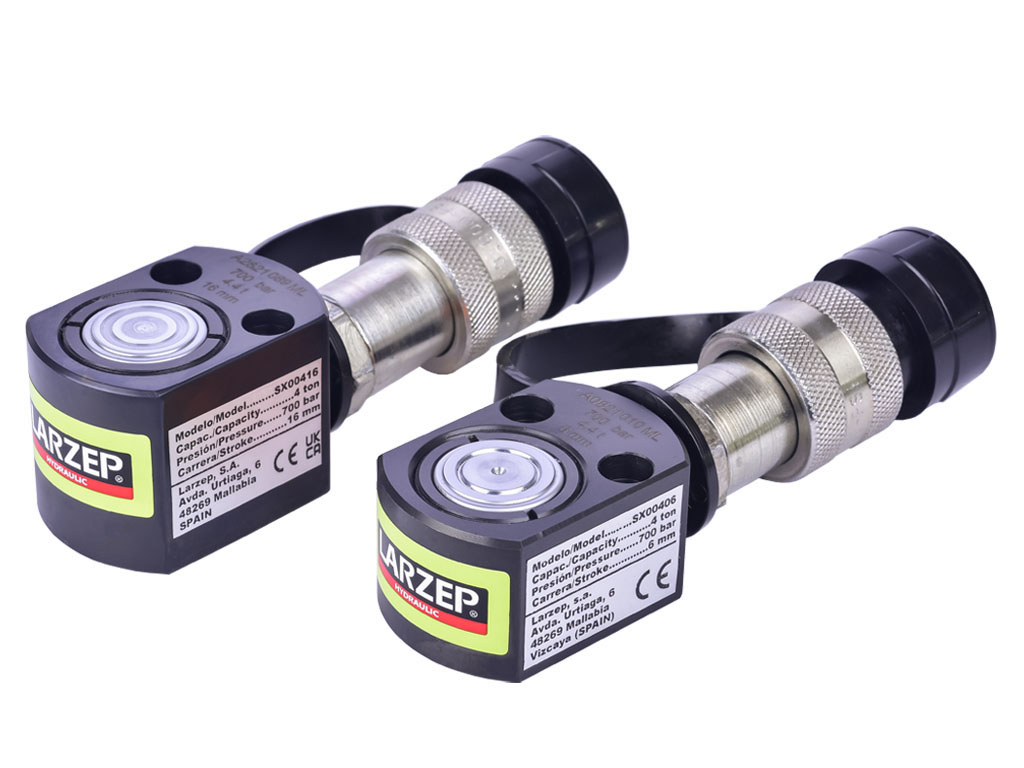

SMX00406 SX00406 4 44 6 33 41 6 4 0,8
SMX00416 SX00416 4 44 16 43 41 6 11 1,2

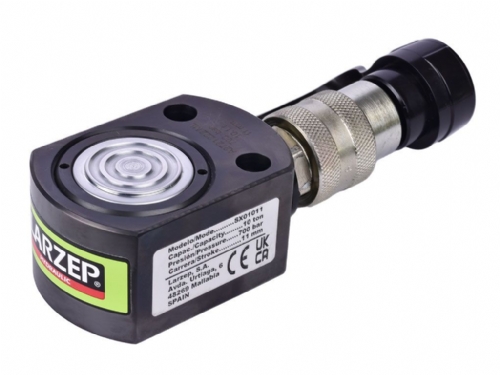

SMX01011 SX01011 10 100 11 43 56 15 16 1,6
SMX02211 SX02211 22 228 1 52 80 33 37 2,8
SMX03013 SX03013 30 287 13 59 95 42 55 4,1
SMX05016 SX05016 50 487 16 68 114 71 114 6,6
SMX07516 SX07516 75 713 16 79 140 104 167 12,5
SMX10016 SX10016 100 954 16 87 158 139 223 15
SMX15016 SX15016 150 1450 16 100 194 211 338 25

Larzep SMX and SX series jacks are slim and short. SMX jacks have a spring return hydraulic system, SX series jacks have a load return hydraulic system. There are 9 different models from 4 tons up to 150 tons. SMX series low profile cylinders are being used for machinery positioning, heavy load testing and lifting of all kind of heavy loads.


Enerpac Equivalent: RSM1000

SPX Powerteam Equivalent: RLS1000S

Hi Force Equivalent: HPS1000



Load Return Load Cell
100 Ton
700 Bar
Single Acting
Larzep
