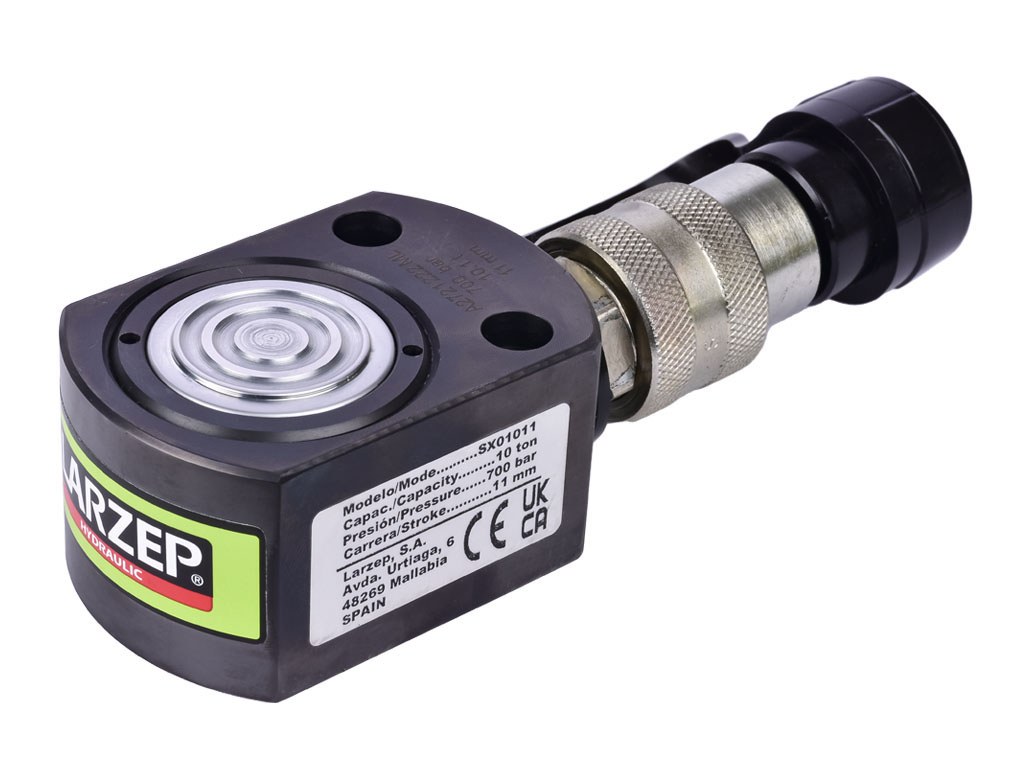

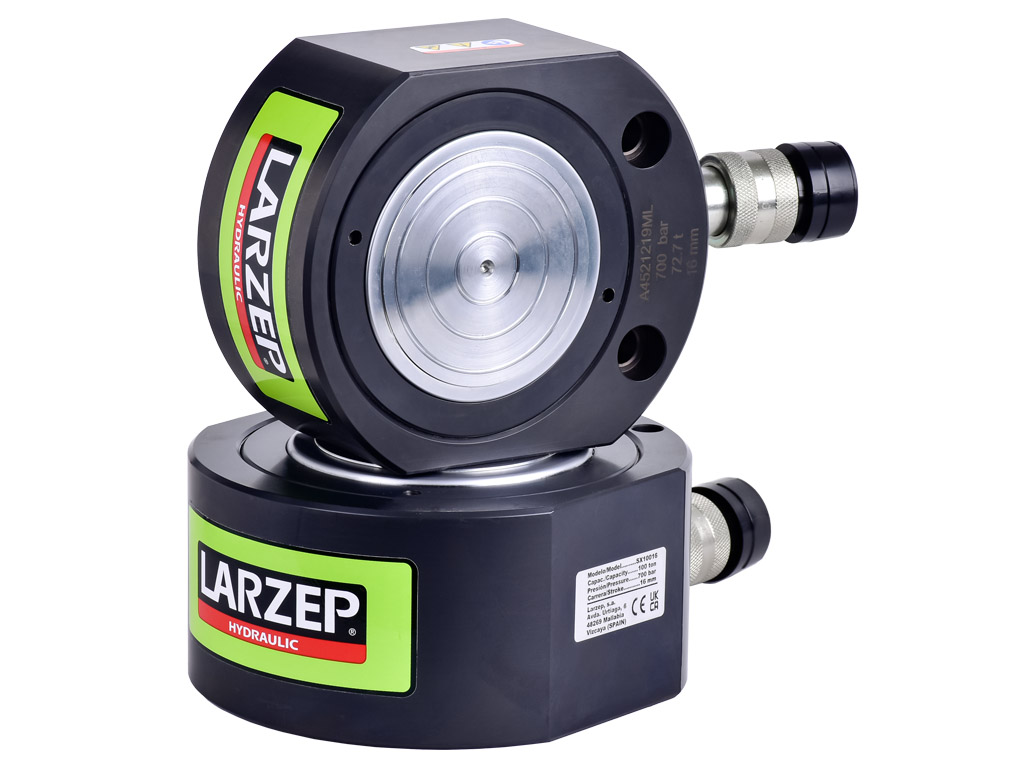

  • Larzep SX02211 Low Profile Cylinder
  • Larzep SX02211 Low Profile Jack

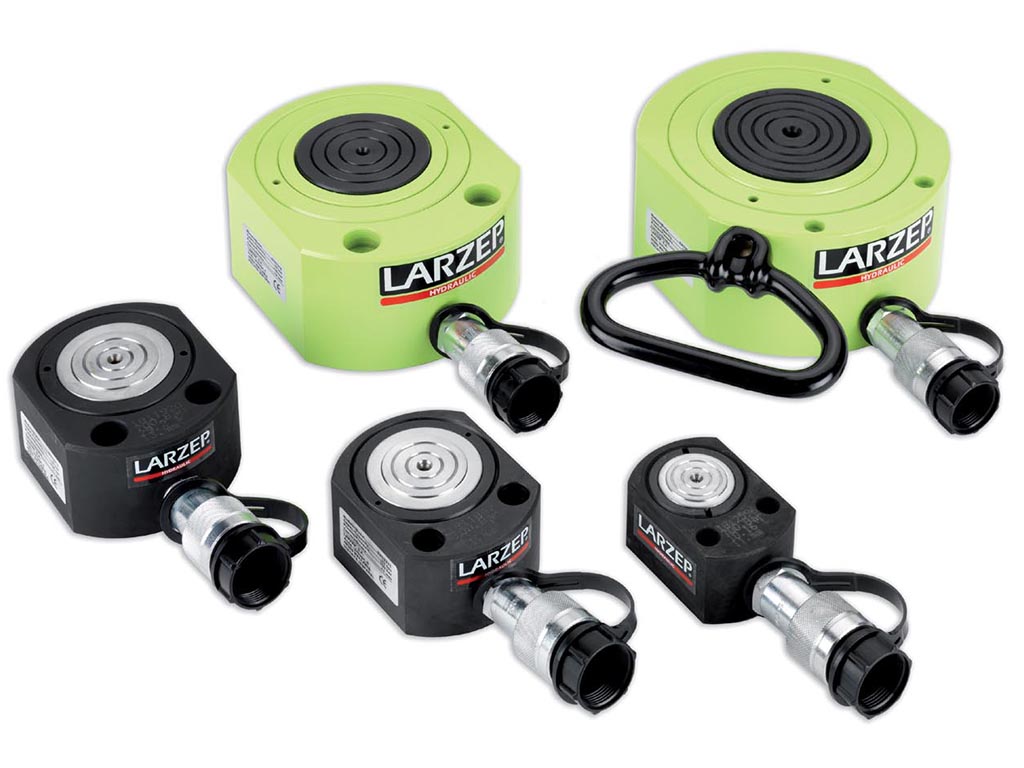

  • Larzep SX Low Profile Jack
  • Low Height Cylinder Larzep SX
  • Larzep SX Single Acting Low Profile Hydraulic Cylinder
  • Larzep SX Single Acting Low Profile Hydraulic Jack
  • Larzep SX Single Acting Load Return Low Profile Hydraulic Cylinder
  • Larzep SX Single Acting Load Return Low Profile Hydraulic Jack
  • Larzep SX Single Acting Load Return Low Profile Hydraulic Cylinder
  • Larzep SX Single Acting Hydraulic Jack
  • Hydraulic Cylinder Larzep SX
  • Larzep SX Single Acting Hydraulic Cylinder

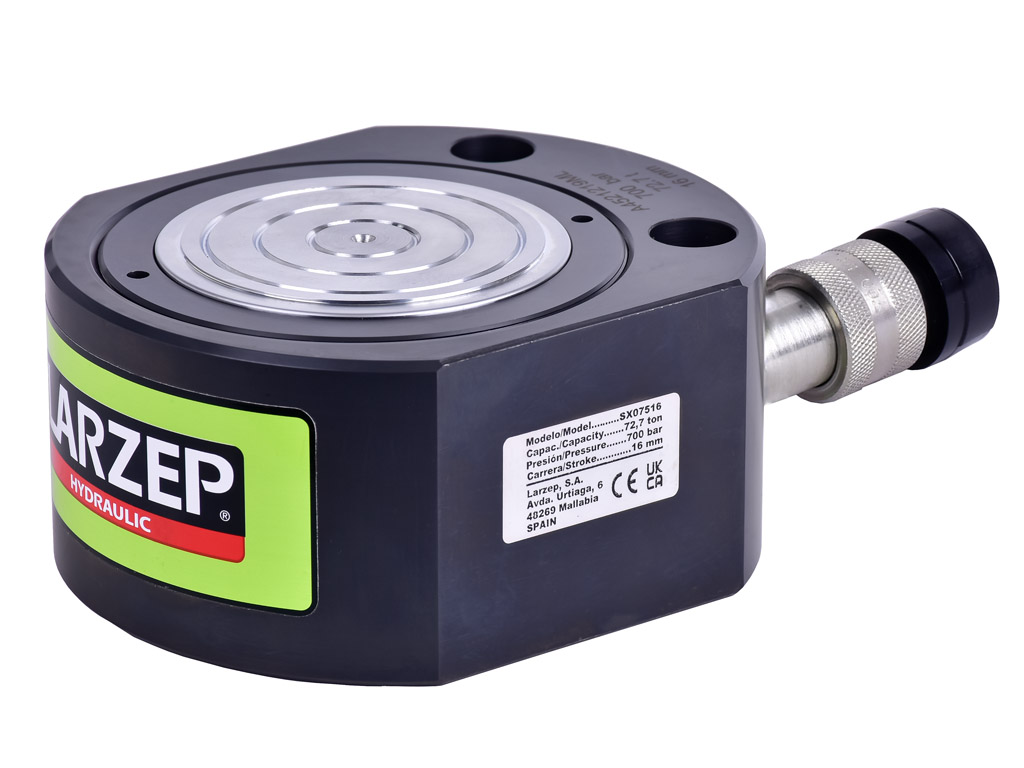

  • Larzep SX Hydraulic Cylinder

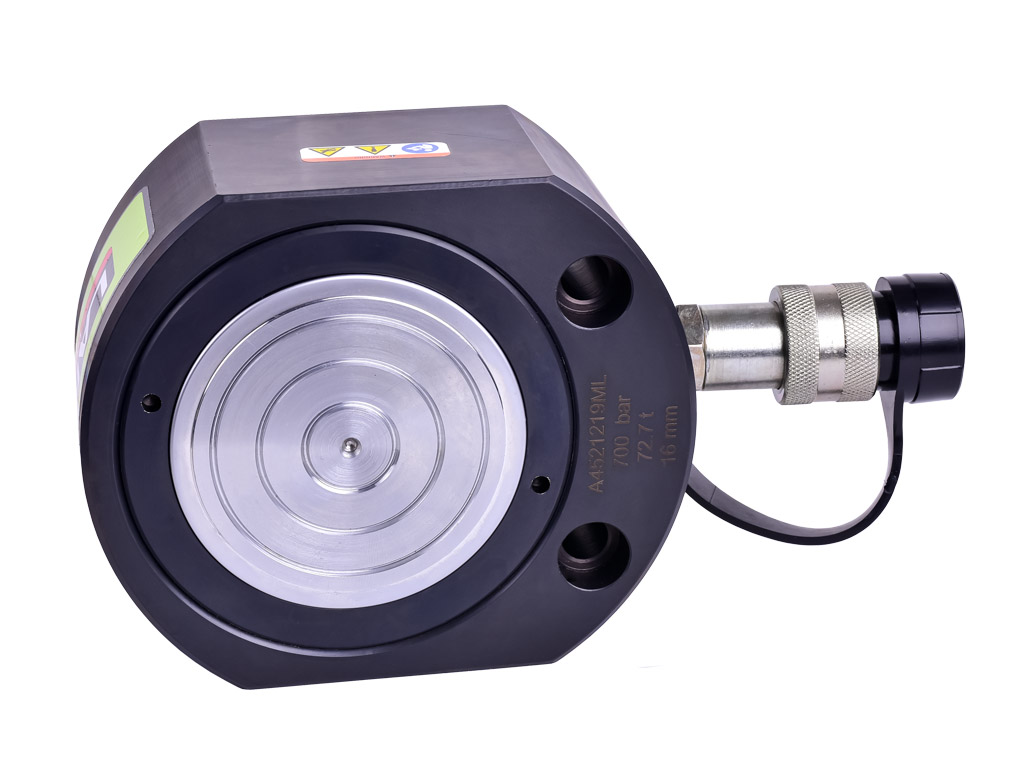

  • Larzep SX Low Profile Hydraulic Cylinder

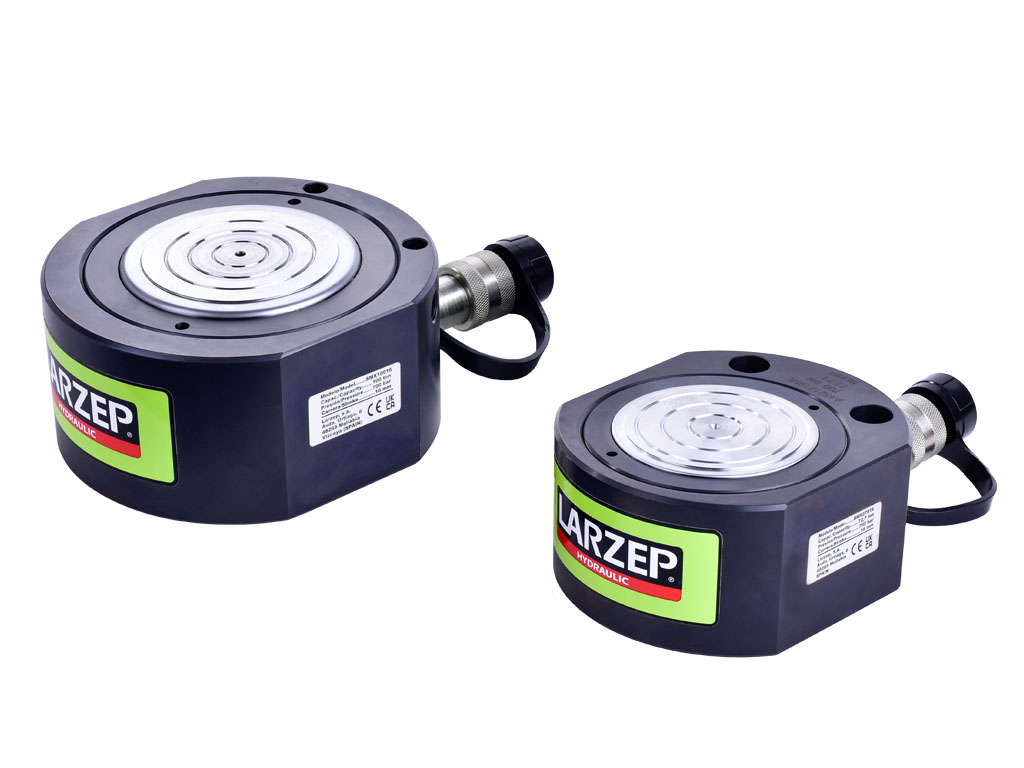

  • Larzep SX Low Profile Hydraulic Jack
  • Larzep SX Single Acting Hydraulic Jack
  • Larzep SX Hydraulic Cylinder
  • Larzep
  • Larzep

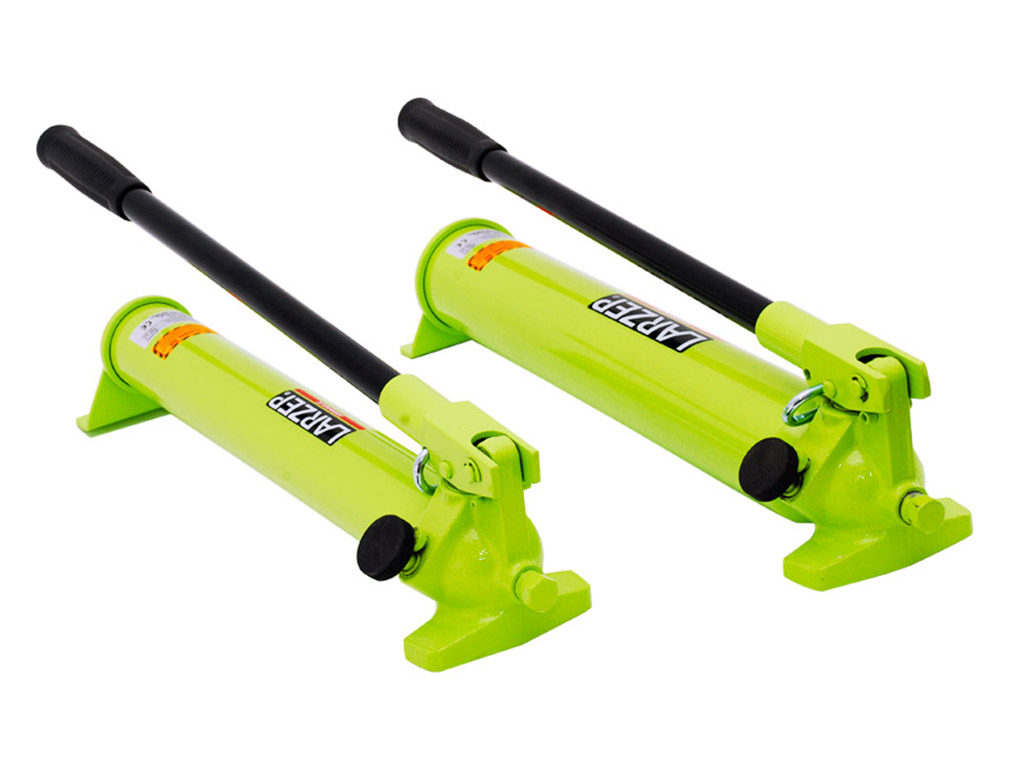

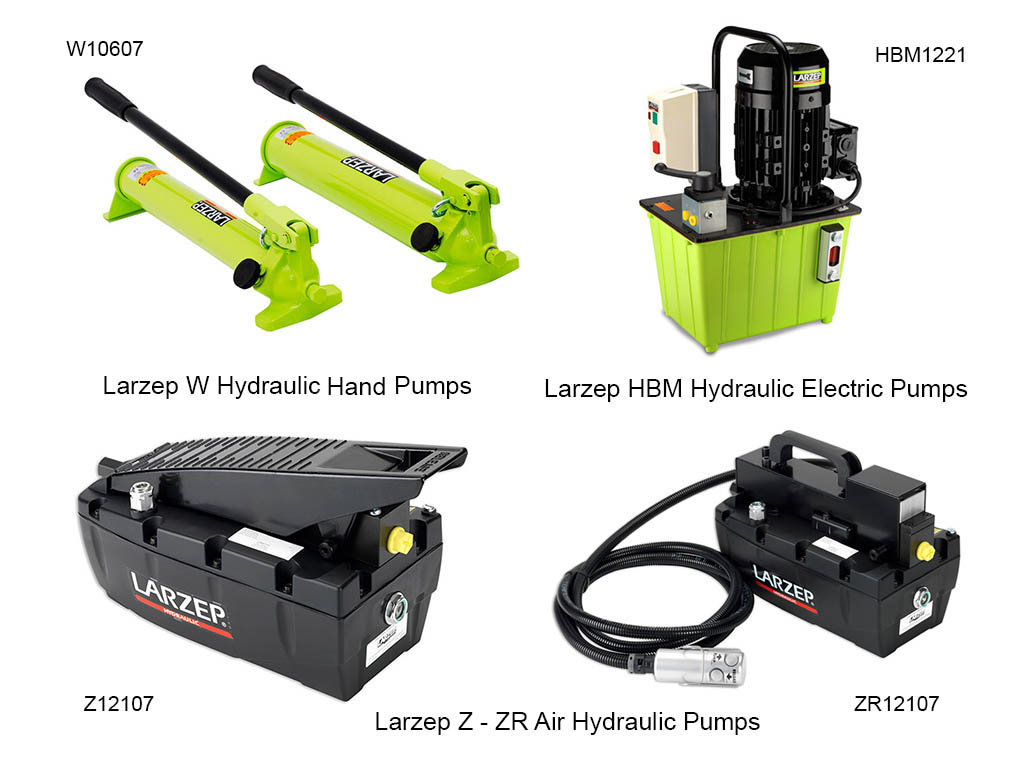

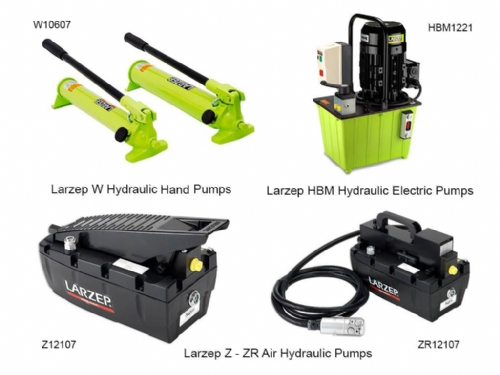

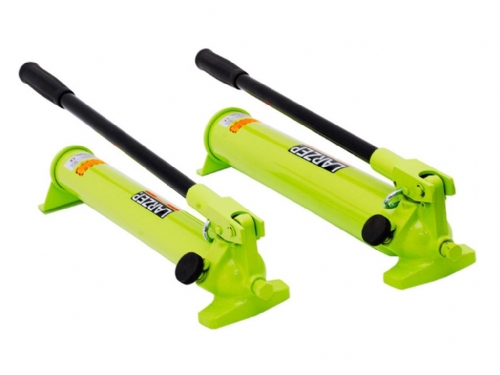

  • Larzep Hydraulic Hand Pumps
  • Larzep SX Hydraulic Cylinder Application

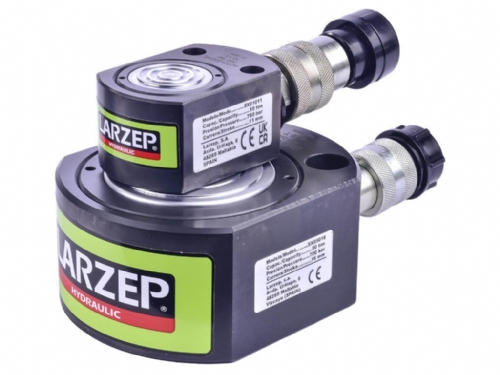

  • Low Height Cylinder Larzep SX

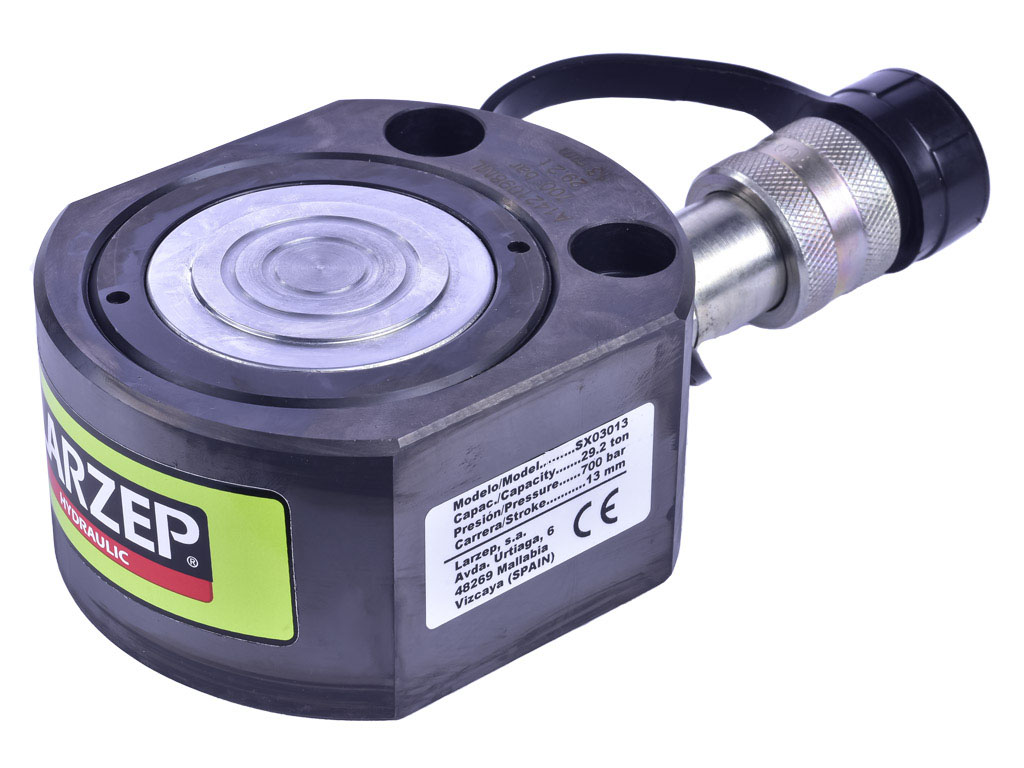

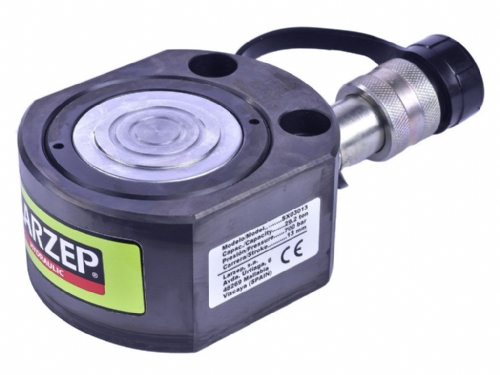

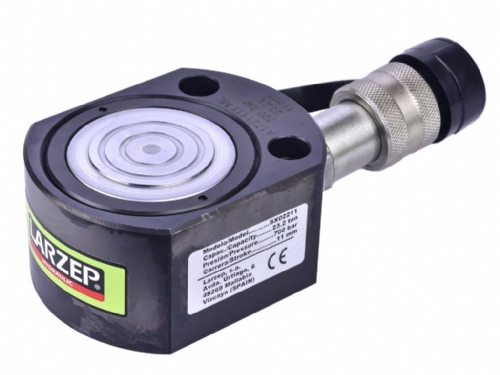

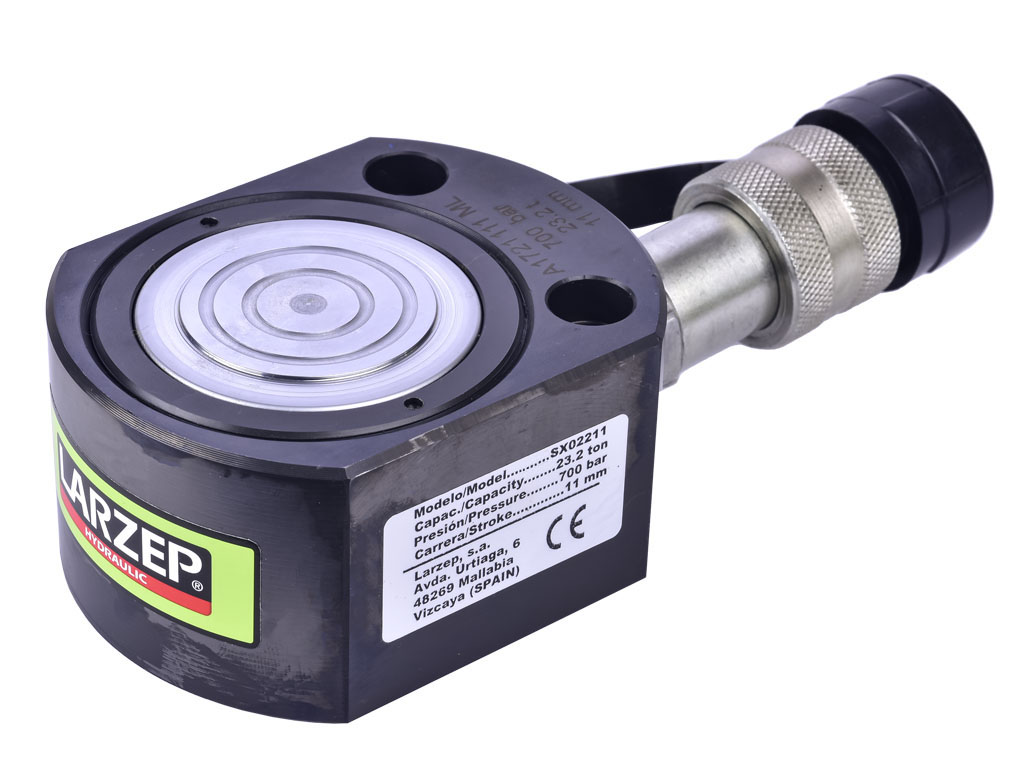

Larzep SX02211
Low Profile Cylinder

22 Ton, 11 mm Stroke
Single Acting, Load Return

Larzep Code SX02211
Capacity 22 ton
Stroke 11 mm
Closed Height 52 mm
Out Diameter Ø80 mm
Effective Area 33 cm²
Oil Volume 37 cm³
Working Pres. 700 Bar
Cylinder Type S/A Load return
Weight 2.8 kg
Origin/Brand Spain / Larzep
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Capacity from 4 to 150 Ton
  • Stroke up to 16 mm
  • SX: Single acting load return
  • SMX: Single acting spring return

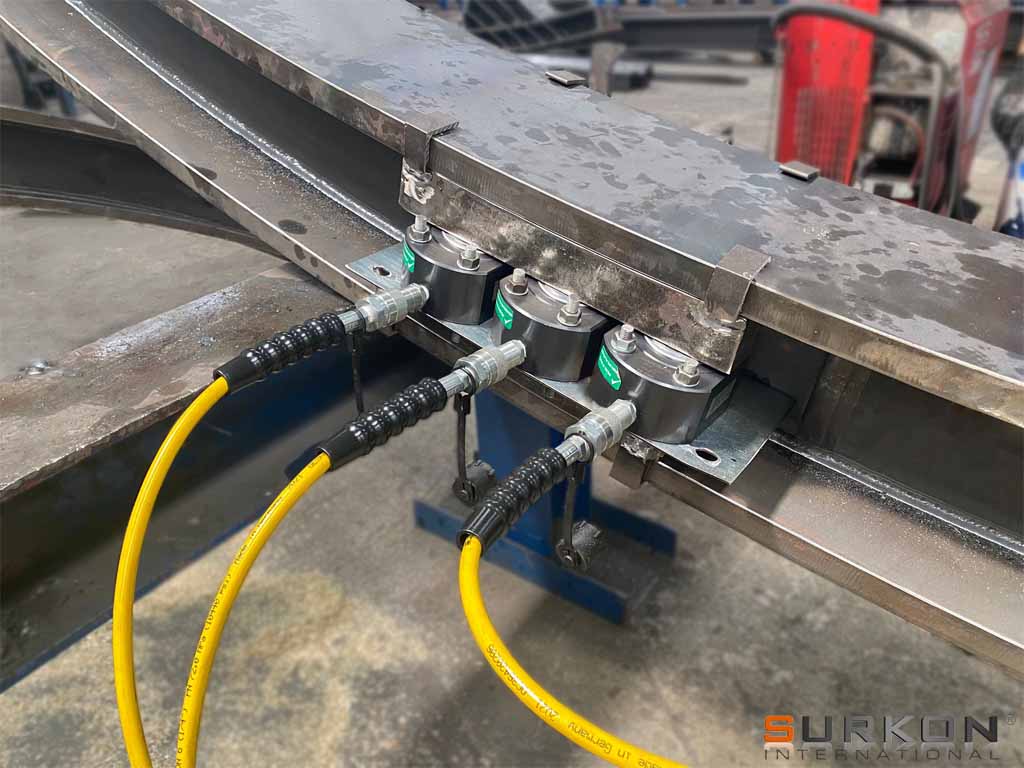

  • Used for machinery positioning, heavy lifting, pushing
  • With two parallel faces for horizontal operation
  • Mounting bolt holes for easy fixing
  • Models up to 30 Ton are black nitrated
  • SX models from 50 to 150 Ton have optional tilting saddle



Product technical specificationsTechnical Specifications

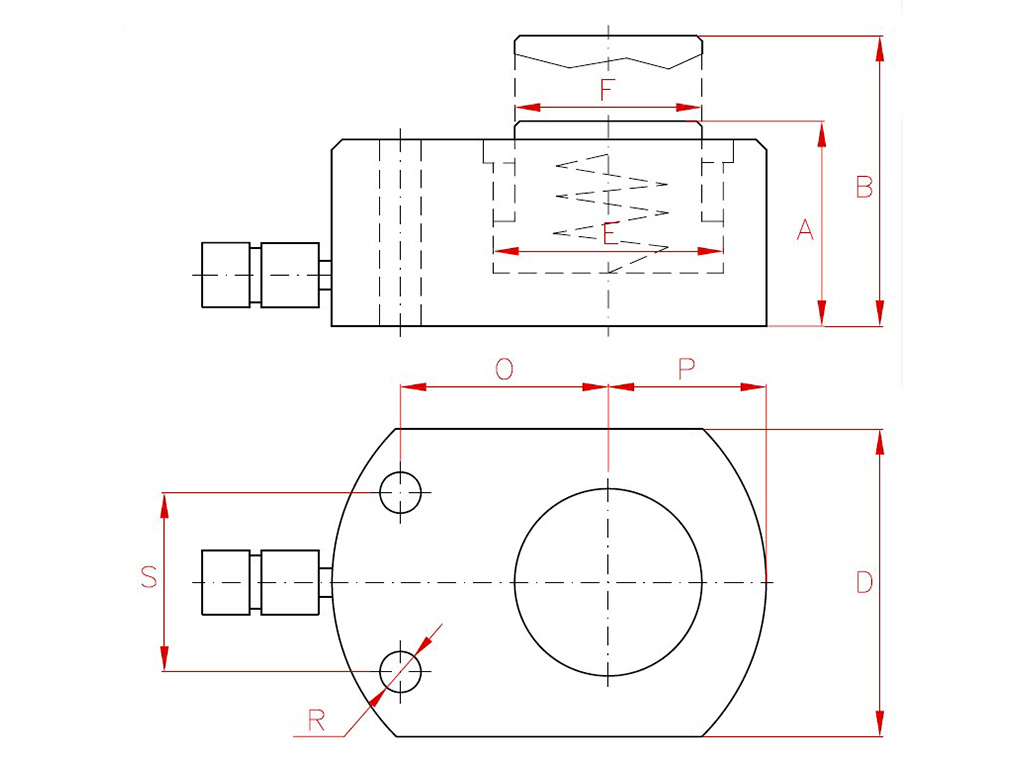

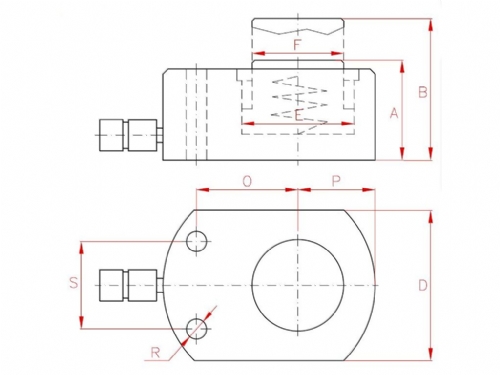

Larzep SX Single Acting Low Height Cylinder

Model No Capacity Stroke Closed Height (A)  Out Diameter(D) Effective Area  Oil Volume Weight
Spring Return Load Return  ton kN mm mm mm cm² cm³ kg

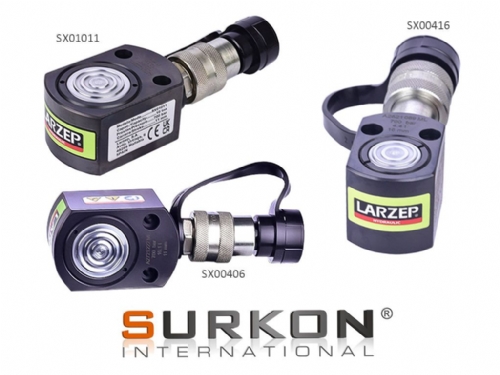

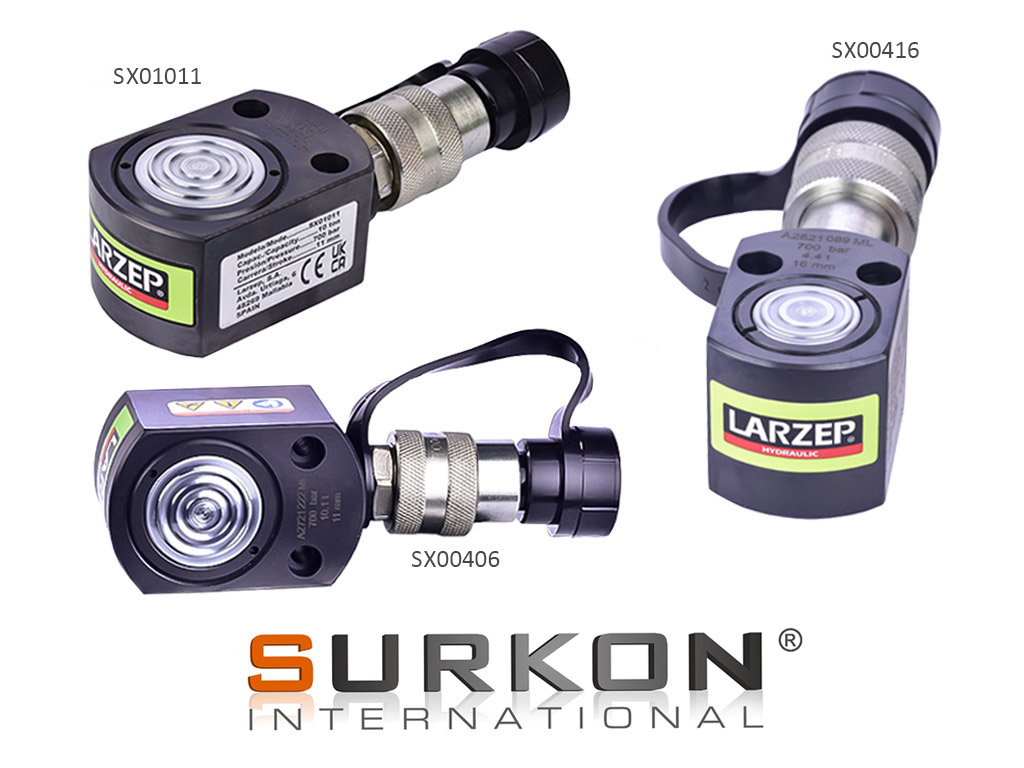

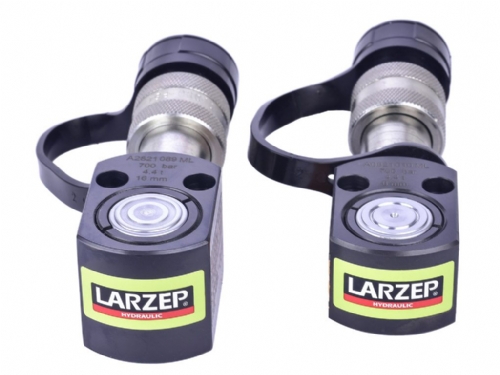

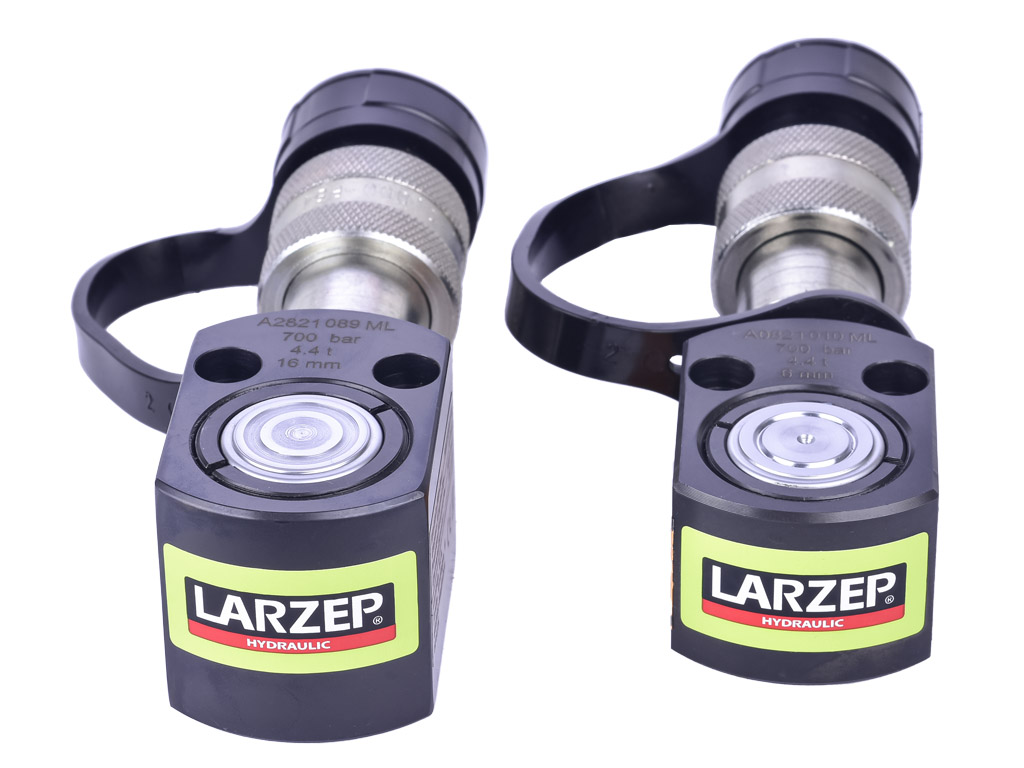

SMX00406 SX00406 4 44 6 33 41 6 4 0,8
SMX00416 SX00416 4 44 16 43 41 6 11 1,2
SMX01011 SX01011 10 100 11 43 56 15 16 1,6
SMX02211 SX02211 22 228 1 52 80 33 37 2,8
SMX03013 SX03013 30 287 13 59 95 42 55 4,1
SMX05016 SX05016 50 487 16 68 114 71 114 6,6
SMX07516 SX07516 75 713 16 79 140 104 167 12,5

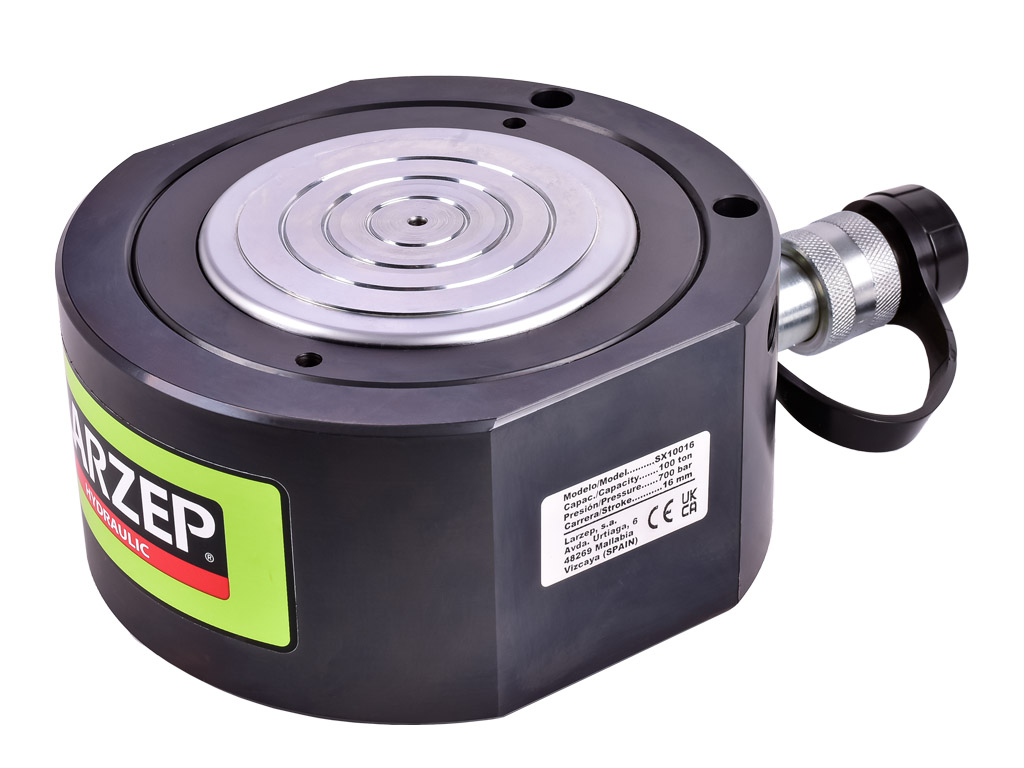

SMX10016 SX10016 100 954 16 87 158 139 223 15
SMX15016 SX15016 150 1450 16 100 194 211 338 25

Larzep SMX and SX series jacks are slim and short. SMX jacks have a spring return hydraulic system, SX series jacks have a load return hydraulic system. There are 9 different models from 4 tons up to 150 tons. SMX series low profile cylinders are being used for machinery positioning, heavy load testing and lifting of all kind of heavy loads.


Enerpac Equivalent: RSM200

SPX Powerteam Equivalent: RLS200

Hi Force Equivalent: HPS200



Load Return Load Cell
20 Ton
700 Bar
Single Acting
Larzep
