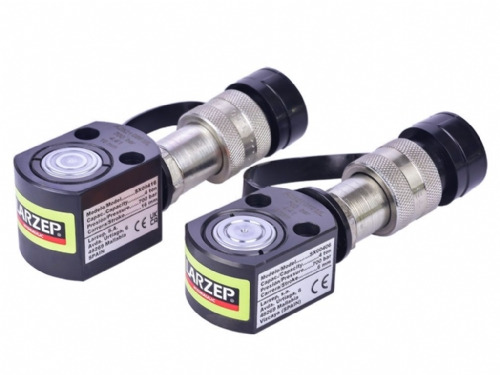

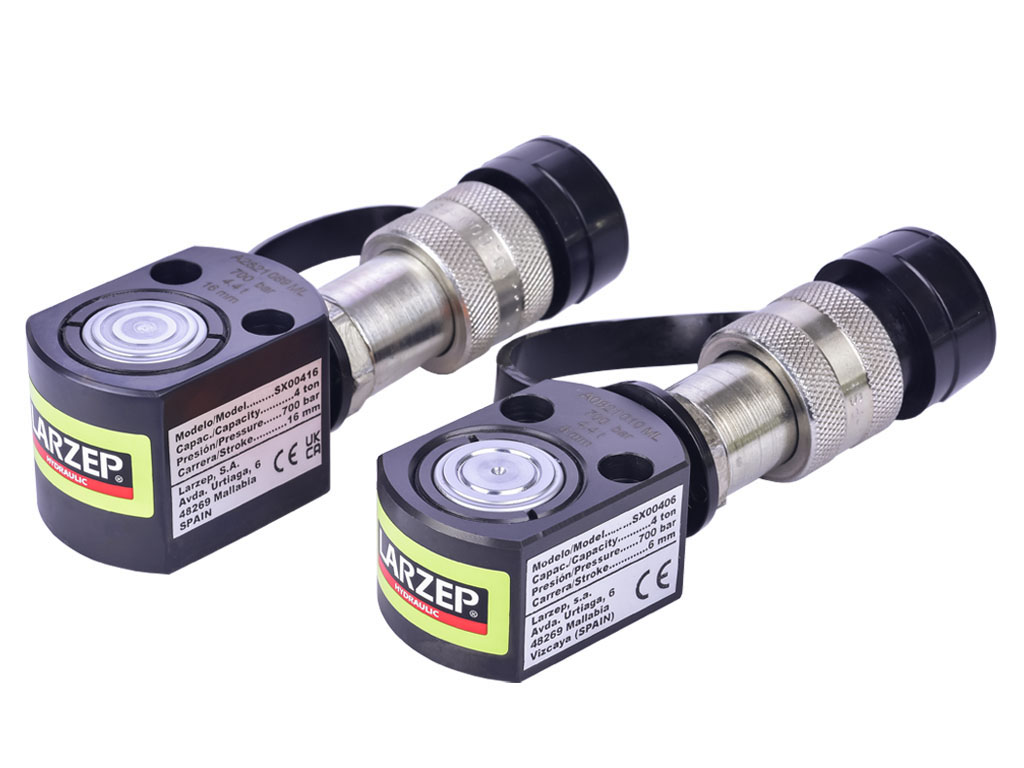

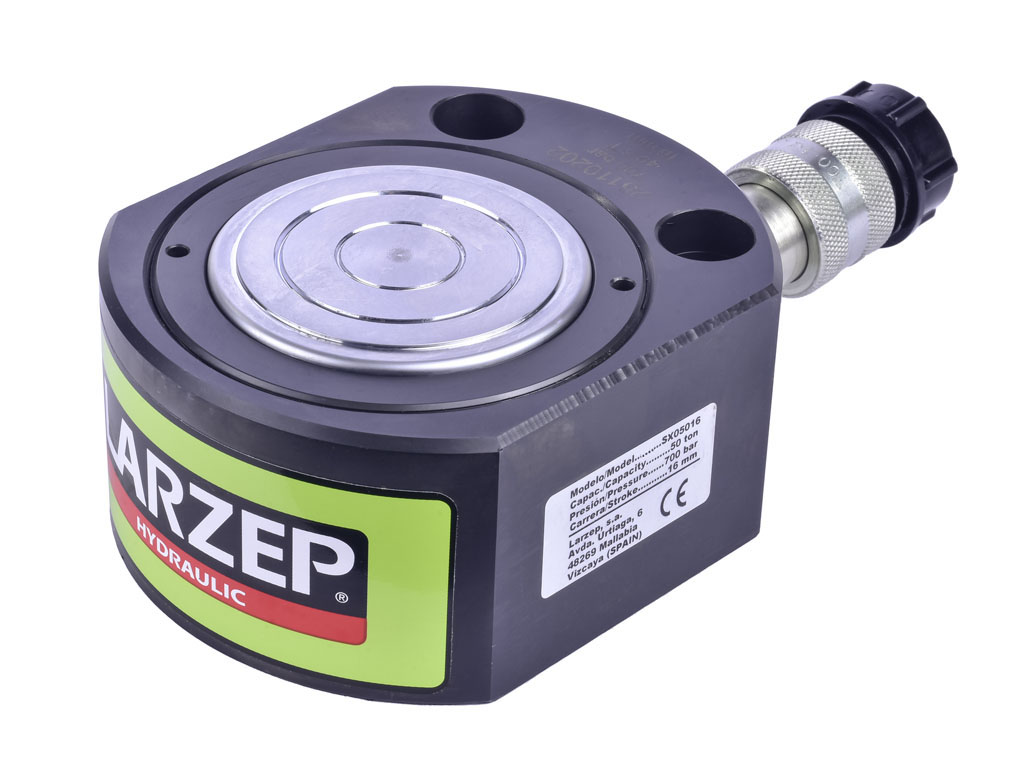

Larzep SX00416
Low Profile Cylinder
4 Ton, 16 mm Stroke
Single Acting, Load Return
| Larzep Code | SX00416 |
| Capacity | 4 ton |
| Stroke | 16 mm |
| Closed Height | 43 mm |
| Out Diameter | Ø41 mm |
| Effective Area | 6 cm² |
| Oil Volume | 11 cm³ |
| Working Pres. | 700 Bar |
| Cylinder Type | S/A Load return |
| Weight | 1.2 kg |
| Origin/Brand | Spain/ Larzep |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Capacity from 4 to 150 Tn
- Stroke up to 16 mm
- SX: Single acting load return
- SMX:Single acting spring return
- For use machinery positioning, tool fastening
- With two parallel faces for horizontal operation
- Mounting bolt holes for easy fixing
- Models up to 30 Tn are black nitrated
- SX models from 50 to 150 Tn have optional tilting saddle
Product technical specificationsTechnical Specifications
Larzep SX Single Acting Low Profile Cylinder

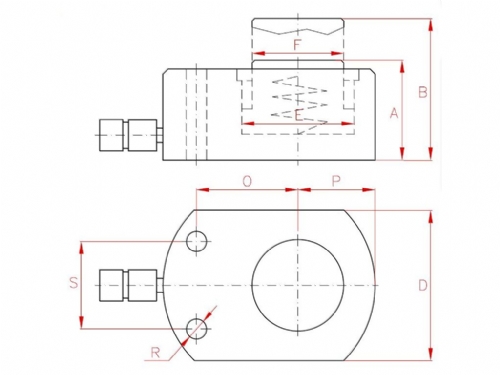

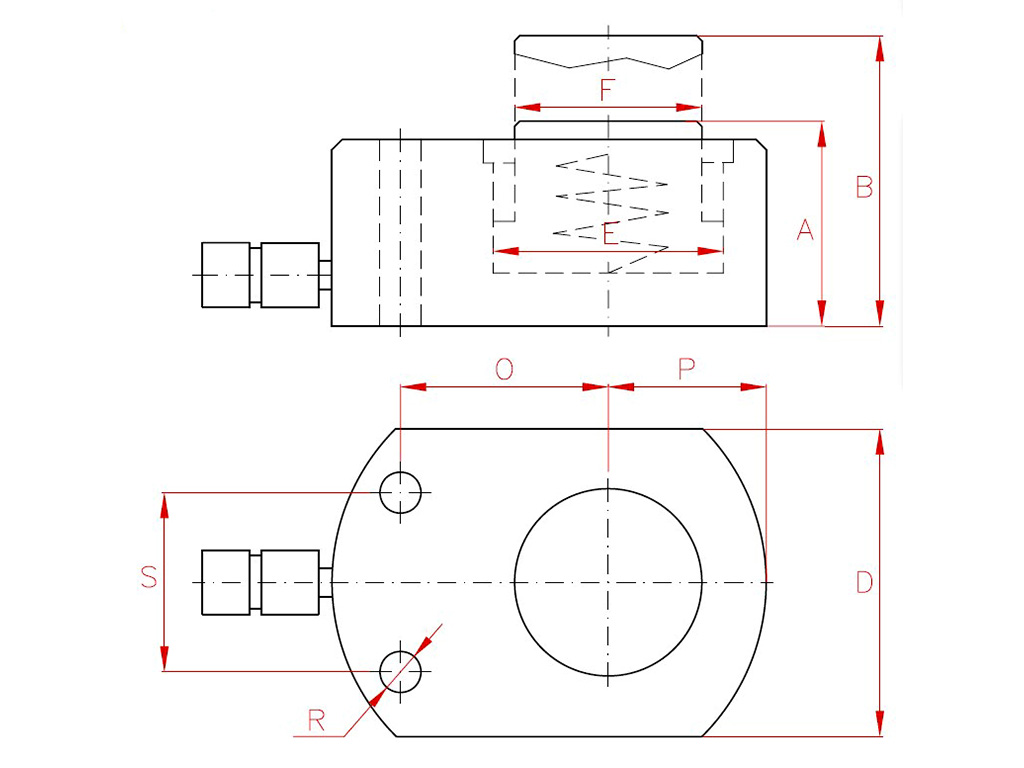

| Model No | Capacity | Stroke | Closed Height (A) | Out Diameter(D) | Effective Area | Oil Volume | Weight | ||
| Spring Return | Load Return | ton | kN | mm | mm | mm | cm² | cm³ | kg |

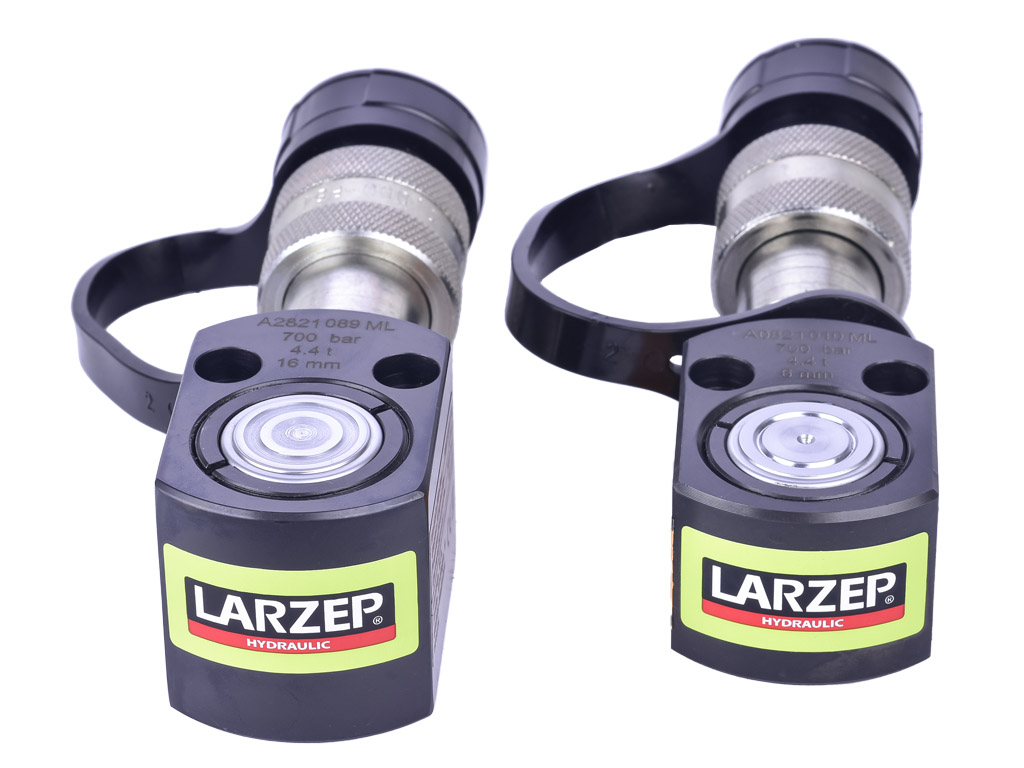

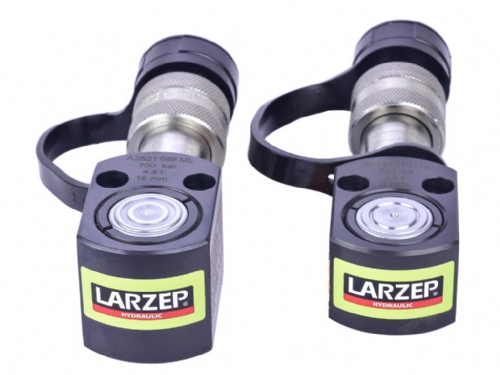

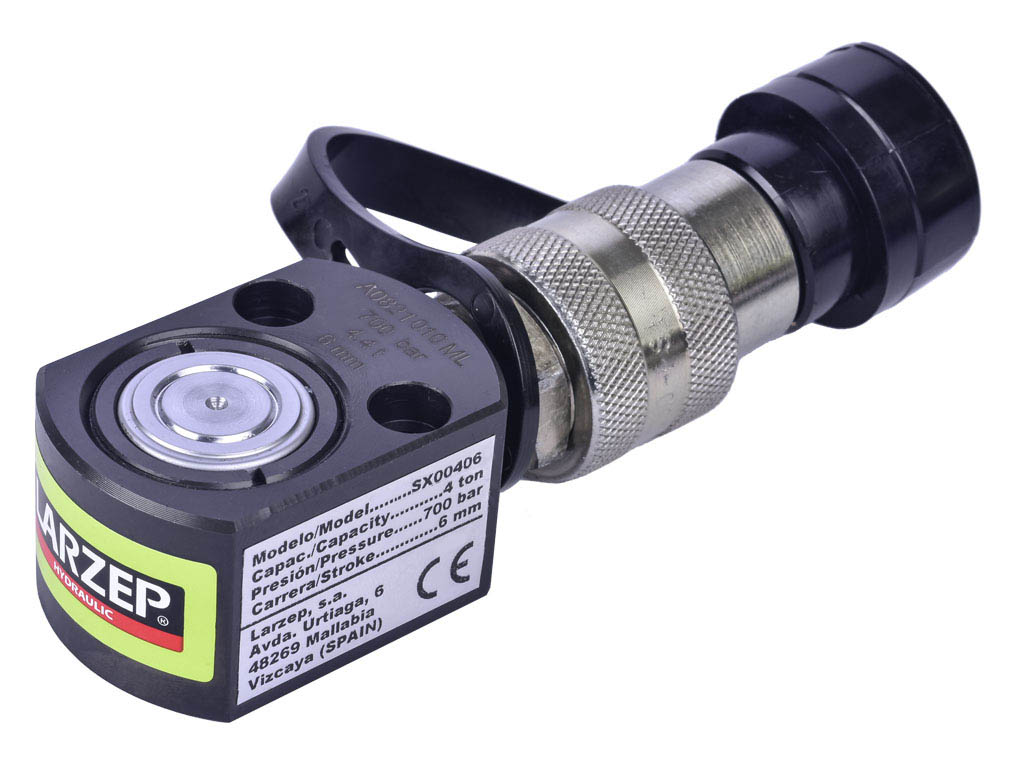

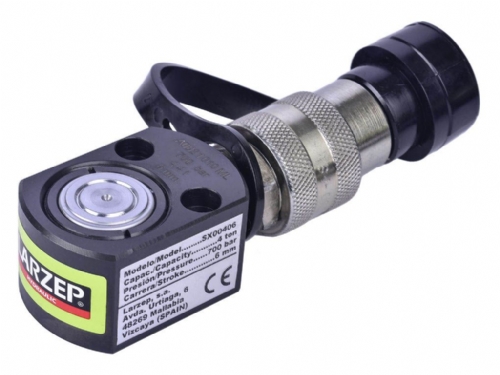

| SMX00406 | SX00406 | 4 | 44 | 6 | 33 | 41 | 6 | 4 | 0,8 |
| SMX00416 | SX00416 | 4 | 44 | 16 | 43 | 41 | 6 | 11 | 1,2 |

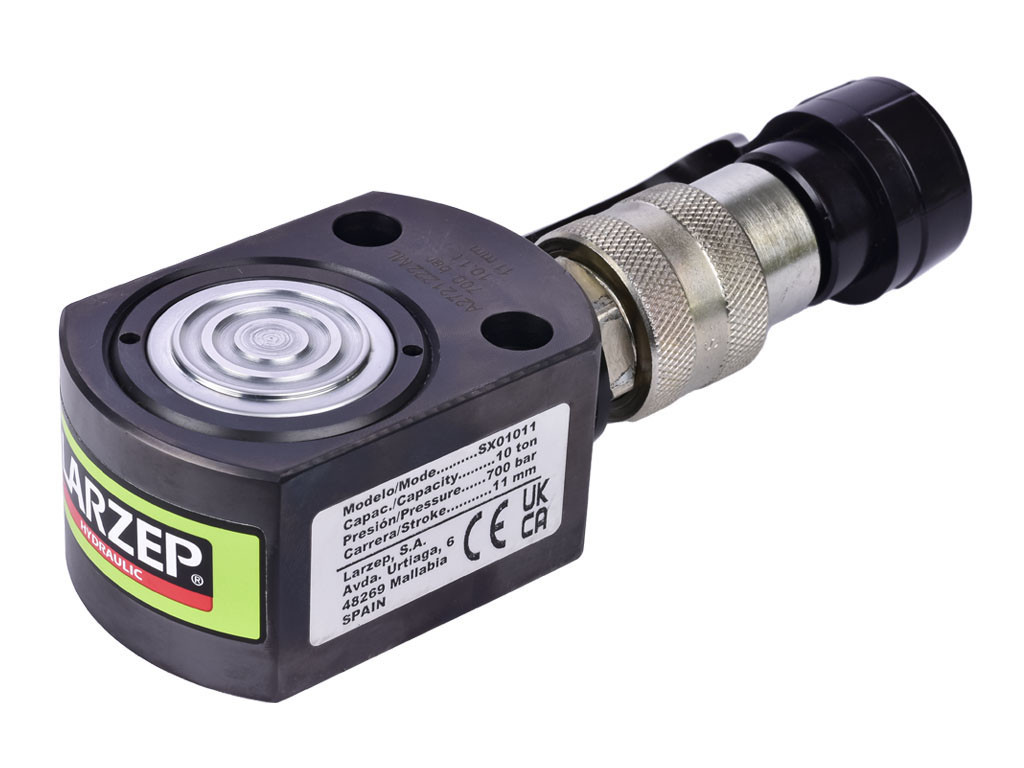

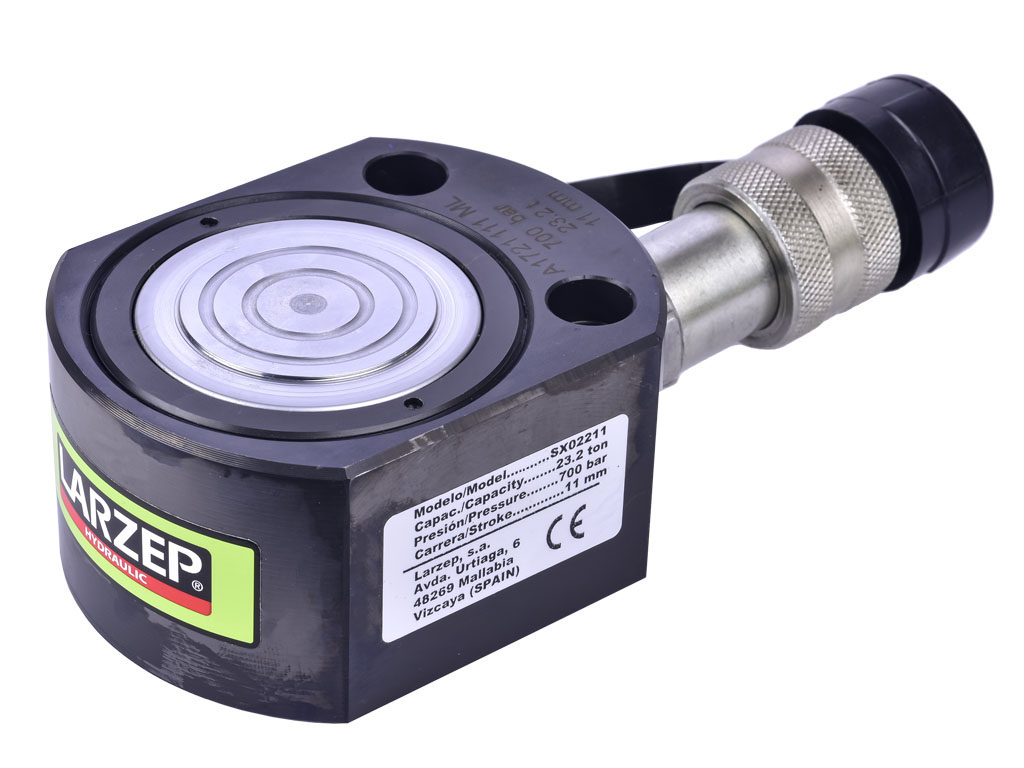

| SMX01011 | SX01011 | 10 | 100 | 11 | 43 | 56 | 15 | 16 | 1,6 |

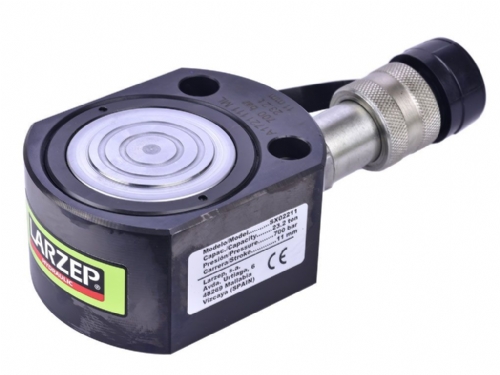

| SMX02211 | SX02211 | 22 | 228 | 1 | 52 | 80 | 33 | 37 | 2,8 |

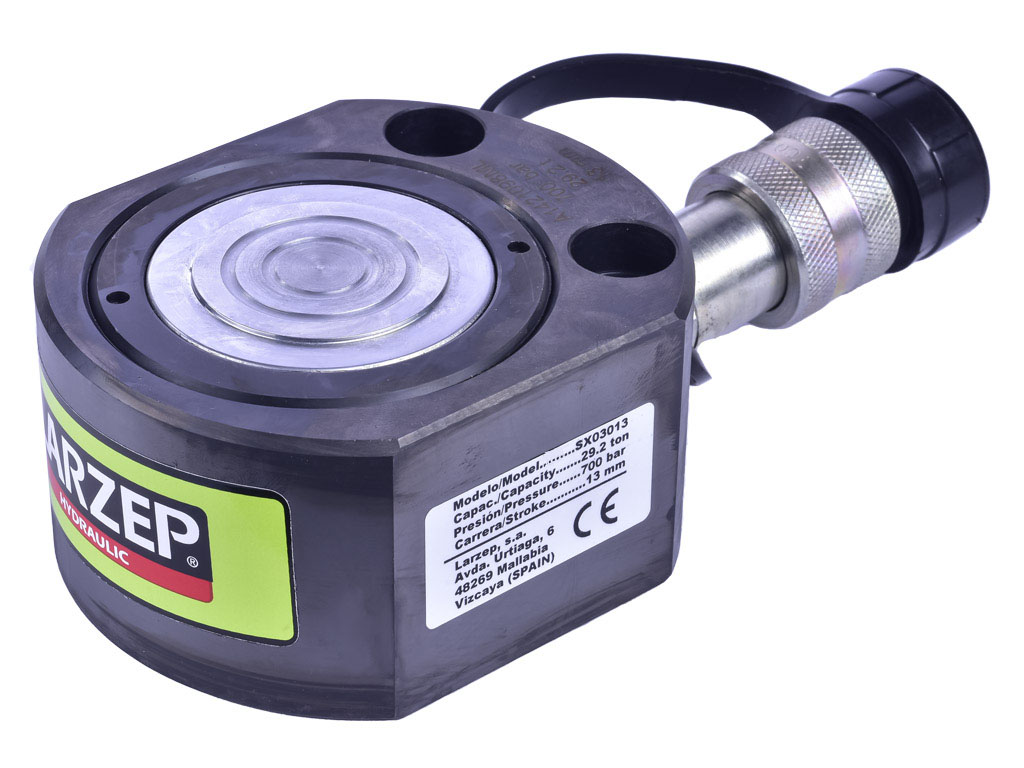

| SMX03013 | SX03013 | 30 | 287 | 13 | 59 | 95 | 42 | 55 | 4,1 |
| SMX05016 | SX05016 | 50 | 487 | 16 | 68 | 114 | 71 | 114 | 6,6 |

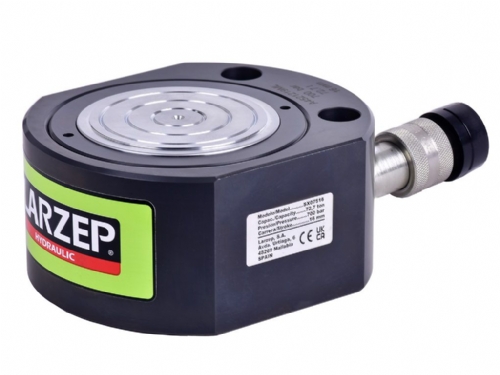

| SMX07516 | SX07516 | 75 | 713 | 16 | 79 | 140 | 104 | 167 | 12,5 |

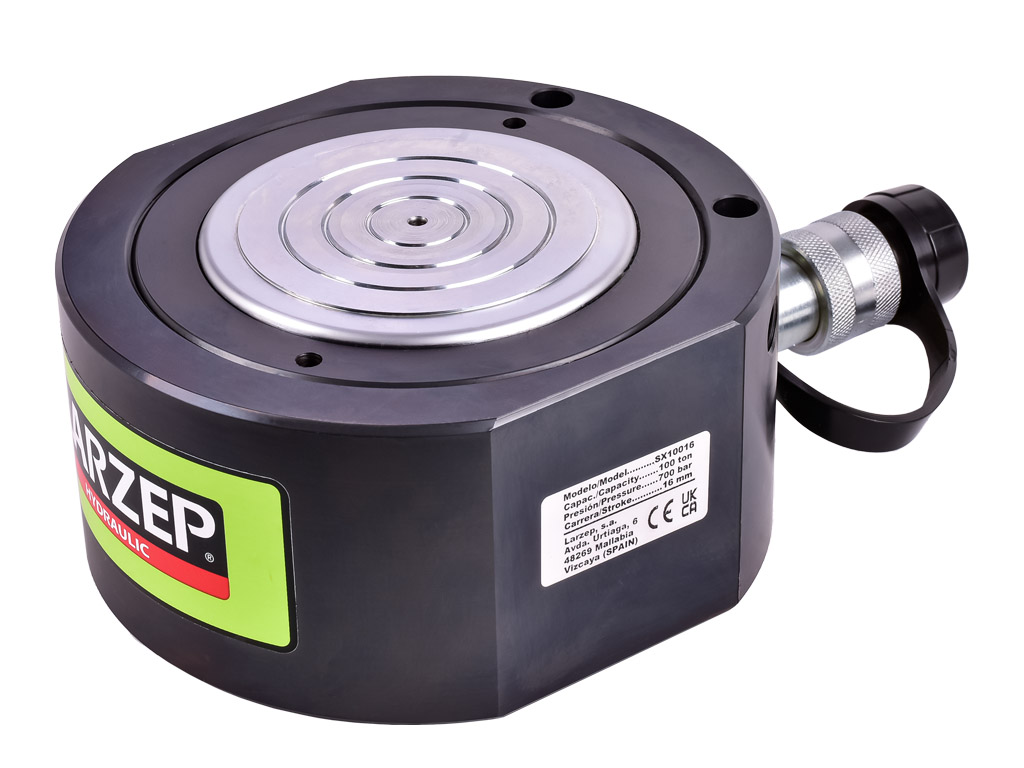

| SMX10016 | SX10016 | 100 | 954 | 16 | 87 | 158 | 139 | 223 | 15 |
| SMX15016 | SX15016 | 150 | 1450 | 16 | 100 | 194 | 211 | 338 | 25 |
.jpg)

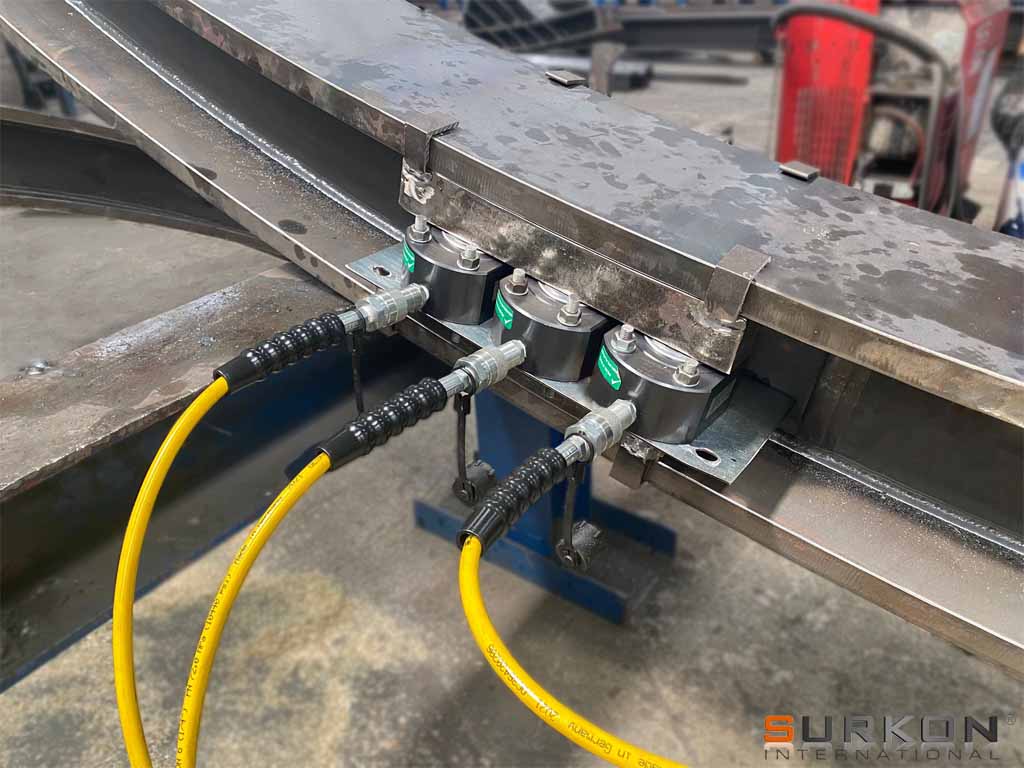

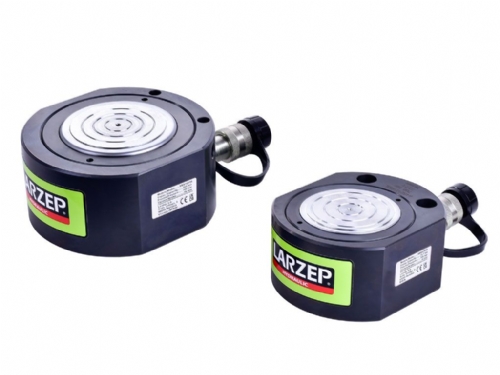

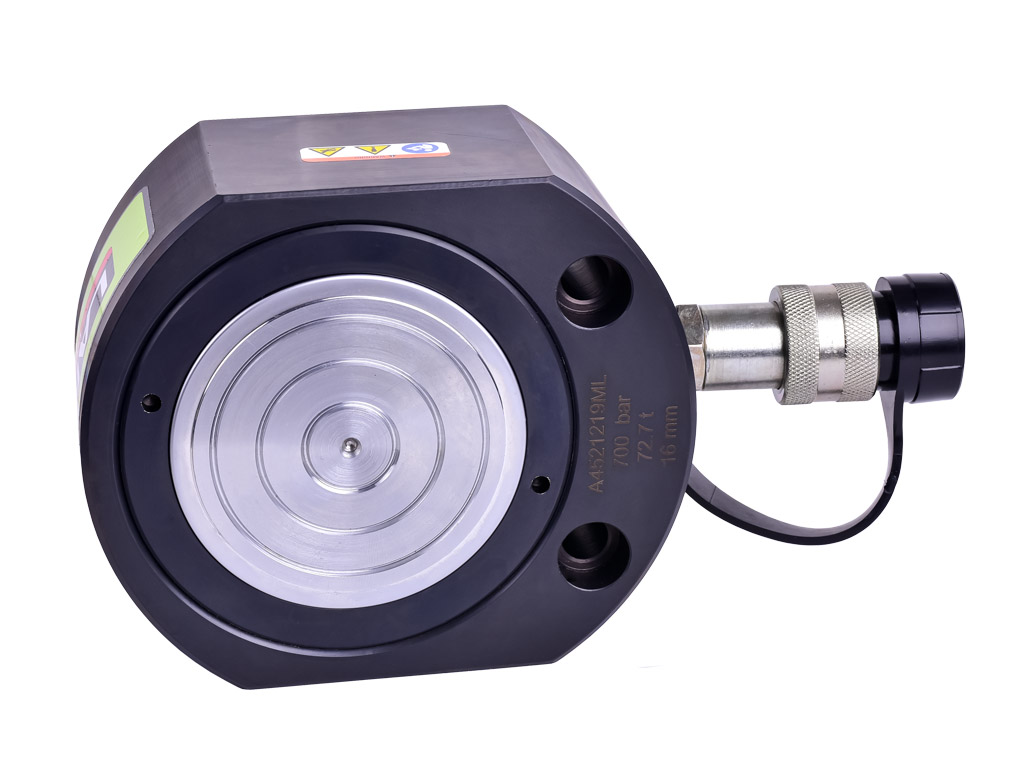

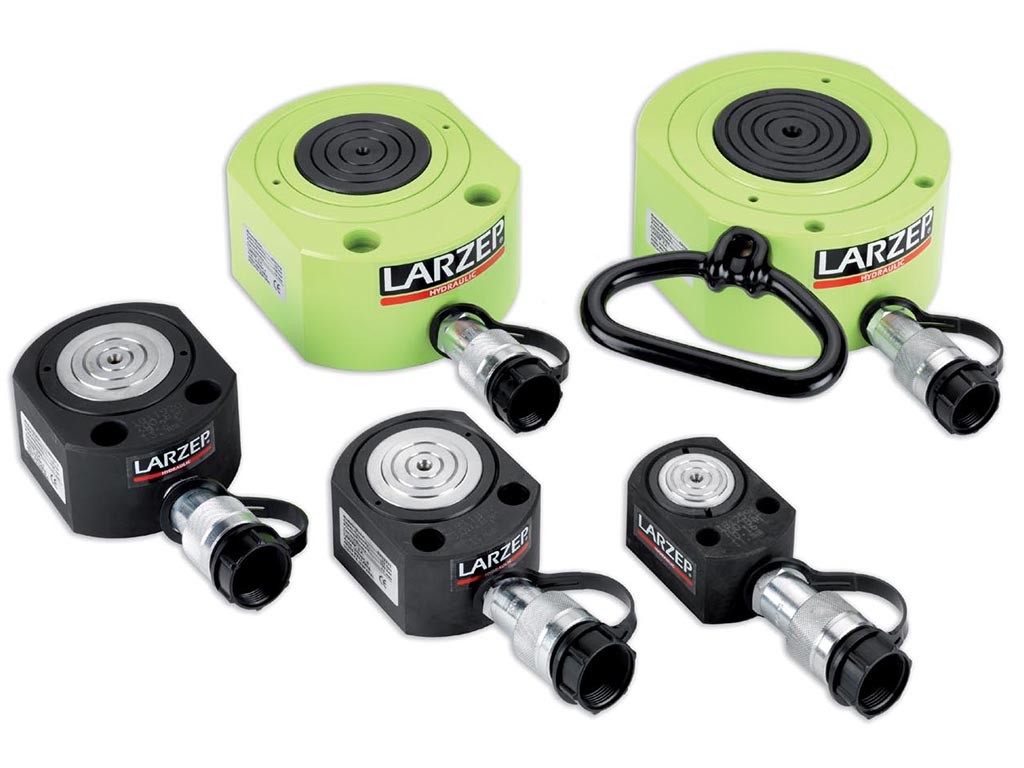

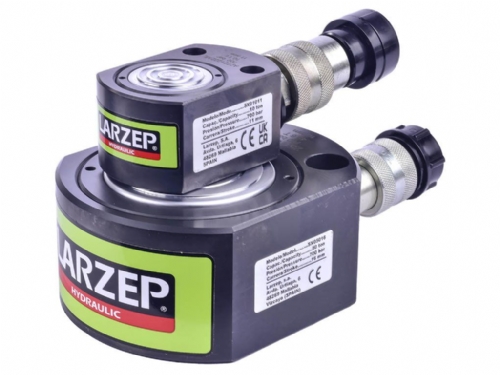

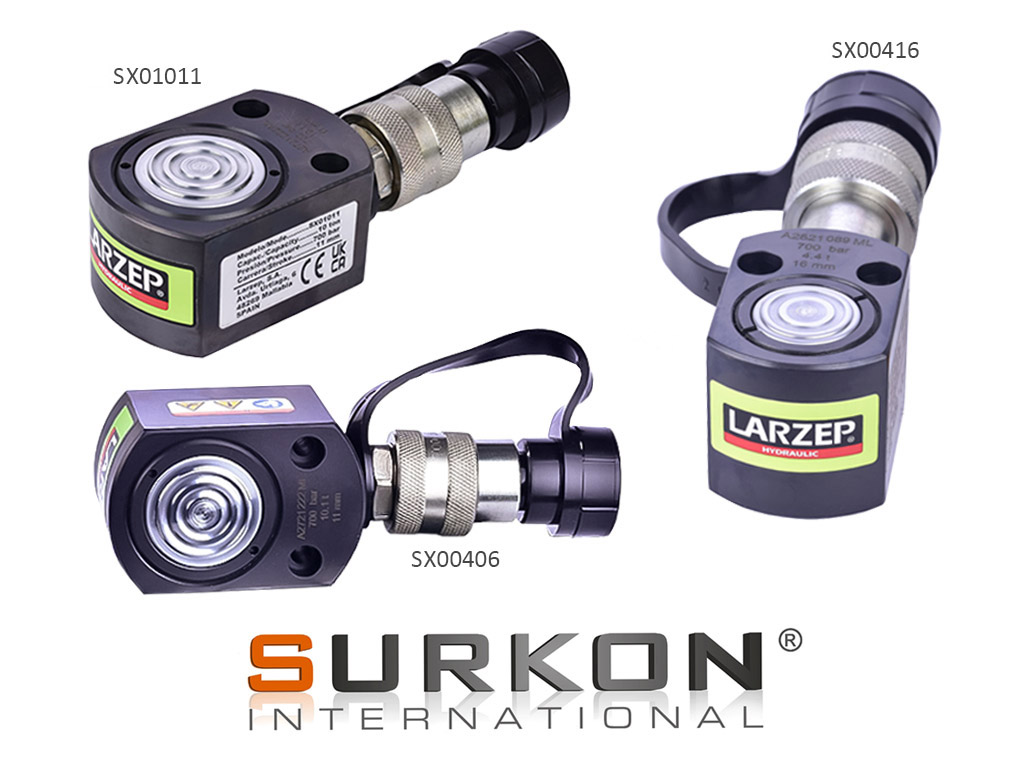

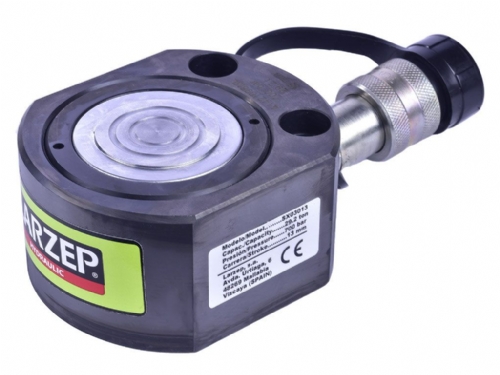

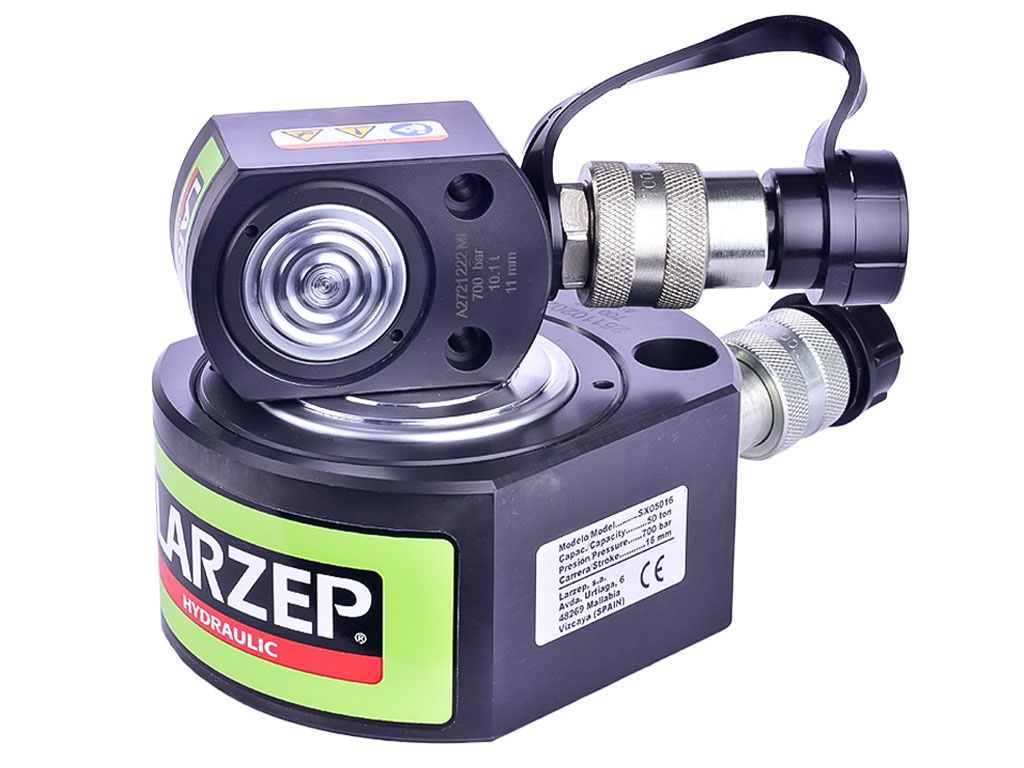

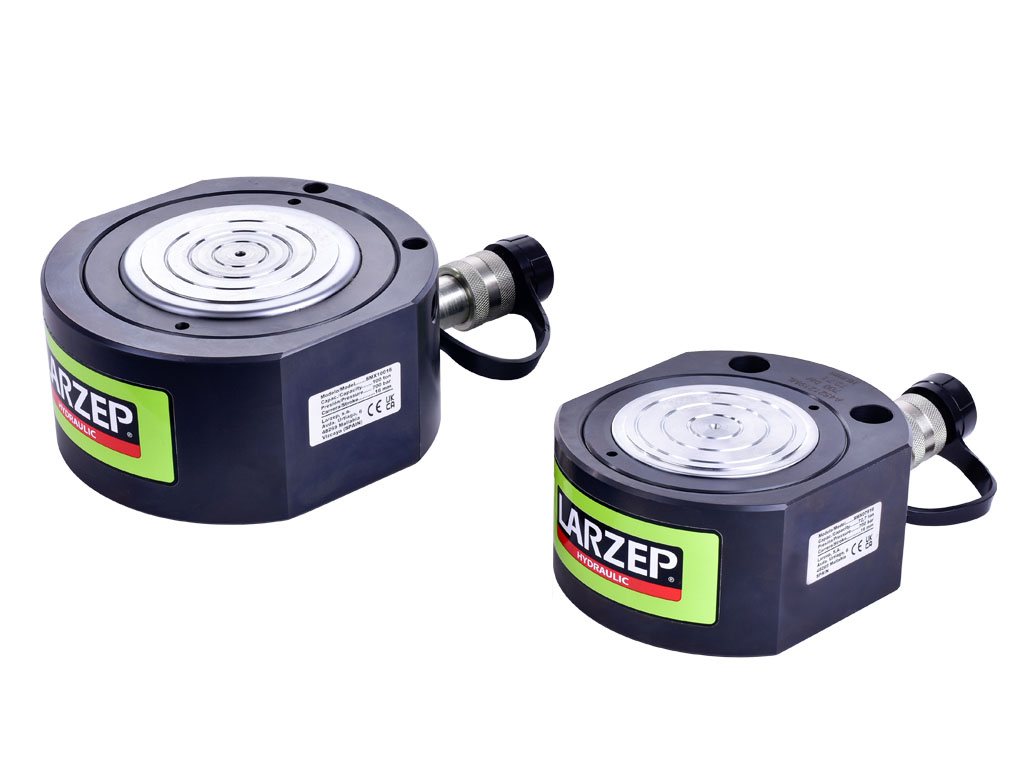

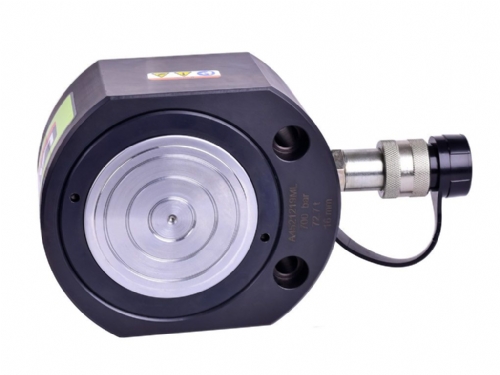

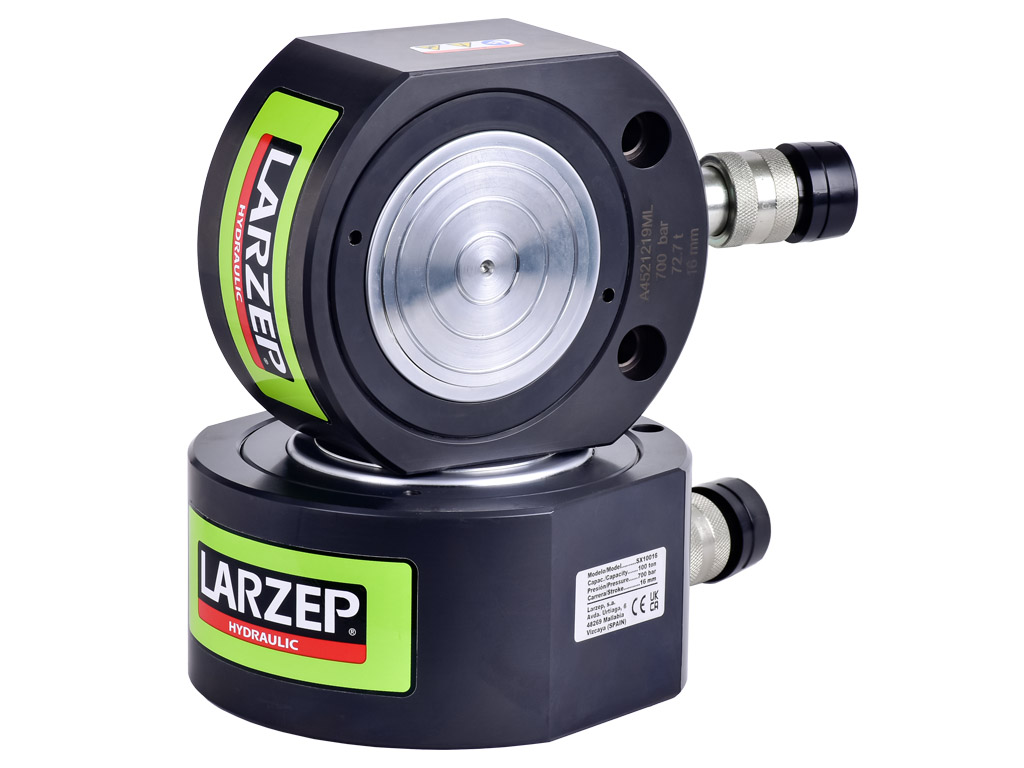

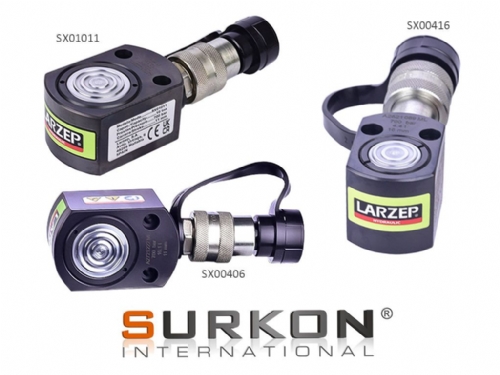

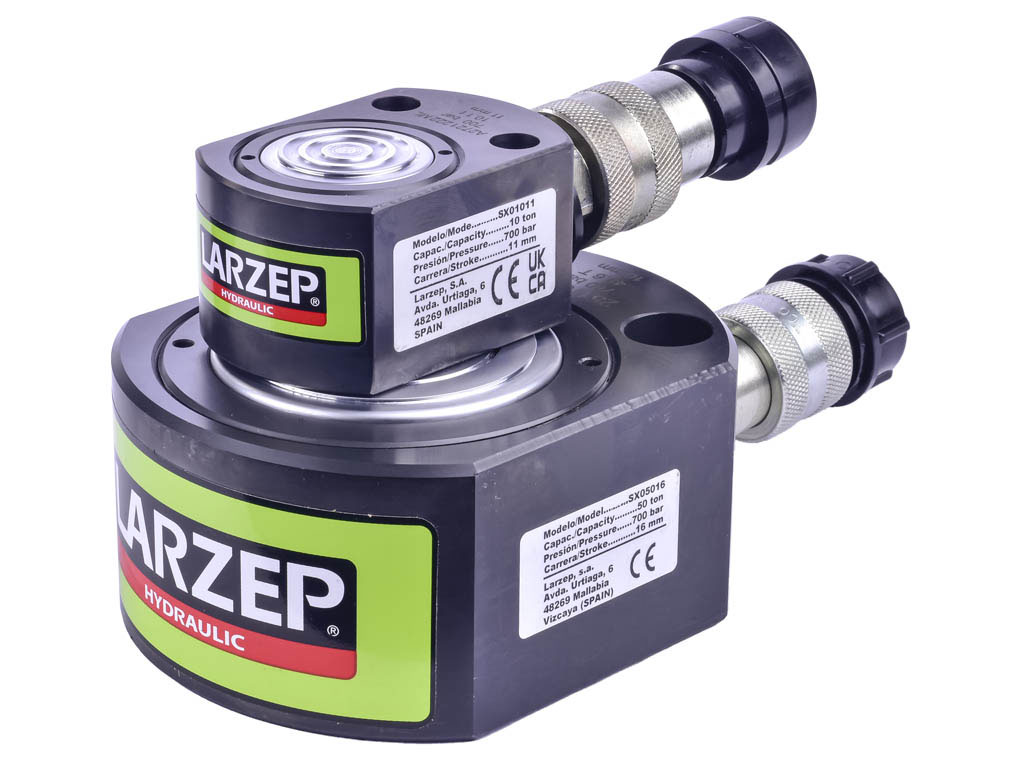

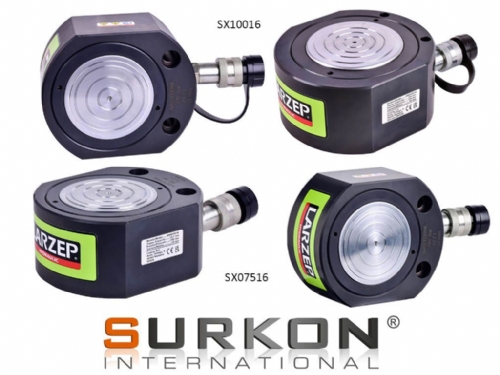

Larzep SMX and SX series jacks are slim and short. SMX jacks have a spring return hydraulic system, SX series jacks have a load return hydraulic system. There are 9 different models from 4 tons up to 150 tons. SMX series low profile cylinders are being used for machinery positioning, heavy load testing and lifting of all kind of heavy loads.
Enerpac Equivalent: RSM51
SPX Powerteam Equivalent: RLS51
Hi Force Equivalent: HPS51
