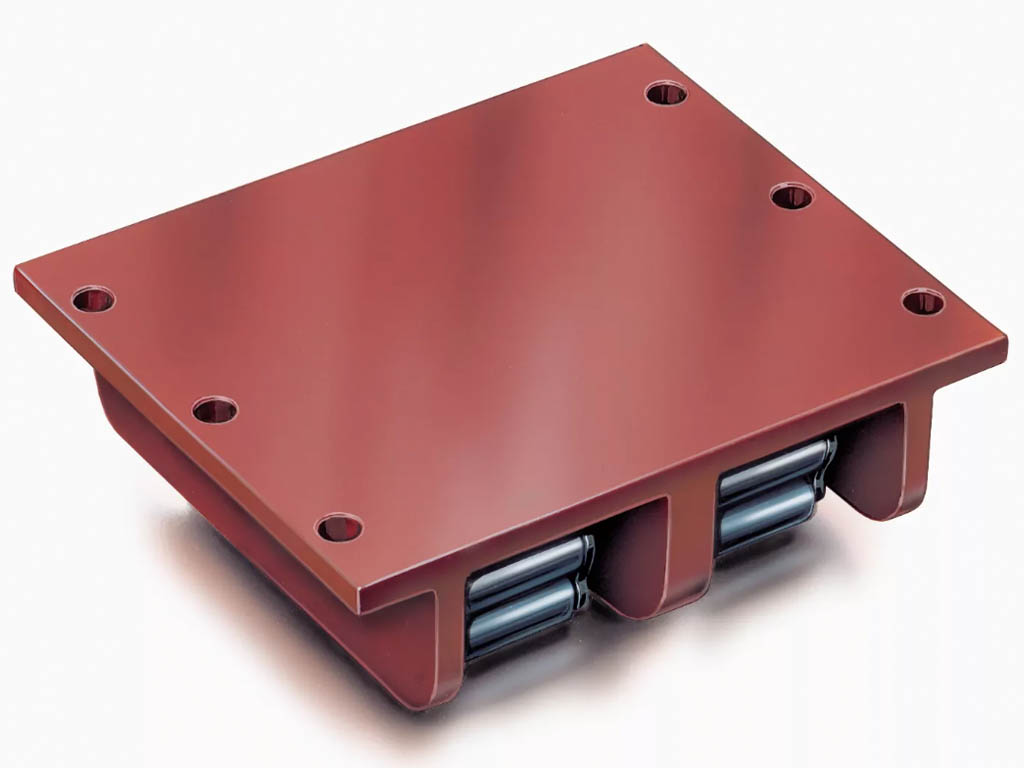

Boerkey ZASH130t-50CrV4 Roller Skate
130 Ton Long Distance Heavy Load Transport Roller Skate
| Product code | ZASH130t-50CrV4 |
| Capacity | 130 ton / 1300 kN |
| Usage | Dynamic and intensive use |
| Height | 145 mm |
| Length | 380 mm |
| Width | 336 mm |
| Roller diameter | 42 mm |
| Num. of rollers | 2 x 13 |
| Tool weight | 96 kg |
| Made in | Germany |
| Manufacturer | Boerkey GmbH |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Maximum load capacity 80 – 400 tons
- Available in two variations:
- Standard: Long term, long distance
- Heavy duty 50CrV4: Dynamic and intensive use
- Have 6 bolt holes for roller skates are fixed
- More stable operation and distribution of load
- Ideal model for confined space, max speed 5 m/min
- Corrosion protection is available as an option
- Should be used with steel plate on bad surface
- If necessary this model can be reduced in height
- Made in Germany, Manufacturer Boerkey GmbH
Product technical specificationsTechnical Specifications
Boerkey ZASH Heavy Duty Series Heavy Load Moving Roller Skates

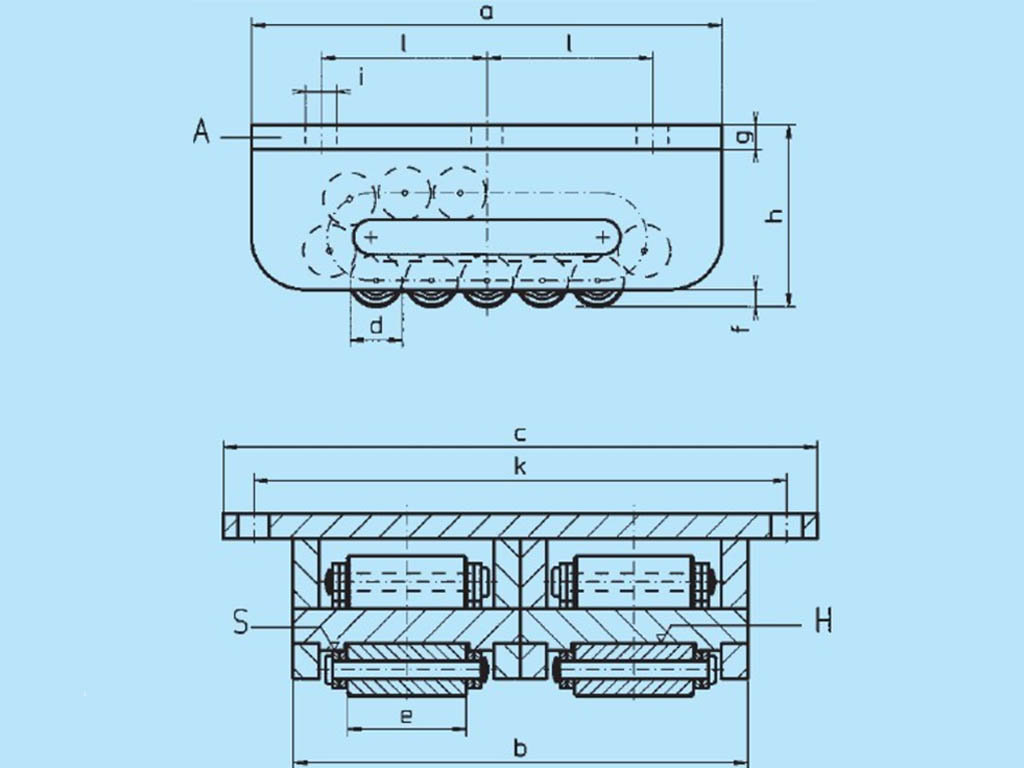

| Code | Model | Capacity | Number of Rollers | Roller Diam. [d] | Length [a] | Width [c] | Height [h] | [b] | [e] | [f] | Weight | |
| # | # | ton | kN | # | ø mm | mm | mm | mm | mm | mm | mm | Kg |
| ZASH80t-50CrV4 | III | 80 | 800 | 2 X 13 | 30 | 270 | 260 | 104 | 340 | 68 | 10 | 36.2 |
| ZASH100t-50CrV4 | IIIV | 100 | 1000 | 2 X 17 | 30 | 320 | 280 | 115 | 360 | 68 | 10 | 57.5 |
| ZASH130t-50CrV4 | IV | 130 | 1300 | 2 X 13 | 42 | 380 | 336 | 145 | 440 | 76 | 10 | 96.0 |
| ZASH170t-50CrV4 | V | 170 | 1700 | 2 X 17 | 50 | 530 | 364 | 165 | 480 | 86 | 19 | 175.0 |
| ZASH200t-50CrV4 | VL | 200 | 2000 | 2 X 21 | 50 | 580 | 364 | 170 | 480 | 86 | 19 | 207.0 |
| ZASH300t-50CrV4 | Vv | 300 | 3000 | 2 X 23 | 50 | 650 | 410 | 190 | 560 | 100 | 20 | 305.0 |
| ZASH400t-50CrV4 | VI | 400 | 4000 | 2 X 31 | 50 | 900 | 410 | 200 | 590 | 100 | 20 | 485.0 |
Characteristics of Roller Skates
- Suitable for long distance purposes
- Strong Resistance & long life structure
- Preferable for limited space usage
- Use as a conveyor by fixing load on plate
- İdeal structure for load placement and grip
- Decreased end thrust by central guide
Areas Used
- Construction of bridges, steel construction

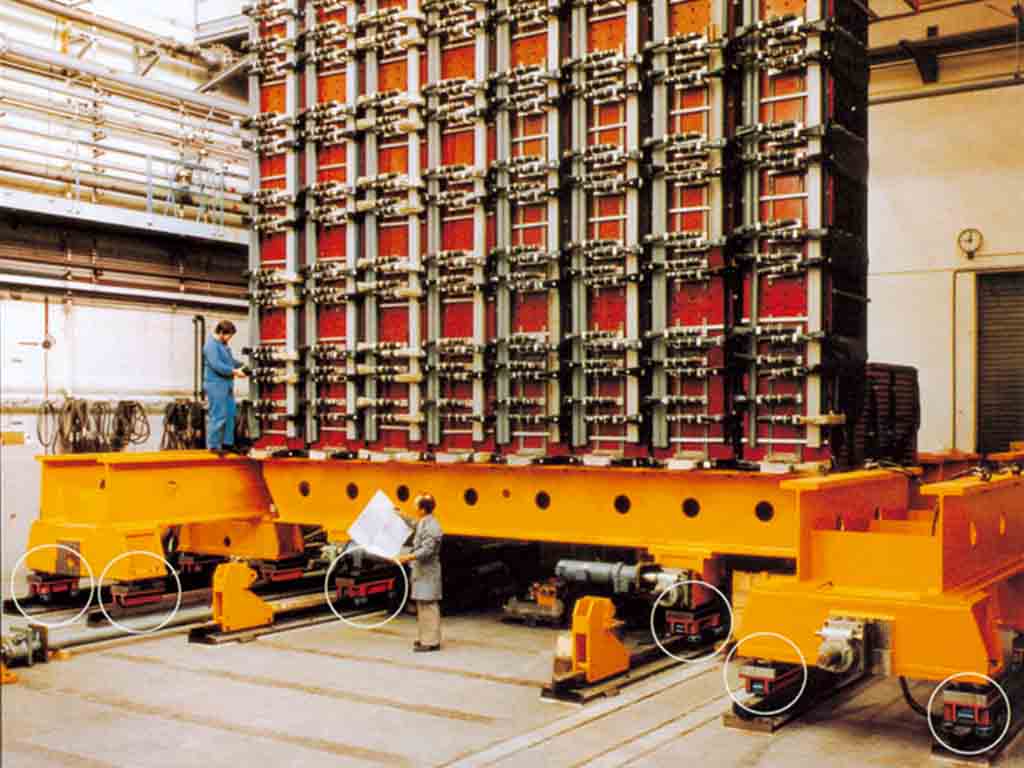

- Moving of heavy loads
- Placement of heavy machinery
- Moving portable cranes
- To move working scaffolds
