Boerkey Turning Heavy Duty Wheels
DT50-CR150 - 5 Tons St-Steel Wheel
| Model Code | DT50-CR150 |
| Capacity (ton) | 5 ton |
| Capacity (kN) | 50 kN |
| Castor Lenght | 270 mm |
| Castor Weight | 170 mm |
| Height | Ø 150 mm |
| Width | 130 mm |
| Speed | max. 100 m/dk |
| Weight | Stainless-steel |
| Plated | 21.6 kg |
| Castors Type | Swivel |
| Origin / Brand | Germany / Boerkey |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Carriying capacity 2 – 6 tons
- Height of wheels 210 – 335 mm
- Max speed of load 100 m/min
- Supplied with swivel castor
- Can be inserted machine part
- Impervious to shavings and dust
- Plastic wheel model available
- Does not damage to ground
- Special construction for req.
- Producer Boerkey, Origin DE
Product technical specificationsTechnical Specifications
DT - CR Series Heavy Duty Wheel Swivel Castors - Stainless-Steel

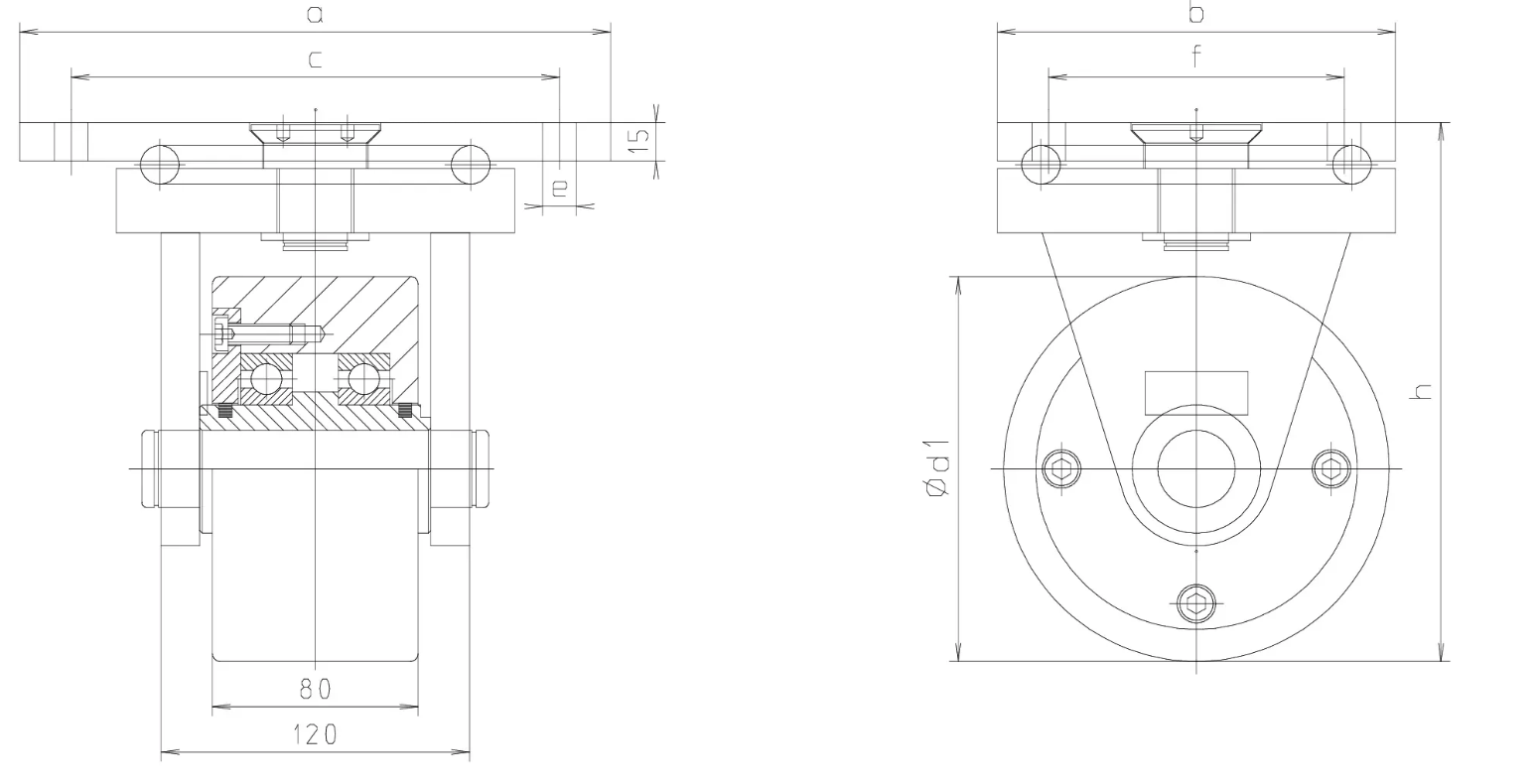

| Surkon Code | Boerkey Code | a | b | c | Ø d1 | Ø e | f | g | h | j | k | Capacity | Weight | |
| C Serisi | S Serisi | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ton | kN | kg |
| DT50-CR150 | SD 150 S/P | 270 | 170 | 220 | 150 | 18 | 130 | 20 | 220 | 80 | 130 | 5 | 50 | 21.6 |
| DT50-CR175 | SD 175 S/P | 270 | 170 | 220 | 175 | 18 | 130 | 20 | 245 | 80 | 130 | 5 | 50 | 26.4 |
| DT60-CR200 | SD 200 S/P | 270 | 170 | 220 | 200 | 18 | 130 | 20 | 285 | 80 | 130 | 6 | 60 | 31.8 |
Boerkey Swivel Castors Heavy Duty Wheels – Steel or Plastic Plated
- For transporting loads at a maximum speed of 100 m/min
- For turning corners
- Frequently used on construction sites
Characteristics
- Solid steel construction of the rotating mountings
- Can be combined with other castors
