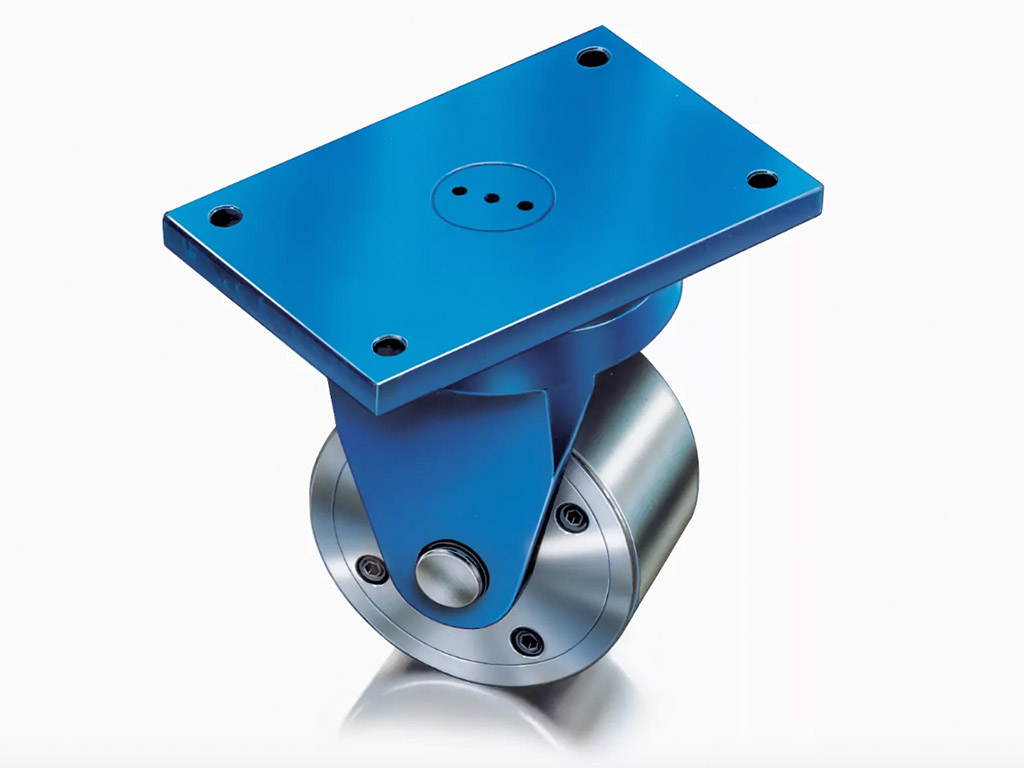

Boerkey Turning Heavy Duty Wheels

DT30-C175 - 3 Tons Steel Wheel

Model Code DT30-C175
Capacity (ton) 3 ton
Capacity (kN) 30 kN
Castor Lenght 220 mm
Castor Weight 150 mm
Height Ø 175 mm
Width 120 mm
Speed max. 100 m/dk
Weight Steel
Plated 26.2 kg
Castors Type Swivel
Origin / Brand Germany / Boerkey
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Carriying capacity 2 – 6 tons
  • Height of wheels 210 – 335 mm
  • Max speed of load 100 m/min
  • Supplied with swivel castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Does not damage to ground
  • Special construction for req.
  • Producer Boerkey, Origin DE

Product technical specificationsTechnical Specifications

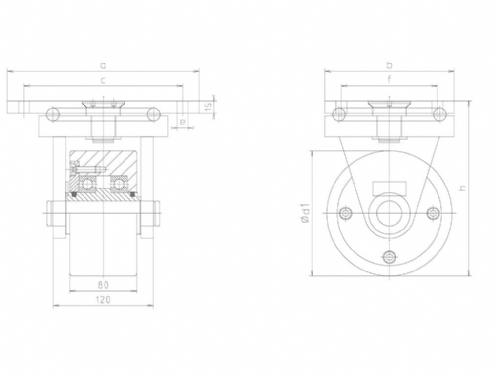

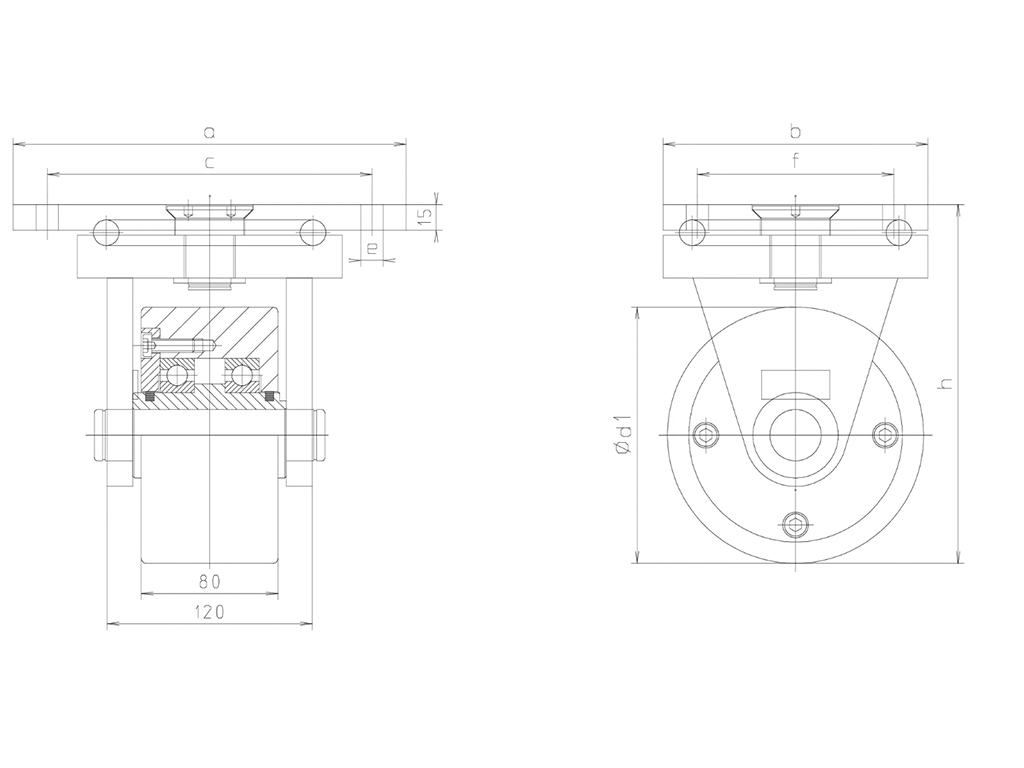

DT - C Series Heavy Duty Wheel Swivel Castors  - Steel

Surkon Code Boerkey Code a b c Ø d1 Ø e f g h j k Capacity Weight
C Series S Series mm mm mm mm mm mm mm mm mm mm ton kN kg
DT30-C150 SD 150 S 220 150 190 150 14 115 15 210 80 120 3 30 21.4
DT30-C175 SD 175 S 220 150 190 175 14 115 15 235 80 120 3 30 26.2
DT30-C200 SD 200 S 220 150 190 200 14 115 15 260 80 120 3 30 31.6
DT30-C225 SD 225 S 270 210 210 225 18 150 15 285 80 120 3 30 40.4
DT35-C250 SD 250 S 270 210 210 250 18 150 15 310 80 120 3.5 35 47.3
DT35-C275 SD 275 S 270 210 210 275 18 150 15 335 80 120 3.5 35 55.2



Boerkey Swivel Castors Heavy Duty Wheels – Steel or Plastic Plated

  • For transporting loads at a maximum speed of 100 m/min
  • For turning corners
  • Frequently used on construction sites

Characteristics

  • Solid steel construction of the rotating mountings
  • Can be combined with other castors



Boerkey
Heavy Duty Series
3 Ton
Stainless-Steel
175 mm
Castors
30 kN
Swivel Castor
