Boerkey Heavy Duty Wheels

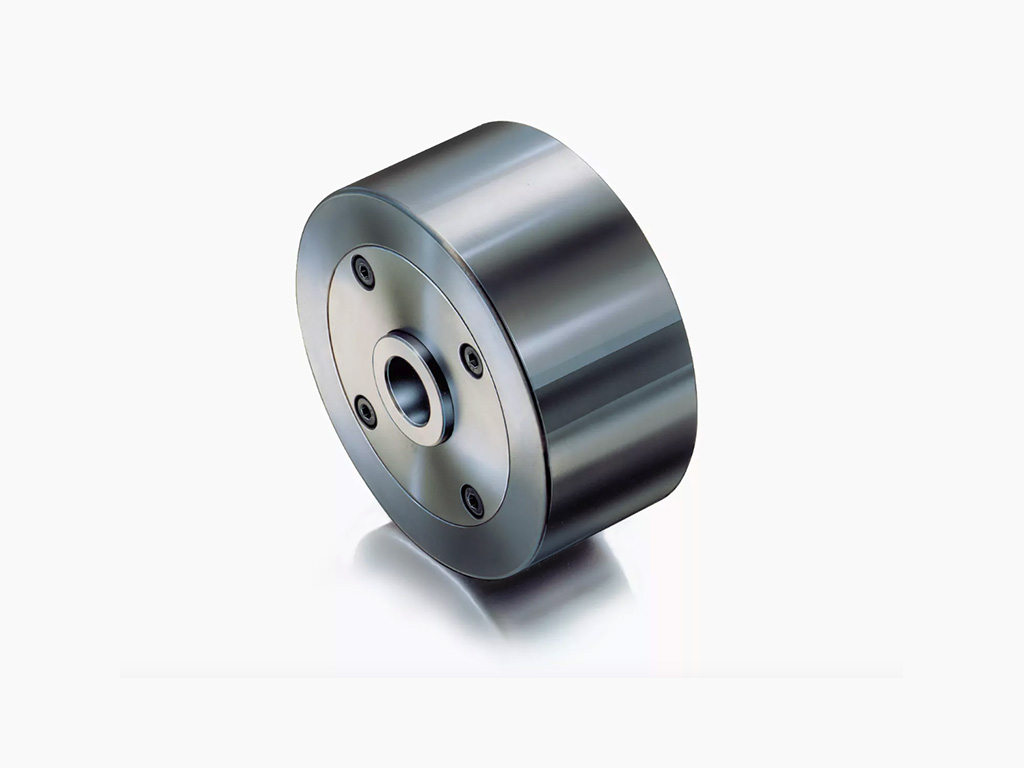

T50-CR175 - 5 Tons Steel Wheel
| Model Code | T50-CR175 |
| Capacity (ton) | 5 ton |
| Capacity (kN) | 50 kN |
| Min. Hole Dia. | 30 mm |
| Max. Hole Dia. | 50 mm |
| Dia. of Wheel | Ø 175 mm |
| Width | 90mm |
| Speed | max. 100 m/dk |
| Weight | 13.8 kg |
| Plated | Stainless-Steel |
| Brand | Boerkey GmbH |
| Origin | Germany |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Carriying capacity 5 – 8 tons
- Dia. of wheels 150 – 300 mm
- Max speed of load 100 m/min
- Fixed or swivel selectable
- Can be inserted machine part
- Impervious to shavings and dust
- Construction with ball bearings
- Does not damage to ground
- Special construction for request
- Producer Boerkey, Origin DE
Product technical specificationsTechnical Specifications
CR Series Heavy Duty Wheel Without Castors - Stainless Steel (35 – 38 HRC)
| Surkon Code | Boerkey Code | Dimensions (mm) | Capacity | Weight | |||||
| # | # | a | b | Ø d1 | Ø d2 | Ø d3 | ton | kN | kg |
| T50-CR150 | 150 S/P | 80 | 90 | 150 | 30 | 50 | 5 | 50 | 9.9 |
| T50-CR175 | 175 S/P | 80 | 90 | 175 | 30 | 50 | 5 | 50 | 13.8 |
| T60-CR200 | 200 S/P | 80 | 90 | 200 | 30 | 50 | 6 | 60 | 18.3 |
| T60-CR225 | 225 S/P | 80 | 90 | 225 | 30 | 50 | 6 | 60 | 23.5 |
| T80-CR250 | 250 S/P | 80 | 90 | 250 | 30 | 50 | 8 | 80 | 29.5 |
| T80-CR275 | 275 S/P | 80 | 90 | 275 | 30 | 50 | 8 | 80 | 36.5 |
| T80-CR300 | 300 S/P | 80 | 90 | 300 | 30 | 50 | 8 | 80 | 44.6 |
Boerkey Heavy Duty Wheels - Stainless Steel
- For robust use e.g. on construction sites
- Can be inserted as a machine part
- for transporting loads at a maximum speed of 100 m/min
- When higher carrying capacity and greater sturdiness is required
- When higher safety standards and heavy duty are required
Characteristics:
- Solid steel construction with self-aligning roller bearings
- Body hardened to 35-38 HRC with crowned wheel running surface
- Delivered with various mountings as fixed castors and swivel castors (SF, SL, SD)
Hints on use:
- Maintenance-free construction, used particularly in machine factories, on construction sites and for the handling of heavy goods
- Can be combined with fixed castors and swivel castors
- Material with a high carrying capacity, wich is not very susceptible to rough handling
- Can also be delivered as a flange wheel construction (see model S-A/P; S-B/P)
