Boerkey Heavy Duty Wheels

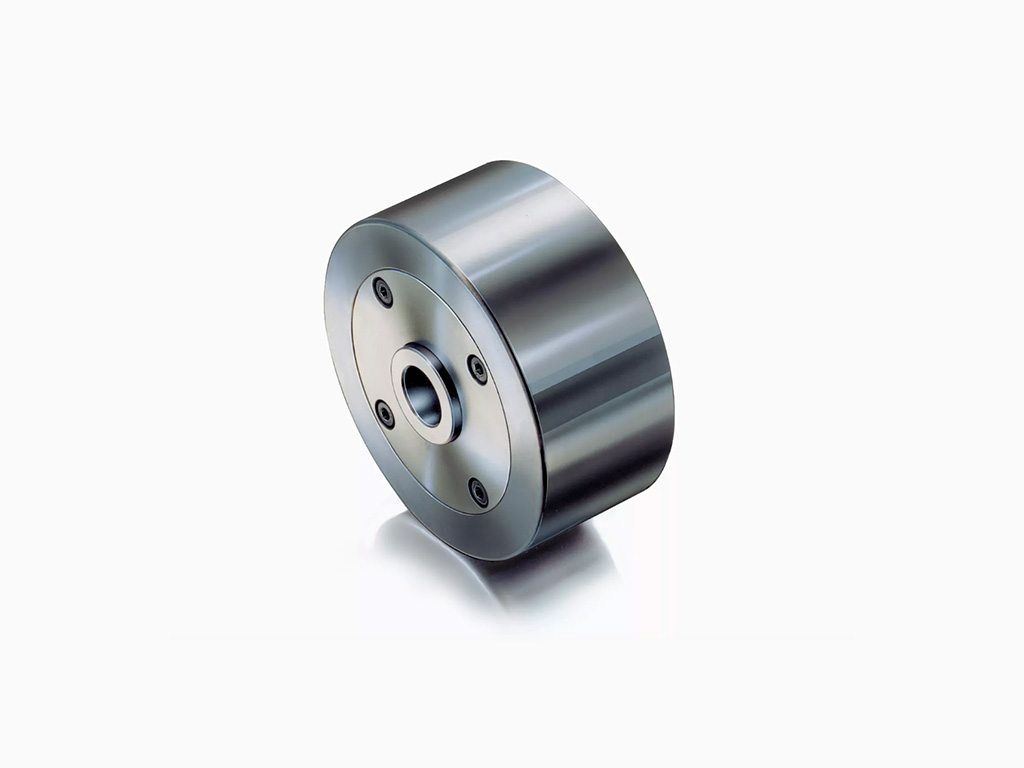

T35-C250 - 3.5 Tons Steel Wheel
| Model Code | T35-C250 |
| Capacity (ton) | 3.5 ton |
| Capacity (kN) | 35 kN |
| Min. Hole Dia. | 30 mm |
| Max. Hole Dia. | 50 mm |
| Dia. of Wheel | ø 250 mm |
| Width | 90 mm |
| Speed | max. 100 m/dk |
| Weight | 29.3 kg |
| Plated | Steel |
| Brand | Boerkey GmbH |
| Origin | Germany |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Carriying capacity 3 – 3.5 tons
- Dia. of wheels 150 – 300 mm
- Max speed of load 100 m/min
- Fixed or swivel selectable
- Can be inserted machine part
- Impervious to shavings and dust
- Construction with ball bearings
- Does not damage to ground
- Special construction for request
- Producer Boerkey, Origin DE
Product technical specificationsTechnical Specifications

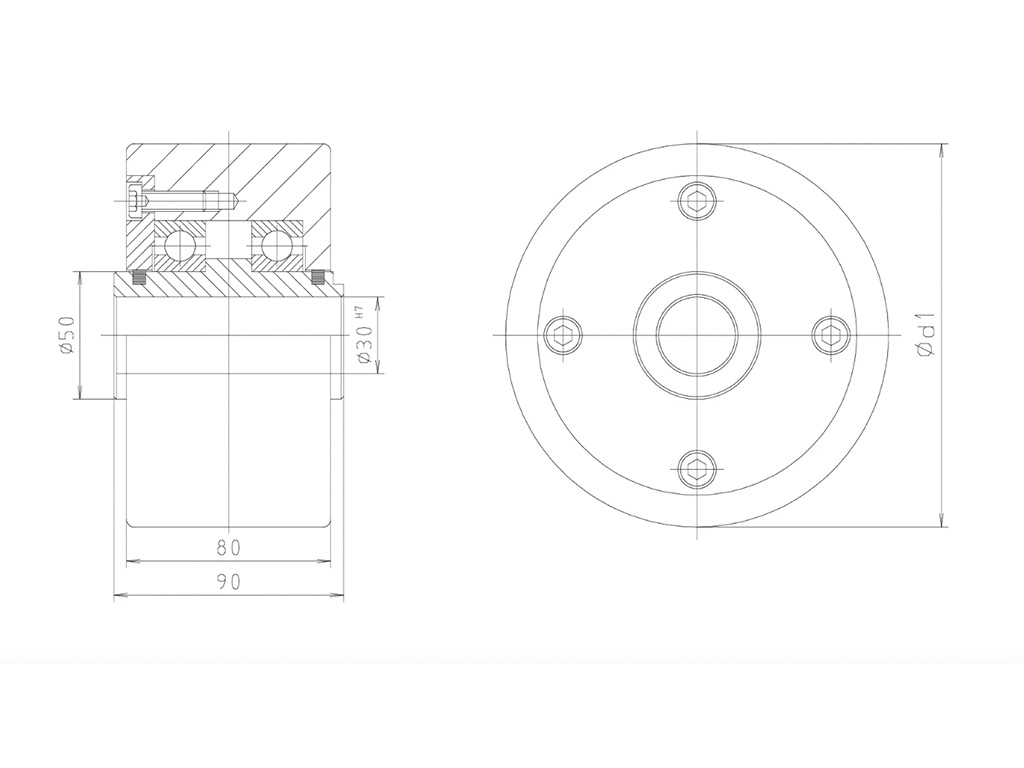

C Series Heavy Duty Wheel Without Castors - Steel
| Surkon Code | Boerkey Code | Dimensions (mm) | Capacity | Weight | |||||
| # | # | a | b | Ø d1 | Ø d2 | Ø d3 | ton | kN | kg |
| T30-C150 | 150 S | 80 | 90 | 150 | 30 | 50 | 3 | 30 | 9.7 |
| T30-C175 | 175 S | 80 | 90 | 175 | 30 | 50 | 3 | 30 | 13.6 |
| T30-C200 | 200 S | 80 | 90 | 200 | 30 | 50 | 3 | 30 | 18.1 |
| T30-C225 | 225 S | 80 | 90 | 225 | 30 | 50 | 3 | 30 | 23.3 |
| T35-C250 | 250 S | 80 | 90 | 250 | 30 | 50 | 3.5 | 35 | 29.3 |
| T35-C275 | 275 S | 80 | 90 | 275 | 30 | 50 | 3.5 | 35 | 36.3 |
| T35-C300 | 300 S | 80 | 90 | 300 | 30 | 50 | 3.5 | 35 | 44.4 |
Boerkey Heavy Duty Wheels - Steel
- For robust use eg on construction sites
- Can be inserted as a machine par
- For transporting loads at a maximum speed of 100m/min
- When higher carrying capacity and greater sturdiness is required
- Impervious to shavings and dust
Characteristics:
- Solid basic construction with ball bearings.
- Delivered with various castors
- Made in stainless-steel on request
- Special construction to suit customer requirements
- Passed the DIN 4422 test at the material research laboratory for steel wheel 150 C
Hints on use:
- Maintenance-free construction, used particularly in machine factories, on construction sites and for the handling of heavy goods.
- Can be combined with fixed castors and swivel castors (SF, SL, SD)
- Material with a high carrying capacity, wich is not very susceptible to rough handling.
- When a higher carrying capacity is required, they can be fitted with self-aligning roller bearings
- Can also be delivered as a flange wheel construction
- If there are problems with friction it can also be delivered with convex crowned wheel running surface (without additional charge)
- The chosen bearing dictates the maximum carrying capacity of the wheels.
.png)
Boerkey Heavy Duty Wheels Without Castors Product Brochure - PDF
