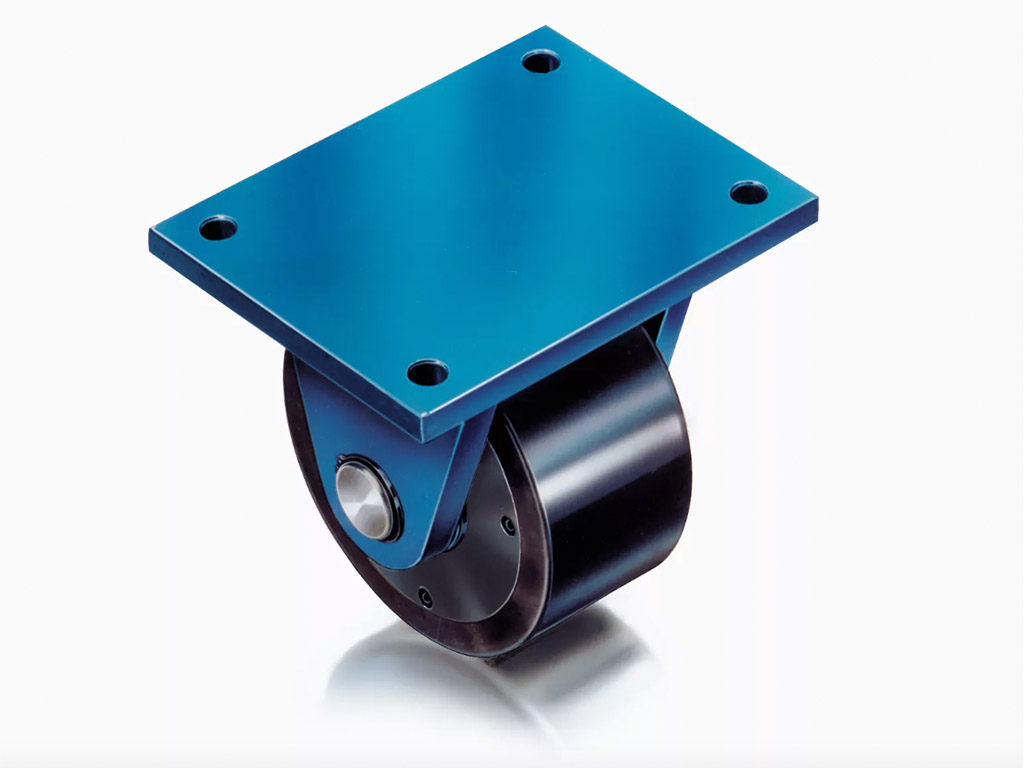

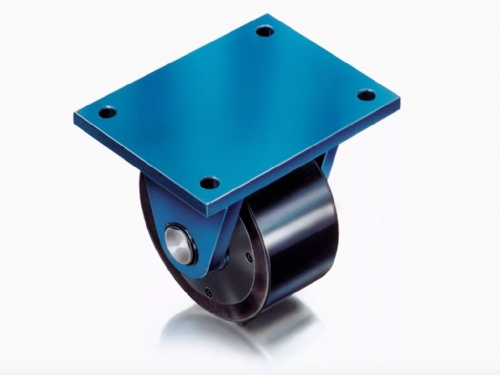

Boerkey Fixed Heavy Duty Wheels

ST20-P175 - 2 Tons Plastic Wheel

Model Code ST20-P175
Capacity (ton) 2 ton
Capacity (kN) 20 kN
Castor Lenght 220 mm
Castor Weight 150 mm
Height Ø 175 mm
Width 120 mm
Speed max. 100 m/dk
Weight Plastic
Plated 12.1 kg
Castors Type Fixed
Origin / Brand Germany / Boerkey
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Carriying capacity 2 – 8 tons
  • Dia. of wheels 180 – 345 mm
  • Max speed of load 100 m/min
  • Supplied with fixed castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Does not damage to ground
  • Special construction for req.
  • Producer Boerkey, Origin DE

Product technical specificationsTechnical Specifications

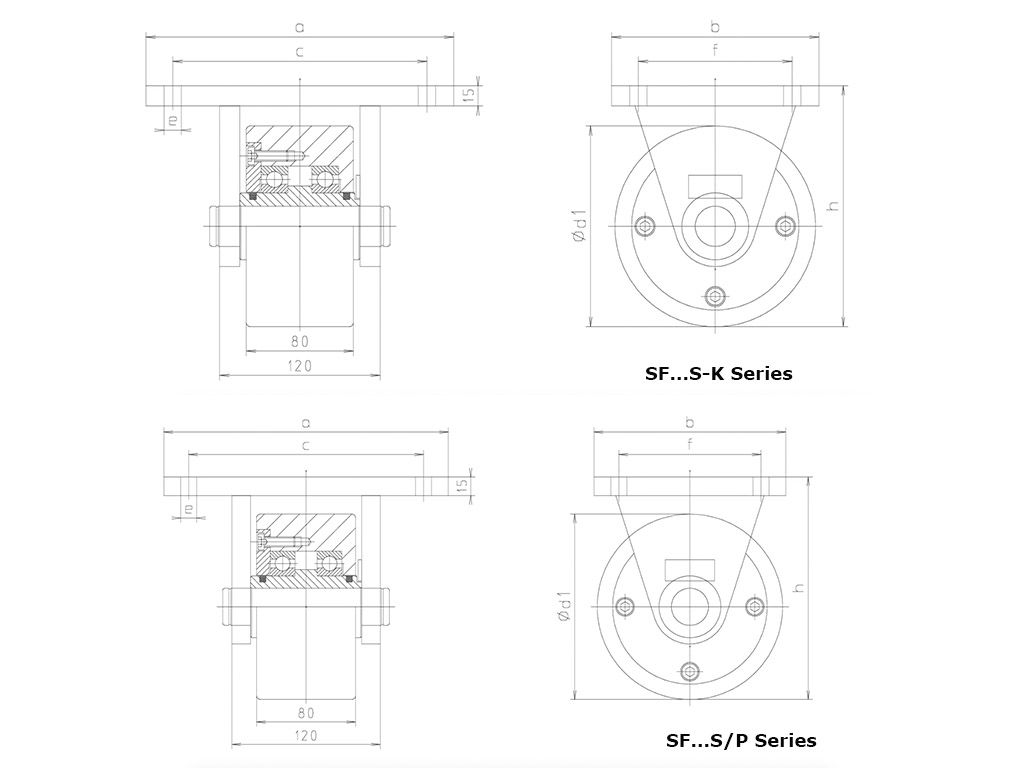

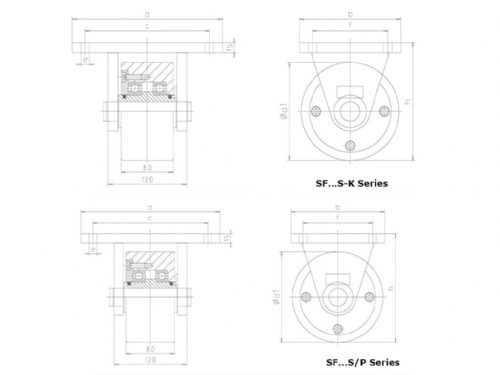

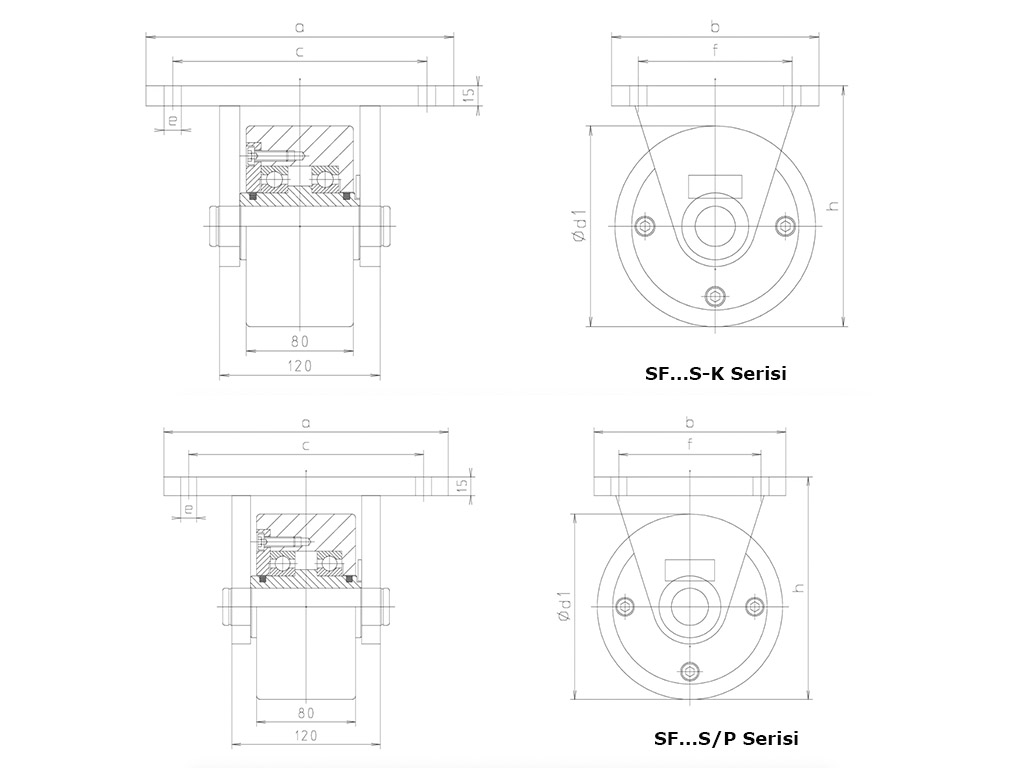

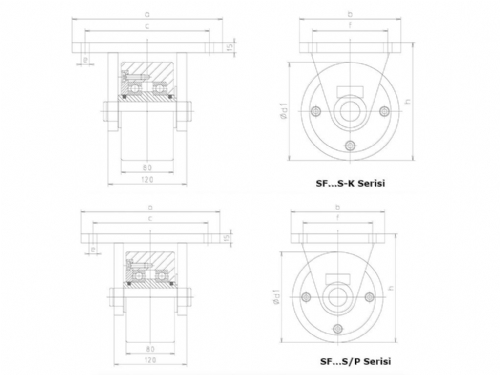

ST - P Series Heavy Duty Wheel Fixed Castors - Plastic

Surkon Code Boerkey Code a b c Ød1 Øe f g h j k Capacity Weight
P Series K Series mm mm mm mm mm mm mm mm mm mm ton kN kg
ST20-P150 SF 150 K 220 150 190 150 14 115 15 180 80 120 2 20 10.7
ST20-P175 SF 175 K 220 150 190 175 14 115 15 210 80 120 2 20 12.1
ST30-P200 SF 200 K 220 150 190 200 14 115 15 235 80 120 3 30 13.6
ST30-P225 SF 225 K 220 150 190 225 14 115 15 260 80 120 3 30 15.2
ST35-P250 SF 250 K 270 210 210 250 18 150 15 285 80 120 3.5 35 19.3
ST35-P275 SF 275 K 270 210 210 275 18 150 15 310 80 120 3.5 35 21
ST35-P300 SF 275 K 270 210 210 300 18 150 15 335 80 120 3.5 35 22.9



Boerkey Fixed Castors Heavy Duty Wheels – Steel or Plastic Plated

  • For transporting loads at maximum speed of 100 m/min.
  • Flange wheels for use on profiles

Characteristics

  • Solid steel construction of the fixed castor.
  • Position of fixing holes in top plate can be arranged to suit customers'  requirement.
  • Can be combined with other castors.
  • Passed the DIN4422 test at the material research laboratory for ST30-C150 + ST20-P150
Boerkey
2 Ton
Plastic
175 mm
Castors
20 kN
Fixed Castor
