Boerkey Fixed Heavy Duty Wheels
ST15-K265 - 1.5 Ton Rubber Wheel
| Model Code | ST15-K265 |
| Capacity (ton) | 1.5 ton |
| Capacity (kN) | 15 kN |
| Castor Lenght | 300 mm |
| Castor Weight | 150 mm |
| Height | Ø 265 mm |
| Width | 205 mm |
| Speed | max. 100 m/dk |
| Weight | Rubber |
| Plated | 25 kg |
| Castors Type | Fixed |
| Origin / Brand | Germany / Boerkey |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Carriying capacity 1 – 1.5 tons
- Height of wheels 330 – 345 mm
- Max speed of load 100 m/min
- Supplied with fixed castor
- Can be inserted machine part
- Impervious to shavings and dust
- Rubber wheel model available
- Does not damage to ground
- Special construction for req.
- Producer Boerkey, Origin DE
Product technical specificationsTechnical Specifications

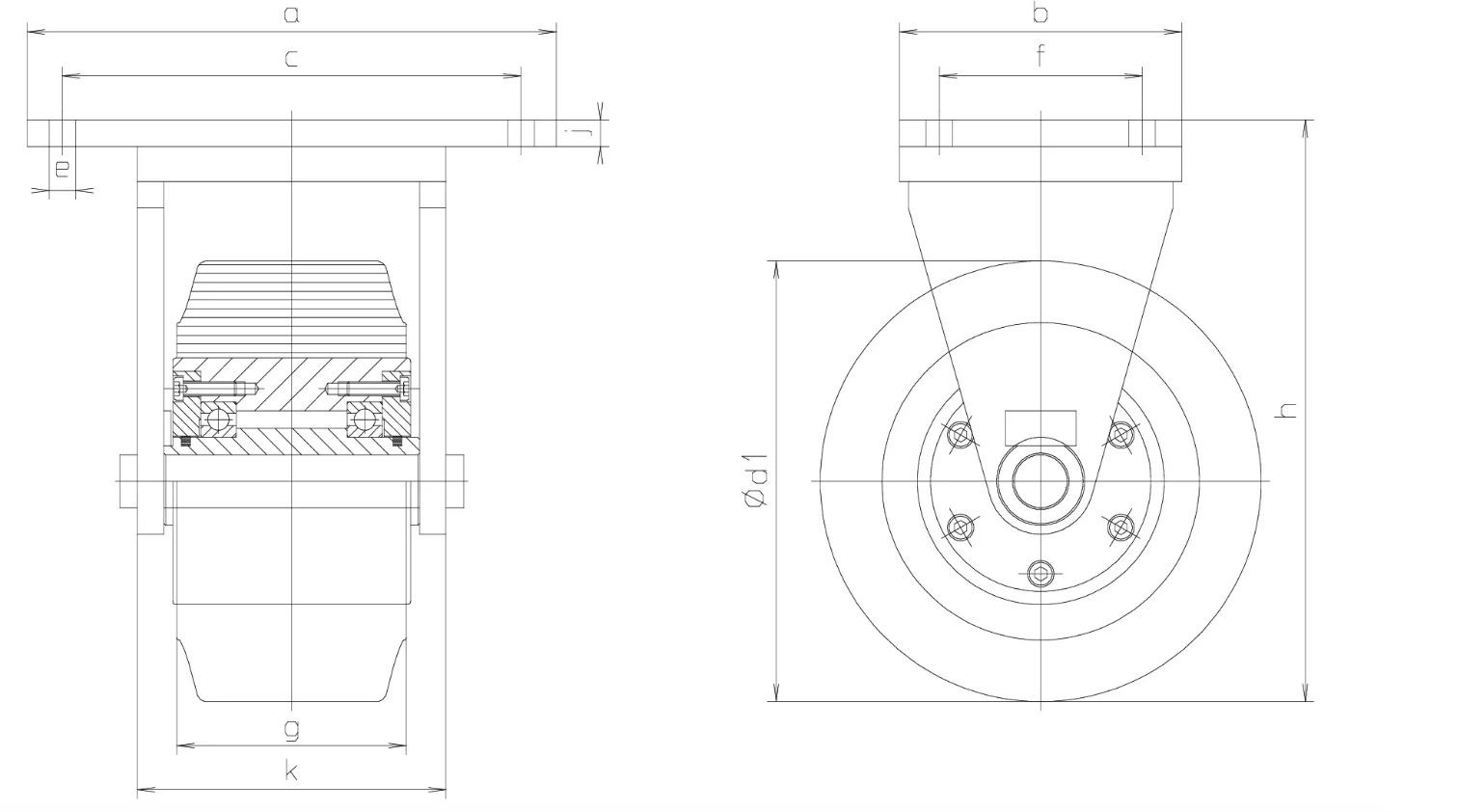

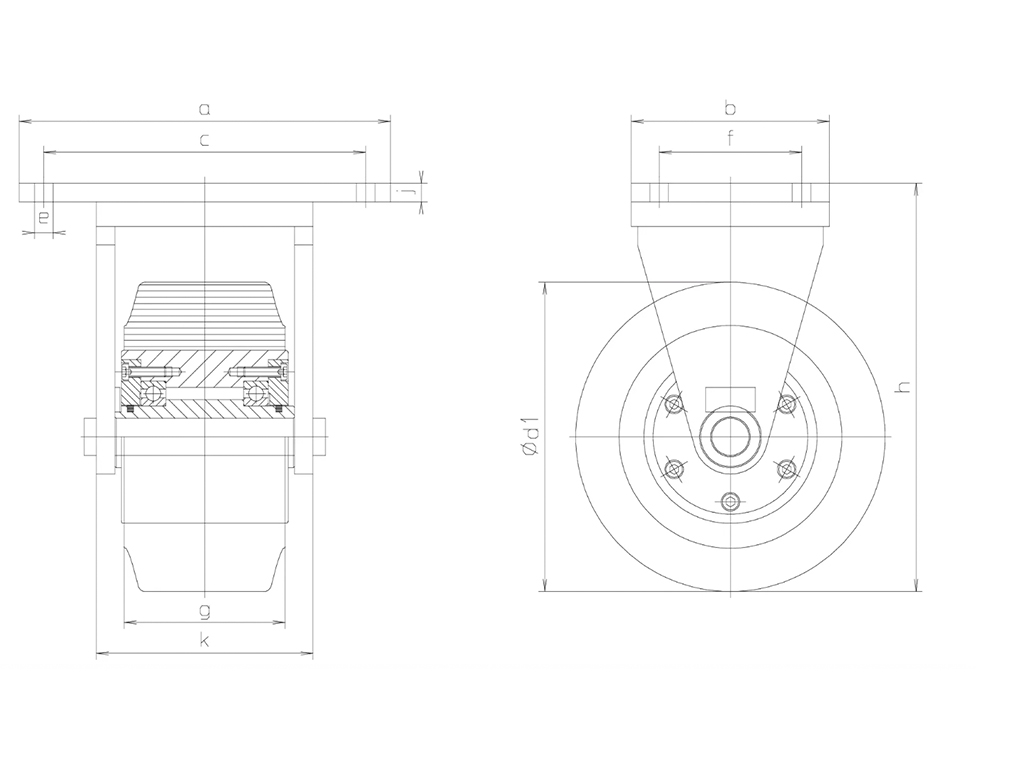

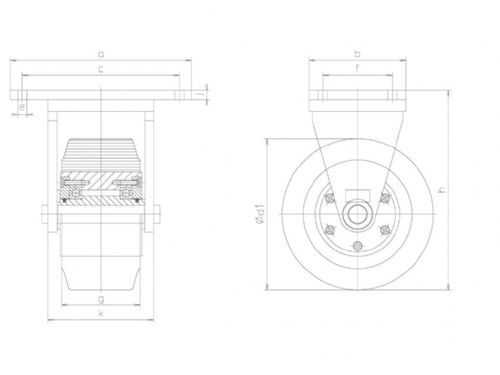

ST - K Series Heavy Duty Wheel Fixed Castors - Rubber
| Surkon Code | Boerkey Code | a | b | c | Ø d1 | Ø e | f | g | h | j | k | Capacity | Weight | |
| K Series | G Series | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ton | kN | kg |
| ST10-K250 | SF 250 G | 300 | 150 | 260 | 250 | 14 | 115 | 15 | 330 | 130 | 175 | 1 | 10 | 23 |
| ST15-K265 | SF 265 G | 300 | 150 | 260 | 265 | 14 | 115 | 15 | 345 | 160 | 205 | 1.5 | 15 | 25 |

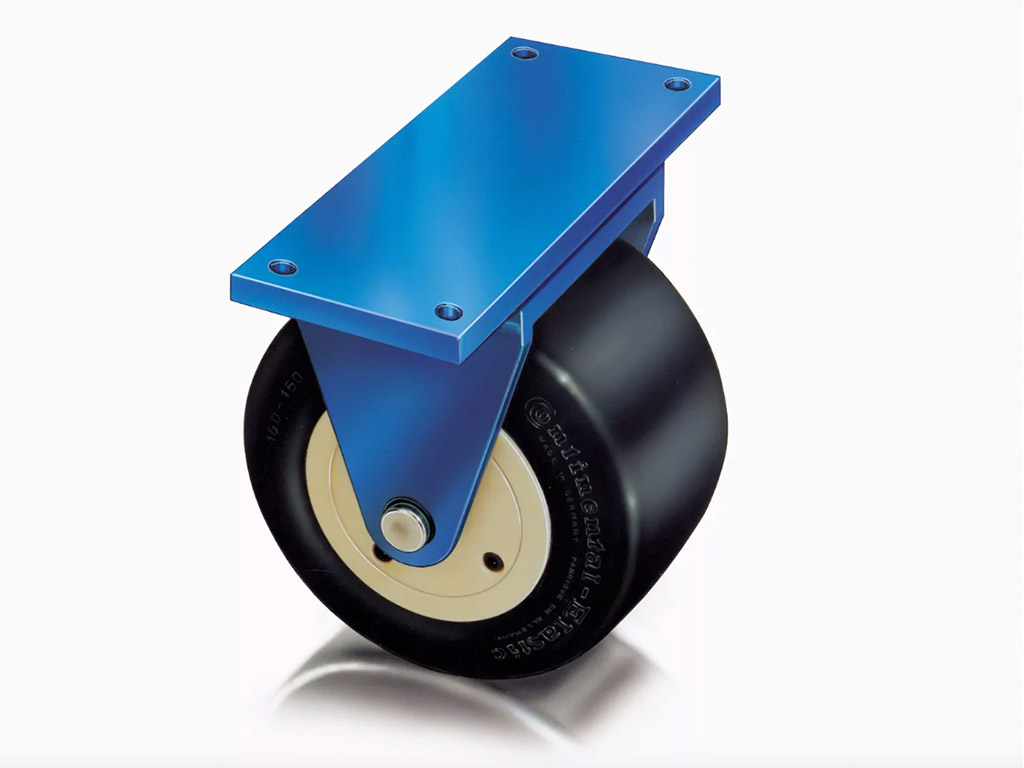

Boerkey Heavy Duty Wheels with Fixed Castors – Rubber
- For quiet running, wich doesn't damage the ground
- Maximum speed of 100 m/min.
Characteristics
- Fixed castor with rubber tyre
