Boerkey Fixed Heavy Duty Wheels

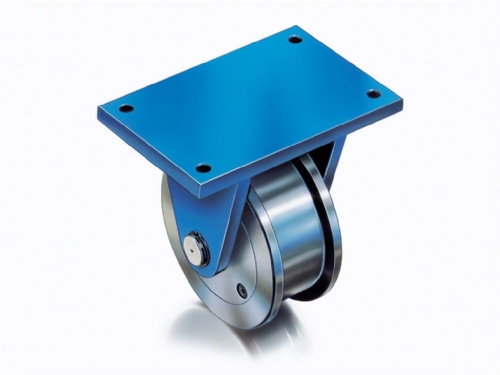

ST50-CRI200 - 5 Tons St-Steel Wheel

Model Code ST50-CRI200
Capacity (ton) 5 ton
Capacity (kN) 50 kN
Castor Lenght 220 mm
Castor Weight 170 mm
Height Ø 200 mm
Width 130 mm
Speed max. 100 m/dk
Weight Stainless-steel
Plated 28.2 kg
Castors Type Fixed
Flanges Double Flanges
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Carriying capacity 2 – 6.5 tons
  • Height of wheels 180 – 310 mm
  • Max speed of load 100 m/min
  • Supplied with fixed castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Suitable for railway application
  • Special construction for req.
  • Producer Boerkey, Origin DE

Product technical specificationsTechnical Specifications

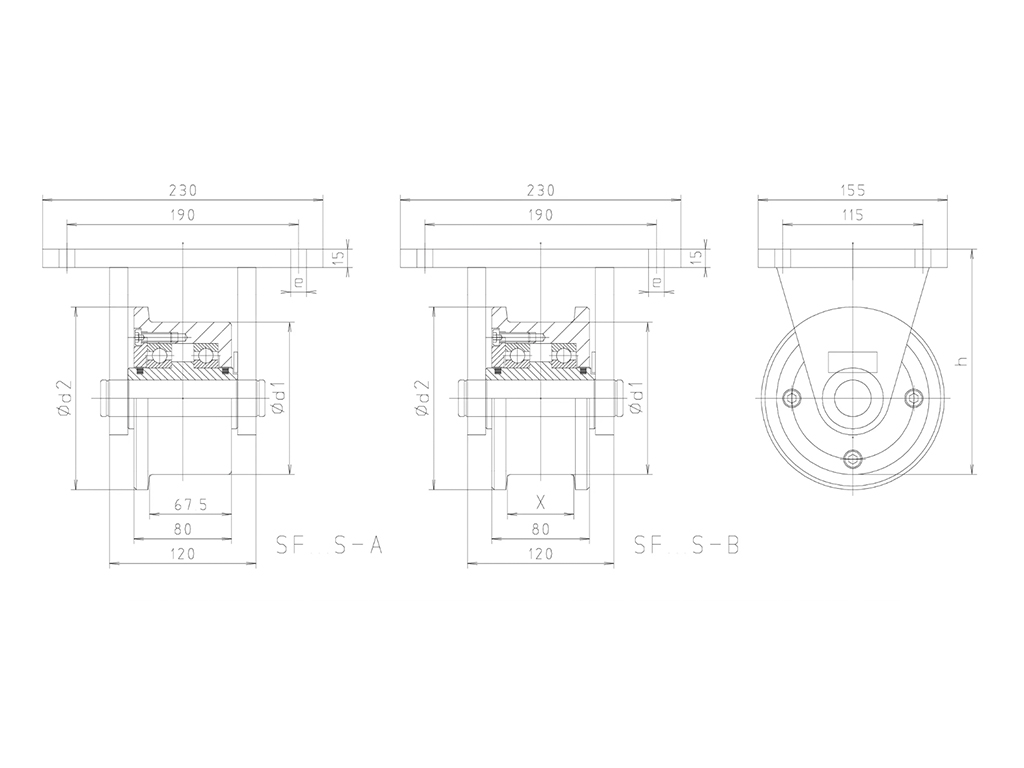

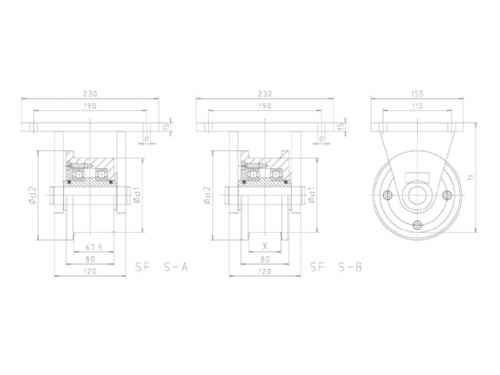

ST - CRI Series Heavy Duty Wheel Fixed Castors - Stainless-Steel

Surkon Code Boerkey Code a b c Ø d1 Ø d2 e f g h j k m X max. Capacity Weight
2 Flanges 2 Flanges mm mm mm mm mm mm mm mm mm mm mm mm mm ton kN kg
ST40-CRI150 SF 150 S-B/P 220 170 180 150 175 18 130 20 195 80 130 67.5 55 4 40 17.9
ST40-CRI175 SF 175 S-B/P 220 170 180 175 200 18 130 20 220 80 130 67.5 55 4 40 22.7
ST50-CRI200 SF 200 S-B/P 220 170 180 200 225 18 130 20 245 80 130 67.5 55 5 40 28.2
ST50-CRI225 SF 225 S-B/P 220 170 180 225 275 18 130 20 285 80 130 67.5 55 5 50 34.5
ST65-CRI250 SF 250 S-B/P 270 210 210 250 300 18 160 20 310 80 130 67.5 55 6.5 65 43.7



Boerkey Heavy Duty Wheels with Fixed Castors – Single or Double Flanges

  • For transporting loads at a maximum speed of 100 m/min.
  • Flange wheels for use on profiles.
  • Frequently used on construction sites.
  • Frequent use in machine factories.
Characteristics
  • Solid steel construction for fixed castors.
  • Position of fixing holes in top plate can be arranged to suit customers' requirements.
Boerkey
Heavy Duty Series
Stainless-Steel
200 mm
Castors
50 kN
2 Flanges
Fixed Castor
