Boerkey Fixed Heavy Duty Wheels

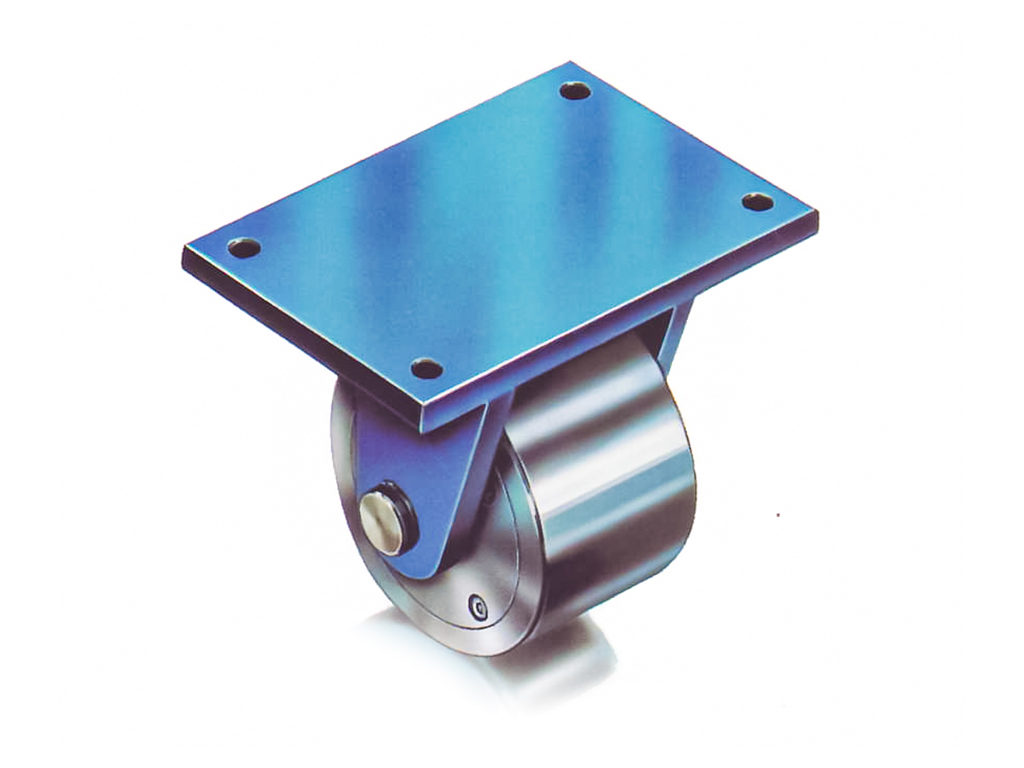

ST60-CR225 - 6 Tons St-Steel Wheel

Model Code ST60-CR225
Capacity (ton) 6 ton
Capacity (kN) 60 kN
Castor Lenght 220 mm
Castor Weight 170 mm
Height Ø 225 mm
Width 130 mm
Speed max. 100 m/dk
Weight Stainless-steel
Plated 32.9 kg
Castors Type Fixed
Origin / Brand Germany / Boerkey
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Carriying capacity 2 – 8 tons
  • Dia. of wheels 180 – 345 mm
  • Max speed of load 100 m/min
  • Supplied with fixed castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Does not damage to ground
  • Special construction for req.
  • Producer Boerkey, Origin DE

Product technical specificationsTechnical Specifications

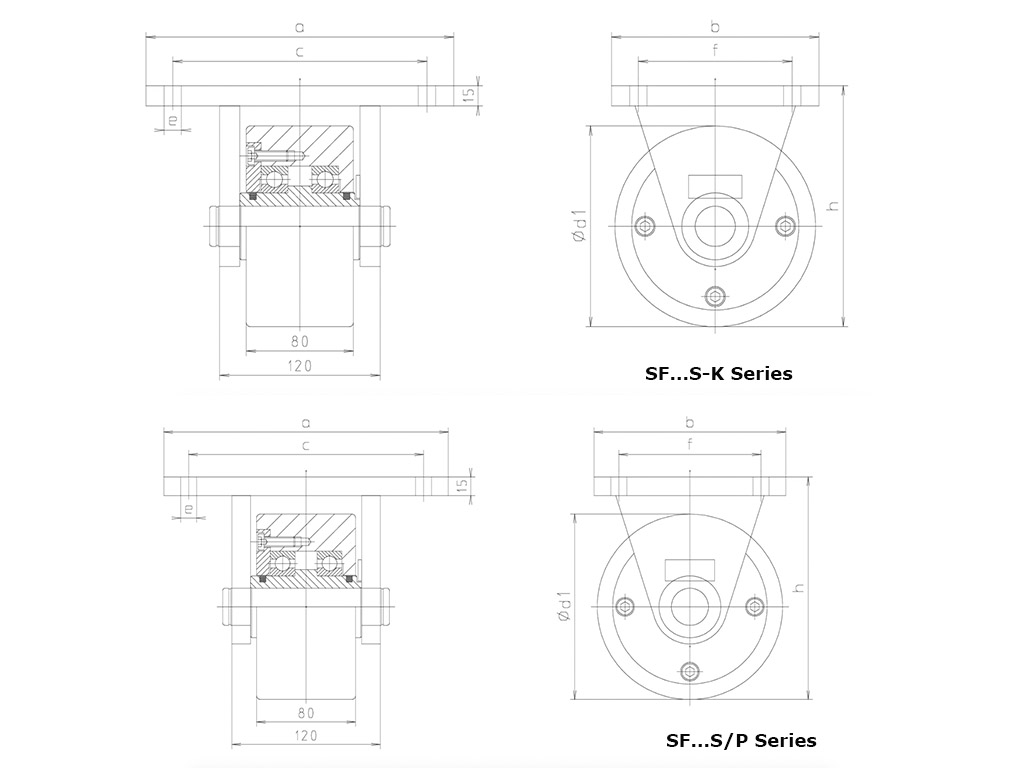

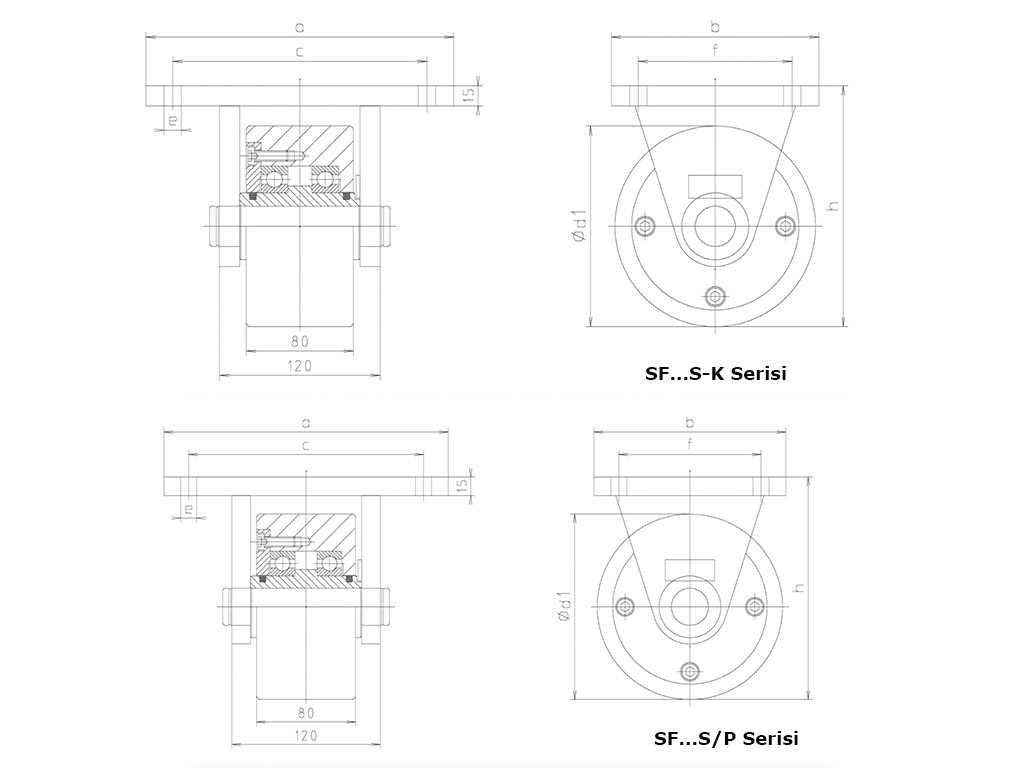

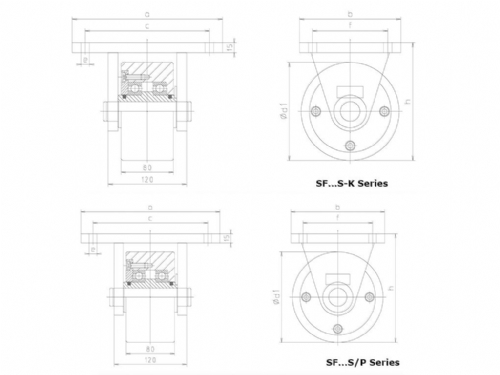

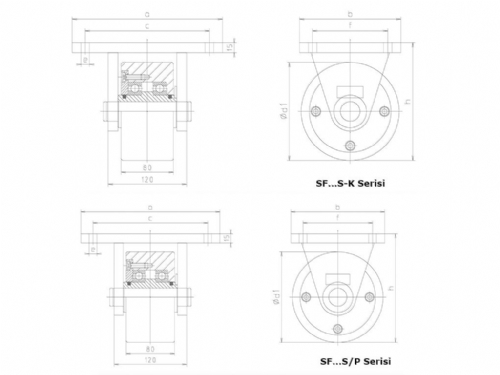

ST - CR Series Heavy Duty Wheel Fixed Castors - Stainless Steel

Surkon Code Boerkey Code a b c Ød1 Øe f g h j k Capacity Weight
CR Series S Series mm mm mm mm mm mm mm mm mm mm ton kN kg
ST50-CR150 SF 150 S/P 220 170 180 150 18 130 20 195 80 130 5 50 16.9
ST50-CR175 SF 175 S/P 220 170 180 175 18 130 20 220 80 130 5 50 21.6
ST60-CR200 SF 200 S/P 220 170 180 200 18 130 20 245 80 130 6 60 26.9
ST60-CR225 SF 225 S/P 220 170 180 225 18 130 20 285 80 130 6 60 32.9
ST80-CR250 SF 250 S/P 270 210 210 250 18 160 20 310 80 130 8 80 42.1
ST80-CR275 SF 275 S/P 270 210 210 275 18 160 20 320 80 130 8 80 49.9
ST80-CR300 SF 300 S/P 270 210 210 300 18 160 20 345 80 130 8 80 58.8



Boerkey Fixed Castors Heavy Duty Wheels – Steel or Plastic Plated

  • For transporting loads at maximum speed of 100 m/min.
  • Flange wheels for use on profiles

Characteristics

  • Solid steel construction of the fixed castor.
  • Position of fixing holes in top plate can be arranged to suit customers'  requirement.
  • Can be combined with other castors.
  • Passed the DIN4422 test at the material research laboratory for ST30-C150 + ST20-P150
Boerkey
Heavy Duty Series
Stainless-Steel
225 mm
Castors
60 kN
6 Ton
Fixed Castor
