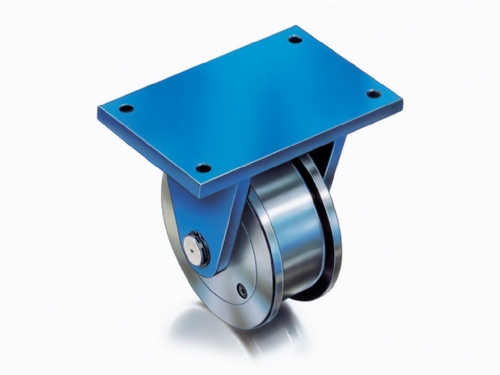

Boerkey Fixed Heavy Duty Wheels

ST20-CB125 - 2 Tons Steel Wheel

Model Code ST20-CB125
Capacity (ton) 2 ton
Capacity (kN) 20 kN
Castor Lenght 220 mm
Castor Weight 150 mm
Height Ø 125 mm
Width 120 mm
Speed max. 100 m/dk
Weight Steel
Plated 14.5 kg
Castors Type Fixed
Flanges Single Flange
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Carriying capacity 2 – 6.5 tons
  • Height of wheels 180 – 310 mm
  • Max speed of load 100 m/min
  • Supplied with fixed castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Suitable for railway application
  • Special construction for req.
  • Producer Boerkey, Origin DE

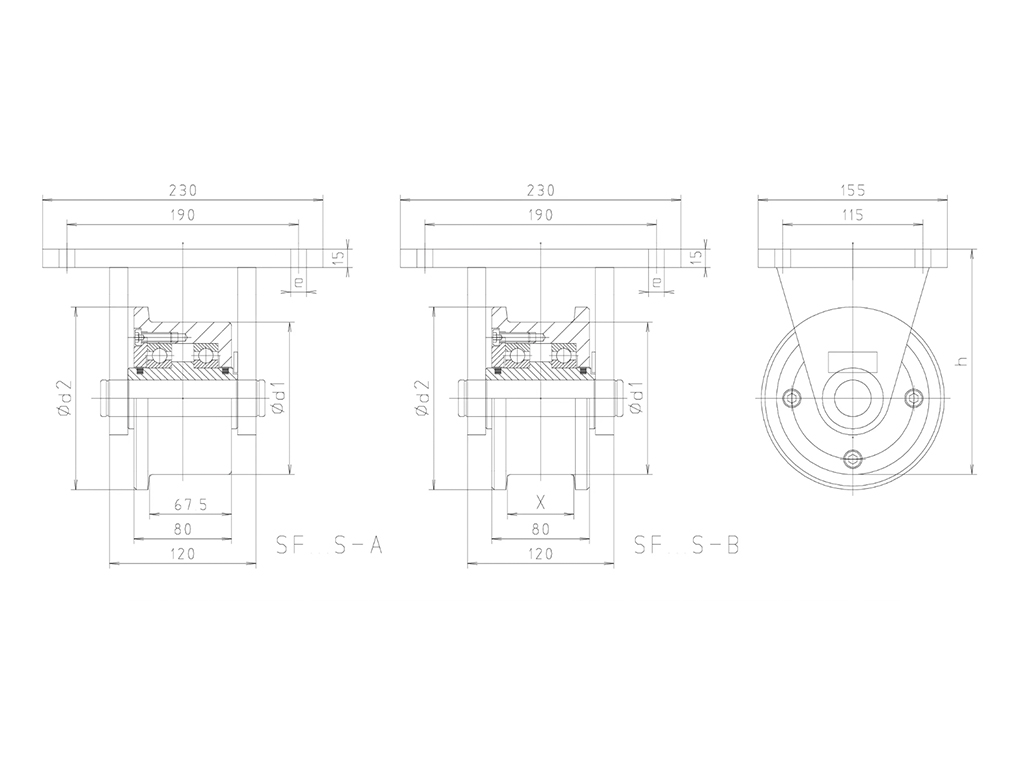

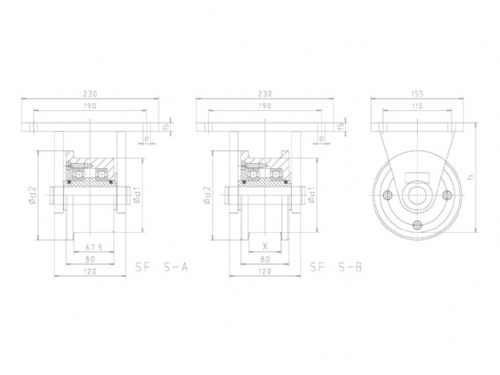

Product technical specificationsTechnical Specifications

ST - CB Series Heavy Duty Wheel Fixed Castors - Steel

Surkon Code Boerkey Code a b c Ø d1 Ø d2 e g h k m X max. Kapasite Weight
1 Flange 1 Flange mm mm mm mm mm mm mm mm mm mm mm ton kN kg
ST20-CB125 SF 125 S-A 220 150 190 125 150 14 15 180 120 67.5 55 2 20 14.5
ST25-CB150 SF 150 S-A 220 150 190 150 175 14 15 210 120 67.5 55 2.5 25 17.2
ST30-CB175 SF 175 S-A 220 150 190 175 200 14 15 235 120 67.5 55 3 30 21.9
ST30-CB200 SF 200 S-A 220 150 190 200 225 14 15 260 120 67.5 55 3 30 27.3



Boerkey Heavy Duty Wheels with Fixed Castors – Single or Double Flanges

  • For transporting loads at a maximum speed of 100 m/min.
  • Flange wheels for use on profiles.
  • Frequently used on construction sites.
  • Frequent use in machine factories.
Characteristics
  • Solid steel construction for fixed castors.
  • Position of fixing holes in top plate can be arranged to suit customers' requirements.
Boerkey
2 Ton
Stainless-Steel
Castors
20 kN
1 Flange
125 mm
Fixed Castor
