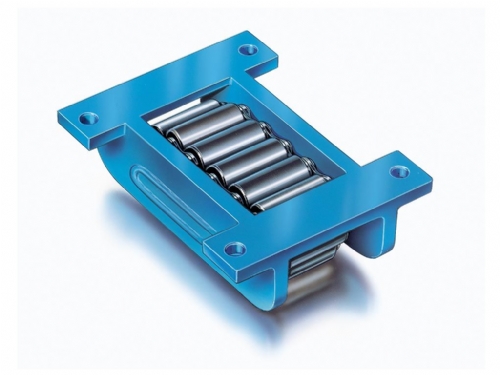

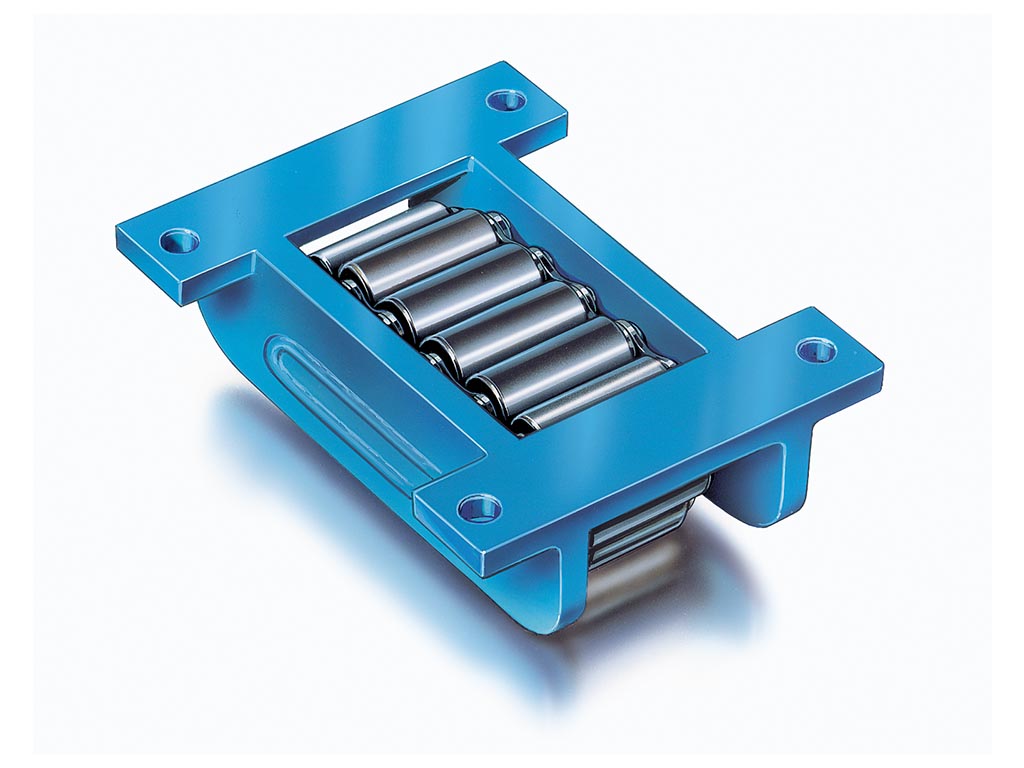

Boerkey BH30t-50CrV4 Roller Skate
30 tons Heavy Load Moving Roller Skates
| Product code | BH30t-50CrV4 |
| Capacity | 30 ton / 300 kN |
| Usage | Dynamic and intensive use |
| Height | 90 mm |
| Length | 270 mm |
| Width | 130 mm |
| Roller diameter | 30 mm |
| Num. of rollers | 13 |
| Tool weight | 14.1 kg |
| Made in | Germany |
| Manufacturer | Boerkey GmbH |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Maximum load capacity 10 – 80 tons
- Available in three variations:
- Economic: Short term, short distance
- Standard: Long term, long distance
- Heavy duty 50CrV4: Dynamic and intensive use
- Have 4 bolt holes for roller skates are fixed
- Ideal model for confined space, max speed 5 m/min
- Corrosion protection is available as an option
- Should be used with steel plate on bad surface
- If necessary this model can be reduced in height
- Made in Germany, Manufacturer Boerkey GmbH
Characteristics of the Roller Skates:
- Stable, solid and durable structure
- Suitable for narrow areas
- Accesories for turning corners
- Safe transportation of heavy loads
- Capacity is calculated by resistance of steel plate
- Rough surfaces make movement harder
- Recommended using a steel plate on unclean surfaces
Product technical specificationsTechnical Specifications
Boerkey B - Heavy Duty Series Heavy Load Moving Roller Skates

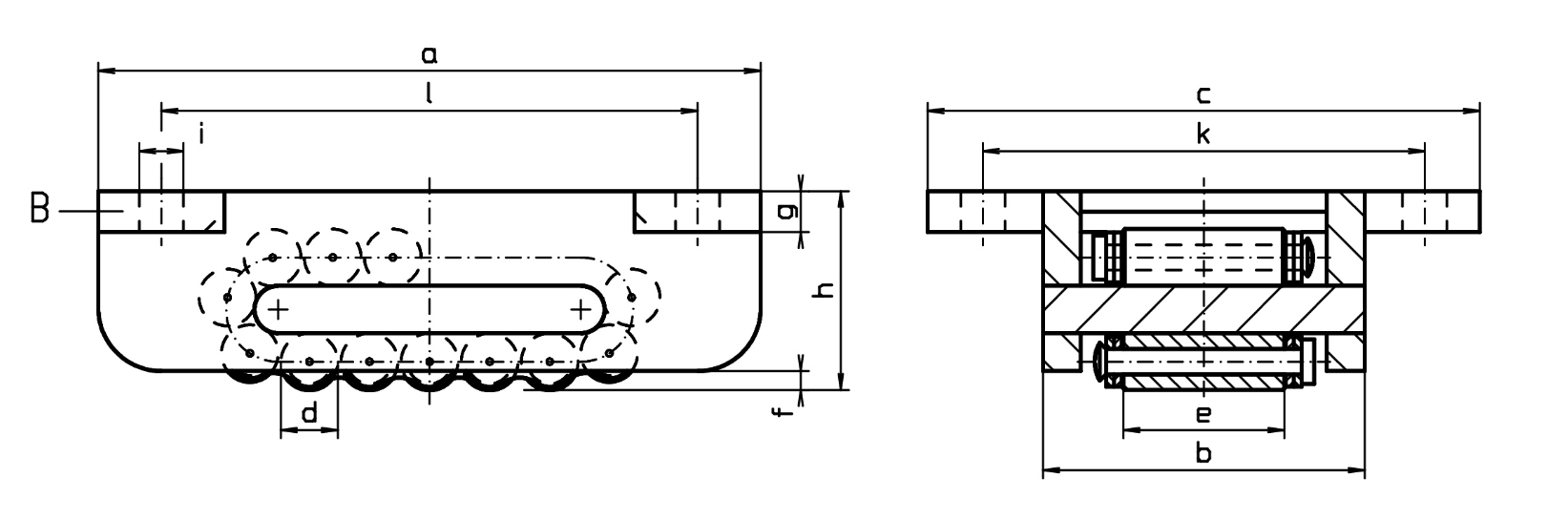

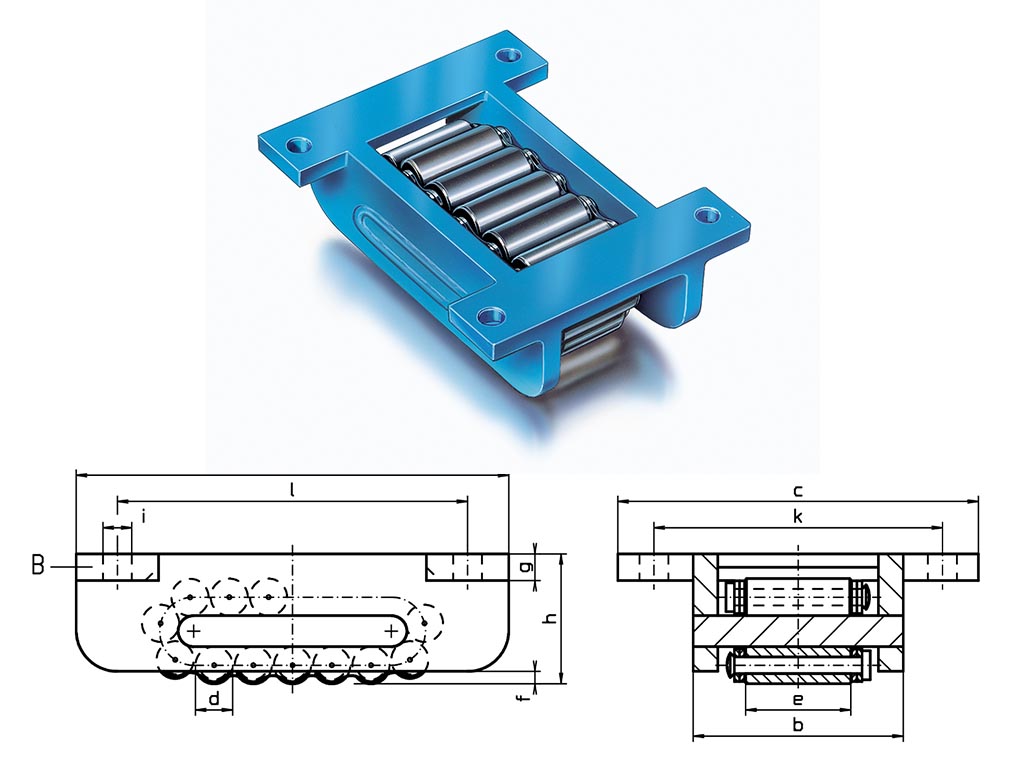

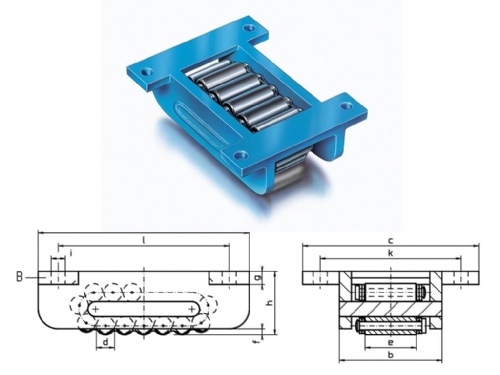

| Code | Model | Capacity | Length [a] | Width [b] | Height [h] | Number of Rollers | Roller Diam. [d] | [c] | [e] | [f] | Weight | |
| # | # | ton | kN | mm | mm | mm | # | ø mm | mm | mm | mm | Kg |
| BH10t-50CrV4 | I | 10 | 100 | 210 | 100 | 63 | 15 | 18 | 100 | 51 | 6 | 6.2 |
| BH15t-50CrV4 | II | 15 | 150 | 220 | 113 | 73 | 13 | 24 | 113 | 60 | 10 | 8.4 |
| BH30t-50CrV4 | III | 30 | 300 | 270 | 130 | 90 | 13 | 30 | 130 | 68 | 10 | 14.1 |
| BH60t-50CrV4 | IV | 60 | 600 | 380 | 168 | 126 | 13 | 42 | 168 | 76 | 19 | 36.5 |
| BH80t-50CrV4 | V | 80 | 800 | 530 | 182 | 146 | 17 | 50 | 182 | 86 | 19 | 66.4 |
.png){kind=spacer}

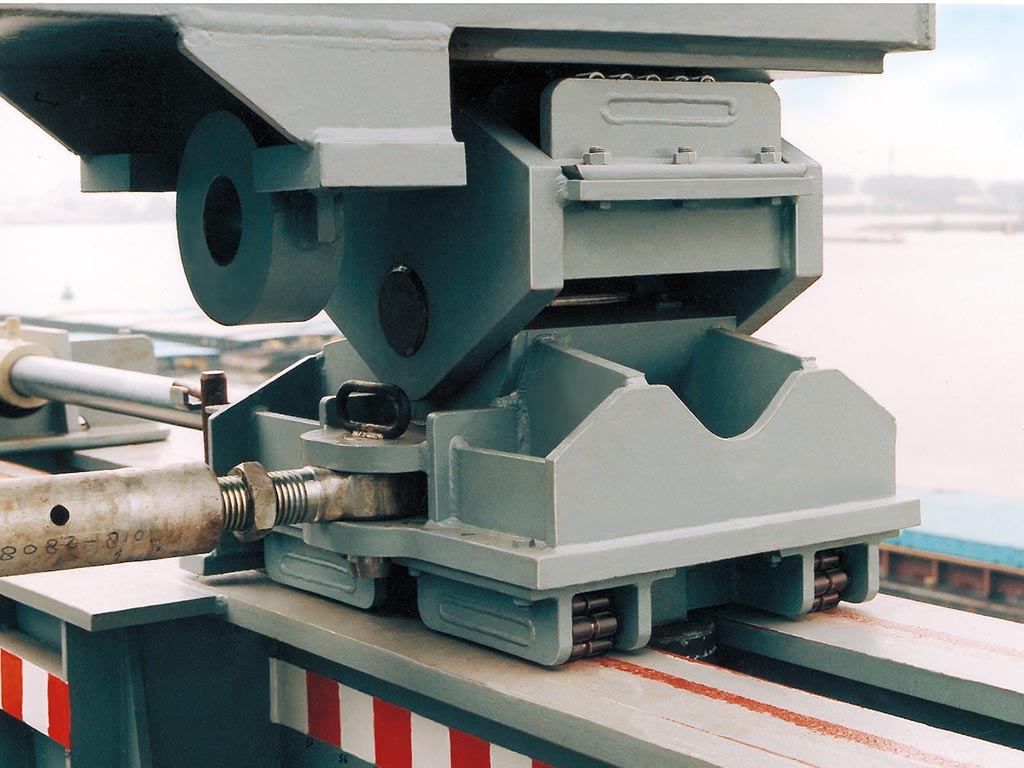

Areas Used:
- Construction of bridges, steel construction
- Moving of heavy loads
- Placement of heavy machinery
- Moving portable cranes
- To move working scaffolds
