• Maximum load capacity 15 – 85 tons
• Available in three variations:
• Economic: Short term, short distance
• Standard: Long term, long distance
• Heavy duty 50CrV4: Dynamic and intensive use
• Have 4 bolt holes for roller skates are fixed
• Ideal model for confined space, max speed 5 m/min
• Corrosion protection is available as an option
• Should be used with steel plate on bad surface
• If necessary this model can be reduced in height
• Made in Germany, Manufacturer Boerkey GmbH

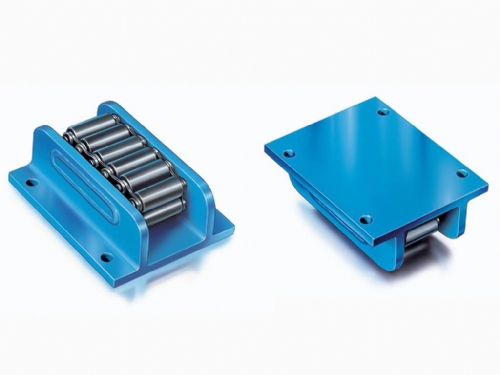

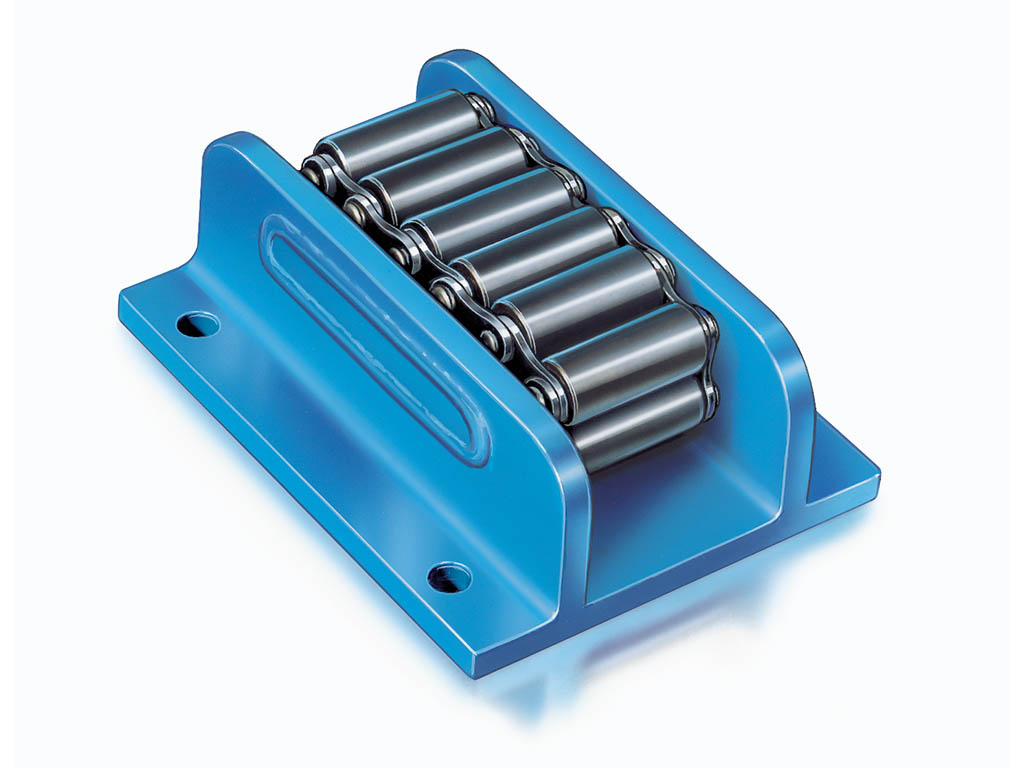

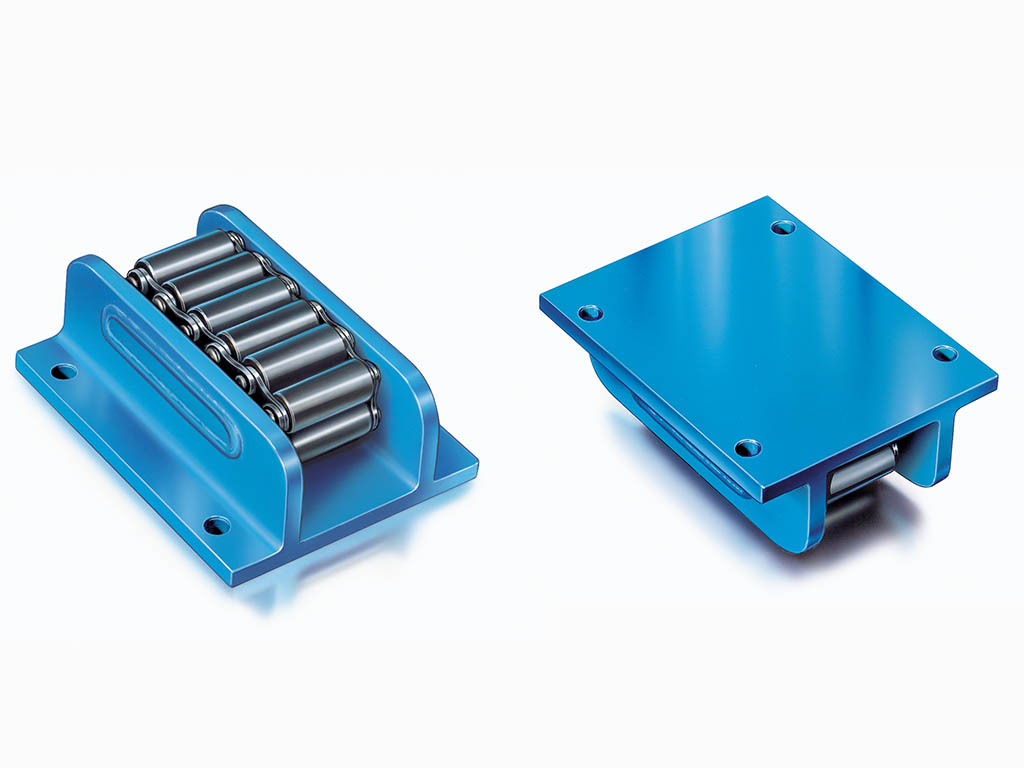

Boerkey A Heavy Duty Series Heavy Load Moving Roller Skates

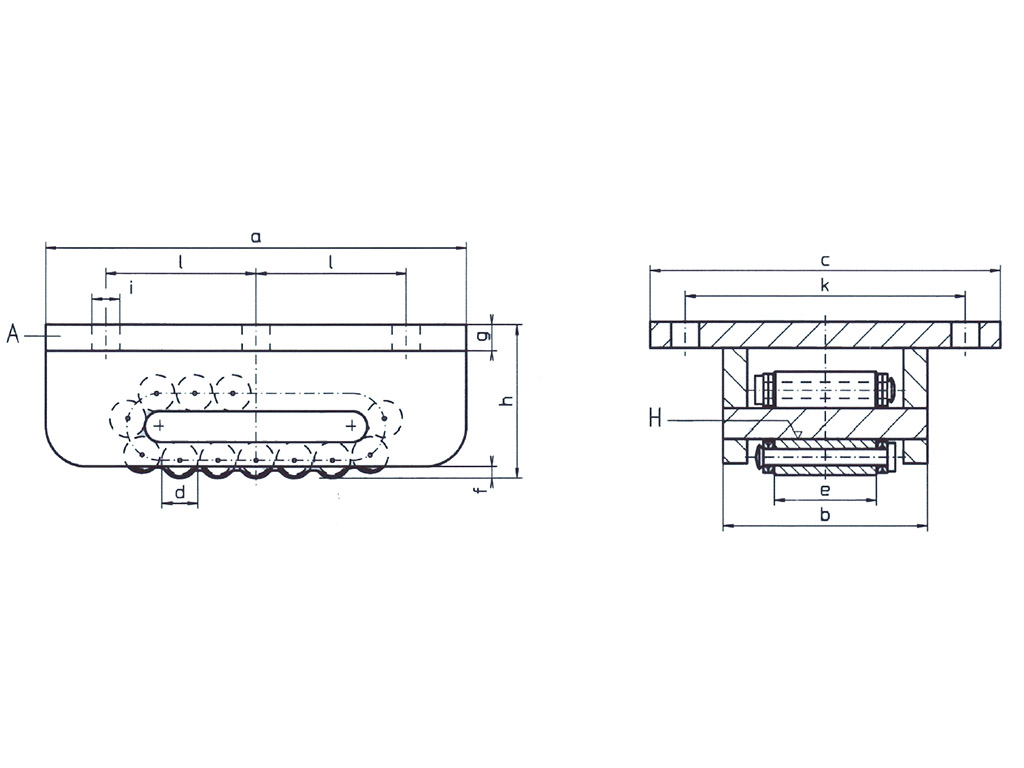

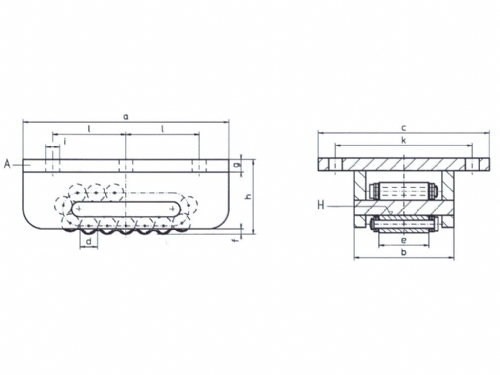

Code	Model	Capacity		Length [a]	Width [b]	Height [h]	Number of Rollers	Roller Diam. [d]	[c]	[e]	[f]	Weight
#	#	ton	kN	mm	mm	mm	#	ø mm	mm	mm	mm	Kg
AH15t-50CrV4	I	15	150	210	100	76	15	18	175	51	6	8.9
AH20t-50CrV4	II	20	200	220	113	87	13	24	190	60	10	11.7
AH40t-50CrV4	III	40	400	270	130	104	13	30	210	68	10	19.3
AH50t-50CrV4	IIIV	50	500	320	140	115	17	30	220	68	10	29.0
AH65t-50CrV4	IV	65	650	380	168	145	13	42	270	76	19	51.0
AH85t-50CrV4	V	85	850	530	182	165	17	50	300	86	19	92.0

Range of application:

• For short distances.
• If possible on suitable tracks, e.g. crane rails or steel beams.

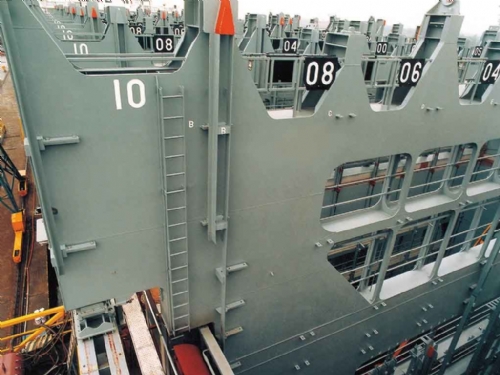

• Movement of heavy loads in mining, steel industry, machine construction, bridge construction and the ship building industry.
• Use as a conveyor, when the load is moving and the Roller Skates are fixed.
• Often used on construction sites.

Characteristics of the series of model A:

• Strong, durable, long-lasting structure
• Suitable for narrow areas with a low base
• Load can be fixed on conveyor top plate
• Problem-free transportation depends on the smooth ground rather than the capacity of the conveyor.
• The load capacity data are calculated according to the resistance on the steel plate.
• It is recommended to run on steel plates on uneven surfaces.
• Asphalt or concrete floor does not have optimum bearing ground properties
• The resistance of the rollers to turning under load is between 3% and 7% of the capacity.
• Uneven ground increases the resistance to rotation and makes handling difficult.

Usage areas:

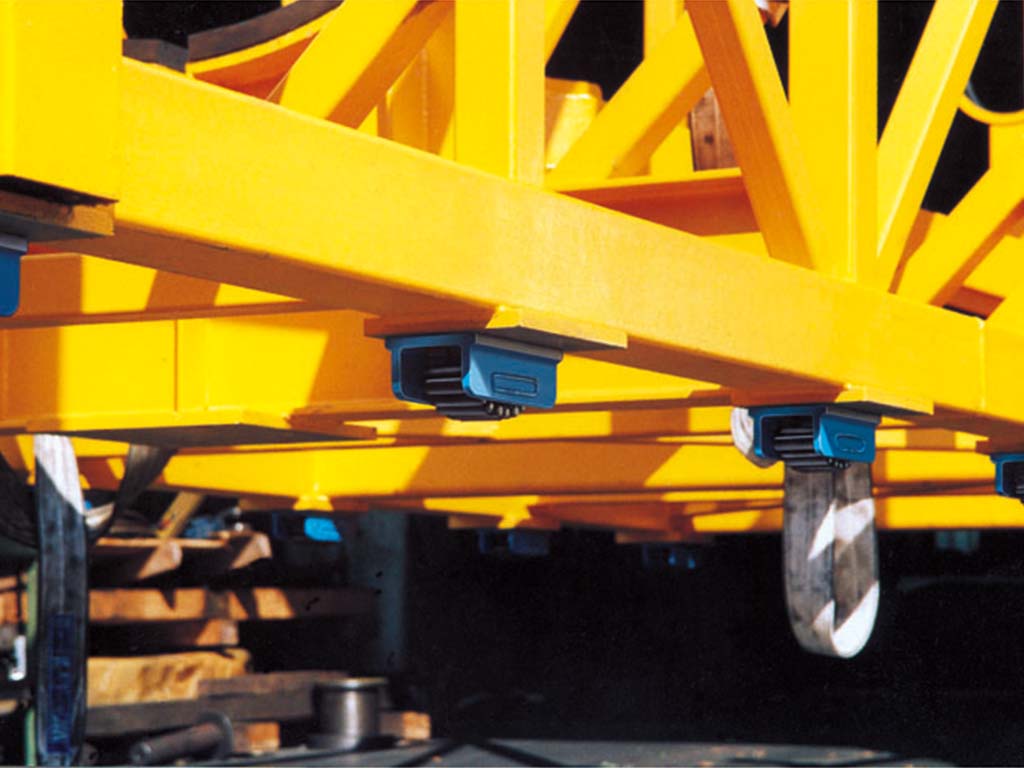

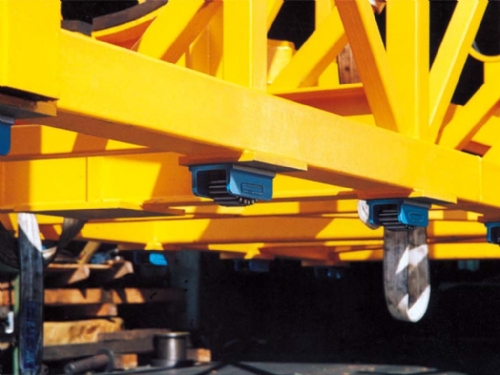

• Heavy mining applications tight area load handling
• In handling heavy loads such as bridges, steel carcasses, etc.
• Placement of machines in industrial buildings
• Running mobile cranes under load
• In the relocation of construction scaffolds
• Used for handling heavy loads that cannot be moved by human power.
