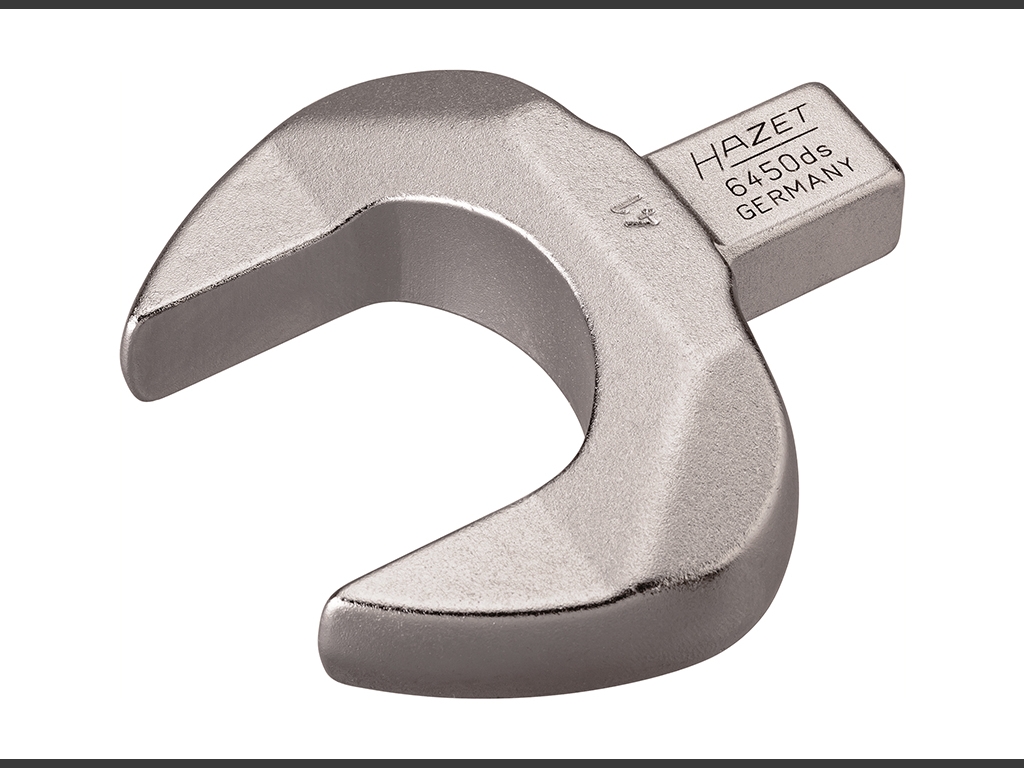

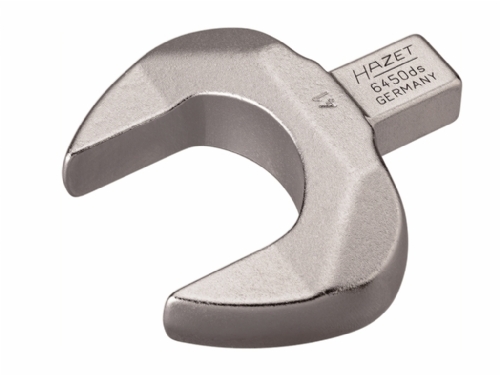

Hazet 6450DS-41
41 mm Open End Interchangable Torque Head with 14x18mm Drive
| Hazet Code | 6450DS-41 |
| A/F size | 41 mm |
| Type | Open end |
| Drive | 14x18 mm |
| Max. torque | 800 N.m |
| Surface | Chrome-Plated |
| Total length | 79 mm |
| Weight | 0,28 kg |
| Manufacturer | Hazet |
| Made in | Germany |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Product technical specificationsTechnical Specifications
Hazet open end interchangeable heavy duty torque wrench heads. 14x18mm drive - From 30mm to 41mm A/F sizes.

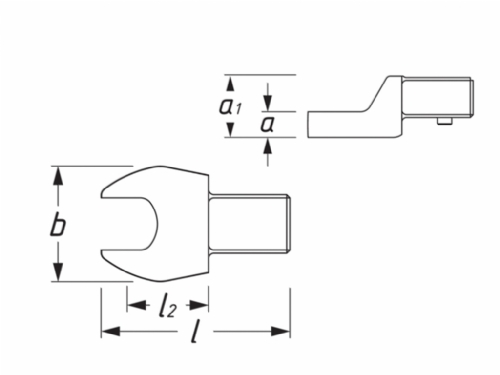

| Hazet | A/F Size | Drive size | Maximum Torque | Length Sizes | Thickness | Width | Weigth | ||
| Code | mm | mm | N.m | L (mm) | L2 (mm) | a (mm) | a1 (mm) | b (mm) | Kg |
| 6450DS-30 | 30 | 14 x 18 | 650 | 70 | 32.5 | 13 | 22.2 | 67.5 | 0,23 |
| 6450DS-32 | 32 | 14 x 18 | 650 | 71.5 | 32.5 | 13 | 22.2 | 67.5 | 0,22 |
| 6450DS-34 | 34 | 14 x 18 | 765 | 73.2 | 32.5 | 15 | 22.5 | 74 | 0,25 |
| 6450DS-36 | 36 | 14 x 18 | 800 | 73.1 | 35 | 15 | 22.5 | 78 | 0,30 |
| 6450DS-41 | 41 | 14 x 18 | 800 | 79 | 40 | 15 | 22.5 | 82 | 0,28 |
