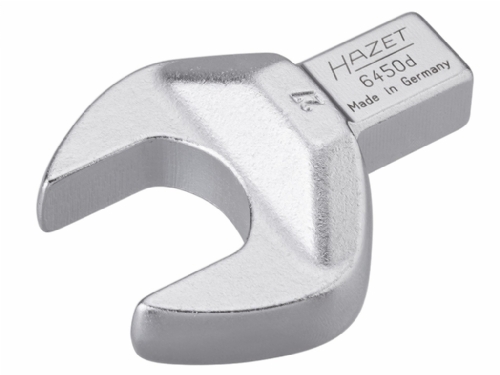

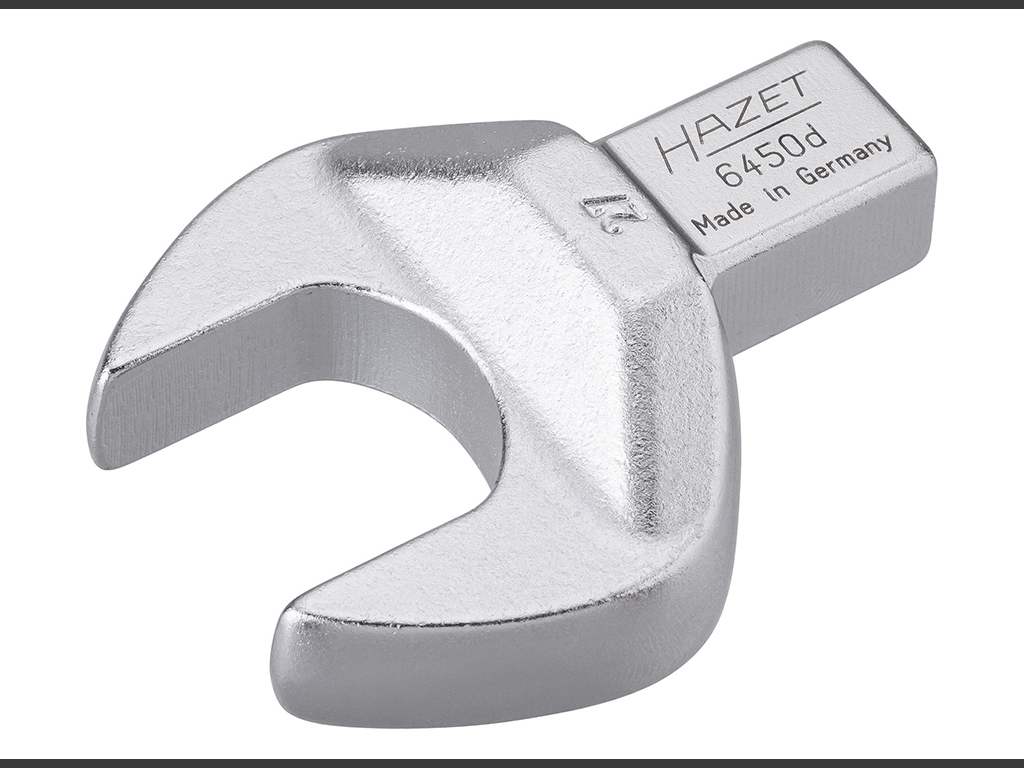

Hazet 6450D-27
27 mm Open End Interchangable Torque Head with 14x18mm Drive
| Hazet Code | 6450D-27 |
| A/F size | 27 mm |
| Type | Open end |
| Drive | 14x18 mm |
| Max. torque | 400 N.m |
| Surface | Chrome-Plated |
| Total length | 68.5 mm |
| Weight | 0,22 kg |
| Manufacturer | Hazet |
| Made in | Germany |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Product technical specificationsTechnical Specifications
Hazet open end rectangular 14x18mm drive interchangeable torque inserts. Available from 13mm to 41mm A/F sizes.

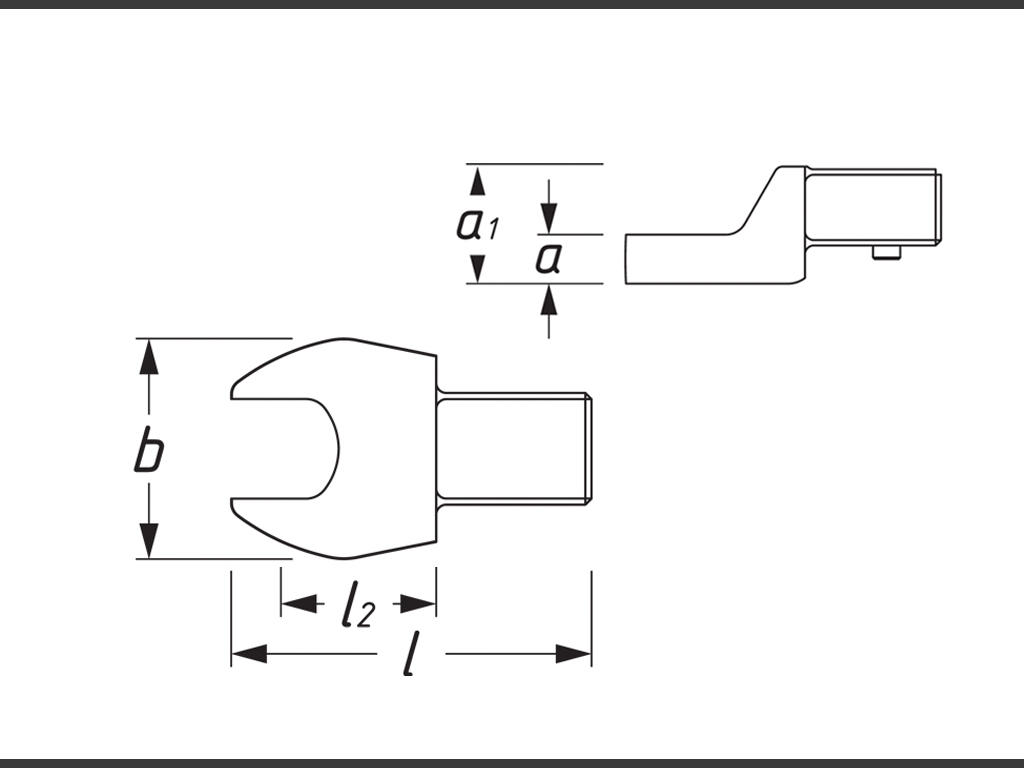

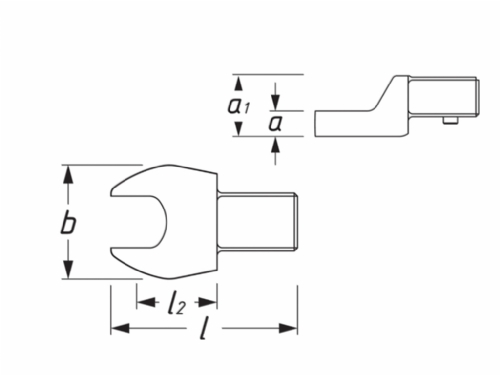

| Hazet | A/F Size | Drive size | Maximum Torque | Length Sizes | Thickness | Width | Weigth | ||
| Code | mm | mm | N.m | L (mm) | L2 (mm) | a (mm) | a1 (mm) | b (mm) | Kg |
| 6450D-13 | 13 | 14 x 18 | 52 | 56.5 | 25 | 7 | 21.5 | 30 | 0,11 |
| 6450D-14 | 14 | 14 x 18 | 64 | 57 | 25 | 7 | 21.5 | 32 | 0,11 |
| 6450D-15 | 15 | 14 x 18 | 77 | 57.5 | 25 | 7 | 21.5 | 34 | 0,11 |
| 6450D-16 | 16 | 14 x 18 | 93 | 58 | 25 | 9 | 21.5 | 35.5 | 0,13 |
| 6450D-17 | 17 | 14 x 18 | 110 | 58.5 | 25 | 9 | 21.5 | 37 | 0,13 |
| 6450D-18 | 18 | 14 x 18 | 130 | 59 | 25 | 9 | 21.5 | 39 | 0,13 |
| 6450D-19 | 19 | 14 x 18 | 150 | 59.5 | 25 | 9 | 21.5 | 41 | 0,13 |
| 6450D-21 | 21 | 14 x 18 | 198 | 60.5 | 25 | 11 | 21.5 | 45 | 0,15 |
| 6450D-22 | 22 | 14 x 18 | 225 | 61 | 25 | 11 | 21.5 | 47 | 0,15 |
| 6450D-24 | 24 | 14 x 18 | 287 | 62 | 25 | 11 | 21.5 | 51 | 0,16 |
| 6450D-27 | 27 | 14 x 18 | 400 | 68.5 | 32.5 | 13 | 22.5 | 58.5 | 0,22 |
| 6450D-30 | 30 | 14 x 18 | 537 | 70 | 32.5 | 13 | 22.5 | 63 | 0,22 |
| 6450D-32 | 32 | 14 x 18 | 644 | 71.5 | 32.5 | 13 | 22.5 | 65 | 0,22 |
| 6450D-34 | 34 | 14 x 18 | 762 | 73.2 | 32.5 | 13 | 22.5 | 68.5 | 0,23 |
| 6450D-36 | 36 | 14 x 18 | 800 | 73.3 | 32.5 | 13 | 22.5 | 67 | 0,22 |
| 6450D-38 | 38 | 14 x 18 | 800 | 72.7 | 32.5 | 13 | 22.5 | 67 | 0,22 |
| 6450D-41 | 41 | 14 x 18 | 800 | 79 | 40 | 12.4 | 22.5 | 82 | 0,28 |
