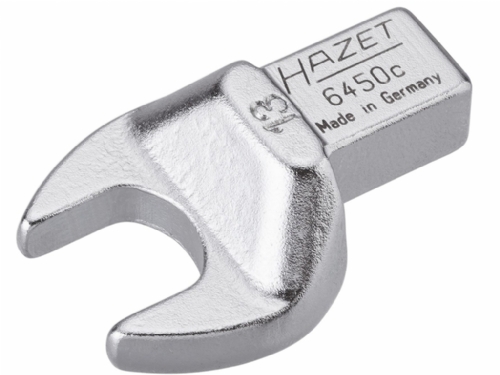

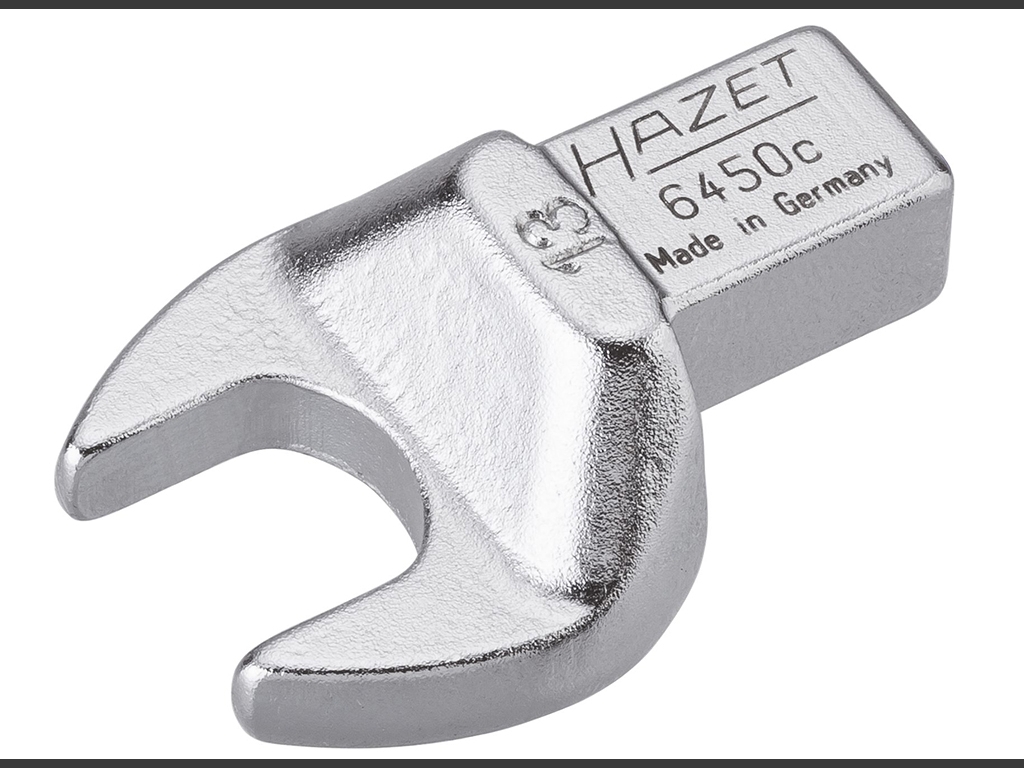

Hazet 6450-C13
13 mm Open End Interchangeable Torque Head with 9x12 mm Drive
| Hazet Code | 6450-C13 |
| A/F size | 13 mm |
| Type | Open end |
| Drive | 9x12 mm |
| Max. torque | 52 N.m |
| Surface | Chrome-Plated |
| Total length | 39 mm |
| Weight | 0,04 kg |
| Manufacturer | Hazet |
| Made in | Germany |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Product technical specificationsTechnical Specifications
Hazet open end rectangular 9x12mm drive interchangeable torque inserts. Available from 7mm to 19mm A/F sizes.

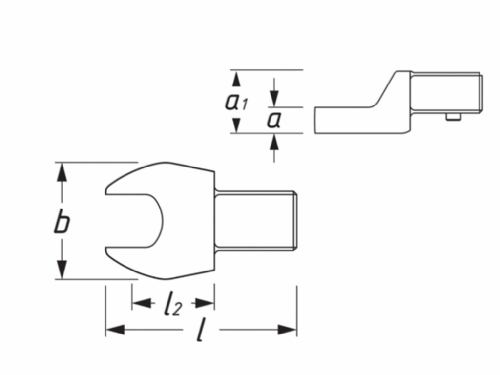

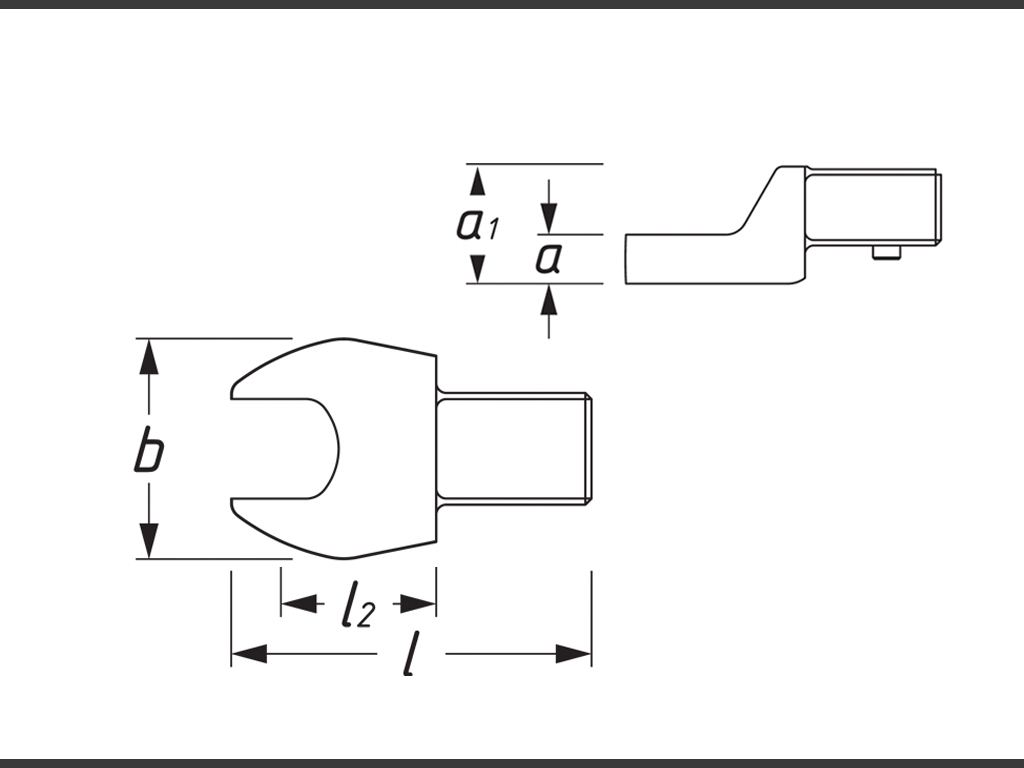

| Hazet | A/F Size | Drive size | Maximum Torque | Length Sizes | Thickness | Width | Weigth | ||
| Code | mm | mm | N.m | L (mm) | L2 (mm) | a (mm) | a1 (mm) | b (mm) | Kg |
| 6450C-7 | 7 | 9 x 12 | 10 | 36.5 | 17,5 | 5.5 | 14.5 | 20 | 0,04 |
| 6450C-8 | 8 | 9 x 12 | 13 | 37 | 17,5 | 5.5 | 14.5 | 21.5 | 0,04 |
| 6450C- 9 | 9 | 9 x 12 | 19 | 37.5 | 17,5 | 5.5 | 14.5 | 23 | 0,04 |
| 6450C-10 | 10 | 9 x 12 | 25 | 38 | 17,5 | 5.5 | 14.5 | 24.5 | 0,04 |
| 6450C-11 | 11 | 9 x 12 | 33 | 38.5 | 17,5 | 5.5 | 14.5 | 26 | 0,04 |
| 6450C-12 | 12 | 9 x 12 | 42 | 38.5 | 17,5 | 5,5 | 14.5 | 27.5 | 0,04 |
| 6450C-13 | 13 | 9 x 12 | 52 | 39 | 17,5 | 5,5 | 14.5 | 29 | 0,04 |
| 6450C-14 | 14 | 9 x 12 | 64 | 42 | 17,5 | 5,5 | 14.5 | 31 | 0,05 |
| 6450C-15 | 15 | 9 x 12 | 77 | 42.5 | 20 | 7.5 | 14.5 | 33 | 0,06 |
| 6450C-16 | 16 | 9 x 12 | 93 | 43 | 20 | 7.5 | 14.5 | 35 | 0,06 |
| 6450C-17 | 17 | 9 x 12 | 110 | 43.5 | 20 | 7.5 | 14.5 | 37 | 0,06 |
| 6450C-18 | 18 | 9 x 12 | 130 | 44 | 20 | 7.5 | 14.5 | 39 | 0,06 |
| 6450C-19 | 19 | 9 x 12 | 150 | 45 | 20 | 7.5 | 14.5 | 41 | 0,06 |
