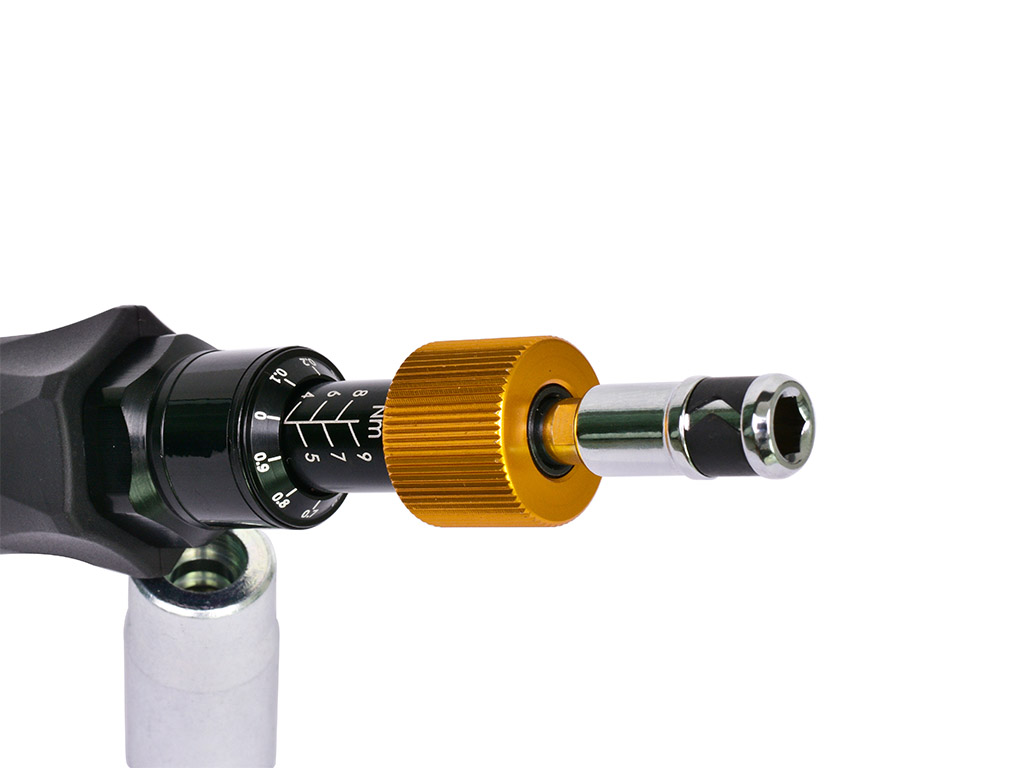

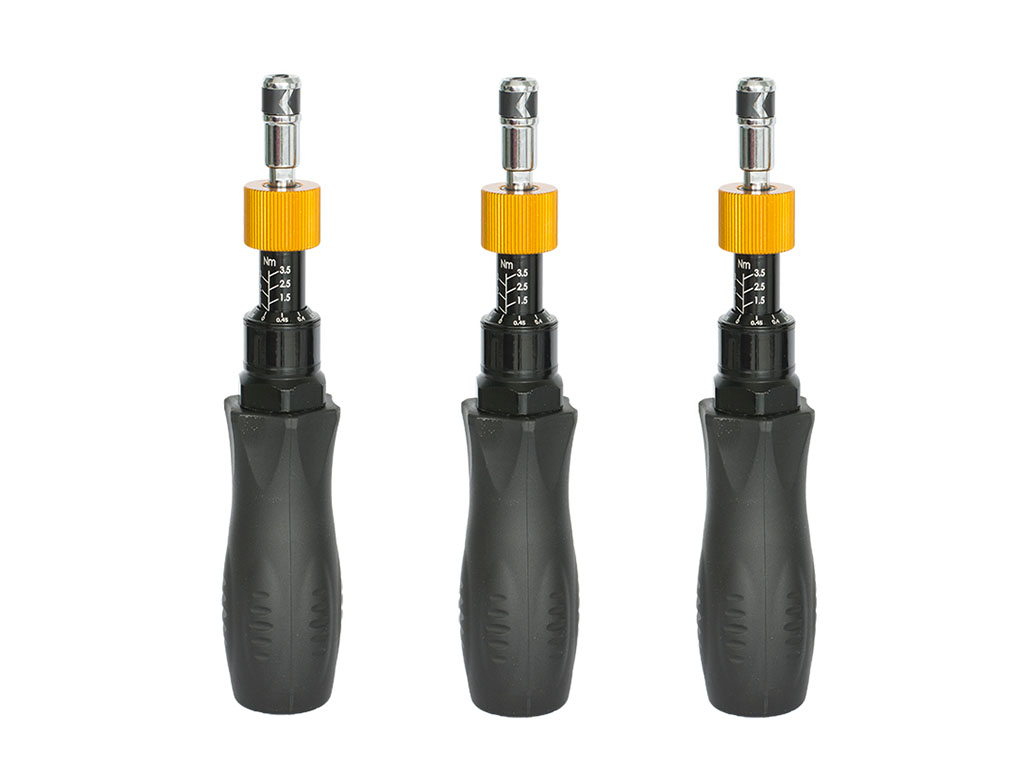

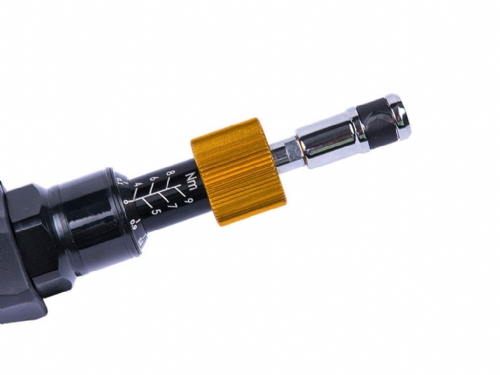

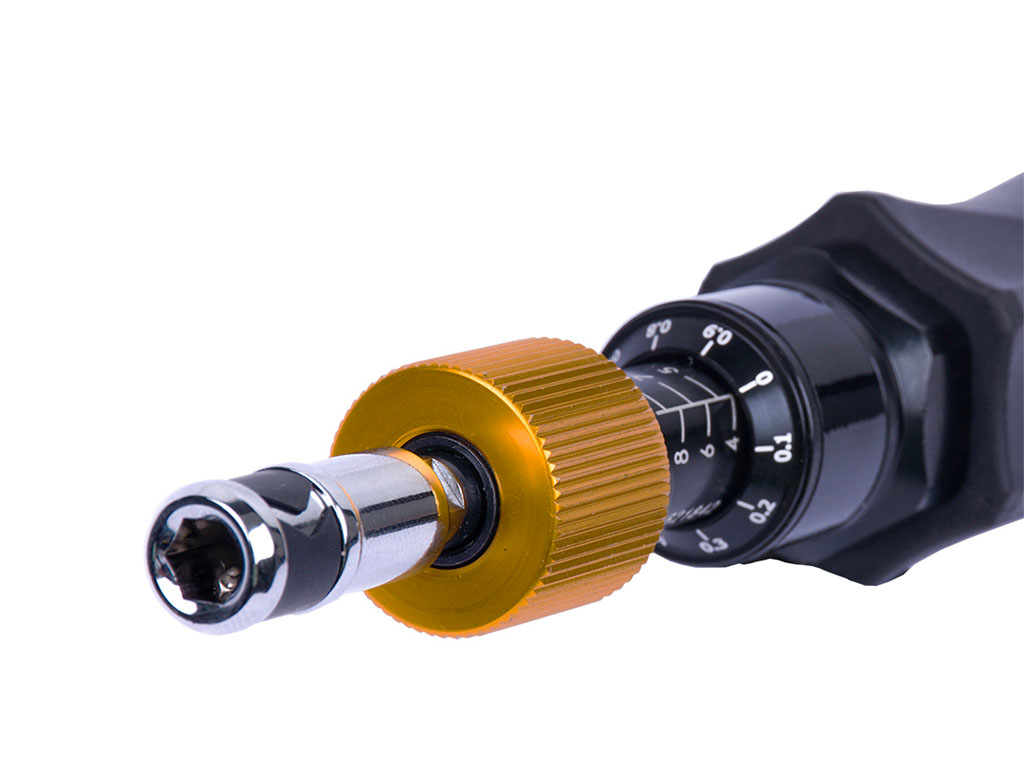

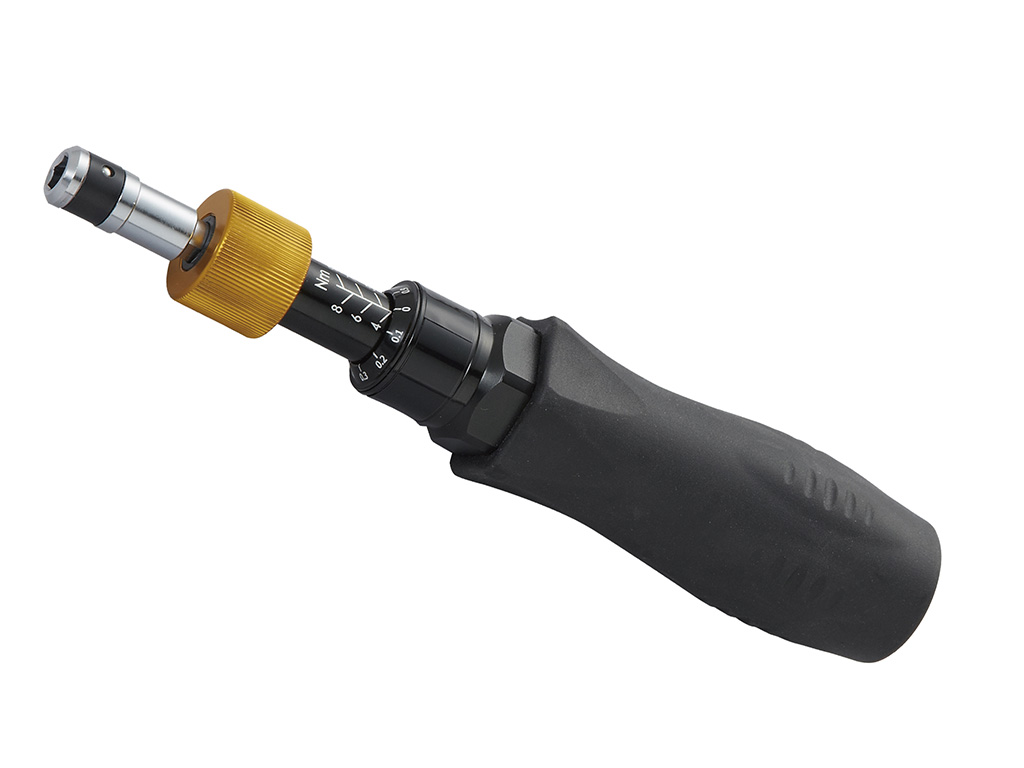

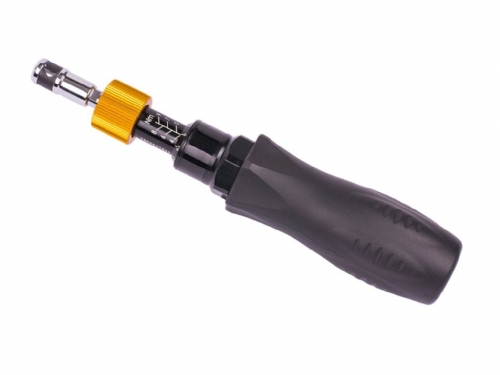

TW260-17 Torque Screwdriver
4.0 - 2.6 N.m Adjustable Torque Screwdriver, Accuracy ±%6, Fem. Hex. 1/4“ Drive
| Part no | TW260-17 |
| Model no | TTS-206 |
| Range | 0.4 - 2.6 N.m |
| Resolution | 0.02 N.m |
| Torque unit | N.m only |
| Accuracy | ±6% |
| Bit Holder | 1/4” hexagon |
| Calibration | Supplied with the tool |
| Acr. calibration | Optionally available |
| Lenght / Weight | 180 mm / 230 gr |
| Brand / Origin | Torc-Tech / Taiwan |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Torque ranges 0.1 - 10 N.m / 10 - 1000 cN.m
- Torque accuracy ± 6%
- Accuracy meets requirements of ISO 6789-1:2017
- Five different torque ranges for N.m unit
- Applied to both clockwise&counterclockwise direction
- Supplied with 1/4” female hexagon bit holder
- Torque adjustment made easyly
- Does not exceed the selected torque value
- Supplied with house calibration certificate
- Manufactured in Taiwan, Brand Torque-Tech, CE certified
Technical Specifications
Torch-Tech TTS Adjustable Torque Screwdrivers [0.1 N.m - 10 N.m]
| Part | Model | Drive | Torque Range | Resolution | Length | Weight | |
| # | # | # | N.m | cN.m | Nm | mm | kg |
| TW260-02 | TTS-201 |  |
0.1 - 1.2 | 10-120 | 0.01 | 180 | 0.230 |
| TW260-17 | TTS-206 | 0.4 - 2.6 | 40 - 260 | 0.02 | 180 | 0.230 | |
| TW262-04 | TTS-202 | 1.0 - 3.5 | 100-350 | 0.05 | 195 | 0.340 | |
| TW262-02 | TTS-203 | 1.0 - 6.0 | 100-600 | 0.1 | 195 | 0.340 | |
| TW262-03 | TTS-204 | 4.0 - 9.0 | 400-900 | 0.1 | 195 | 0.340 | |
| TW262-05 | TTS-205 | 5.0 - 10 | 500-1000 | 0.1 | 195 | 0.340 | |
