SW9TM Flange Spreader
9 Ton Equalizer Mechanichal Flange Spreader 81 mm Spreading Distance
| Product code | SW9TM |
| Enerpac Reference | PSM8 |
| Spreading capacity | 9 tn |
| Spreading stroke | 81 mm |
| Minimum access gap | 6 mm |
| Tool type | Mechanichal |
| Supplied torque wrench | 200 Nm |
| Safety block | included |
| Packing size | 320 x 190 x 180 mm |
| Tool weight | 7.5 kg |
| Origin | England |
| Made by | Equalizer International |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Flange spreading force 9 ton
- Spreading distance 81 mm
- Minimum required gap 6 mm
- Tool is maintanence free
- Protected against corrosion
- It is used with 200 N.m torque wrench
- Ergonomic – lightweight, easy use
- Can be operated individually or in pairs
- Used for safely opening pipe flanges
- Made in UK by Equalizer International
Kit Contents:
- 1 x SW9TM Wedgehead
- 1 x 203 N.m Torque Wrench
- 1 x Safety Block
- 1 x Instruction Manual
- 1 x Cardboard Packaging
Areas Used:
- Renewal in assembly
- In the test operation
- Construction - Commissioning
- Routine maintenance services
- Valve maintenance and installation

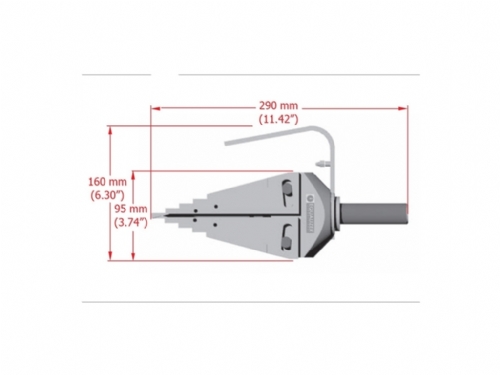

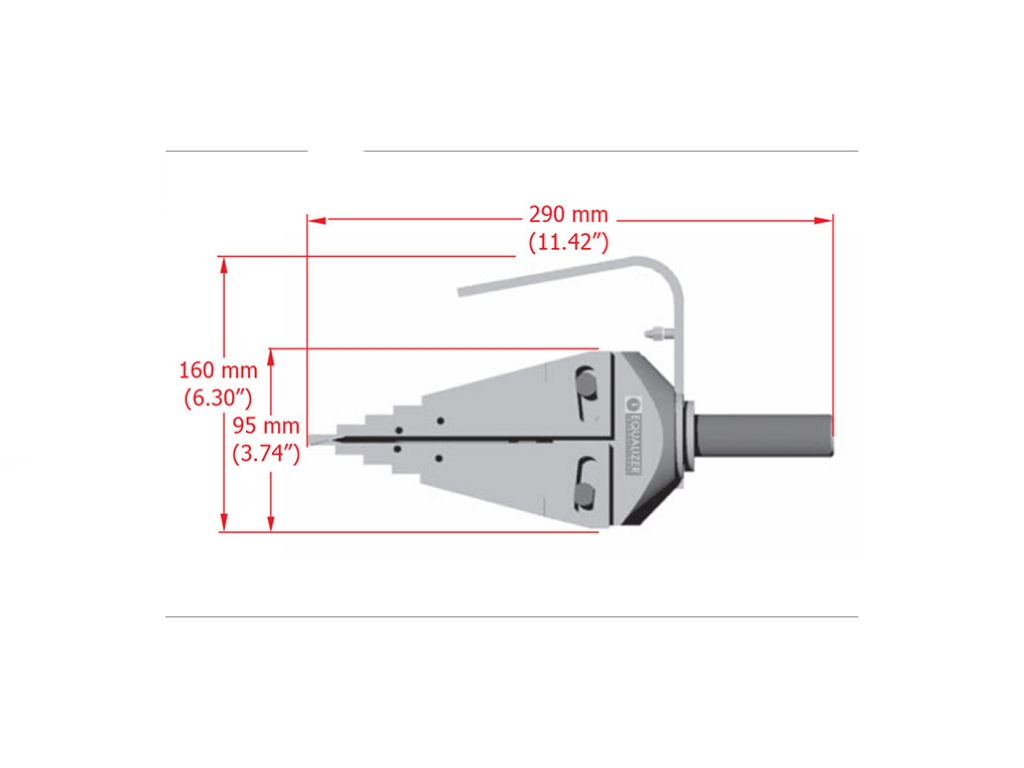

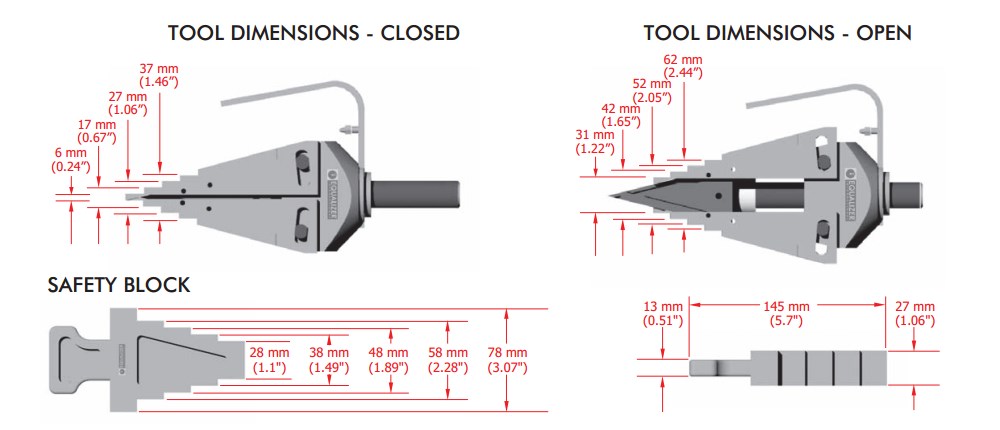

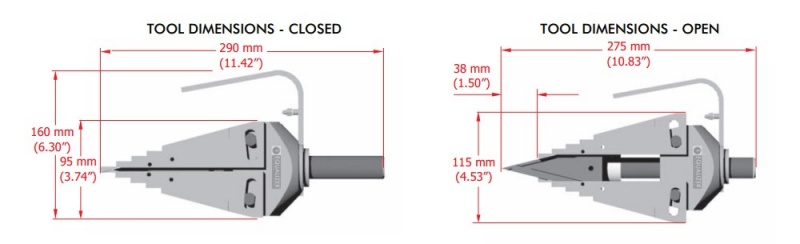

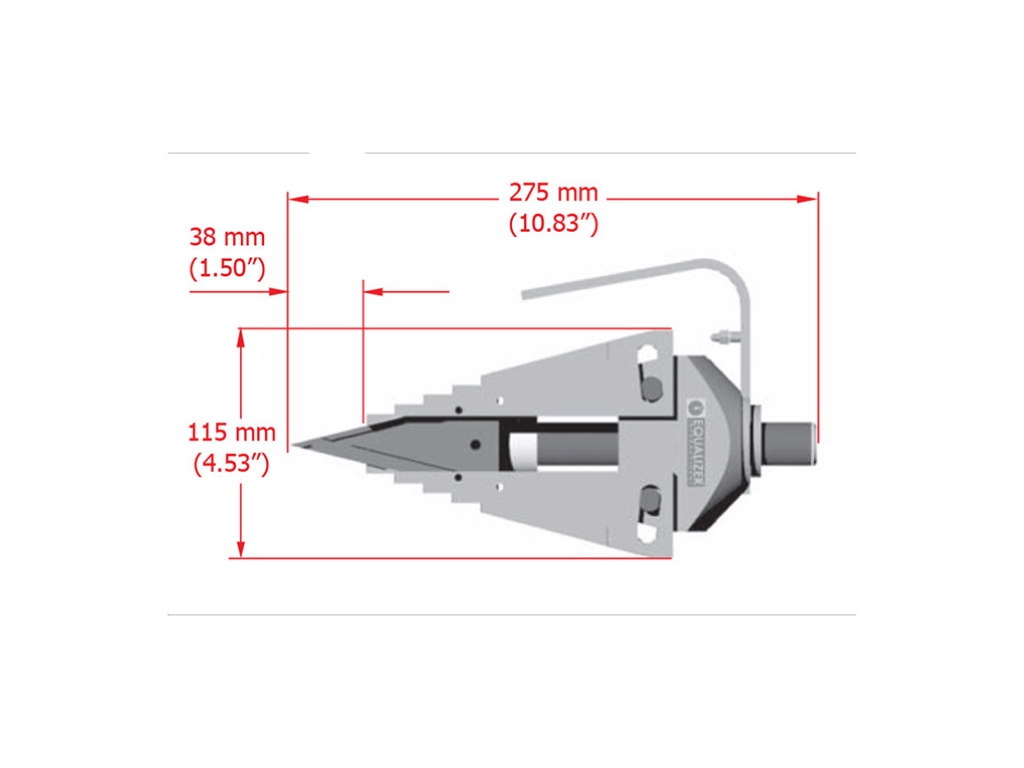

Technical Specifications
Equalizer SW9TM Flange Spreader

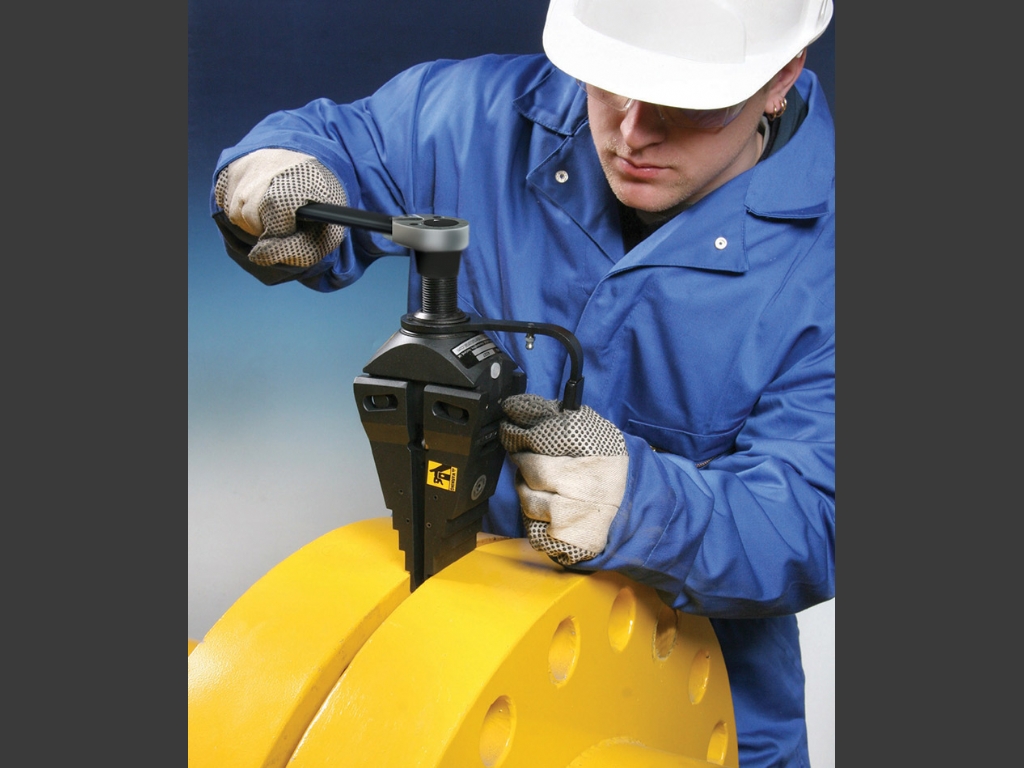

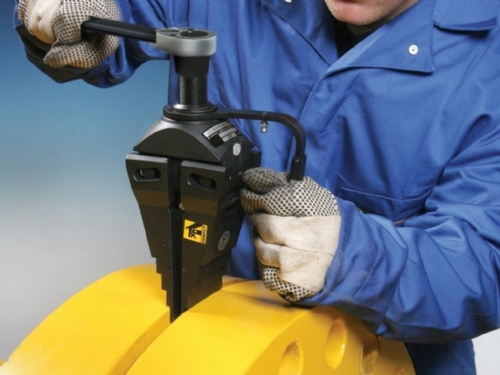

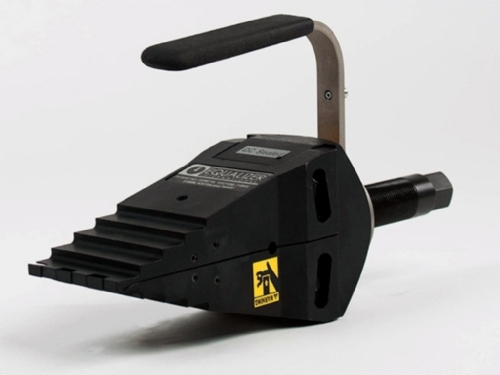

Photos
