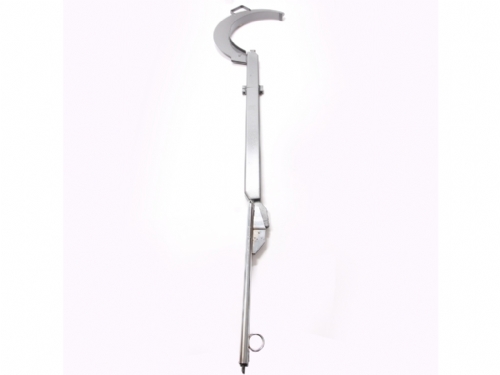

Norbar 12538 Electrode Torque Wrench
1.200 - 2.370 N.m Electrode Torque Wrench 24“ Inches, r2135 mm
| Part no | 12538 |
| Range - N.m | 1200-2370 N.m |
| Range - lbf.ft | 900 - 1750 lbf.ft |
| Accuracy | ±4% |
| Diameter | 24" Inches |
| Torque radius | 2135 mm |
| Tool length | 2069 mm |
| Tool weight | 26.1 k.g |
| Calibration | Supplied with the tool |
| Manufacturer | Norbar |
| Made in | United Kingdom |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Torque accuracy ±4%
- Torque ranges 44 – 3200 N.m
- Torque ranges 33 – 2360 Lbf.ft
- Meets the requirements of ISO 6789-1:2017
- It breaks when set torque is reached
- Torque control increases energy efficiency.
- Self-clamping speeds the tightening operation
- Reversible ratchet,interchangeble head available
- Delivered with house calibration certificate
- Origin UK, manufactured by Norbar, CE certified
Technical Specifications
Electrode Wrenches
Norbar Electrode Torque Wrenches [44 - 3.200]
| Part No | Model No | Torque Range | Electrode Diam | Tork Yarıçapı | Length | Weight | |
| # | # | N.m | lbf.ft | ø inch | r, mm | mm | kg |
| 12506 | 8" | 44-312 | 33-230 | 8" | 723 | 897 | 3.2 |
| 12530 | 10" | 146-542 | 110-400 | 10" | 890 | 1150 | 6.8 |
| 12531 | 12" | 205-780 | 150-575 | 12" | 990 | 1286 | 8.4 |
| 12532 | 14" | 350-1140 | 260-840 | 14" | 723 | 1764 | 13.8 |
| 12533 | 16" | 350-1300 | 260-950 | 16" | 890 | 1825 | 14.3 |
| 12535 | 18" | 750-1500 | 550-1110 | 18" | 990 | 1727 | 16.5 |
| 12536 | 20" | 1000-2000 | 750-1475 | 20" | 1805 | 2211 | 20.0 |
| 12537 | 22" | 1200-2370 | 900-1750 | 22" | 2135 | 2571 | 25.4 |
| 12538 | 24" | 1200-2370 | 900-1750 | 24" | 2135 | 2069 | 26.1 |
| 12538.HD | 24" | 1600-3200 | 1200-2360 | 24" | 2880 | 3350 | 31.7 |
Electrode Wrenches

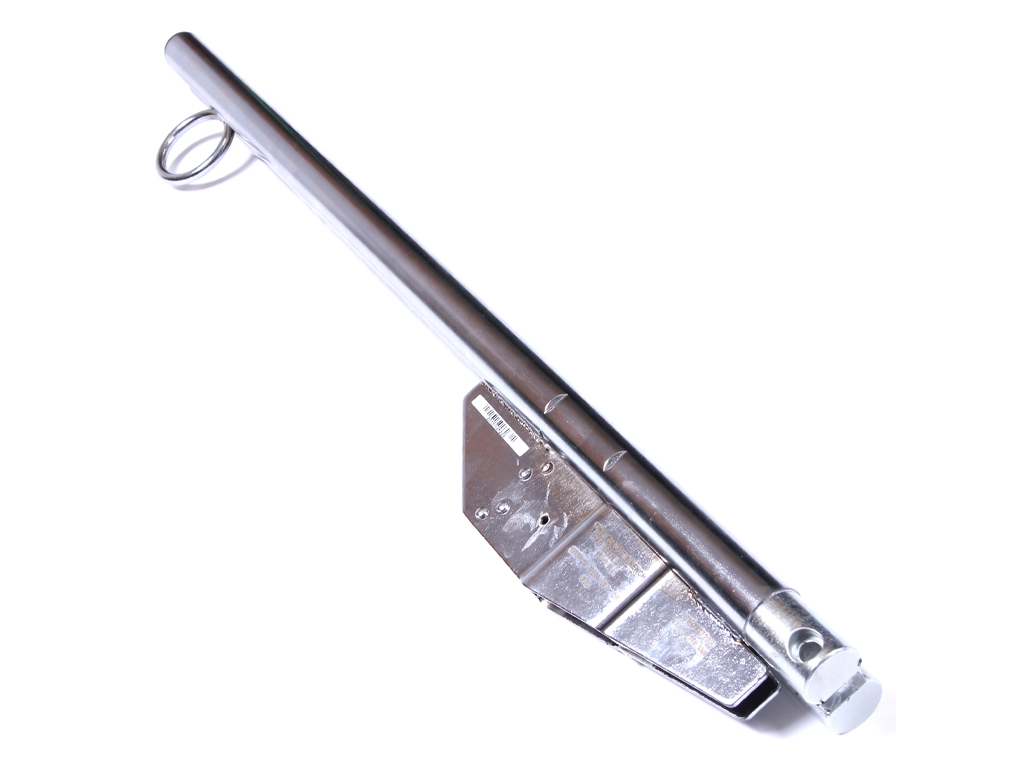

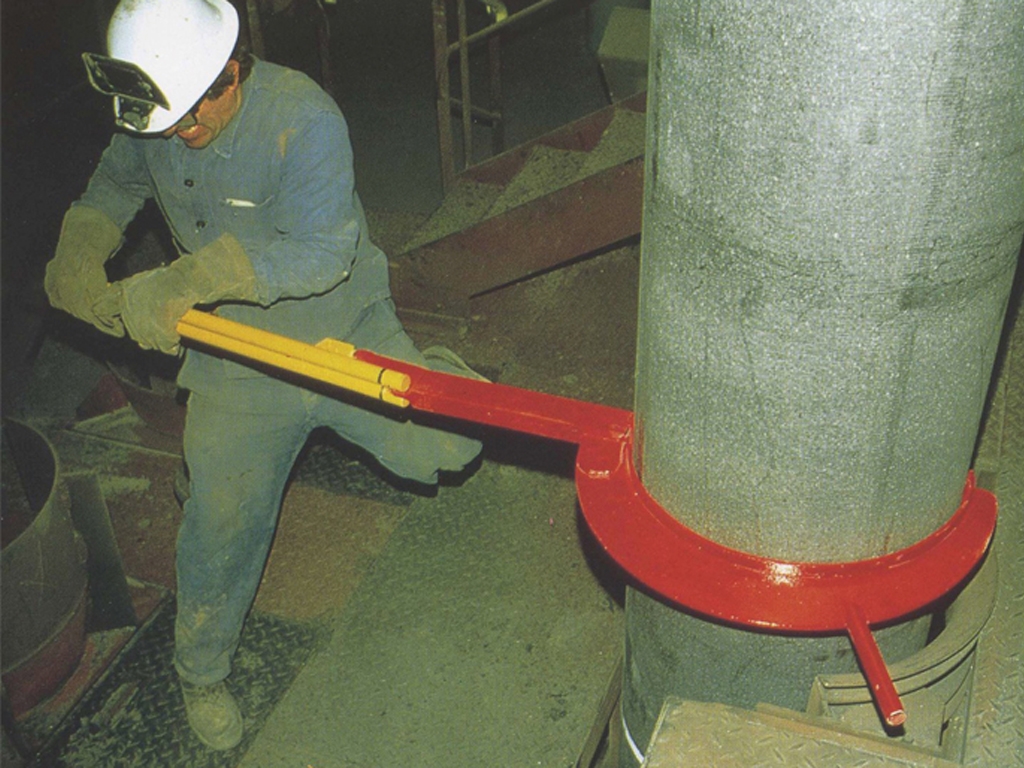

The correct tightening of carbon/graphite electrodes is known to increase the energy efficiency of electric arc furnaces and prevents electrode sections from being lost in the furnace. Norbar Electrode Wrenches are based on two well proven torque wrench designs: electrodes up to 8 inches use the ‘Professional’ type, 9 inches and upwards are based on the ‘Industrial’ wrench.
- Positive torque control increases energy efficiency.
- Self-clamping action speeds the tightening operation.
- Unmistakable signal when the set torque is reached.
- A wide range of electrode sizes, 8 to 24 inches, can be tightened.
