13857 TTs 3.0 Torque Screwdriver

0.6-3.0 N.m ~ 5-26 Lbf.in, Pre-Set Torque Screwdriver, 1/4“ Fem. Hex.

Part No 13857
Range (N.m) 0.6 - 3.0 N.m
Range (cN.m)
60 - 300 cN.m
Range (lbf.in) 5 - 26 lbf.in
Accuracy ± 6%
Model Pre-Set / P-Type
Bit Holder 1/4” Fem.hexagon
System Slipery clutch
House Calibration Optionally available
Accredited calibration Optionally available
Packing/Weight 160x50x50mm 0.5 kg



0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
538342
Verify Security Code:

Features
  • Accuracy exceeds the requirements of ISO6789
  • Supplied with a 1/4” hexagon bit holder designed using a 4mm hexagon stem.
  • The bit holder can be removed and replaced with widely available screwdriver blades.
  • Easy torque adjustment without the need of additional specialist tools.
  • All tools feature a lock to prevent accidental adjustment of the set torque.
  • Traceable calibration certificate for the clockwise direction.
  • Tool ‘slips’ when torque is achieved removing the possibility of ‘overtightening’.
  • Also available in kit form supplied with a range of 12 screwdriver bits.
Technical Specifications

Norbar Production "P" Type Torque Screwdrivers [ N.m - Lbf.in ]

Part No Model Torque Range Length Weight
# # Nm cN.m lbf.in mm kg
13856 TTs1.5 0.3 - 1.5  30 - 150  2.5 - 13 155 0.235
13857 TTs3.0 0.6 - 3.0  60 - 300  5 - 26 155 0.235
13858 TTs6.0 1.2 - 6.0  120 - 600  10 - 53  155 0.235

Norbar Adjustable Torque Screwdrivers [ N.m Scale Only ]

Part No Model Torque Range Resolution Length Weight
Norbar Nm cN.m Nm mm kg
13850 TTs1.5 N.m 0.3 - 1.5 30 - 150 0.05 155 0.235
13851 TTs3.0 N.m 0.6 - 3.0  60 - 300  0.1 155 0.235
13852 TTs6.0 N.m 1.2 - 6.0  120 - 600  0.2 155 0.235


Norbar Adjustable Torque Screwdrivers [ Lbf.in Scale Only ]

Part No Model Torque Range Resolution Length Weight
Norbar lbf.in N.m Lbf.in mm kg
13853 TTs1.5 in.lb 2.5 - 13 * 1.0 155 0.235
13854 TTs3.0 in.lb 5 - 26 * 1.0 155 0.235
13855 TTs6.0 in.lb 10 - 53  * 2.5 155 0.235

Norbar Adjustable Torque Screwdriver Sets [ N.m Scale ]

Part No Model Torque Range Resolution Length Weight
# # Nm cN.m Nm mm kg
13700 TTs0.3 - 1.5 N.m 0.3 - 1.5  30 - 150  0.05 155 0.235
13701 TTs0.6 - 3.0 N.m 0.6 - 3.0  60 - 300  0.1 155 0.235
13702 TTs1.2 - 6.0 N.m 1.2 - 6.0  120 - 600  0.2 155 0.235



Photos

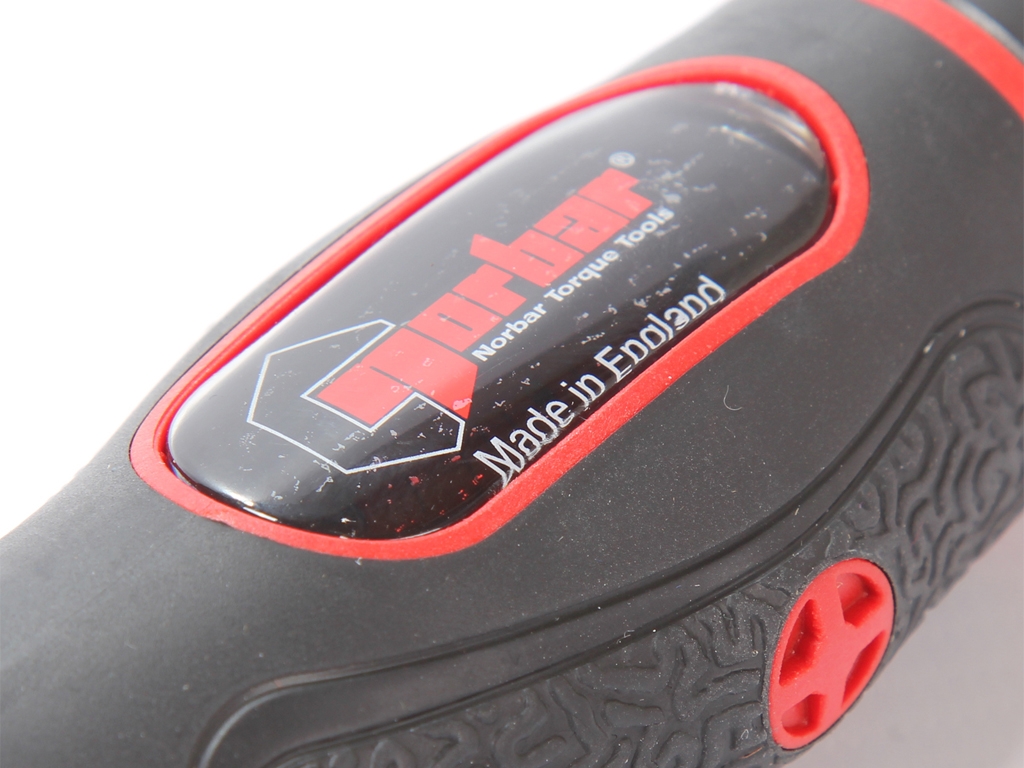

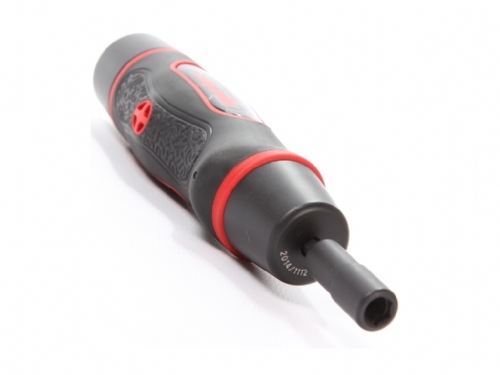

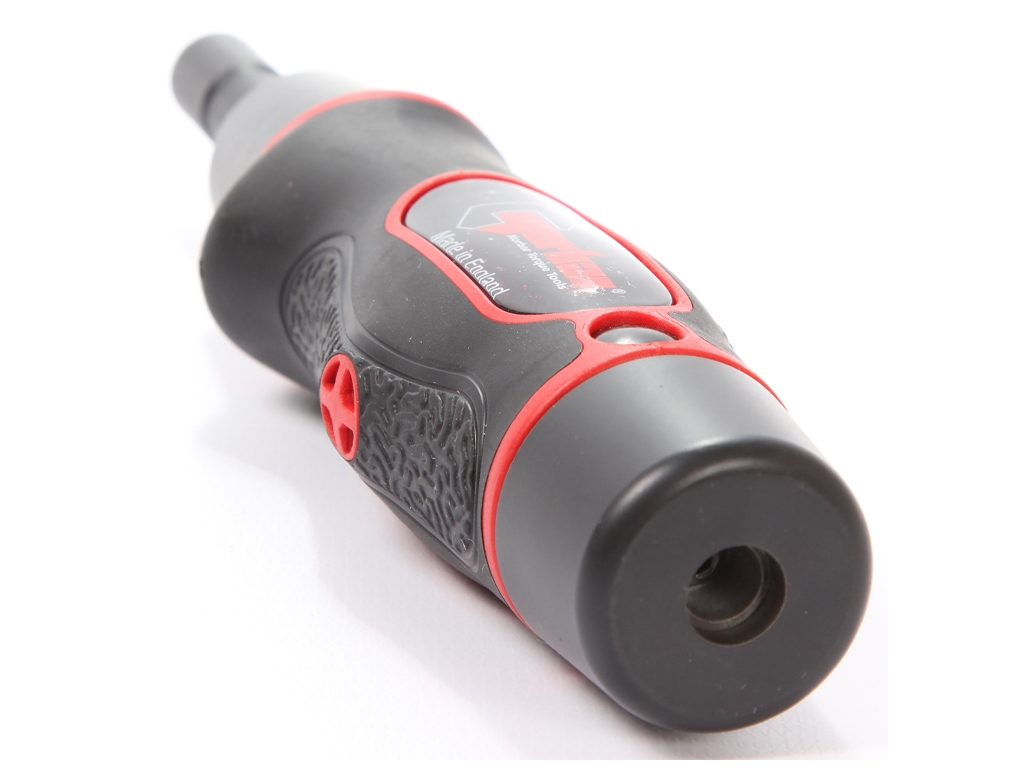

13857 TTs 3.0 Torque Screwdriver
13857 TTs 3.0 Torque Screwdriver
13857 TTs 3.0 Torque Screwdriver
13857 TTs 3.0 Torque Screwdriver
±6%
1/4"
Norbar
Pre-Set
Clutch Sistem
