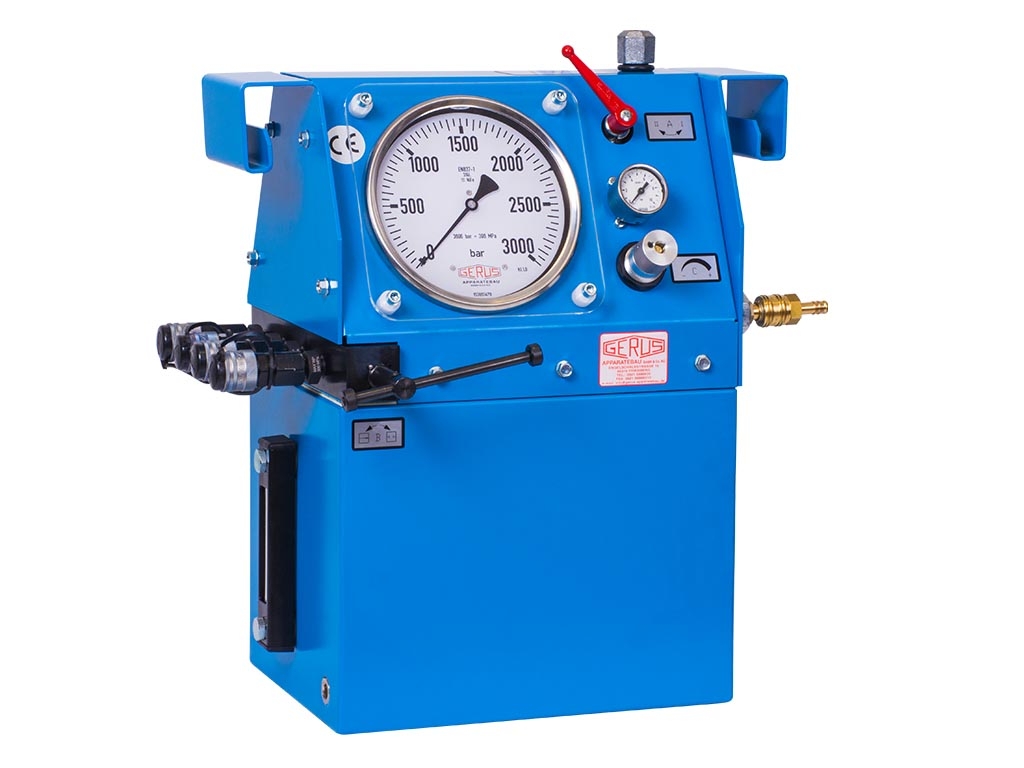

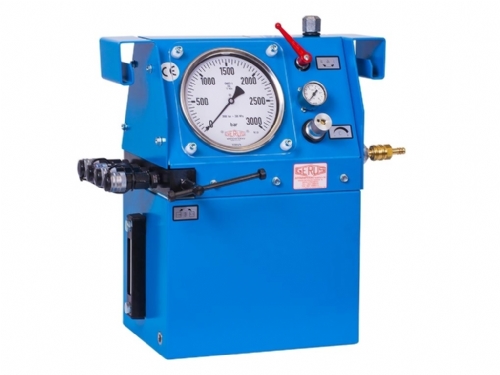

Gerus Press HP-26 Air Hydraulic Test Pump
2500 Bar Gerus Air Hydraulic Test Pump with 4 Output Ports, CEJN 125 Series
| Model No | HP-26 |
| Work. Pressure | 2.500 Bar |
| Flowrate | 0.5 Ltr/dak |
| Output Port | 4 x CEJN 125 |
| Air Pressure | 1.5 - 7.0 bar |
| Gauge Diam. | ø 165 mm |
| Gauge Scale | 0 - 3000 bar |
| Resolution | 50 bar |
| Useable Oil | 10 liter |
| Total weight | 40 kg |
| Tool Sizes | 550 x 431 x 315mm |
| Brand / Origin | Gerus / Germany |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Hydraulic pressure up to 2500 bar
- Single speed, single acting
- Check valve hold the load
- Fine pressure tuning available
- Pressure can be adjusted easyly
- Pressure adjustable by air inlet valve

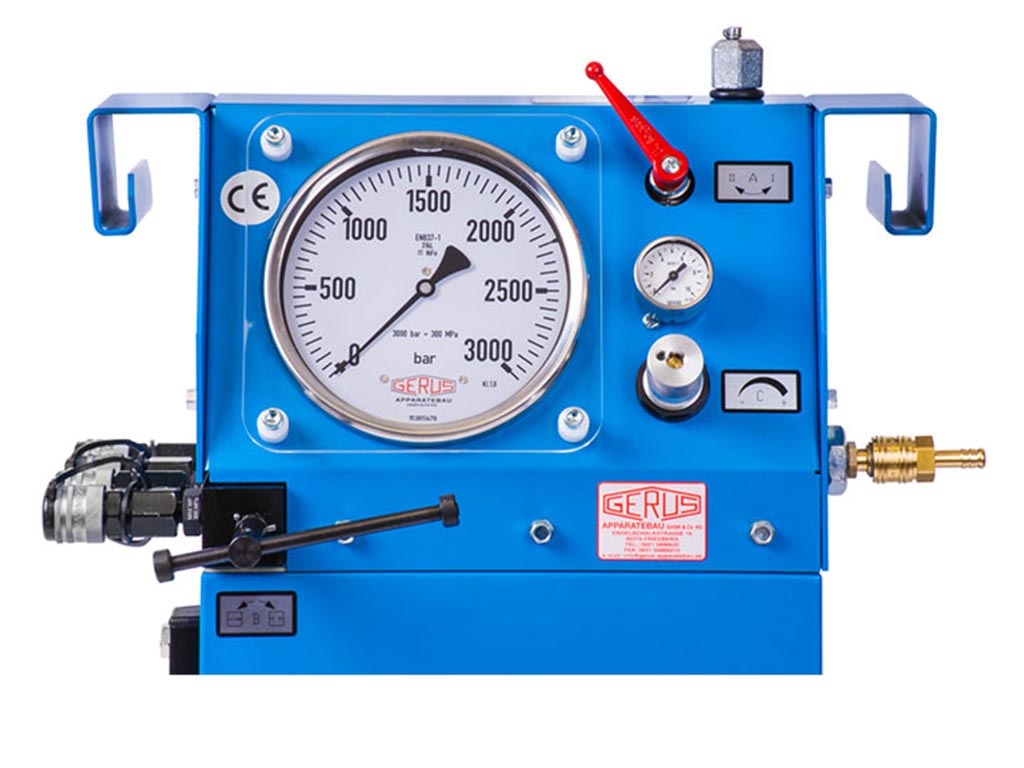

- 3000 bar ø165mm size presicion gauge
- Equipped with 4 oil output ports cejn 125
- Air pressure needed from 1.5 to 7 bar
- Air consumption 0.53 m³ /minute
- Portable, light weight, long lasting
- Used for tensioning & test operations
Reliable Portable Hydraulic Power Source: Geruspress-HP26
HP-26 Geruspress airhydraulic pump produces 2500 bar hydraulic pressure with 7 bar compressed air. The unit delivers 0.5 liters of oil per minute at maximum pressure. The hydraulic pressure level is determined by adjusting the pressurized air entering the pump. More air pressure in, more hydraulic pressure out.
Gerus HP-26 air hydraulic test pump is a reliable portable hydraulic power source designed for use in workshops, service centers, factories, and plants where service is provided. It is originally designed for MAN ship engines and power generatiors service operations.
4 Outlet Ports
The Gerus-Press HP-26 air driven hydraulic pump equipped with 4 oil outlet ports. These ports featured with CEJN 125 series of female couplings. All ports are pressurized at the same time. All ports can be used at the same time or individually.

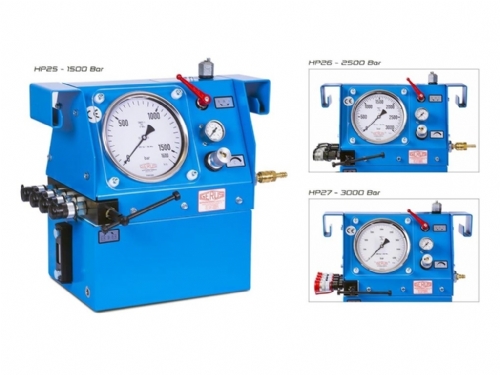

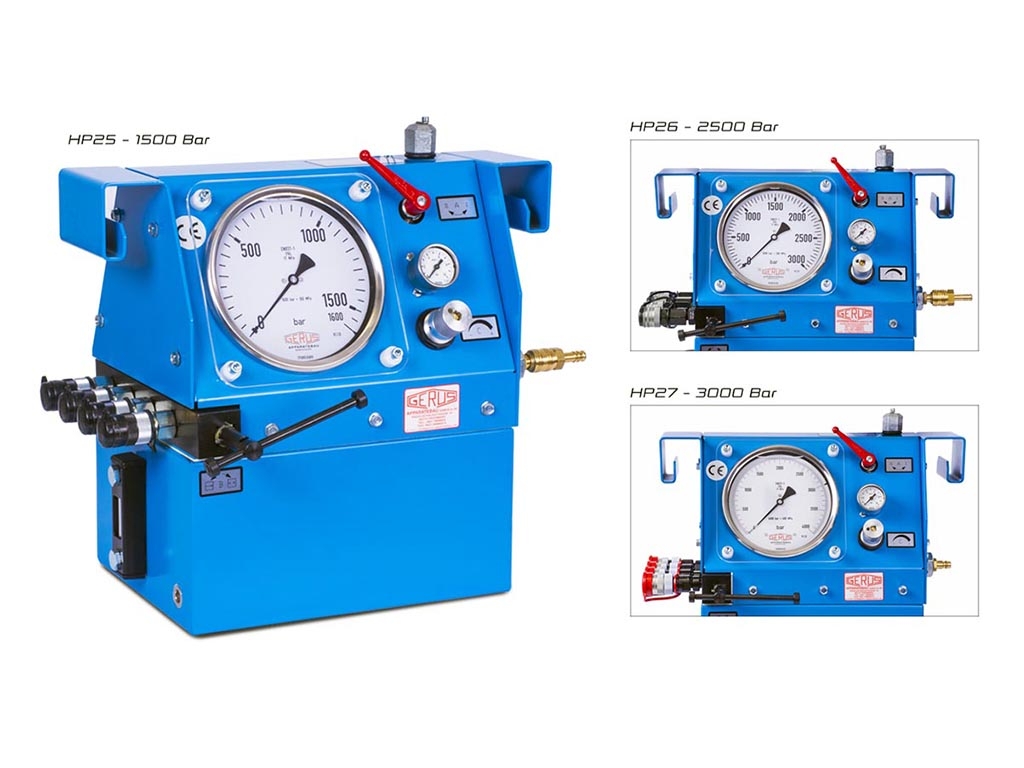

Gerus Hydro Pneumatic Test Pumps 1500-2000-3000 Bar
Technichal Data
Units
HP-25
HP-26
HP-27
Working Pressure
Bar
1500
2500
3000
Flowrate
lt/min
0.5
0.5
0.5
Hydraulic System
*
Single Acting
Single Acting
Single Acting
Air Pressure Range
Bar
1.5 - 7.0
1.5 - 7.0
1.5 - 8.0
Air Consumption
m³
0.53 m³ /min
0.6 m³ /min
0.6 m³ /min
Useable Oil
ltr
7
10
10
Oil Outputs Cejn 116 Coupler
G1/4"
4 Ports
4 Ports
4 Ports
Gauge Diameter
mm
ø165
ø165
ø165
Gauge Pressure Range
Bar
0 - 1600
0 - 3000
0 - 4000
Pressure Unit
#
Bar
Bar
Bar
Resolution on Gauge
Bar
50
50
25
Weight incl. Oil
kg
30.5
40
40
Pump Sizes
mm
402 x 431 x 315
550 x 431 x 315
550 x 431 x 315
| Technichal Data | Units | HP-25 | HP-26 | HP-27 |
| Working Pressure | Bar | 1500 | 2500 | 3000 |
| Flowrate | lt/min | 0.5 | 0.5 | 0.5 |
| Hydraulic System | * | Single Acting | Single Acting | Single Acting |
| Air Pressure Range | Bar | 1.5 - 7.0 | 1.5 - 7.0 | 1.5 - 8.0 |
| Air Consumption | m³ | 0.53 m³ /min | 0.6 m³ /min | 0.6 m³ /min |
| Useable Oil | ltr | 7 | 10 | 10 |
| Oil Outputs Cejn 116 Coupler | G1/4" | 4 Ports | 4 Ports | 4 Ports |
| Gauge Diameter | mm | ø165 | ø165 | ø165 |
| Gauge Pressure Range | Bar | 0 - 1600 | 0 - 3000 | 0 - 4000 |
| Pressure Unit | # | Bar | Bar | Bar |
| Resolution on Gauge | Bar | 50 | 50 | 25 |
| Weight incl. Oil | kg | 30.5 | 40 | 40 |
| Pump Sizes | mm | 402 x 431 x 315 | 550 x 431 x 315 | 550 x 431 x 315 |
Area Used
- Bolt tensioning systems
- Operating Hydraulic nuts
- Opening of SKF couplings
- Floating of camshafts
- Opening and separating turbo chargers
- Loosening cylinder cover of largest diesel engines
