Hazet 6612C-16

16 mm Open Ring End Interchangeable Torque Head with 9x12 mm Drive

Hazet Code 6612C-16
A/F size 16mm
Type Open Ring end
Drive 9x12 mm
Max. torque 93 N.m
Surface Chrome-Plated
Total length 45.9 mm
Weight 0,06 kg
Manufacturer Hazet
Made in Germany
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
519848
Verify Security Code:

Technical Specifications

Hazet open ring end rectangular 9x12mm drive interchangeable torque inserts. Available from10mm to 22mm A/F sizes

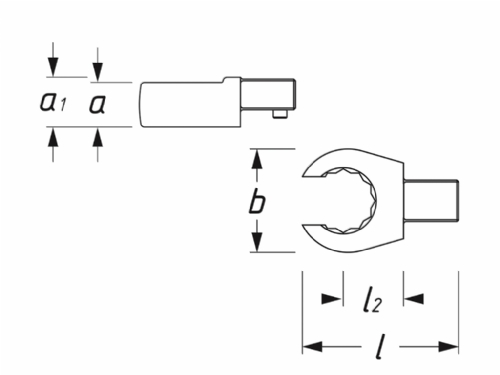

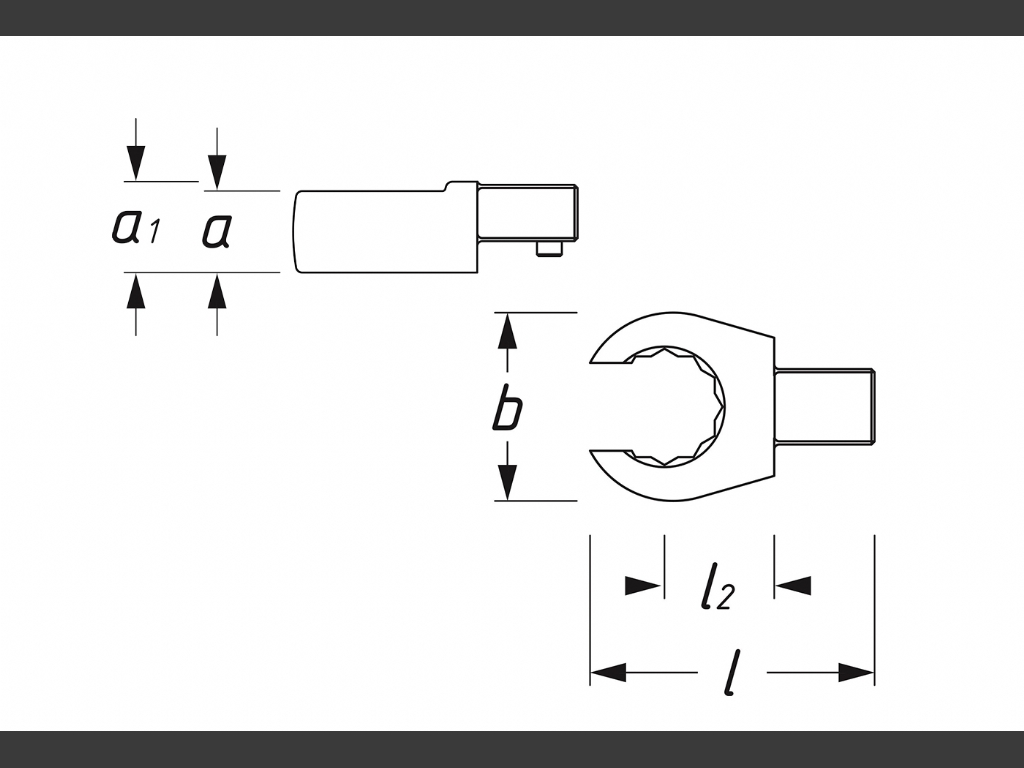

Hazet  A/F Size Drive size Maximum Torque Length Sizes Thickness Width Weigth
Code mm mm N.m L (mm) L2 (mm) a (mm) a1 (mm) b (mm) Kg
6612C-10 10 9 x 12 25 42,3 17,5 12 14,5 22 0.05
6612C-11 11 9 x 12 33 42,8 17,5 12 14,5 22,5 0.05
6612C-12 12 9 x 12 42 43,4 17,5 12 14,5 24 0.05
6612C-13 13 9 x 12 52 43,7 17,5 12 14,5 25 0.05
6612C-14 14 9 x 12 64 44,4 17,5 13 14,5 27 0.06
6612C-16 16 9 x 12 93 45,9 17,5 13 14,5 20 0.06
6612C-17 17 9 x 12 110 46,1 17,5 15 14,5 31,5 0.06
6612C-18 18 9 x 12 130 46,8 17,5 15 15 33 0.07
6612C-19 19 9 x 12 150 48 17,5 15 15 34,5 0.07
6612C-21 21 9 x 12 198 48,8 17,5 15 15 37,5 0.07
6612C-22 22 9 x 12 225 48,8 17,5 15 15 39 0.08

Photos

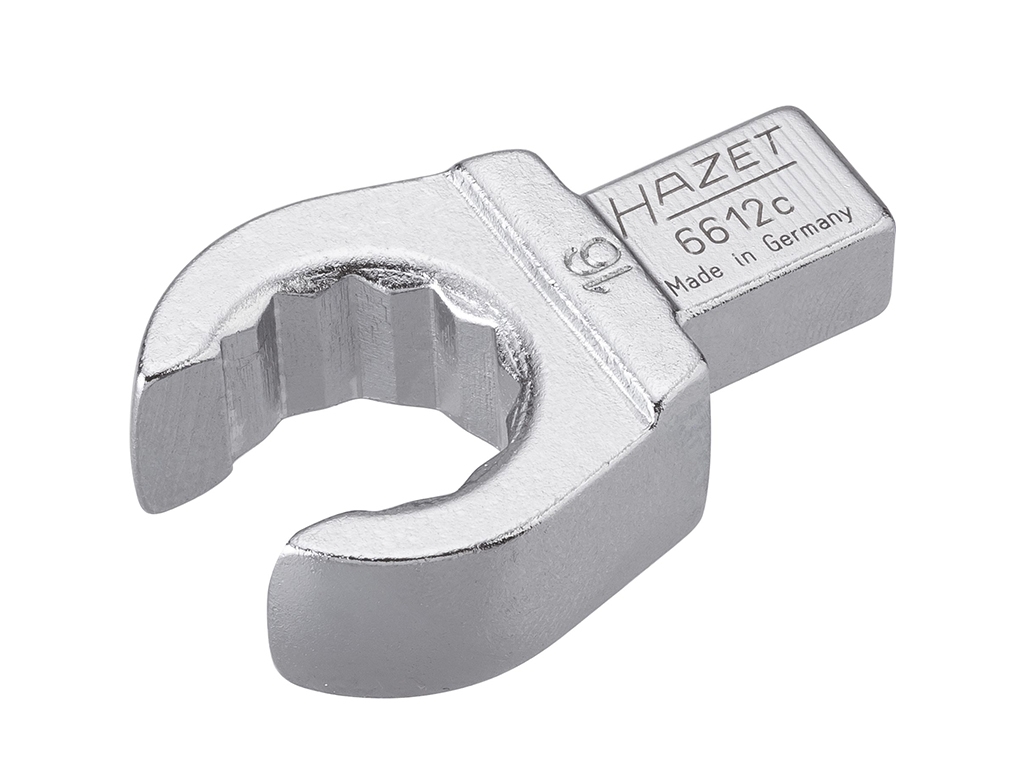

Hazet 6612C-16
Hazet 6612C-16
Hazet
9x12
Open Ring End
